Nordictrack T 11.5 Treadmill – NETL10713.1 / NETL107131
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
110 Parts Available for Nordictrack T 11.5 Treadmill - NETL10713.1 / NETL107131 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 186819 | 1 | #8 X 1/2″ SCREW | $0.99 | ||
 | 125237 | 4 | 3/8″ X 4″ SCREW | $5.99 | Unavailable to order | |
 | 163045 | 5 | 3/8″ STAR WASHER | $0.99 | ||
 | 013322 | 6 | #8 X 3/4″ SCREW | $0.99 | ||
 | 167049 | 7 | #10 X 3/4″ SCREW | $0.99 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 014088 | 9 | #10 STAR WASHER | $1.49 | ||
| 292421 | 10 | 5/16″ X 5/8″ SCREW | $1.99 | |||
| 012152 | 11 | PHOTO SWITCH NUT | $0.99 | |||
| 180007 | 12 | M8 X 33MM BUTTON BOLT | $3.49 | |||
 | 013576 | 13 | CROWN SCREW | $0.99 | ||
 | 364027 | 14 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 296273 | 15 | 3/8″ X 1 1/8″ Bolt | NLA | Unavailable to order | ||
| 301975 | 16 | 1/2″ X 2 1/4″ BOLT | $6.99 | |||
 | 100553 | 17 | 1/2″ LOCKNUT | $1.49 | ||
 | 133333 | 18 | CLIP NUT | $0.99 | ||
 | 013607 | 19 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 179767 | 20 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 119425 | 21 | 3/8″ LOCKNUT | $0.99 | ||
| 222258 | 22 | Wheel Spacer | NLA | Unavailable to order | ||
| 136728 | 24 | #8 BELT GUIDE SCREW | $0.99 | |||
| 194344 | 25 | 5/16″ X 1 1/4″ BOLT | $2.49 | |||
| 102959 | 26 | PHOTO SWITCH SCREW | $0.99 | |||
 | 298484 | 27 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
 | 152478 | 28 | 5/16″ FLAT WASHER | $0.99 | ||
 | 100427 | 29 | 5/16″ NUT | $0.99 | ||
| 265237 | 30 | 1/4″ X 1 3/4″ BOLT | $1.99 | |||
| 306291 | 31 | PULSE CROSSBAR | $150.99 | |||
| 013523 | 32 | SPRING BOLT | $1.49 | |||
 | 146427 | 33 | #8 X 1″ TEK SCREW | $0.99 | ||
| 237534 | 34 | M4.2 STAR WASHER | $0.99 | |||
| 210461 | 35 | FILTER | $163.49 | |||
| 348930 | 37 | RAIL,DECK,ARPS,W/DECAL,LT | $101.49 | |||
| 305284 | 38A | Latch Warning Decal | NLA | Unavailable to order | ||
| 323074 | 38B | LATCH DECAL,15 LANG | $51.99 | |||
| 359720 | 39 | WALKING PLATFORM | $176.49 | |||
 | 269103 | 40 | WALKING BELT | $99.99 | ||
 | 198639 | 41 | BELT GUIDE | $5.99 | ||
 | 298474 | 42 | SMALL CUSHION | $1.99 | ||
| 335313 | 43 | DRIVE ROLLER/PULLEY | $148.49 | |||
| 216626 | 45 | REED SWITCH CLIP | $0.99 | Unavailable to order | ||
 | 287224 | 46 | MOTOR BELT | $53.49 | ||
| 337720 | 47 | Part # 337720 | NLA | Unavailable to order | ||
| 284195 | 48 | FRAME SPACER | $0.99 | |||
| 349100 | 50 | Right Deck Rail with Decal | $101.49 | |||
| 348659 | 51 | Telescope Latch Catch Assembly | NLA | Unavailable to order | ||
| 315989 | 52 | RIGHT REAR FOOT | $20.99 | |||
 | 315988 | 53 | LEFT REAR FOOT | |||
 | 013423 | 54 | GROUND SCREW | $0.99 | ||
| 313100 | 55 | FILTER BRACKET | $71.49 | |||
 | 263724 | 56 | IDLER ROLLER | $114.99 | ||
| 348929 | 57 | HOOD,FRONT,ARPS | $157.99 | |||
| 283997 | 58 | LIFT FRAME SPACER | $1.99 | |||
| 313031 | 59 | Incline Frame | NLA | Unavailable to order | ||
| 313080 | 60A | INCLINE MOTOR | $151.99 | |||
 | 286707 | 60B | LIFT MTR SENSOR KIT | $70.49 | ||
| 210559 | 60C | MOTOR CONTROLLER WIRE | $15.99 | |||
| 171902 | 61A | Chest Pulse Transmitter | NLA | Unavailable to order | ||
| 171904 | 61B | POLAR CHEST PULSE | $28.49 | |||
| 292650 | 62 | CONTROLLER | $342.99 | |||
| 116926 | 63 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 306980 | 64 | Belly Pan Plate | NLA | Unavailable to order | ||
| 250627 | 65 | POWER SWITCH | $16.49 | |||
| 327046 | 66 | Power Cord Drawing | NLA | Unavailable to order | ||
 | 227199 | 67 | GROMMET | $2.49 | ||
| 331856 | 68 | BELLY PAN | $140.49 | |||
| 301337 | 69 | HANDRAIL CAP | $3.49 | |||
| 339913 | 70 | UPRIGHT WIRE | $92.99 | |||
 | 316177 | 73 | LEFT BASE COVER | $13.99 | ||
| 316176 | 74 | RIGHT BASE COVER | $13.99 | |||
| 348583 | 75 | UPRT,LT,ARPS | $194.49 | |||
| 348582 | 76 | UPRT,RT,ARPS | $194.49 | |||
 | 314515 | 77 | BASE CAP | $1.99 | ||
| 252433 | 78A | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 323073 | 78B | DECAL,CAUTION,16LANG | $56.99 | |||
| 301345 | 79 | CENTER FOOT | $2.99 | |||
| 344788 | 80 | BASE | $191.99 | |||
 | 139090 | 81 | WHEEL | $2.99 | ||
 | 263710 | 82 | KEY | $19.99 | ||
| 311128 | 83 | CONSOLE BASE | $96.99 | |||
 | 135711 | 84 | 5/16″ X 1″ FLAT HD SCREW | $1.99 | ||
| 301177 | 85 | RIGHT TRAY | NLA | Unavailable to order | ||
 | 284338 | 86C | CROSSFLOW FAN | $82.49 | Unavailable to order | |
| 212535 | 86D | FAN SCREW | $0.99 | |||
| 322169 | 87 | Console Frame | NLA | Unavailable to order | ||
 | 333350 | 88 | M8 LOCKNUT | $1.99 | ||
 | 215822 | 89 | 4″ GRN WIRE | $5.99 | ||
| 348651 | 90 | LATCH CROSSBAR | $104.49 | |||
| 132315 | 91 | ZIP TIE | $3.49 | |||
 | 183025 | 92 | 5/16″ X 1″ SCREW | $7.49 | ||
| 310875 | 93 | RIGHT HANDRAIL COVER | $6.99 | |||

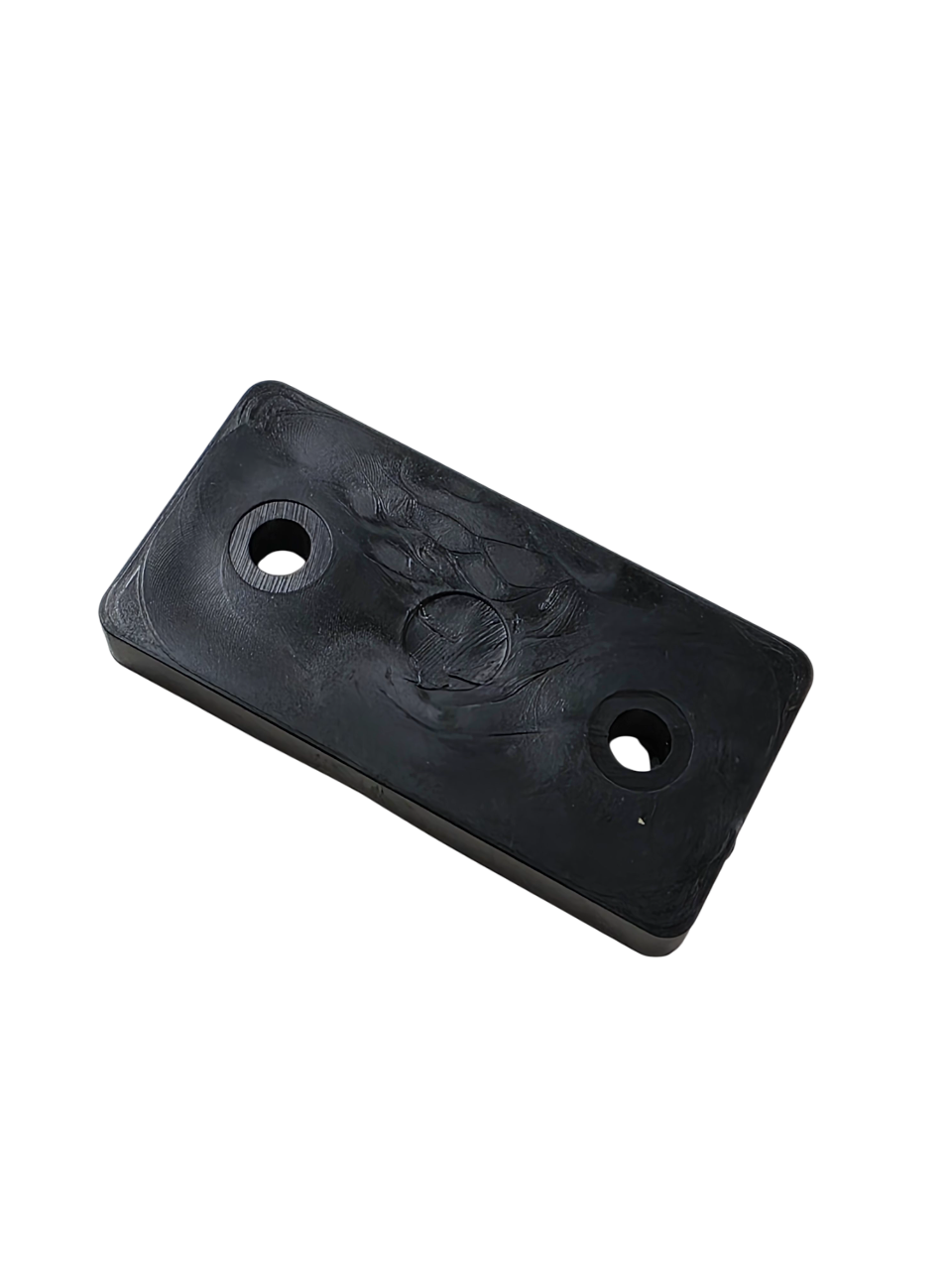

 | 314522 | 94 | BASE PAD SPACER | $0.99 | ||
 | 185207 | 95 | REED SWITCH/WIRE | $27.49 | ||
| 243797 | 96 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
| 301176 | 97 | LEFT TRAY | $26.49 | |||
| 332320 | 98 | GROUNDING BRACKET | $23.99 | |||
| 242387 | 99 | RECEPTACLE | $15.49 | |||
| 310874 | 100 | LEFT HANDRAIL COVER | $6.99 | |||
| 224346 | 101 | MOTOR SPACER | $2.99 | |||
| 389952 | 102 | MOTOR BUSHING | $14.99 | |||
| 348559 | 103 | CVR,UPRT,UPPER,RT,BLK | $50.99 | |||
| 333349 | 104 | M8 X 50MM BOLT | $2.99 | |||
| 014039 | 105 | M4 FLAT WASHER | $4.99 | |||
| 225696 | 106 | 1/4″ X 1 1/4″ SCREW | $1.49 | |||
| 348560 | 107 | CVR,UPRT,UPPER,LT,BLK | $50.99 |
