Nordictrack Elite 7700 Treadmill – 24937.7 / 249377
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
134 Parts Available for Nordictrack Elite 7700 Treadmill - 24937.7 / 249377 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 295136 | 1 | 5/16″ X 3/4″ SCREW | $1.49 | ||
 | 349213 | 4 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013322 | 5A | #8 X 3/4″ SCREW | $0.99 | ||
| 292368 | 5B | #8 X 1″ SCREW | $1.99 | |||
 | 013607 | 5C | FRAME GUIDE SCREW | $0.99 | ||
| 331708 | 5D | BUMPON,HOOD COWLING | $0.99 | |||
 | 167049 | 6 | #10 X 3/4″ SCREW | $0.99 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 9 | 5/16″ NUT | $0.99 | ||
 | 013300 | 10 | ANCHOR/BASE LEG SCREW | $0.99 | ||
 | 013576 | 11 | WEIGHT RACK SCREW | $0.99 | ||
 | 364027 | 12 | IDLER ROLLER SCREW | $2.99 | ||
 | 186819 | 13 | #8 X 1/2″ WSHR HD SCREW | $0.99 | ||
 | 346519 | 14 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
| 159986 | 15 | 3/8″ X 2″ HEX HEAD BOLT | $6.49 | |||
 | 337718 | 16 | TV Remote Control | NLA | ||
| 128263 | 17 | #8 X 1 3/4″ SCREW | $0.99 | |||
| 136728 | 18 | SCREW | $0.99 | |||
| 295758 | 19 | 5/16″ DRIVE MOTOR SCREW | $3.49 | |||
| 169660 | 21 | 1/4″ X 1 1/4″ SCREW | $1.99 | |||
 | 149072 | 22 | 3/8″ X 1 3/4″ BOLT | $3.99 | ||
| 308629 | 25 | Fan Grill Tray | NLA | |||
| 372109 | 26 | 1/2″ X 2 1/4″ BOLT | $3.99 | |||
 | 298474 | 27 | PLATFORM GROMMET | $1.99 | ||
| 372033 | 28 | 3/8″ X 1 1/8″ BOLT | $5.49 | |||
| 175284 | 29 | #6 X 1/2″ SCREW | $0.99 | |||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
| 013509 | 32A | #6 X 3/8″ SCREW, NOTE: | $0.99 | |||
 | 183246 | 33A | 1/4″ X 1/2″ SCREW | $1.49 | ||
| 269381 | 33B | 1/4″ X 5/8″ BOLT | $1.99 | |||
 | 100553 | 34 | 1/2″ NUT | $1.49 | ||
 | 119425 | 35 | 3/8″ NUT | $0.99 | ||
 | 133333 | 36 | #8 HOOD CLIP | $0.99 | ||
| 360945 | 37 | CUSHION | $26.49 | |||
| 305284 | 38 | Latch Warning Decal | NLA | |||
| 362730 | 39 | WALKING PLATFORM | $185.49 | |||
 | 352010 | 40 | WALKING BELT | $178.99 | ||
| 356252 | 41 | Left Foot Rail | NLA | |||
| 356251 | 42 | RIGHT FOOT RAIL | $95.99 | |||
 | 198639 | 43 | BELT GUIDE | $5.99 | ||
| 352013 | 44 | LEFT FRAME COVER | $81.49 | |||
 | 372092 | 45 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 102973 | 46 | 3/8″ WASHER | $0.99 | ||
 | 129144 | 47 | FRAME/LIFT PIVOT WASHER | $3.49 | ||
 | 399610 | 48 | CONTROLLER | $185.99 | ||
| 014157 | 49 | #8 STAR WASHER | $0.99 | |||
| 361491 | 50 | Controller Bracket | NLA | |||
| 352011 | 51 | DRIVE ROLLER/PULLEY | $148.49 | |||
| 240351 | 53 | WIRE TIE | $0.99 | |||
| 328330 | 54 | Part # 328330 | NLA | |||
 | 311589 | 55 | MOTOR BELT | $53.49 | ||
 | 388199 | 56 | STORAGE LATCH | $119.49 | ||
| 357046 | 57 | RIGHT FRAME COVER | $81.49 | |||
 | 223662 | 59 | IDLER ROLLER | $165.99 | ||
| 358779 | 60 | Left Rear Cap | NLA | |||
 | 358780 | 61 | RIGHT REAR FOOT | $24.99 | ||
| 352006 | 62 | MOTOR HOOD | $125.99 | |||
 | 372106 | 63 | LIFT/BASE PIVOT WASHER | $2.99 | ||
| 372107 | 64 | FRAME SPACER | $2.99 | |||
| 372310 | 65 | Incline Frame | $189.99 | |||
 | 352008 | 66A | INCLINE MOTOR | $156.49 | ||
 | 286707 | 66B | INCLN MOTOR SENSOR KIT | $70.49 | ||
 | 114078 | 67 | INCLN MOTOR SPACER | $2.49 | ||
| 230979 | 68 | HOOD POST | $5.49 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 186726 | 71 | POWER SWITCH | $22.49 | ||
| 351693 | 72 | BELLY PAN | $99.99 | |||
 | 351952 | 73 | LEFT HANDRAIL TOP COVER | $18.99 | ||
| 357773 | 74 | HANDRAIL | $54.49 | |||

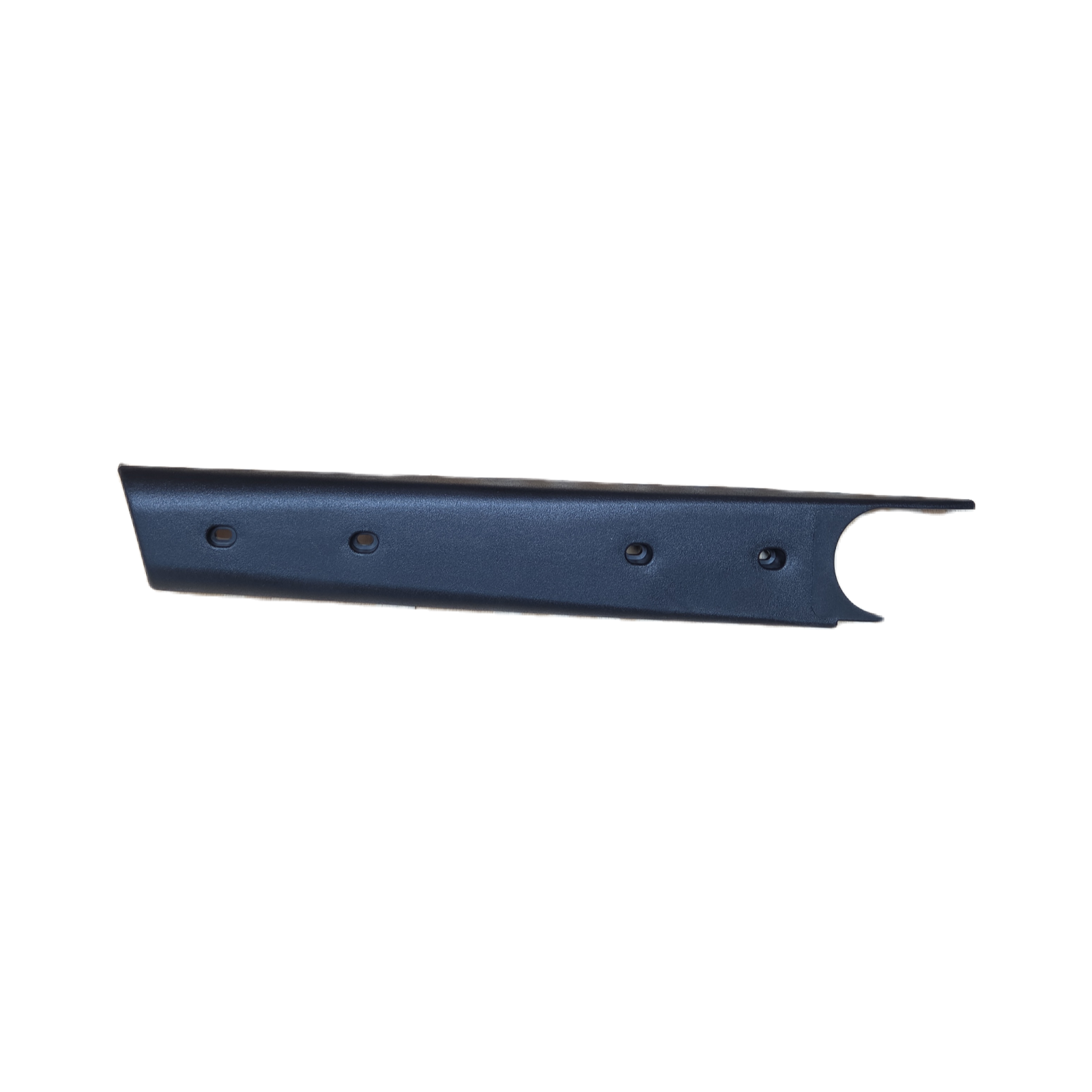

| 351951 | 75 | LEFT HANDRAIL BTTM CER | $16.99 | |||
| 351467 | 76 | UPRIGHT CROSSBAR | $98.49 | |||
| 104794 | 77 | FRAME CAP | $1.99 | |||
| 348854 | 78A | 50″ TV CABLE | $74.49 | |||
| 109520 | 78B | 6″ CABLE LOOM | $4.99 | |||
| 351686 | 79 | TRAY | $55.49 | |||
| 351955 | 80 | Pulse Crossbar | NLA | |||
 | 351954 | 81 | RIGHT HANDRAIL TOP COVER | $18.99 | ||

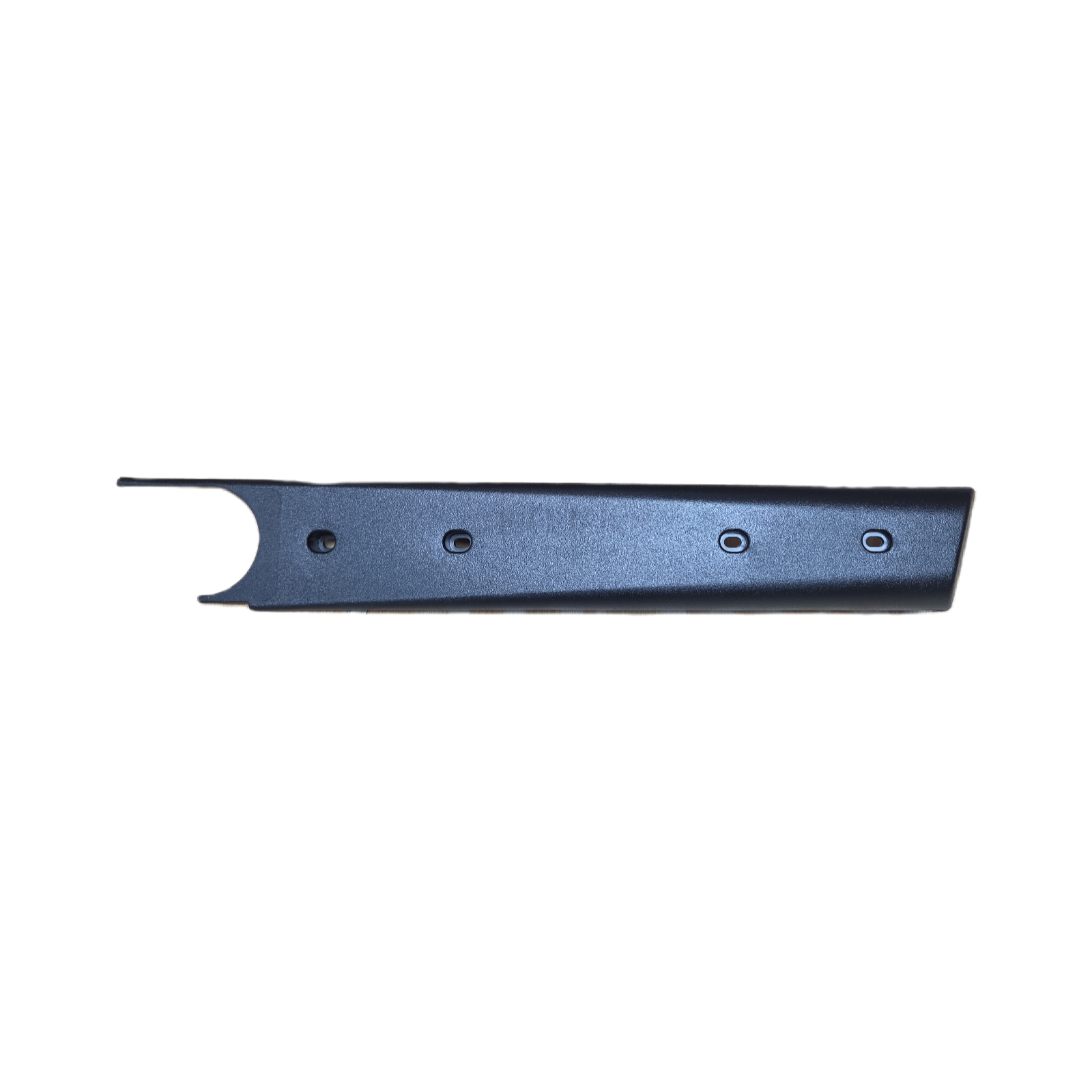

| 351953 | 82 | RIGHT HANDRAIL BTTM CVR | $16.49 | |||
| 352052 | 83 | UPRIGHT WIRE | $113.99 | |||
| 374148 | 84 | UPRIGHT | $365.49 | |||
| 252433 | 85 | BASE LEG DECAL | $0.99 | |||
 | 173169 | 86 | GROMMET | $0.99 | ||
| 131483 | 87 | 1/4″ X 3/4″ BOLT | $1.49 | |||
| 301345 | 88 | BASE PAD | $2.99 | |||
| 352005 | 89 | LEFT UPRIGHT COVER | $52.49 | |||
| 352004 | 90 | RIGHT UPRIGHT COVER | $52.49 | |||
| 361522 | 91 | RIGHT EXTENSION LEG | $51.49 | |||
 | 139090 | 92 | WHEEL | $2.99 | ||
| 361521 | 93 | LEFT EXTENSION LEG | $51.49 | |||
| 351787 | 94 | LEFT TRAY | $11.99 | |||
 | 188015 | 95 | FAN | $46.49 | ||
| 376896 | 96A | Fitness Equipment Console | NLA | |||
| 376897 | 96B | Console Reprogramming Micro SD Card | $121.99 | |||
| 351791 | 97 | Left Speaker Cover | NLA | |||
| 351790 | 98 | LEFT SPEAKER GRILL | $54.99 | |||
| 353429 | 99 | SPEAKER | $39.49 | |||
| 351786 | 100 | Console Base | NLA | |||
| 351788 | 101 | RIGHT TRAY | NLA | |||
| 351789 | 102 | RIGHT SPEAKER GRILL | $54.99 | |||
| 351792 | 103 | RIGHT SPEAKER COVER | $14.49 | |||
 | 347877 | 104 | KEY | $22.99 | ||
| 186253 | 105 | CONSOLE FRAME CAP | $1.99 | |||
| 351462 | 106 | CONSOLE FRAME | $123.49 | |||
| 132315 | 107 | WIRE TIE | $3.49 | |||
| 360378 | 108 | CONTROLLER CLAMP | $10.99 | |||
| 364361 | 109 | CHEST HEART RATE MONITOR | $135.99 | |||
 | 013235 | 110 | 1/4″ X 1 1/2″ SCREW | $6.99 | ||
 | 121576 | 111 | 1/4″ NUT | $2.49 | ||
| 351689 | 112A | ADJUSTMENT HANDLE | $71.49 | |||
| 351958 | 112B | ADJUSTMENT HANDLE INSERT | $1.99 | |||
| 351691 | 113 | HANDLE CAP | $6.99 | |||
| 329452 | 114 | CUSHION BUSHING | $11.49 | |||
| 370562 | 115 | CUSHION ROD BRACKET | $54.49 | |||
| 351453 | 116 | CUSHION ROD | $125.49 | |||
| 329503 | 117A | CUSHION WHEEL | $10.99 | |||
| 217913 | 117B | 3/8″ FLAT WASHER | $2.99 | |||
| 360938 | 118 | CUSHION PLATE | $2.49 | |||
 | 319487 | 119 | SPRING | $13.99 | ||
 | 351698 | 120 | LEFT REAR CAP | $7.99 | ||
 | 351699 | 121 | Right Rear Cap | NLA | ||
| 355174 | 122 | FOOT RAIL PLATE | $2.49 | |||
| 355175 | 123 | FOOT RAIL CLIP | $2.49 | |||
| 360940 | 124 | CUSHION WHEEL STOP | $4.49 | |||
| 312455 | 125 | TRAY FAN | $138.49 | |||
| 358504 | 126 | TRAY FAN COVER | $25.99 | |||
| 361677 | 127 | Power Supply | NLA | |||
 | 125819 | 128 | PLASTIC STAND-OFF | $3.99 | ||
| 321395 | 129 | Power Supply Plate | NLA | |||
| 251429 | 130 | M4 X 12MM | $0.99 | |||
| 356713 | 131 | TV BRACKET | $113.99 | |||
| 342379 | 132 | UPPER TV BRACKET COVER | $27.49 | |||
 | 324666 | 133 | Part # 324666 | NLA | ||
| 330877 | 134 | TV TRIM | $7.49 | |||
| 342458 | 135 | LOWER TV BRACKET COVER | $25.49 |
