Nordictrack Commercial Zs Treadmill – NCTL09109.0 / NCTL091090
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
100 Parts Available for Nordictrack Commercial Zs Treadmill - NCTL09109.0 / NCTL091090 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 230965 | 1 | FOOT RAIL COVER | NLA | |||
 | 013322 | 4 | #8 X 3/4″ SCREW | $0.99 | ||
 | 138853 | 5 | PLASTIC FASTENER | $0.99 | ||
| 284429 | 6 | BRD,WLK,ARPS | $149.49 | |||
 | 198641 | 7 | BELT GUIDE | NLA | ||
| 123325 | 8 | M4 X 12MM RND HEAD SCREW | $0.99 | |||
| 248933 | 9 | ISOLATOR | $29.49 | |||
| 128272 | 10 | TOP ISOLATOR BOLT | $0.99 | |||
 | 264670 | 11 | DRIVE ROLLER/PULLEY | $138.49 | ||
| 195476 | 12 | MAGNET | $16.49 | |||
 | 013576 | 13 | #8 X 1/2″ SCREW | $0.99 | ||

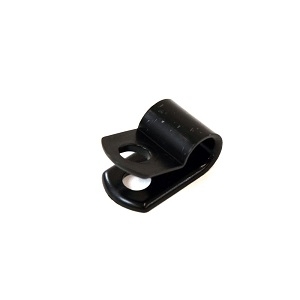

 | 131090 | 14 | CLAMP | $0.99 | ||
 | 232962 | 15 | INCLINE ROD BUSHING | $7.49 | ||
| 201199 | 17 | Lift Pivot Bolt | NLA | |||
| 230979 | 18 | BELLY PAN POST | $5.49 | |||
 | 129542 | 19 | UPRIGHT SPACER | $2.99 | ||
 | 157504 | 20 | REED SWITCH | $26.99 | ||
| 243797 | 21 | CONSOLE CLAMP | $26.99 | |||
 | 149072 | 22 | TENSION BOLT | $3.99 | ||
| 176305 | 24 | Incline Motor Bolt | $4.49 | |||
| 240343 | 25 | LATCH CAP | $1.49 | |||
| 245900 | 26 | LEFT GRIP, NOTE: FOR | $17.99 | |||
| 245899 | 27 | RIGHT GRIP, NOTE: FOR | $17.99 | |||
 | 260972 | 28 | MOTOR BELT | $55.99 | ||
 | 013300 | 29 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 187160 | 30 | 3/8″ X 1 7/8″ BOLT | $5.49 | ||
 | 287483 | 31 | MOTOR | $289.99 | ||
| 259500 | 32 | MOTOR BOLT | $2.99 | |||
| 119439 | 33 | PULLEY NUT | $0.99 | |||
| 257229 | 34 | ELECTRONICS BRACKET | $24.99 | |||
| 399604 | 36 | CONTROLLER | $201.99 | |||
 | 119425 | 38 | 3/8″ LOCKNUT | $0.99 | ||
| 179767 | 40 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 186726 | 41 | POWER SWITCH | $22.49 | ||
| 263290 | 42 | ISLATR,ASSY,ARPS | NLA | |||
| 278731 | 43 | POWER CORD BRACKET | $3.49 | |||
 | 133333 | 45 | CLIP NUT | $0.99 | ||
 | 227199 | 46 | GROMMET | $2.49 | ||
 | 275795 | 47 | WALKING BELT | $240.99 | ||
 | 173169 | 49 | POWER CORD GROMMET | $0.99 | ||
| 243346 | 50 | SPEAKER | NLA | |||
 | 230971 | 51 | Right Rear Foot | NLA | ||
| 191892 | 52 | Rear Wheel | NLA | |||
 | 265236 | 53 | 3/8″ X 3 3/4″ SCREW | $8.49 | ||
| 230968 | 54 | Right Rear Endcap | NLA | |||
| 014064 | 55 | 1/4″ STAR WASHER | $0.99 | |||
 | 305744 | 56 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
 | 128457 | 57 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 270217 | 59 | LEFT REAR CAP | $47.99 | |||
 | 270271 | 60 | IDLER ROLLER | $142.49 | ||
| 136012 | 61 | WALKING BOARD NUT | $0.99 | |||
| 137224 | 62 | PLATFORM BOLT, REAR | $0.99 | |||
 | 243861 | 63 | FAN | $91.99 | ||
| 145509 | 64 | 3/8″ X 1″ BOLT | $2.49 | |||
| 243208 | 65 | CONSOLE BASE | $150.49 | |||
| 243794 | 67 | BOOK RACK | NLA | |||
 | 031229 | 68A | POWER CORD | $39.99 | ||
| 251086 | 68B | POWER CORD,FCA | $39.99 | ||
 | 186819 | 69 | GROUND SCREW | $0.99 | ||
| 244406 | 70 | PULSE RECEIVER COVER | NLA | |||
 | 243855 | 71 | 30″ RT CNSL WIRE HRNS | $31.49 | ||
 | 013544 | 72 | 3/8″ X 2″ BOLT | $3.99 | ||
| 286322 | 73 | LEFT UPRIGHT | $160.99 | |||
| 286323 | 74 | RIGHT UPRIGHT | $172.49 | |||
| 252954 | 75 | WIRE HARNESS | $92.99 | |||
| 272462 | 76 | Left Base Cover | $111.99 | |||
| 272461 | 77 | Right Base Cover | $123.49 | |||
 | 215822 | 78 | CONSOLE GROUND WIRE | $5.99 | ||
| 163811 | 79 | #6 X 1/2″ Screw | NLA | |||
| 014157 | 80 | #8 STAR WASHER | $0.99 | |||
 | 157600 | 81 | BASE FOOT | $1.99 | ||
 | 146427 | 82 | #8 X 1″ TEK SCREW | $0.99 | ||
| 169663 | 84 | 3/8″ X 3 3/4″ WHEEL BOLT | $7.99 | |||
| 150148 | 85 | 3/8″ X 2 3/8″ SCREW | $4.49 | |||
| 169064 | 86 | WHEEL | $3.49 | |||
| 213350 | 87 | CAUTION DECAL | $7.99 | |||
 | 161411 | 88 | BASE FOOT SPACER | $0.99 | ||
 | 269341 | 89 | Key/Clip | $13.99 | ||
 | 163045 | 90 | 3/8″ STAR WASHER | $0.99 | ||
| 116926 | 91 | RELEASABLE CABLE TIE | $0.99 | |||
| 132315 | 92 | CABLE TIE | $3.49 | |||
| 016057 | 93 | 8″ CABLE TIE | $2.99 | |||
| 254333 | 94 | HANDRAIL COVER | $71.49 | |||
| 287639 | 95 | LEFT UPRIGHT SLEEVE | NLA | |||
| 287638 | 96 | RIGHT UPRIGHT SLEEVE | $23.99 | |||
| 245901 | 97 | CONSOLE PLATE | $80.49 | |||
| 012152 | 98 | PHOTO SWITCH NUT | $0.99 | |||
| 274498 | 99 | HANDRAIL | $139.49 | |||
| 328554 | 100 | Latch Assembly | NLA | |||
| 256836 | 101 | Warning Decal | NLA | |||
 | 130659 | 102 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
| 013028 | 103 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
| 243209 | 104 | SPEAKER COVER | NLA | |||
| 014126 | 105 | TRACK WASHER | $0.99 | |||
| 223520 | 106 | MOTOR CONTROLLER WIRE | $12.99 | |||
| 265166 | 107 | INCLINE STOP BRACKET | $4.99 | |||
| 223505 | 108 | Wheel Spacer | NLA | |||
 | 013423 | 109 | GROUND SCREW | $0.99 | ||
| 271769 | 110 | WARNING DECAL, FCA | $2.99 |
