Nordictrack Apex 6500 Treadmill – 30705.3 / 307053
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
93 Parts Available for Nordictrack Apex 6500 Treadmill - 30705.3 / 307053 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 129144 | 1 | CABLE PULLEY WASHER | $3.49 | ||
| 221766 | 4 | Frame Pivot Washer | NLA | Unavailable to order | ||
| 014073 | 5 | WASHER | $1.49 | |||
| 256836 | 6 | Warning Decal | NLA | Unavailable to order | ||
 | 013322 | 7 | #8 X 3/4″ SCREW | $0.99 | ||
| 177992 | 8 | LATCH PLATE | $18.99 | |||
 | 012056 | 9 | WHEEL NUT | $0.99 | ||
| 222586 | 10 | FRONT RIGHT ENDCAP | $71.99 | |||
| 195940 | 12 | BELT GUIDE | $13.99 | |||
| 256840 | 13 | LATCH WARNING DECAL, FCA | NLA | Unavailable to order | ||
| 222818 | 14 | Frame Pivot Bolt | NLA | Unavailable to order | ||
 | 252531 | 16 | OEM WALKING BELT | |||
| 226709 | 17 | Front Roller/Pulley | NLA | Unavailable to order | ||
| 195476 | 18 | MAGNET | $16.49 | |||
| 222819 | 19 | Frame Spacer | NLA | Unavailable to order | ||
 | 131090 | 21 | CLAMP | $0.99 | ||
| 160068 | 22 | Reed Switch | NLA | Unavailable to order | ||
| 132315 | 24 | ZIP TIE | $3.49 | |||
 | 287483 | 25 | MOTOR | $289.99 | ||
| 013501 | 27 | 3/8″ X 2 1/2″ SCREW | $4.99 | |||
| 221886 | 28 | Left Rear Endcap | NLA | Unavailable to order | ||
| 221891 | 29 | LEFT ROLLER GUARD | $7.99 | |||
| 125677 | 30 | HOOD BRACKET | $1.99 | |||
| 175162 | 31 | TENSION BOLT | $2.99 | |||
 | 119425 | 32 | 3/8″ LOCKNUT | $0.99 | ||
| 252607 | 33 | Motor Hood | $117.99 | |||
| 243669 | 34 | Latch Housing | NLA | Unavailable to order | ||
| 221890 | 35 | Right Roller Guard | NLA | Unavailable to order | ||
| 221887 | 36 | RIGHT REAR ENDCAP | NLA | Unavailable to order | ||
 | 013576 | 37 | CROWN SCREW | $0.99 | ||
| 165220 | 38 | Front Roller Adjustment Bolt | NLA | Unavailable to order | ||
| 191477 | 39 | CONSOLE WRNG DECAL, FCA | $11.49 | |||
| 158830 | 41 | 3/8″ X 3 1/2″ BOLT | $7.49 | |||
| 195311 | 42 | Choke Cable | NLA | Unavailable to order | ||
 | 223673 | 43 | Fitness Equipment Controller | NLA | Unavailable to order | |
| 260360 | 45 | Belly Pan | $133.99 | |||
 | 173169 | 46 | SQUARE GROMMET | $0.99 | ||
 | 251086 | 47 | POWER CORD,FCA | $39.99 | ||
 | 186726 | 48 | POWER SWITCH | $22.49 | ||
| 224259 | 49 | SUPPORT BRACKET | $34.49 | |||
| 116927 | 50 | TIE HOLDER CLAMP | $0.99 | |||
| 116926 | 51 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | 52 | 8″ CABLE TIE | $2.99 | |||
| 013540 | 53 | M4 X 19MM FLAT HEAD SCREW | $0.99 | |||
| 178810 | 54 | INCLINE STOP BRACKET | $3.49 | |||
| 159986 | 55 | TOP INCLINE BOLT | $6.49 | Unavailable to order | ||
| 143024 | 56 | 6″ BLACK WIRE, R/R | $2.99 | |||
 | 164574 | 57 | IDLER ARM SPRING | $21.49 | Unavailable to order | |
| 238671 | 58 | IDLER ARM | $117.49 | |||
| 014064 | 60 | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
 | 128005 | 61 | SPRING WASHER | $0.99 | ||
| 100606 | 62 | 1/4″ X 3″ Screw | NLA | Unavailable to order | ||
 | 225605 | 64 | REAR ROLLER | $146.49 | ||
| 221755 | 65 | RIGHT FOOT PAD | $39.99 | |||
 | 218172 | 66 | Handlebar Endcap Top | $1.49 | ||
 | 104345 | 67 | VIDEO JACK STAR WASHER | $0.99 | ||
| 248814 | 68 | Handrail | $136.49 | |||
 | 013423 | 69 | GROUND SCREW | $0.99 | ||
| 111869 | 70 | UPRIGHT CAGE NUT | $2.99 | |||
 | 128457 | 71 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 119994 | 72 | 1.25″ SCREW | $2.99 | |||
| 249532 | 73 | Upright Wire Harness | NLA | Unavailable to order | ||
| 163387 | 74 | BASE PLATE EDGING | $31.49 | |||
| 222831 | 75 | BASE PLATE | NLA | Unavailable to order | ||
| 247307 | 76 | Latch Pin Assembly | NLA | Unavailable to order | ||
 | 013544 | 77 | 3/8″ X 2″ BOLT | $3.99 | ||
| 216573 | 79 | Idler Arm Spacer | NLA | Unavailable to order | ||
| 013399 | 80 | 3/8″ X 1.75″ BOLT | $2.49 | |||
 | 157600 | 81 | BUMPER | $1.99 | ||
 | 146427 | 82 | #8 X 1″ TEK SCREW | $0.99 | ||
| 200022 | 83 | FILTER WIRE | $27.49 | |||
| 194329 | 84 | IDLER PULLEY BOLT | $3.49 | |||
 | 013607 | 85 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 267825 | 86 | Drive Belt | $52.99 | ||
 | 013300 | 87 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 184122 | 88 | BLACK PEDAL WASHER | $3.49 | ||
| 209837 | 89 | FRONT WHEEL | $67.49 | |||

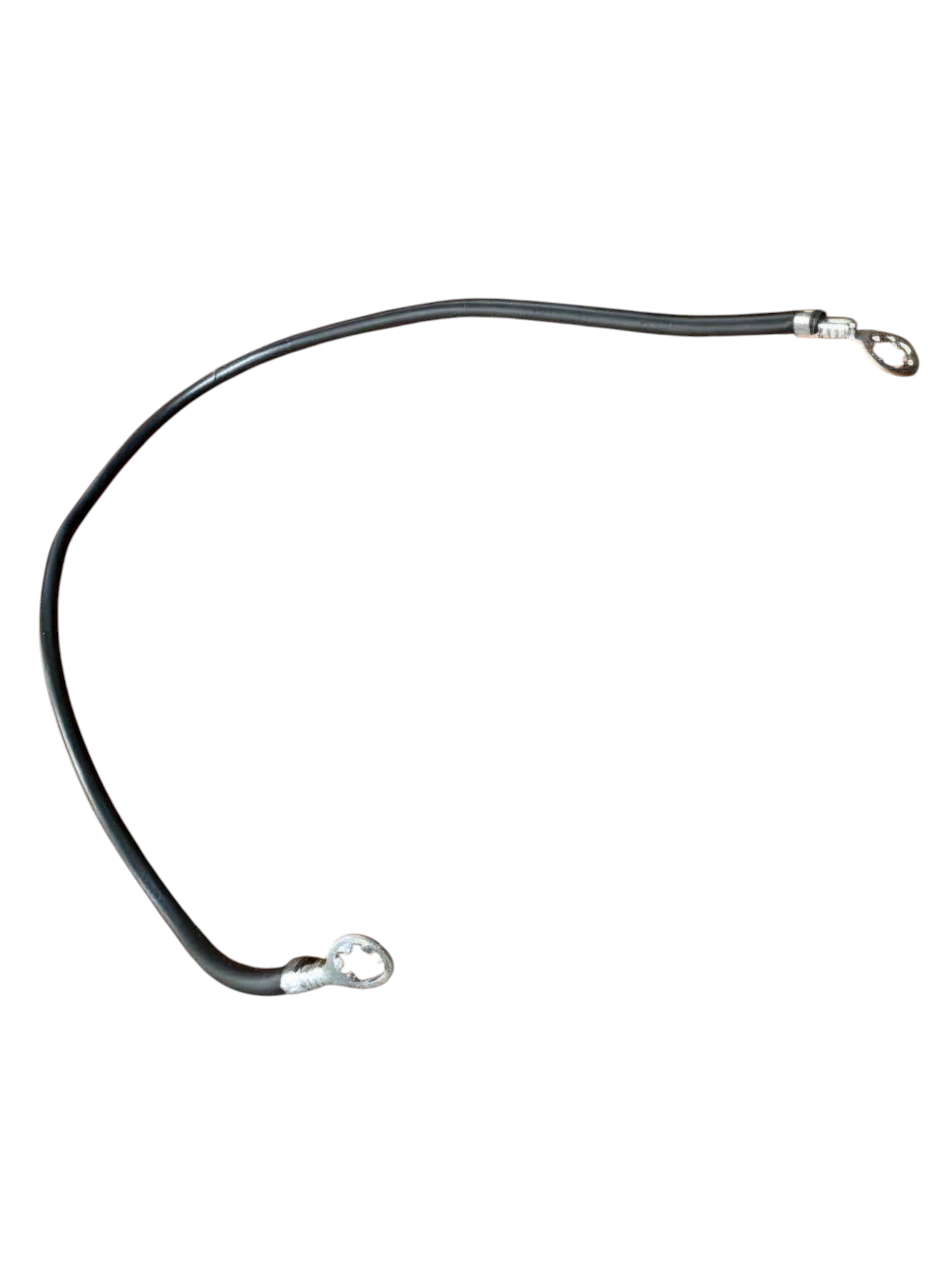

 | 203663 | 90 | 12″ BLACK WIRE | $4.49 | ||
 | 014132 | 91 | 3/8″ WASHER | $0.99 | ||
| 014157 | 92 | #8 STAR WASHER | $0.99 | |||
| 255708 | 93 | IFIT CARD KIT | NLA | Unavailable to order | ||
| 161393 | 94 | WHEEL SPACER | $1.99 | |||
| 200028 | 95 | ACCESS DOOR | $1.99 | |||
| 209838 | 96 | WHEEL BUSHING | $3.49 | |||
| 267826 | 98 | Console Base | NLA | Unavailable to order | ||
 | 133333 | 99 | CLIP NUT | $0.99 | ||
 | 243861 | 100 | FAN | $91.99 | ||
| 196829 | 101 | BELLY PAN GROMMET | $2.49 | |||
| 187286 | 102 | HOLE PLUG | $2.99 | |||
 | 245920 | 103 | Key/Clip for ICON Fitness Part Number 245920 | NLA | Unavailable to order | |
 | 210048 | 104 | 3/8″ X 3 1/2″ BOLT | $5.99 | ||
| 267827 | 105 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 222834 | 106 | SUPPORT BRACKET | NLA | Unavailable to order |
