Nordictrack Apex 6100Xi Treadmill – NTTL2590.2 / NTTL25902
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
89 Parts Available for Nordictrack Apex 6100Xi Treadmill - NTTL2590.2 / NTTL25902 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013529 | 5 | #8 X 1.5″ SCREW | $0.99 | ||
| 100691 | 6 | REAR DECK SCREW | $0.99 | |||
 | 182035 | 8 | OEM WALKING BELT | |||
| 157617 | 13 | BOTTOM ROLLER BUSHING | NLA | |||
| 255273 | 15 | BUSHING PLATE | NLA | |||
| 013244 | 16A | SCREW | $0.99 | |||
| 185445 | 16B | FRAME TO LIFT FRAME BOLT | $1.99 | |||
| 157507 | 17 | LIFT FRAME | $142.99 | |||
| 148202 | 18 | Reed Switch Clip | NLA | |||
| 128272 | 19 | PLATFORM BOLT, FRONT | $0.99 | |||
 | 157504 | 20 | REED SWITCH | $26.99 | ||
 | 014132 | 24 | M10 FLAT WASHER | $0.99 | ||
| 160409 | 25 | PULLEY SPACER | NLA | |||
| 238671 | 26 | IDLER ARM | $117.49 | |||
| 149419 | 27 | Idler Arm Washer | $7.99 | |||
| 111869 | 28 | CAGE NUT | $2.99 | |||
 | 133333 | 31 | CLIP | $0.99 | ||

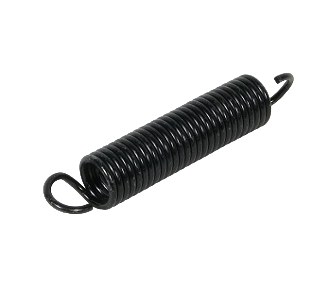

 | 164574 | 32 | IDLER ARM SPRING | $21.49 | ||
| 161692 | 34 | STANDOFF | $2.99 | |||
| 160418 | 35A | POWER SUPPLY BRACKET | NLA | |||
| 161607 | 38 | Motor Bolt | $0.99 | |||
| 014066 | 39 | INCLINE CABLE WASHER | $0.99 | |||
 | 119425 | 40 | LOCK NUT | $0.99 | ||
| 159986 | 41 | LIFT MOTOR BOLT | $6.49 | |||
| 162820 | 42 | INCLINE STOP BRACKET | $8.49 | |||
| 158830 | 44 | INCLINE MOTOR BOLT, LOWER | $7.49 | |||
| 160716 | 45 | Front Isolator | $3.49 | |||
| 120630 | 48 | RSW SCREW | $0.99 | |||
| 104621 | 49 | CABLE TIE/BLYPN SCREW | $0.99 | |||
| 158157 | 51A | Static Decal | NLA | |||
 | 031229 | 53 | POWER CORD | $39.99 | ||
 | 109382 | 55 | CIRCUIT BREAKER | $15.99 | ||
| 159899 | 56 | BELLYPAN BRACKET | $17.49 | |||
| 160707 | 58 | LATCH PLATE SCREW | $0.99 | |||
| 232501 | 59B | GRANITE AVAILABLE | NLA | |||
| 157625 | 60 | REAR WHEEL | NLA | |||
 | 014063 | 62 | ISOLATOR WASHER | $0.99 | ||
 | 013206 | 63 | REAR ADJUSTMENT BOLT | $21.49 | ||
| 162742 | 64 | FRONT ROLLER ADJ BOLT | $0.99 | |||
 | 172815 | 68 | REAR ROLLER | $144.99 | ||
 | 013322 | 69 | SCREW | $0.99 | ||
| 165831 | 71 | Pulse Strap | NLA | |||
 | 237858 | 72 | Chest Pulse Kit | NLA | ||
| 157607 | 74 | HANDRAIL ENDCAP | $3.99 | |||
| 012179 | 77 | U-NUT | $34.99 | |||
| 157615 | 78 | RIGHT FOOTRAIL ENDCAP | NLA | |||
| 184806 | 79 | Console Base | NLA | |||
 | 160695 | 82 | KEY/CLIP | $6.99 | ||
| 158349 | 85 | Lock Knob | NLA | |||
| 157612 | 86 | LATCH HOUSING | $2.99 | |||
| 157611 | 87 | Latch Housing | NLA | |||
 | 100076 | 88 | SPRING | $2.49 | ||
 | 100488 | 90 | LINK SNAP RING | NLA | ||
 | 157223 | 93 | UPRIGHT CAP | $1.49 | ||
| 161695 | 95 | 5/16″ FLAT WASHER | $0.99 | |||
| 149442 | 96 | PULSE BAR BOLT | $4.99 | |||
| 157623 | 97 | BOTTOM LEFT WHEEL BLOCK | NLA | |||
| 167079 | 98 | WIRE | $19.49 | |||
 | 158332 | 99 | JACK | $5.99 | ||
| 256836 | 100 | Warning Decal | NLA | |||
 | 157646 | 101 | AUDIO WIRE | $22.99 | ||
| 164329 | 103 | 3/8″ X 2 1/2″ PATCH SCREW | $6.49 | |||
| 151071 | 105 | FRONT WHEEL | NLA | |||
| 161393 | 106 | WHEEL SPACER | $1.99 | |||
 | 113842 | 107 | MAGNET | $1.49 | ||
 | 157600 | 108 | BUMPER | $1.99 | ||
 | 013300 | 109 | 3/4″ SCREW | $0.99 | ||
| 108742 | 111 | Lower Upright Endcap | NLA | |||
| 157601 | 113 | WIRE TRACK | NLA | |||
 | 013544 | 114 | LATCH SHOCK BOLT, LOWER | $3.99 | ||
| 163387 | 116B | BASE PLATE EDGING | $31.49 | |||
 | 154848 | 117 | HOOD SCREW/CONSOLE SCREW | $0.99 | ||
| 109250 | 118 | Reed Switch/BLYPN Screw | NLA | |||
| 129496 | 119 | Idler Arm Nylon Washer | NLA | |||
| 176294 | 120 | CONSOLE BACK | NLA | |||
| 116926 | 121 | RELEASABLE TIE | $0.99 | |||
 | 128457 | 122 | ALLEN WRENCH | $25.49 | ||
| 116927 | 123 | TIE CLAMP | $0.99 | |||
| 016057 | 124 | 8″ CABLE TIE | $2.99 | |||
| 161080 | 125 | HAND WEIGHT | NLA | |||
| 242812 | 125A | 3# HAND WEIGHT KIT | NLA | |||
| 125677 | 129 | HOOD ANCHOR | $1.99 | |||
| 114261 | 130 | GROUND WIRE | $5.99 | |||
| 165204 | 131 | Upright Wire Harness | NLA | |||
| 134594 | 132 | BELLY PAN SCREW | $0.99 | |||
| 157613 | 133 | SPLIT PIVOT SPACER | NLA | |||
| 159714 | 134 | PIVOT SPACER | NLA | |||
 | 121576 | 135 | ROLLER TENSION NUT | $2.49 | ||
| 172822 | 137 | SMALL NUT | NLA |
