Nordictrack A2350 Treadmill – 30866.2 / 308662
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
102 Parts Available for Nordictrack A2350 Treadmill - 30866.2 / 308662 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | CROWN SCREW | $0.99 | ||
 | 013544 | 4 | 3/8″ X 2″ BOLT | $3.99 | ||
| 131483 | 5 | 1/4″ X 3/4″ SCREW | $1.49 | |||
 | 215482 | 6 | 3/8″ X 4″ SCREW | $6.49 | ||
| 259840 | 7 | 5/16″ X 1″ BOLT | $1.99 | |||
 | 012149 | 8 | 3/8″ NUT | $0.99 | ||
 | 163045 | 9 | 3/8″ STAR WASHER | $0.99 | ||
 | 014149 | 10 | 5/16″ STAR WASHER | $0.99 | ||
 | 013300 | 11 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 013322 | 12 | #8 X 3/4″ SCREW | $0.99 | ||
 | 161411 | 13 | BASE FOOT SPACER | $0.99 | ||
| 257587 | 14 | Latch Bracket | NLA | Unavailable to order | ||
 | 013607 | 15 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 153210 | 16 | M4.2 X 18MM SCREW | $0.99 | |||
| 013186 | 17 | 1/4″ X 1″ SCREW | $0.99 | |||
| 257728 | 18 | 5/16″ X 4 1/4″ BOLT | $5.49 | |||

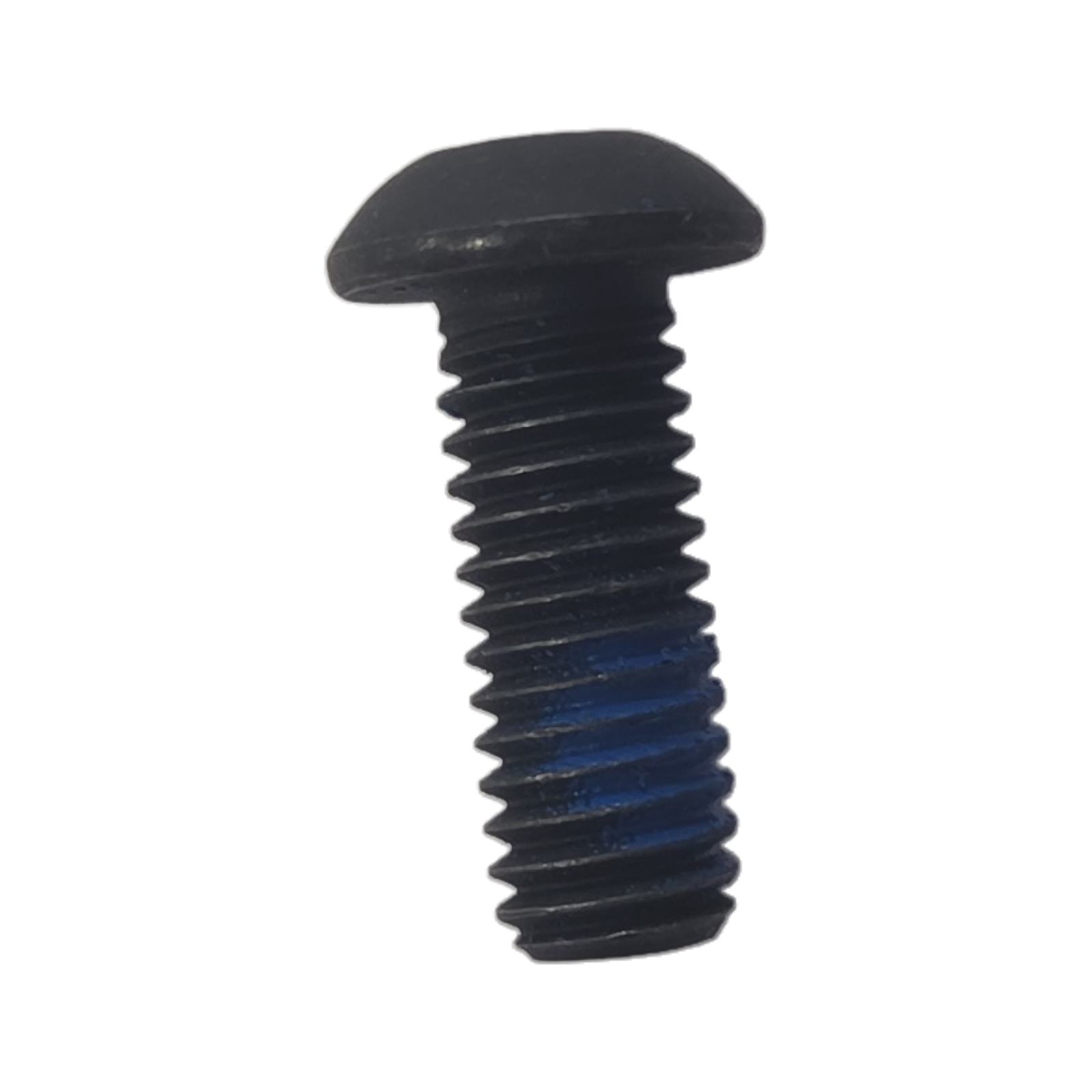

 | 145509 | 19 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 305744 | 20 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 21 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 174320 | 22 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
 | 186819 | 24 | #8 X 1/2″ SCREW | $0.99 | ||
| 251606 | 25 | Foot Rail Screw | NLA | Unavailable to order | ||
| 259500 | 26 | MOTOR BOLT | $2.99 | Unavailable to order | ||
| 244582 | 27 | CUSHION STOP | NLA | Unavailable to order | ||
 | 186726 | 28 | POWER SWITCH | $22.49 | ||
| 136728 | 29 | #8 BELT GUIDE SCREW | $0.99 | |||
| 014129 | 30 | 1/4″ FLAT WASHER | $0.99 | |||
 | 014126 | 31 | TRACK WASHER | $0.99 | ||
| 227198 | 32 | REAR ROLLER GROUND WIRE | $2.49 | |||
| 203451 | 33 | 5/16″ CAGE NUT | $3.99 | |||
| 258889 | 34 | #8 X 1 3/4″ SCREW | $0.99 | |||
| 215823 | 35 | AUDIO WIRE | $11.99 | |||
 | 136012 | 36 | WALKING BOARD NUT | $0.99 | ||
 | 133333 | 37 | CLIP NUT | $0.99 | ||
 | 236089 | 38 | UPRIGHT WIRE | $71.49 | ||
| 200747 | 39 | GROUND WIRE | $3.49 | Unavailable to order | ||
 | 260685 | 40 | FRONT CUSHION | $24.49 | ||
| 272254 | 41 | Left Foot Rail | $112.49 | |||
| 256836 | 42 | Warning Decal | NLA | Unavailable to order | ||
| 272257 | 43 | WALKING PLATFORM CUSHION | $18.99 | |||
 | 272262 | 45 | OEM WALKING BELT | $146.49 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
| 272256 | 47 | CUSHION TRACK | Unavailable to order | |||
 | 251133 | 48 | FRAME SPACER | $1.49 | ||
 | 013492 | 49 | 1/4″ ISLATR SCREW | $0.99 | ||
| 271184 | 51 | DRIVE ROLLER/PULLEY | $152.99 | |||
| 116566 | 52 | 15 1/2″ CABLE TIE | $0.99 | |||
| 328547 | 53 | Storage Latch | NLA | Unavailable to order | ||
 | 254305 | 58 | REAR ROLLER | $114.99 | ||
 | 257496 | 59 | Left Rear Foot | NLA | Unavailable to order | |
| 257495 | 60 | Right Rear Foot | NLA | Unavailable to order | ||
| 261812 | 61 | Hood for Fitness Equipment | $127.99 | |||
 | 260687 | 62 | MOTOR BELT | $61.99 | ||
| 225552 | 63 | MOTOR ISOLATOR | $3.99 | |||
 | 293895 | 64 | DRIVE MOTOR | $269.99 | ||
| 240351 | 66 | 8″ WIRE TIE | $0.99 | |||
 | 214773 | 67 | 6″ GREEN WIRE, F/R | $2.99 | ||
 | 031229 | 68 | POWER CORD | $39.99 | ||
 | 173169 | 69 | SQUARE GROMMET | $0.99 | ||
 | 263076 | 70 | Part # 263076 | NLA | Unavailable to order | |
 | 165798 | 71 | REED SWITCH | $19.49 | ||
 | 131090 | 72 | CLAMP | $0.99 | ||
| 252866 | 73 | BELLY PAN | $109.49 | |||
| 262004 | 74 | Left Upright | $146.49 | |||
| 249516 | 75 | INCLINE MOTOR | $160.99 | |||
| 257188 | 76 | Left Upright Spacer | NLA | Unavailable to order | ||
| 251437 | 77 | BASE ENDCAP | $1.49 | |||
| 262005 | 78 | Right Upright | $146.49 | |||
| 257189 | 79 | Right Upright Spacer | $63.99 | Unavailable to order | ||
 | 254499 | 80 | Spacer Bolt | NLA | Unavailable to order | |
 | 157600 | 81 | BUMPER | $1.99 | ||
| 213350 | 82 | CAUTION DECAL | $7.99 | |||
 | 139090 | 84 | WHEEL | $2.99 | ||
| 116926 | 85 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | 86 | 8″ CABLE TIE | $2.99 | |||
| 256037 | 87 | ACCESS DOOR | $2.99 | |||
| 235761 | 88 | HANDRAIL U-NUT | $2.49 | |||
| 261813 | 89 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 255904 | 90 | TRAY | $6.99 | |||
| 262007 | 91 | Back Console | NLA | Unavailable to order | ||
| 132315 | 92 | ZIP TIE | $3.49 | |||
| 255891 | 93 | Console Base | NLA | Unavailable to order | ||
| 255894 | 95 | Pulse Bar Bottom | NLA | Unavailable to order | ||
| 262008 | 96 | Handrail | $25.49 | |||
| 257190 | 97 | FRONT HANDRAIL CAP | $2.99 | |||
 | 257191 | 98 | UPRIGHT CAP | $2.99 | ||
| 258408 | 99 | LEFT HANDRAIL TRIM | $1.99 | |||
 | 256957 | 100 | KEY/CLIP | $12.99 | ||
 | 215822 | 101 | 4″ GRN WIRE | $5.99 | ||
| 252990 | 104 | INCLINE MOTOR SPACER | NLA | Unavailable to order | ||
| 125214 | 105 | #8 X 2″ SCREW | $0.99 | |||
| 258409 | 106 | RIGHT HANDRAIL TRIM | $1.99 | |||
| 014157 | 107 | #8 STAR WASHER | $0.99 | |||
 | 144985 | 108 | M4 X 16MM SCREW | $0.99 | ||
 | 119425 | 109 | 3/8″ LOCKNUT | $0.99 | ||
| 256840 | 110 | LATCH WARNING DECAL, FCA | NLA | Unavailable to order | ||
| 191554 | 111 | 20″ INCLINE MTR WIRE HRNS | $13.99 | |||
| 203945 | 112 | KEY PLATE | $0.99 | |||
| 191477 | 113 | CONSOLE WRNG DECAL, FCA | $11.49 |
