Nordictrack Elite 9.1 Elliptical – NTEL59810.0 / NTEL598100
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
117 Parts Available for Nordictrack Elite 9.1 Elliptical - NTEL59810.0 / NTEL598100 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 291112 | 4 | UPRIGHT | $166.99 | |||
| 224553 | 5 | CONTROL BOX | $15.49 | |||
| 293646 | 6 | FRONT STABILIZER | $102.49 | |||
| 224554 | 8 | CONTROL BOX COVER | $8.49 | |||
| 279644 | 9 | ARM LOCK | $1.49 | |||
| 291092 | 11 | LIFT BRACKET | $93.49 | |||
| 286400 | 12 | RAMP ARM ROLLER | NLA | |||
| 299400 | 13 | LIFT MOTOR | $153.49 | |||
| 209478 | 14 | TRANSFORMER | $71.49 | |||
| 256460 | 15 | CONTROL BOARD | $110.99 | |||
 | 186726 | 16 | POWER SWITCH | $22.49 | ||
 | 173169 | 17 | GROMMET | $0.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 330336 | 20 | L/R CRANK ARM SET W/CRANK | NLA | |||
 | 129004 | 21 | WIRE HARNESS GROMMET | $1.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 279645 | 24 | MOTOR BRACKET | $12.99 | |||
 | 284576 | 25 | RESISTANCE MOTOR | $117.99 | ||
| 284578 | 26 | RESISTANCE ARM ASSEMBLY | $60.49 | |||
 | 241954 | 27 | RSISTANCE MOTOR DISK | $1.99 | ||
| 286251 | 28 | FLYWHEEL | $377.49 | |||
 | 284116 | 29 | FLYWHEEL AXLE | $19.99 | ||
 | 256295 | 30 | HANDLEBAR BUSHING | $4.99 | ||
| 290613 | 31 | LIFT AXLE | $49.49 | |||
| 290611 | 32 | STABILIZER COVER | $139.49 | |||
| 386630 | 33 | SMALL LEVELING FOOT | $7.99 | |||
| 289661 | 34 | Wheel for Fitness Equipment | NLA | |||
| 271419 | 35 | Pivot Axle | $61.49 | |||
| 248342 | 36 | M10 WASHER | $1.99 | |||
| 290604 | 37 | WATER BOTTLE HOLDER | $41.49 | |||
 | 186070 | 38 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 39 | REED SWITCH CLIP | $0.99 | ||
 | 139703 | 40 | CRANK BEARING | $33.49 | ||
| 286433 | 41A | RIGHT GRIP WIRE | $47.49 | |||
| 296023 | 41B | RIGHT CONTROL GRIP | $82.99 | |||
 | 143742 | 42 | LARGE SNAP RING | $3.99 | ||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 291015 | 44 | Left Pedal Arm | NLA | |||
| 291090 | 45 | Roller Arm | NLA | |||
| 294850 | 46 | Left Upper Body Leg | NLA | |||
| 291007 | 47 | LEFT UPPER BODY ARM | $85.49 | |||
| 296021 | 48 | LEFT CONTROL GRIP | $82.99 | |||
| 290808 | 49 | PEDAL | $113.99 | |||
| 290896 | 50 | PEDAL INSERT | $111.49 | |||
 | 286547 | 51 | PEDAL WHEEL W/BRNGS | $59.99 | ||
| 271011 | 52 | Pedal Arm Cap | NLA | |||
 | 278267 | 53 | LARGE AXLE COVER | $1.99 | ||
| 249943 | 54 | CLEVIS PIN | $7.99 | |||
| 250210 | 55 | HAIRPIN COTTER PIN | $1.99 | |||
| 207678 | 56 | M10 X 40MM SCREW | $6.49 | |||
 | 237619 | 57 | Pedal Arm Bushing | NLA | ||
| 291016 | 58 | RIGHT PEDAL ARM | $203.99 | |||
| 217340 | 59 | #10 X 1/2″ PATCH SCREW | $0.99 | |||
| 291014 | 61 | RIGHT UPPER BODY ARM | $85.99 | |||
| 291006 | 62 | REAR STABILIZER | $125.49 | |||
| 287144 | 63A | PULSE SENSOR/WIRE | $67.99 | |||
| 260951 | 63B | PULSE WIRE | $27.49 | |||
| 283304 | 64 | M5 X 7MM SCREW | $3.49 | |||
| 290612 | 65 | RAMP AXLE | $43.99 | |||
| 248334 | 66 | M10 X 19MM SCREW | $5.49 | |||
| 289672 | 67 | OUTER COVER | $15.49 | |||
| 289673 | 68 | INNER COVER | $22.49 | |||
| 294686 | 70 | INNER PIVOT BUSHING | $25.49 | |||
| 290861 | 71 | DISC | $133.49 | |||
 | 237616 | 72 | FRAME BUSHING | $4.99 | ||
| 291113 | 73 | LEFT SHIELD | $157.49 | |||
| 291114 | 74 | Right Shield | NLA | |||
 | 256815 | 76 | V-CLIP | $0.99 | ||
| 290609 | 77 | BOTTOM SHIELD | $42.99 | |||
| 330387 | 78 | Key Set | NLA | |||
 | 012142 | 79 | M6 LOCKNUT | $0.99 | ||
| 290603 | 80 | REAR UPRIGHT COVER | $74.49 | |||
 | 251978 | 81 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 206321 | 82 | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
| 014174 | 83 | M8 SPLIT WASHER | $1.99 | |||
| 271277 | 84 | M8 X 80MM BOLT | $9.49 | |||
| 275979 | 85 | M6 X 12MM HEX SCREW | $1.99 | |||
| 275980 | 86 | M8 X 48MM HEX BOLT | $4.99 | |||
| 267811 | 87 | M8 x 13mm Screw | NLA | |||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
| 281148 | 90 | M6 X 65MM HEX SCREW | $3.49 | |||
| 290605 | 91 | FRONT UPRIGHT COVER | $65.49 | |||
 | 190983 | 92 | LEVELING FOOT | $32.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 228675 | 94 | M8 X 56mm Patch Screw | NLA | |||
 | 287202 | 95 | 16MM WAVE WASHER | $1.99 | ||
 | 193502 | 96 | M8 X 38MM SCREW | $4.49 | ||
 | 281149 | 97 | M10 X 50MM HEX SCREW | $6.49 | ||
 | 248349 | 98 | M8 PVT CAP WASHER | $6.49 | ||
 | 148710 | 99 | M10 NUT | $2.49 | ||
| 183633 | 100 | M5 WASHER | $1.99 | |||
 | 281150 | 101 | M6 X 20MM SHOULDER SCREW | $4.49 | ||

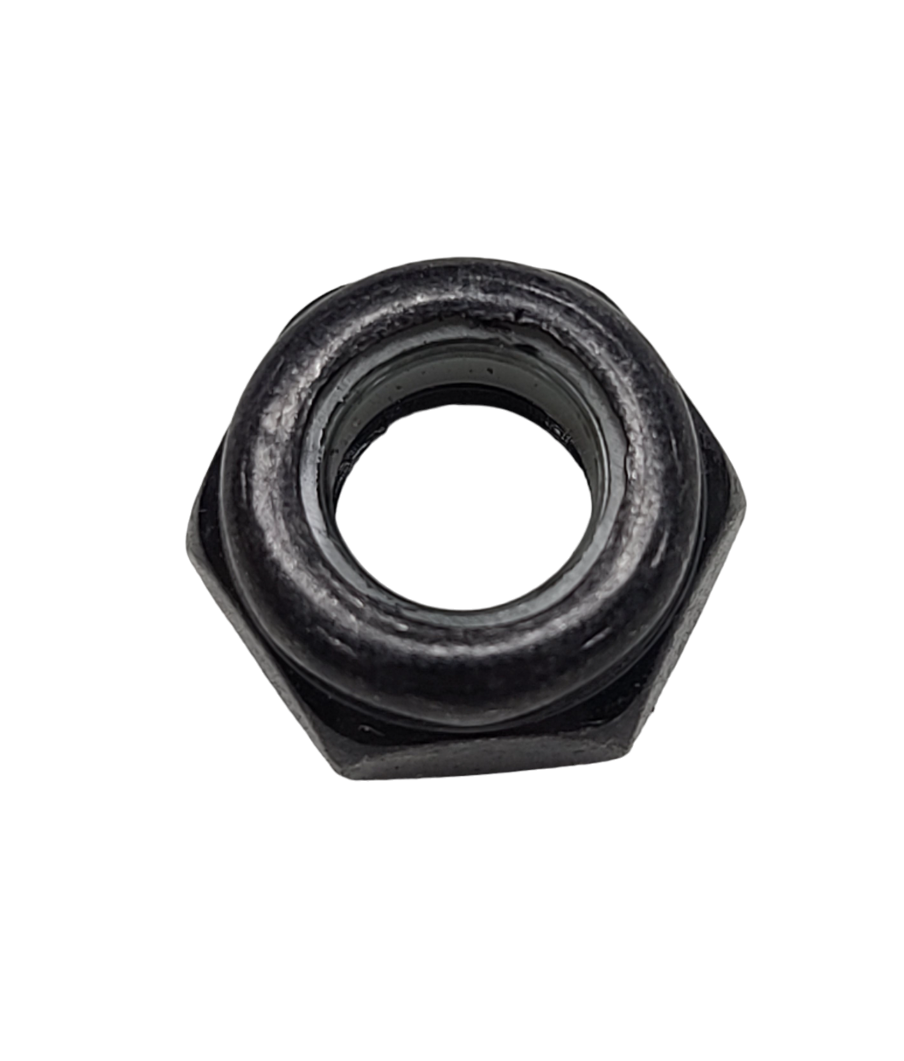

 | 256446 | 102A | M8 NUT | $0.99 | ||
 | 012042 | 102B | M8 NYLON LOCKNUT | $1.99 | ||
| 276024 | 103 | M3.5 X 12MM, NOTE: | $1.49 | |||
 | 195562 | 104A | M4 X 16MM SCREW | $1.99 | ||
 | 013162 | 104B | BELLYPAN SCREW | $0.99 | ||
| 313249 | 105 | M4 X 10MM SCREW | $2.49 | |||
 | 013423 | 106 | #8 X 1/2″ SCREW | $0.99 | ||
 | 290729 | 107 | LARGE ARM BEARING | $43.49 | ||
| 311000 | 108 | M6 X 13MM SCREW | $60.49 | |||
 | 014033 | 109A | M6 WASHER | $1.49 | ||
 | 340140 | 109B | M6 CRANK ARM WASHER | $1.49 | ||
| 249965 | 110 | UPPER WIRE HARNESS | $60.49 | |||
| 278166 | 111 | M6 SPLIT WASHER | $0.99 | |||
 | 031229 | 112 | POWER CORD | $39.99 | ||
 | 290946 | 113 | DRIVE BELT | $124.49 | ||
| 215823 | 114 | AUDIO WIRE | $11.99 | |||
| 100244 | 115 | HOOD COVER SCREW | $0.99 | |||
| 294609 | 116 | UPPER BUSHING | $28.49 | |||
 | 286527 | 117A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 117B | COVER MOUNT SCREW | $3.99 | |||
| 234286 | 118 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 243375 | 119 | SMALL PEDAL ARM SNAP RING | $2.49 | ||
| 290926 | 120 | LOWER WIRE HARNESS | $68.49 |
