Nordictrack E 15.0 Elliptical – NTEL91411.0 / NTEL914110
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
142 Parts Available for Nordictrack E 15.0 Elliptical - NTEL91411.0 / NTEL914110 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 315597 | 5 | REAR STABILIZER | $167.49 | |||
| 315600 | 6 | FRONT STABILIZER | $137.49 | |||
| 306623 | 9 | BOTTOM RAMP COVER | $168.49 | |||
| 316179 | 10 | TOP RAMP COVER | $149.99 | |||
| 306606 | 11 | TRACK | $98.49 | Unavailable to order | ||
| 318582 | 12 | Left Roller Arm | $178.99 | |||
| 317352 | 13 | LIFT MOTOR | $205.49 | |||
| 333432 | 15 | CONTROL BOARD | $146.49 | Unavailable to order | ||
 | 186726 | 16 | POWER SWITCH | $22.49 | ||
 | 313668 | 17 | STRAIN-RELIEF BUSHING | $9.49 | ||
| 306596 | 18 | CRANK | $112.49 | Unavailable to order | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 306600 | 20 | CRANK ARM | NLA | Unavailable to order | ||
| 316047 | 21 | ROLLER ARM CAP | $11.99 | |||
 | 363093 | 22 | IDLER | $116.49 | ||
| 171902 | 24 | Chest Pulse Transmitter | NLA | Unavailable to order | ||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||

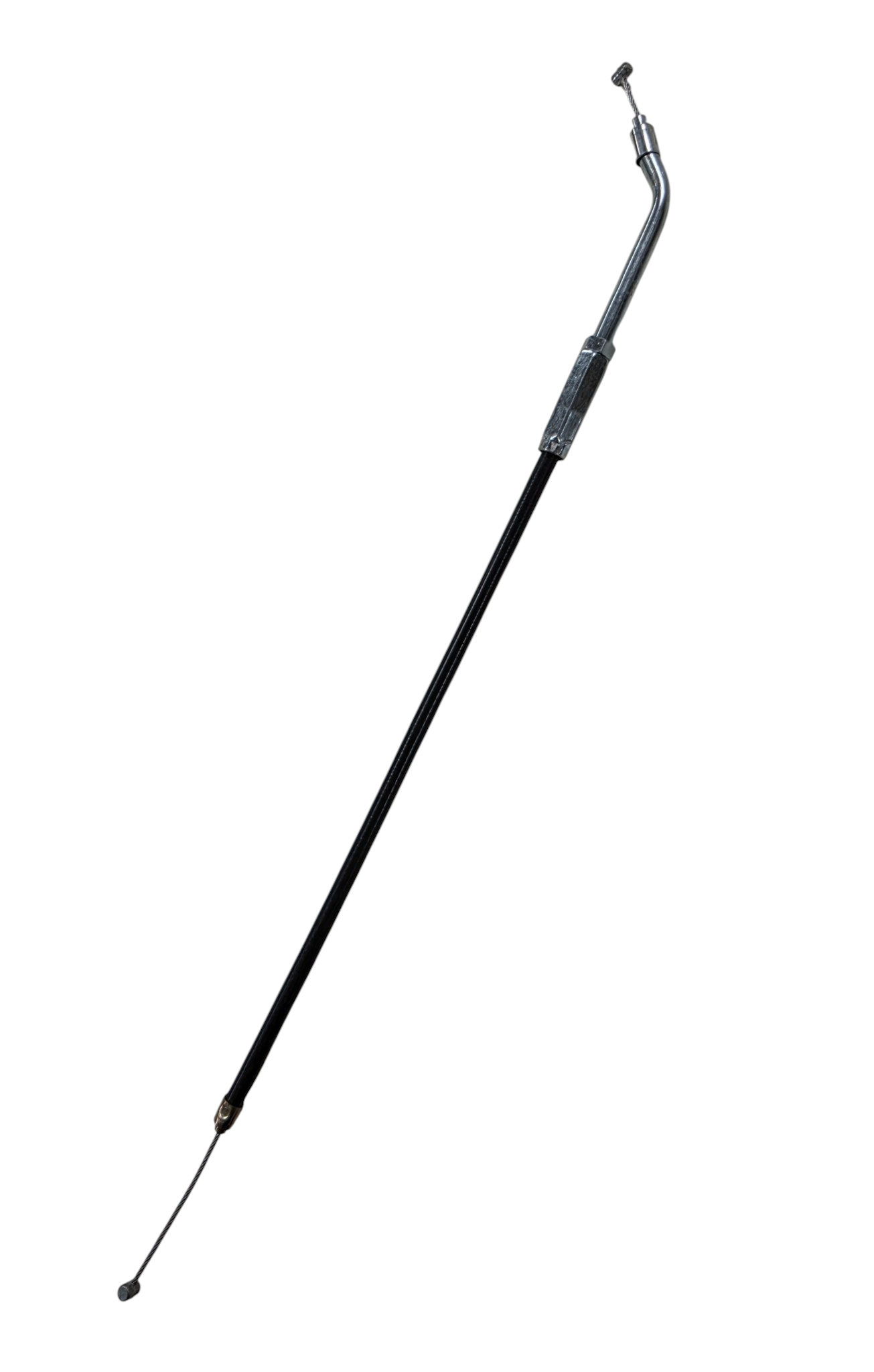

 | 321353 | 26 | RESISTANCE CABLE 13.715″L | $49.99 | ||
| 173773 | 27 | CHEST PULSE CONN WIRE | $27.99 | |||
| 321221 | 28 | EDDY MECHANISM | NLA | Unavailable to order | ||
| 325938 | 29 | EDDY MECHANISM AXLE | $22.49 | |||
 | 143426 | 30 | RAMP BUSHING | $8.99 | ||
| 317331 | 31 | MAGNET AXLE | $26.99 | |||
 | 100488 | 33 | LINK SNAP RING | NLA | Unavailable to order | |
| 306628 | 34 | WHEEL | $32.49 | |||
| 306648 | 35 | PIVOT AXLE | $106.99 | |||
| 315592 | 36 | Right Upper Body Leg | NLA | Unavailable to order | ||
| 307218 | 38 | REED SWITCH | $30.49 | |||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
| 316468 | 41 | RIGHT GRIP | $80.99 | |||
| 295991 | 42 | LARGE SNAP RING | $11.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 319064 | 44 | Left Pedal Arm | NLA | Unavailable to order | ||
| 318598 | 45 | RIGHT ROLLER ARM | $161.99 | |||
| 315591 | 46 | LEFT UPPER BODY LEG | $136.99 | |||
| 323726 | 47 | LEFT UPPER BODY ARM | $118.49 | |||
| 316467 | 48 | LEFT GRIP | $107.99 | |||
| 316181 | 49 | RIGHT PEDAL | $121.49 | |||
| 318608 | 50 | RT PEDAL ADJUSTMENT BKT | $62.99 | |||
 | 306984 | 51 | PEDAL ARM ROLLER | $85.99 | ||
| 316001 | 52 | Pedal Arm Cap | NLA | Unavailable to order | ||
| 277313 | 53 | Pedal Arm Cap | NLA | Unavailable to order | ||
| 316039 | 54 | LEFT OUTER COVER | $57.49 | |||
| 316040 | 55 | LEFT INNER COVER | $57.49 | |||
| 316033 | 56 | Lower Upright Cover | NLA | Unavailable to order | ||
 | 308523 | 57 | ROLLER ARM BUSHING | $19.99 | ||
| 319065 | 58 | Right Pedal Arm | NLA | Unavailable to order | ||
 | 291052 | 59 | AXLE BUSHING | $32.99 | ||
| 323722 | 61 | RIGHT UPPER BODY ARM | $118.49 | |||
 | 157600 | 62 | BUMPER | $1.99 | ||
| 318560 | 63A | Right Sensor | $87.49 | |||
| 319294 | 63B | Right Pulse Wire | NLA | Unavailable to order | ||
| 285646 | 65 | Ramp Axle | NLA | Unavailable to order | ||
| 306631 | 66 | Left Pedal Arm Cover | NLA | Unavailable to order | ||
| 316037 | 67 | RIGHT OUTER COVER | $57.49 | |||
| 316038 | 68 | RIGHT INNER COVER | $57.49 | |||
| 318561 | 69A | Left Sensor | $87.49 | |||
| 319293 | 69B | Left Pulse Wire | NLA | Unavailable to order | ||
| 306646 | 70 | PIVOT ARM BUSHING | $29.99 | |||
| 285643 | 72 | RAMP BUSHING | $10.99 | |||
| 316169 | 74 | RIGHT FRONT SHIELD | $182.99 | |||
| 316002 | 76 | LEFT REAR SHIELD | $96.49 | |||
| 316003 | 77 | RIGHT REAR SHIELD | $96.49 | |||
| 281559 | 78 | KEY | $2.49 | |||
| 254769 | 79 | M6 LOCKNUT | $1.49 | |||
| 306614 | 80A | Rear Upright Cover | NLA | Unavailable to order | ||
| 314791 | 80B | CARDIO PULSE RECIEVER | $122.49 | |||
 | 348634 | 81 | SMALL AXLE COVER | $41.49 | ||
| 234594 | 82 | M8 X 19mm Patch Screw | NLA | Unavailable to order | ||
| 306635 | 83 | PLASTIC SPACER | $3.49 | |||
| 240818 | 84 | M10 X 90MM SCREW | $22.99 | |||
| 275979 | 85 | M6 X 12MM HEX SCREW | $1.99 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
| 306632 | 87 | RIGHT PEDAL ARM COVER | $11.99 | |||
| 281156 | 88 | BELT ADJUSTMENT SCREW | $8.49 | |||
 | 208163 | 89 | IDLER SCREW | $1.99 | ||
| 318607 | 90 | Left Pedal Adjustment Bracket | $80.99 | |||
| 316041 | 91 | FRONT UPRIGHT COVER | $96.49 | |||
 | 153280 | 92 | LEVELING FOOT | $14.49 | Unavailable to order | |
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 198497 | 94 | M10 X 55MM SCREW | $6.99 | |||
 | 287202 | 95 | SMALL WAVE WASHER | $1.99 | ||
| 183870 | 96 | M8 X 35MM BOLT | $2.49 | |||
| 306712 | 97 | MOTOR AXLE | $14.99 | |||
| 222789 | 98A | CRANK WASHER | $3.99 | |||
 | 261150 | 98B | M8 X 23.5MM WASHER | $2.20 | ||
 | 148710 | 99A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 99B | M10 LOCKNUT, CRANK | $4.49 | ||
 | 184369 | 100 | M4 X 16MM MACHINE SCREW | $0.99 | ||
 | 281150 | 101 | IDLER PIVOT SCREW | $4.49 | ||
 | 256446 | 102 | M8 LOCKNUT | $0.99 | ||
| 256377 | 103 | M10 X 120MM SCREW | $13.49 | |||
 | 013162 | 104B | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 195562 | 104C | M4 X 16MM SCREW | $1.99 | ||
| 310520 | 105 | M8 X 16MM HEX SCREW | $2.49 | |||
 | 013423 | 106 | GROUND SCREW | $0.99 | ||
 | 125819 | 107 | STANDOFF | $3.99 | ||
 | 014033 | 109 | IDLER WASHER | $1.49 | ||
| 307215 | 110 | Main Wire | NLA | Unavailable to order | ||
 | 237616 | 111 | SMALL FRAME BUSHING | $4.99 | ||
 | 342275 | 112 | POWER CORD | $49.99 | ||
 | 186476 | 113 | DRIVE BELT | $49.99 | ||
| 215823 | 114 | AUDIO WIRE | $11.99 | |||
| 307188 | 115 | Track Screw | NLA | Unavailable to order | ||
| 303935 | 116 | M10 X 104MM SCREW | $13.49 | |||
 | 286527 | 117A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 117B | SNAP MOUNT SCREW | $3.99 | |||
| 300804 | 118 | CONTROLLER BRACKET | $29.99 | |||
 | 223809 | 119 | M10 X 75MM SCREW | $15.49 | ||
 | 237612 | 120 | M8 X 16MM PATCH SCREW | $1.49 | ||
| 307256 | 121 | M6 X 10MM SCREW | $1.99 | |||
| 234325 | 122 | M8.4 STAR WASHER | $1.49 | |||
 | 013322 | 123 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 124 | CROWN SCREW | $0.99 | ||
 | 197037 | 125 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
| 263759 | 126 | M4 X 76MM SCREW | $3.49 | |||
| 251831 | 127 | M4 X 16MM ROUND HEAD SCRW | $1.99 | |||
| 313138 | 128 | TABLET HOLDER SCREW | $1.49 | |||
 | 250868 | 129 | M8 X 23MM X 1.5MM WASHER | $3.49 | ||
| 317937 | 130 | NYLON INSERT | $1.49 | |||
| 317332 | 131 | MOTOR BUSHING | $3.99 | |||
 | 129004 | 132 | ROUND GROMMET | $1.99 | ||
 | 306644 | 133 | CRANK ARM BUSHING | $35.99 | ||
| 315638 | 135 | Roller Arm Flex Bracket | $27.49 | Unavailable to order | ||
| 318606 | 136 | Flex Bracket for Pedal Arm | $27.49 | |||
| 322767 | 137 | Flex Bracket Cover | $22.49 | |||
| 316278 | 140 | PEDAL SPRING | $5.49 | |||
| 315610 | 141 | SPRING LINER | $1.49 | |||
| 306636 | NULL | MOTOR SPACER | $3.49 |
