Nordictrack C 7.5 Elliptical – NTEVEL89816-CH.0 / NTEVEL89816-CH0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
143 Parts Available for Nordictrack C 7.5 Elliptical - NTEVEL89816-CH.0 / NTEVEL89816-CH0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 372664 | 9 | TABLET HOLDER | $96.99 | Unavailable to order | |
| 376362 | 10 | RAMP COVER | $151.49 | |||
| 342866 | 11 | INCLINE MOTOR | $146.99 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
| 331260 | 13 | RAMP ARM | NLA | Unavailable to order | ||
 | 320336 | 14 | RAMP ROLLER | $8.49 | ||
| 376361 | 15 | Rear Stabilizer Cover | $71.99 | |||
 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||

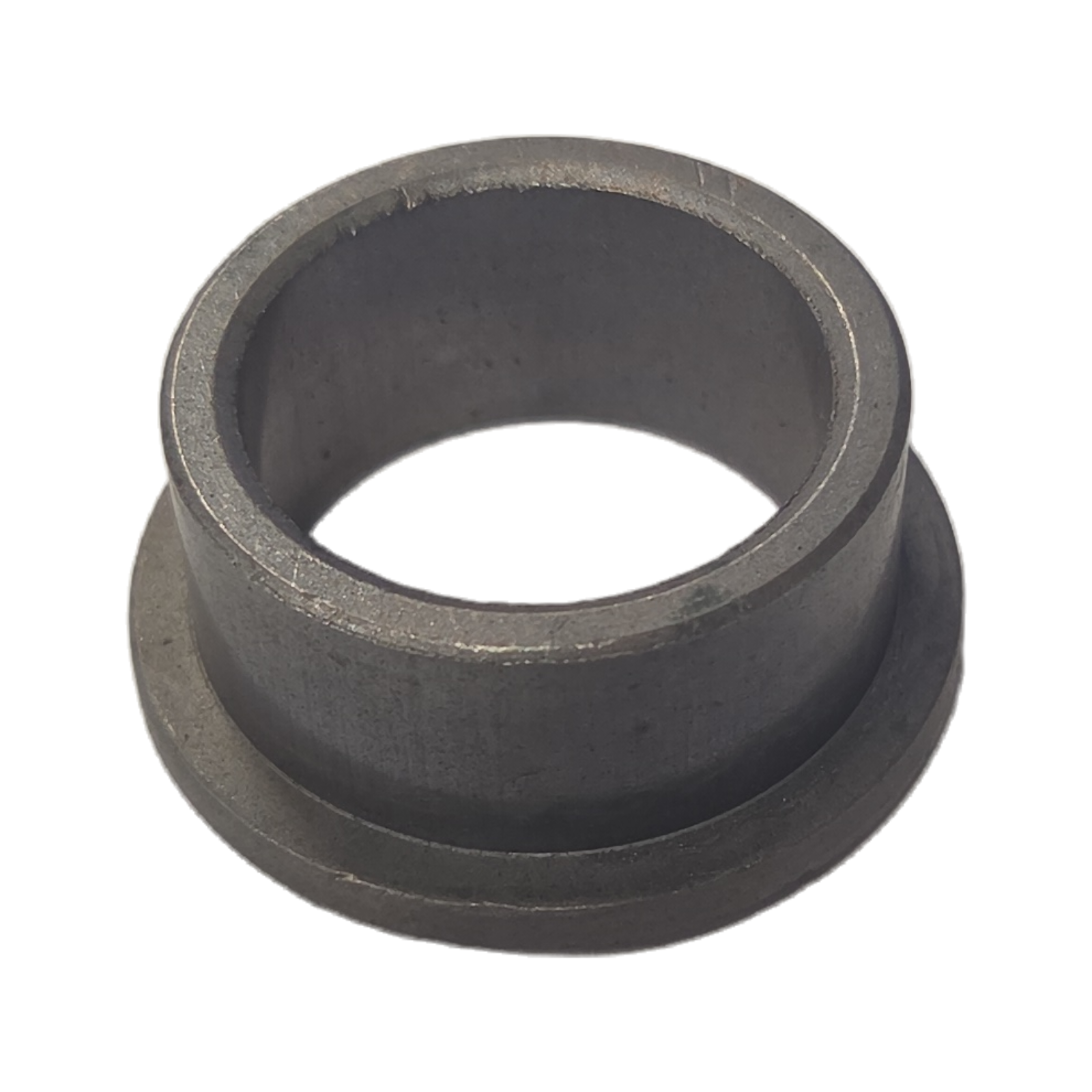

 | 320335 | 17 | LARGE FRAME BUSHING | $16.99 | ||
 | 386166 | 18 | CRANK | $162.99 | Unavailable to order | |
| 277369 | 19 | PULLEY | $174.49 | |||
| 386662 | 20 | CRANK ARM | $182.99 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | STANDOFF | $3.99 | ||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 316981 | 31 | CONTROLLER W/STANDOFFS | $124.99 | ||
| 250627 | 32 | POWER SWITCH | $16.49 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | RAMP BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372087 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
 | 362905 | 41 | SMALL SNAP RING | $1.49 | ||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 378494 | 44 | Left Pedal Arm | $191.99 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 331059 | 47 | LEFT UPPER BODY ARM | $102.99 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
 | 376365 | 49A | LEFT PEDAL | $103.99 | ||
 | 376366 | 49B | RIGHT PEDAL | $103.99 | ||
 | 275907 | 50A | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 337966 | 53A | ROLLER ARM COVER | $5.49 | ||
 | 384941 | 53B | AXLE COVER | $9.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
 | 390683 | 56 | ROLLER ARM BUSHING | $28.49 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 378492 | 58 | RIGHT PEDAL ARM | $180.49 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 331061 | 61 | RIGHT UPPER BODY ARM | $102.99 | |||
| 316467 | 62 | LEFT GRIP | $107.99 | |||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399154 | 63B | RIGHT PULSE WIRE | $27.49 | |||
| 399152 | 63C | LEFT PULSE WIRE | $65.49 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 384834 | 65 | RIGHT ARM FRONT COVER | $53.49 | |||
| 384828 | 66 | RIGHT ARM REAR COVER | $48.99 | |||
| 384816 | 67 | LEFT ARM FRONT COVER | $51.99 | |||
| 384822 | 68 | LEFT ARM REAR COVER | $46.49 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
 | 316683 | 71 | DISC | $99.99 | ||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 362774 | 73 | LEFT SHIELD | $189.99 | |||
| 362775 | 74 | RIGHT SHIELD | $189.99 | |||
| 376363 | 75 | CVR,TOP REAR SDSHLD,ARPS | $118.99 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $10.99 | Unavailable to order | |
 | 281801 | 77 | M8 X 22MM WASHER | $7.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
 | 384942 | 79 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 157600 | 80 | BUMPER | $1.99 | ||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82A | M8 X 13MM SCREW, PULLEY | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 238278 | 84A | M10 LIFT ARM WASHER | $1.49 | |||
| 248342 | 84B | M10 WASHER | $1.99 | |||
| 384801 | 85 | BEARING SPACER | $24.99 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | IDLER SCREW | $1.99 | ||
 | 014033 | 90 | IDLER WASHER | $1.49 | ||
 | 281149 | 91 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 248334 | 92 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 235322 | 94 | M5 WASHER | $2.49 | |||
 | 206321 | 95A | M8 X 19MM SCREW, NOTE | $3.49 | ||
 | 223089 | 95B | M8 X 15MM SCREW | $6.99 | ||
 | 251830 | 96 | M8 X 38MM HEX SCREW | $4.49 | ||
 | 248349 | 97A | CRANK PVT CAP WSHR | $6.49 | ||
 | 223812 | 97B | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 CRANK ARM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BUTTON SCREW | $5.99 | |||
 | 362904 | 110 | MAIN WIRE | $69.99 | ||
 | 130853 | 111 | #8 X 1/2″ SCREW | $0.99 | ||
 | 313668 | 112 | STRAIN-RELIEF BUSHING | $9.49 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
| 356782 | 114 | M4 X 40MM SCREW | $1.49 | |||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 376364 | 116 | DISC RING | $116.49 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 320382 | 118 | SHIELD COVER CAP | $40.99 | |||
| 240866 | 119 | POWER CORD, CHINA | $98.99 | |||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | SMALL FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
 | 224606 | 126 | M4 X 25MM SCREW | $0.99 | ||
 | 384931 | 127 | SMALL ARM BEARING | $43.99 | ||
| 316468 | 128 | RIGHT GRIP | $80.99 | |||
| 386630 | 129A | SMALL LEVELING FOOT | $7.99 | |||
| 331242 | 130 | RECTANGLE GROMMET | $6.49 | |||
| 242387 | TS2 | RECEPTACLE | $15.49 | |||
| 130424 | TS4 | 4″ BLACK WIRE,F/F | $4.99 | |||
| 144079 | TS7 | 6″ GRN/YEL WIRE,F/R | $4.49 | |||
| 322471 | TS8 | INCLINE MOTOR WIRE | $32.49 | |||
| 324737 | TS9 | 20″ WIRE HRNS, RESIST MTR | $30.49 |
