Nordictrack Asr 700 Elliptical – NTEL00607.0 / NTEL006070
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
75 Parts Available for Nordictrack Asr 700 Elliptical - NTEL00607.0 / NTEL006070 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 256318 | 5 | SHIELD COVER | $70.99 | |||
| 256315 | 6 | UPRIGHT COVER | $72.49 | |||
| 256149 | 7 | RAMP COVER | $72.99 | |||
 | 219825 | 8 | WHEEL | $24.99 | ||
 | 237631 | 9 | LEVELING FOOT | $34.99 | ||
| 256146 | 11 | PEDAL LEG TUBE | $29.49 | |||
| 241963 | 12A | IDLER | $62.49 | |||
 | 244245 | 12B | IDLER PULLEY | $35.49 | ||
 | 243374 | 12C | SMALL SNAP RING | $12.99 | ||
| 244247 | 12D | IDLER SPACER | $2.49 | |||
| 255072 | 13 | PULLEY | $91.99 | |||

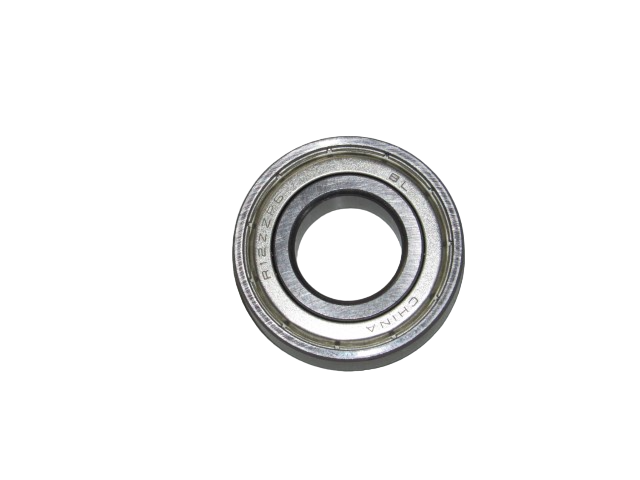

 | 139703 | 15 | CRANK BRACKET BEARING | $33.49 | ||
 | 241949 | 16 | RESISTANCE MOTOR | $99.99 | ||
| 256314 | 17 | REAR RAMP COVER | $107.49 | |||
 | 113842 | 18 | MAGNET | $1.49 | ||
 | 131090 | 20 | CLAMP | $0.99 | ||
 | 170205 | 21 | REED SWITCH/WIRE | $24.99 | ||
| 256327 | 22 | LEFT HANDLEBAR | $77.49 | |||
| 256383 | 24 | LEFT PEDAL LEG | $115.49 | |||
| 256157 | 26 | PEDAL | $70.49 | |||
 | 286547 | 27 | PEDAL ARM ROLLER | $59.99 | ||
| 256148 | 28 | SPACER | $6.49 | |||
| 256151 | 29 | Roller Axle | NLA | |||
| 256145 | 30 | PEDAL BRACKET BUSHING | $3.99 | |||
 | 256101 | 31 | CRANK ARM | NLA | ||
| 234017 | 32 | KEY | $2.49 | |||
| 256316 | 33 | Left Side Shield | $136.99 | |||
| 256154 | 34 | UPPER BODY ENDCAP | $6.99 | |||
| 256171 | 35 | REAR HANDLE COVER | $2.99 | |||
| 256326 | 36 | Right Handlebar | NLA | |||
| 262900 | 37 | RIGHT UPPER BODY ARM | $108.99 | |||
| 256384 | 38 | RIGHT PEDAL LEG | $115.49 | |||
| 256325 | 39 | RIGHT PEDAL BRACKET | $118.99 | |||
| 256317 | 40 | Right Side Shield | $136.99 | |||
| 256147 | 41 | PIVOT AXLE | $25.49 | |||
| 256152 | 42 | Crank Arm Spacer | NLA | |||
 | 201296 | 43 | BELT | $49.99 | ||
| 256150 | 44 | HANDLE GRIP | $33.49 | |||
| 256156 | 45 | LINK ARM ENDCAP | $2.49 | |||
| 255816 | 46 | Wire Harness | NLA | |||
| 256184 | 47 | Power Harness | NLA | |||
| 256133 | 49 | STABILIZER | $122.49 | |||
| 256155 | 50 | STABILIZER ENDCAP | $11.49 | |||
| 252110 | 51B | M6 x 9mm Screw | NLA | |||
| 255138 | 52 | M8 X 50MM HEX SCREW | $3.99 | |||

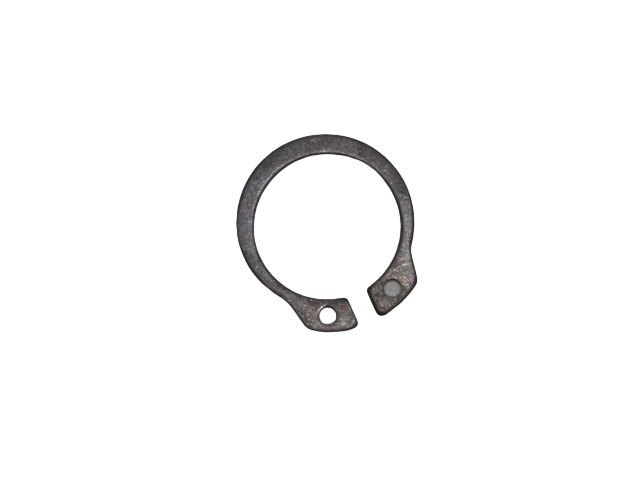

 | 143742 | 53 | CRANK BRACKET SNAP RING | $3.99 | ||
 | 243375 | 54 | SMALL SNAP RING | $2.49 | ||
| 229274 | 55 | M6 X 14MM FLAT HEAD SCREW | $2.49 | |||
 | 212054 | 57 | M6 X 18MM PATCH SCREW | $2.49 | ||
| 256377 | 58 | M10 X 120MM SCREW | $13.49 | |||
| 193330 | 59 | M10 x 20mm Button Screw | NLA | |||
 | 012142 | 60 | M6 NYLON LOCKNUT | $0.99 | ||
| 233736 | 61 | M8 X 55MM BOLT | $8.99 | |||
| 240451 | 62 | M80 X 50MM BUTTON SCREW | $0.99 | |||
| 014061 | 63 | M10 WASHER | $3.99 | |||
| 195974 | 64 | M10 X 28MM SCREW | $4.99 | |||
 | 206321 | 65 | M8 X 16MM SCREW | $3.49 | ||
 | 013322 | 66 | #8 X 3/4″ SCREW | $0.99 | ||
| 259065 | 67 | M4.2 X 16MM SCREW | $0.99 | |||
| 208532 | 68 | 1/8 X 2″ SCREW | $0.99 | |||
 | 197037 | 69 | M6 X 12MM SCREW | $0.99 | ||
| 130286 | 70 | FLYWHEEL WASHER | $11.49 | |||
| 256821 | 71 | M10 X 15MM SCREW | $5.49 | |||
 | 013162 | 72 | SAFETY COVER SCREW | $0.99 | ||
 | 148710 | 73 | M10 LOCKNUT | $2.49 | ||
| 133759 | 74 | M10 X 90MM BOLT | $22.49 | |||
| 256144 | 75 | Pivot Bushing | NLA | |||
 | 012042 | 76 | COVER CLIP | $1.99 | ||
 | 256446 | 77 | M8 JAM NUT | $0.99 | ||
| 256814 | 78B | M8 LOCKNUT | $1.49 | |||
 | 013576 | 79 | #8 X 1/2″ AB SCREW | $0.99 | ||
 | 144985 | 80 | #8 X 5/8″ SCREW,NOTE: | $0.99 | ||
 | 133333 | 81 | COVER CLIP | $0.99 | ||
 | 256815 | 82 | V-CLIP | $0.99 | ||
 | 248512 | 83 | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 |
