NORDICTRACK COMMERCIAL 1750 TREADMILL – NTL14119.4
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
140 Parts Available for NORDICTRACK COMMERCIAL 1750 TREADMILL - NTL14119.4 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 295136 | 1 | 5/16″ X 3/4″ SCREW | $3.49 | ||
 | 203283 | 2 | 5/16″ X 2″ BOLT | $2.99 | ||
 | 298484 | 3 | 5/16″X1 3/4″ SHLDR BOLT | $2.49 | ||
 | 349213 | 4 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013322 | 5 | #8 X 3/4″ SCREW | $0.99 | ||
 | 167049 | 6 | #10 X 3/4″ SCREW | $0.99 | ||
 | 427816 | 7 | GROUND SCREW | $0.99 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 9 | PULLEY NUT | $0.99 | ||
 | 013300 | 10 | 3/4″ SCREW | $0.99 | ||
 | 013576 | 11 | IDLER ARM BOLT | $0.99 | ||
 | 364027 | 12 | IDLER ROLLER BOLT | $2.99 | ||
 | 186819 | 13 | #8 X 1/2″ SILVER SCREW | $0.99 | ||
 | 346519 | 14 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
| 399015 | 15 | 3/8″ X 2″ BOLT | $2.99 | |||
| 269380 | 16 | 5/16″ X 1 1/4″ SCREW | $2.49 | |||
| 136728 | 18 | #8 X 7/16″ SCREW | $0.99 | |||
 | 295758 | 19 | MOTOR BOLT | $3.49 | ||
 | 181979 | 20 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 225696 | 21 | 1/4″ X 1 1/4″ SCREW | $1.49 | |||
 | 381122 | 22 | 3/8″ X 1 1/2″ WHEEL BOLT | $2.99 | ||
 | 341769 | 23 | 3/8″ X 2 3/4″ SCREW | $6.49 | ||
 | 013607 | 24 | #8 X 3/4″ TRUSS HD SCRW | $0.99 | ||
 | 163045 | 25 | 3/8″ STAR WASHER | $0.99 | ||
| 377002 | 26 | 1/2″ X 2″ BOLT | $15.49 | |||
 | 183246 | 27 | 1/4″ X 1/2″ SCREW | $1.49 | ||
 | 384997 | 28 | 3/8″ X 1″ SCREW | $2.49 | ||
| 217913 | 29 | 1/4″ WASHER | $2.99 | |||
 | 121576 | 30 | SPRING NUT | $2.49 | ||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 215822 | 32 | CONSOLE GROUND WIRE | $5.99 | ||
| 131483 | 33 | 1/4″ ISOLATOR SCREW | $1.49 | |||
 | 100553 | 34 | FRONT INCLINE PIVOT NUT | $1.49 | ||
 | 119425 | 35 | FRAME PIVOT NUT | $0.99 | ||
 | 133333 | 36 | HOOD CLIP | $0.99 | ||
| 360945 | 37 | CUSHION | $26.49 | |||
| 413303 | 38 | LATCH WRNG DECAL | $3.99 | |||
| 395777 | 39 | WALKING PLATFORM | $369.99 | |||
 | 403357 | 40 | WALKING BELT | $180.99 | ||
| 395587 | 41 | LEFT FOOT RAIL | $90.49 | Unavailable to order | ||
| 403289 | 42 | RIGHT FOOT RAIL | $88.99 | |||
| 399477 | 43 | BELT GUIDE | $69.99 | |||
| 403353 | 44 | LEFT FRAME COVER | $105.49 | |||
 | 372092 | 45 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 372108 | 46 | 1/2″ BUSHING | $4.99 | ||
 | 129144 | 47 | 1/2″ THRUST WASHER | $3.49 | ||
 | 391855 | 48 | CONTROLLER | $198.49 | ||
| 014157 | 49 | #8 STAR WASHER | $0.99 | |||
| 395460 | 50 | CONTROLLER BRACKET | $30.49 | |||
| 352011 | 51 | DRIVE ROLLER/PULLEY | $148.49 | |||
| 240351 | 53 | CABLE TIE | $0.99 | |||
| 405694 | 54 | DRIVE MOTOR | $269.99 | |||

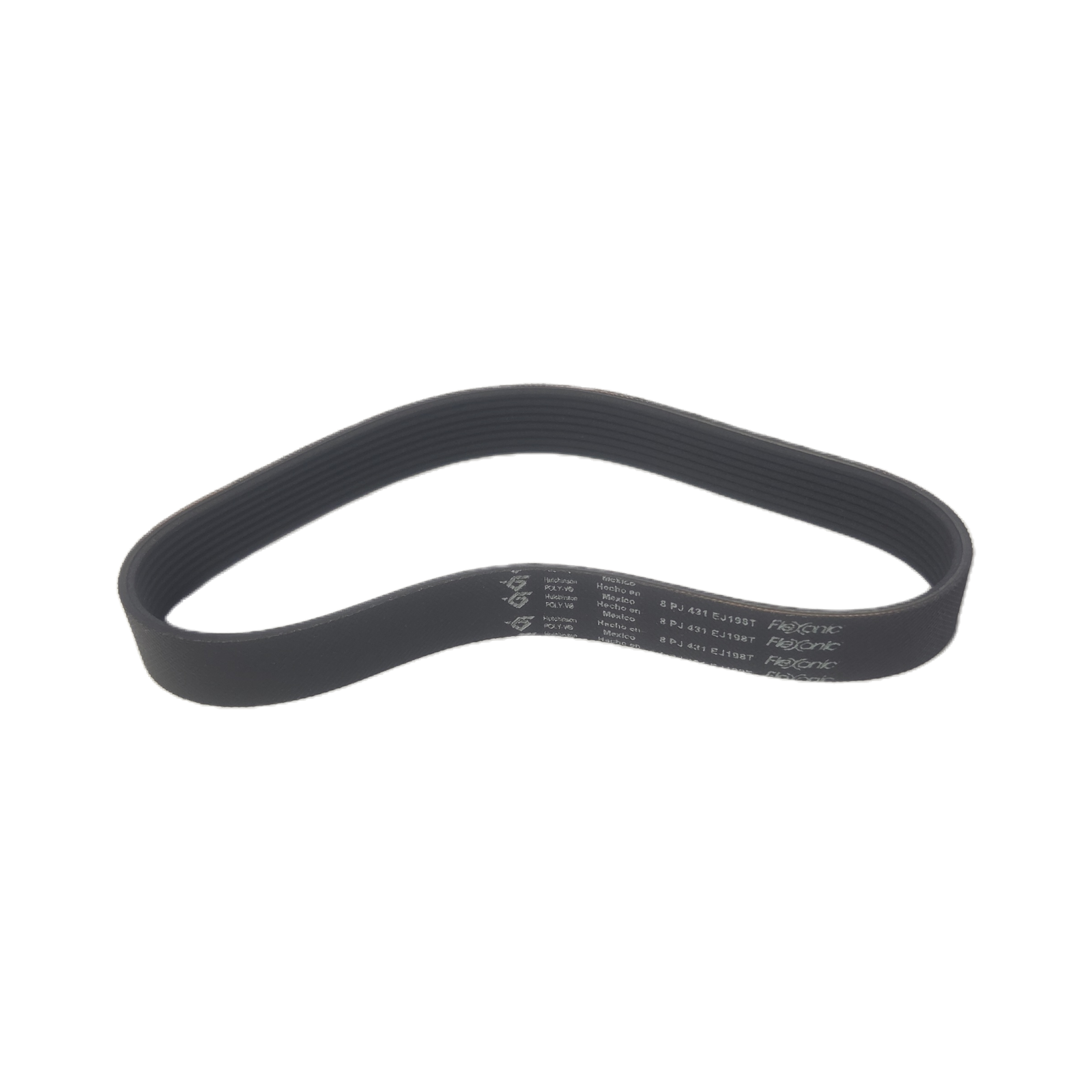

 | 342218 | 55 | OEM MOTOR BELT | $49.99 | ||
 | 388199 | 56 | STORAGE LATCH | $119.49 | ||
| 403354 | 57 | RIGHT FRAME COVER | $105.49 | |||
| 360938 | 58 | CUSHION PLATE | $2.99 | |||
 | 223662 | 59 | IDLER ROLLER | $165.99 | ||
| 395589 | 60 | LEFT REAR CAP | $28.49 | |||
 | 395588 | 61 | RIGHT REAR CAP | $31.49 | ||
| 395776 | 62 | MOTOR HOOD | $139.49 | |||
 | 372106 | 63 | INCLINE FRAME SPACER | $3.49 | ||
 | 301336 | 64 | FRAME SPACER | $5.49 | ||
| 394999 | 65 | INCLINE FRAME | $125.49 | |||
| 319254 | 66 | INCLINE MOTOR | $174.99 | |||
 | 114078 | 67 | INCLINE MOTOR SPACER | $2.49 | ||
| 265134 | 68 | HOOD MOUNT | $5.99 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 173169 | 70 | UPRIGHT GROMMET | $0.99 | ||
 | 186726 | 71 | POWER SWITCH | $22.49 | ||
| 395006 | 72 | BELLY PAN | $115.49 | |||
 | 385214 | 73 | LEFT HANDRAIL TOP COVER | $27.49 | ||
| 357773 | 74 | HANDRAIL | $54.49 | |||
 | 385215 | 75 | LEFT HANDRAIL BOTTOM CVR | $23.49 | ||
| 351467 | 76 | UPRIGHT CROSSBAR | $98.49 | |||
| 104794 | 77 | CONSOLE FRAME CAP | $1.99 | |||
 | 298474 | 78 | RUBBER CUSHION | $1.99 | ||
| 351687 | 79 | TRAY | $59.99 | |||
| 385210 | 80 | PULSE CROSSBAR | $124.49 | |||
 | 385212 | 81 | RIGHT HANDRAIL TOP COVER | $27.49 | ||
 | 385211 | 82 | RIGHT HANDRAIL BOTTOM CVR | $23.49 | ||
| 416297 | 83 | UPRIGHT WIRE | $116.99 | |||
| 385577 | 84 | RIGHT UPRIGHT | $196.99 | |||
| 252433 | 85 | WARNING DECAL | $0.99 | |||
 | 227199 | 86 | GROMMET | $2.49 | ||
 | 319487 | 87 | CUSHION SPRING | $13.99 | ||
| 304347 | 88 | INCLINE STOP BRACKET | $4.99 | |||
| 410681 | 89 | LEFT BASE COVER | $78.99 | |||
| 410680 | 90 | RIGHT BASE COVER | $78.99 | |||
| 383741 | 91 | LEFT UPRIGHT | $117.99 | |||
 | 382172 | 92 | REAR WHEEL | $6.99 | ||
| 395002 | 93 | BASE | $239.49 | |||
| 385326 | 94 | LEFT TRAY | $31.99 | |||
| 448988 | 95 | FAN | $335.99 | |||
| 409838 | 96A | CONSOLE (ARGON) | $850.49 | |||
| 409838R | 96C | REFURBISHED CNSL (ARGON) | $631.99 | |||
| 450785 | 96D | TABLET ONLY | $399.99 | |||
 | 395005 | 97 | REAR FOOT (Left Or Right) | $54.99 | ||
| 351453 | 99 | CUSHION ROD | $125.99 | |||
| 385328 | 100 | CONSOLE BASE | $139.49 | |||
| 385327 | 101 | RIGHT TRAY | $31.99 | |||
| 398591 | 102 | HOOD ACCENT | $62.99 | |||
| 395249 | 103 | HOOD GRILL | $29.49 | |||
 | 298898 | 104 | KEY/CLIP | $19.99 | ||
| 186253 | 105 | CONSOLE FRAME CAP | $1.99 | |||
| 384809 | 106 | CONSOLE FRAME | $106.99 | |||
| 132315 | 107 | WIRE TIE | $3.49 | |||
 | 013235 | 108 | ISOLATOR SCREW | $6.99 | ||
| 395019 | 109 | LATCH CROSSBAR | $65.49 | |||
 | 102973 | 111 | 3/8″ WASHER | $0.99 | ||
| 301345 | 112 | BASE PAD | $2.99 | |||
| 351691 | 113 | HANDLE CAP | $6.99 | |||
| 269381 | 114 | 1/4″ X 5/8″ SCREW | $1.99 | |||
| 351689 | 115A | ADJUSTMENT HANDLE | $71.49 | |||
| 351958 | 115B | INSERT,ISLATR HANDLE | $1.99 | |||
| 329452 | 116 | CUSHION BUSHING | $11.49 | |||
| 395911 | 117 | ISLATR,FRAME,LABBK | $39.99 | |||
| 360940 | 118 | CUSHION WHEEL STOP | $4.99 | |||
| 378826 | 119 | FLEX CUSHION WASHER | $0.99 | |||
| 329503 | 120 | CUSHION WHEEL | $10.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 331708 | # | FRAME FLAT BUMPON W/ADHSV | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 409714 | # | LITPAC, NOTE: | $104.49 | |||
| 403164 | # | HARDWARE KIT, NOTE: | $94.99 | |||
 | 209460 | # | ALLEN WRENCH | $7.99 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | ARC14 | # | WALL ARC FILTER | |||
| 409731 | # | USER’S MANUAL | $23.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
 | 286707 | # | INCLN MTR SENSOR WIRE KIT | $70.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
 | 189813 | TS11 | FILTER WIRE | $23.99 | ||
 | 102634 | TS4 | 8″ GREEN WIRE | $3.49 | ||
| 211260 | TS6 | 12″ WIRE HARNESS | $12.99 | |||
| 101896 | TS7 | 4″ WHITE WIRE, M/F | $3.49 |
