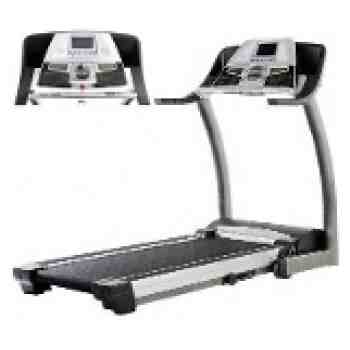

Image Advanced 2200 Treadmill – IMTL94106.1 / IMTL941061
114 Parts Available for Image Advanced 2200 Treadmill - IMTL94106.1 / IMTL941061 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 253664 | 4 | ISLATR,RBBR,ARPS | $18.99 | |||
| 201508 | 5 | LATCH HOUSING COVER | NLA | Unavailable to order | ||
| 128272 | 7 | TOP ISOLATOR BOLT | $0.99 | |||
| 241052 | 8 | WALKING BELT | NLA | Unavailable to order | ||
 | 149072 | 9 | TENSION BOLT | $3.99 | ||
| 124963 | 10 | FRAME PIVOT WASHER | $0.99 | |||
| 256038 | 11 | RLR,DRIVE,ASSY,2.5,ARPS | $124.99 | |||
| 195476 | 12 | MAGNET | $16.49 | |||
 | 119425 | 13 | 3/8″ LOCKNUT | $0.99 | ||
| 157337 | 15 | FRAME PIVOT SPACER | NLA | Unavailable to order | ||
| 216626 | 16 | REED SWITCH CLIP | $0.99 | Unavailable to order | ||
| 251198 | 17 | REED SWITCH | $13.49 | |||
| 220116 | 18 | LIFT FRAME | $119.49 | |||
| 134594 | 21A | FOOT RAIL SCREW | $0.99 | |||
| 171557 | 21B | 1″ SCREW | $0.99 | |||
 | 250501 | 22 | MOTOR BELT | $38.99 | ||
| 248529 | 24 | DRIVE MOTOR | $296.49 | |||
| 248311 | 25 | TRANSFORMER | $106.99 | |||
 | 013576 | 26 | CROWN SCREW | $0.99 | ||
| 157338 | 27 | HOOD BRACKET | $0.99 | |||
| 200747 | 28 | GROUND WIRE | $3.49 | Unavailable to order | ||
| 159986 | 31 | TOP INCLINE BOLT | $6.49 | Unavailable to order | ||
| 178152 | 32 | MOTOR BOLT | $2.99 | |||
| 189757 | 33 | CUSHION PLATE | $0.99 | |||
| 201379 | 34 | LEFT INSIDE HOUSING | NLA | Unavailable to order | ||
| 201381 | 35 | RIGHT INSIDE HOUSING | NLA | Unavailable to order | ||
| 253663 | 36 | RIGHT OUTSIDE HOUSING | $41.49 | |||
 | 252234 | 37 | Fitness Equipment Controller | NLA | Unavailable to order | |
| 220121 | 38 | CONTROLLER PLATE | $16.99 | |||
 | 013316 | 40B | #10 X 3/4″ SCREW | $0.99 | ||
 | 154848 | 40C | HOOD SCREW | $0.99 | ||
 | 013322 | 40E | #8 X 3/4″ SCREW | $0.99 | ||
| 201505 | 41 | Motor Bellypan | NLA | Unavailable to order | ||
 | 146427 | 43A | #8 X 1″ TEK SCREW | $0.99 | ||
 | 013300 | 43B | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 013607 | 44A | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 186819 | 44B | #8 X 1/2″ SCREW | $0.99 | ||
| 201500 | 45 | LEFT FRONT ENDCAP | NLA | Unavailable to order | ||
| 201501 | 46 | RIGHT FRONT ENDCAP | NLA | Unavailable to order | ||
| 132315 | 49 | ZIP TIE | $3.49 | |||
| 216966 | 50 | FAN COVER | NLA | Unavailable to order | ||
 | 305744 | 53 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 201503 | 54 | LEFT REAR ENDCAP | $41.49 | |||
 | 128457 | 56 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 116259 | 57 | Rear Platform Screw | NLA | Unavailable to order | ||
 | 238678 | 58 | Idler Roller | NLA | Unavailable to order | |
| 119445 | 59 | 1.25″ SCREW | $0.99 | |||
| 012151 | 60 | CABLE NUT | $0.99 | |||
| 240260 | 61 | PULSE BAR | $132.49 | |||
 | 121576 | 62 | 1/4″ NUT | $2.49 | ||
| 238657 | 63 | IDLER ARM | $23.99 | |||
 | 227298 | 64 | IDLER ARM SPRING | $2.49 | Unavailable to order | |
| 136728 | 66 | #8 BELT GUIDE SCREW | $0.99 | |||
| 201507 | 68 | LATCH HOUSING | NLA | Unavailable to order | ||
 | 014149 | 69 | 5/16″ STAR WASHER | $0.99 | ||
| 232630 | 71 | CONSOLE WIRE HARNESS | $28.99 | |||
 | 186726 | 72B | POWER SWITCH | $22.49 | ||
| 161121 | 74 | #4 FAN SCREW | $0.99 | |||
| 189755 | 75 | Spring | NLA | Unavailable to order | ||
| 013567 | 76 | SHAFT SCREW | $0.99 | |||
| 187855 | 77 | FRONT WHEEL | $6.49 | |||
| 166492 | 78 | WHEEL BOLT | $2.49 | |||
 | 100427 | 79 | 5/16″ NUT | $0.99 | ||
| 232113 | 81 | CONSOLE BASE | $54.49 | |||
 | 188015 | 82 | FAN | $46.49 | ||
| 201383 | 83 | SPRING PAD | $27.49 | |||
 | 130659 | 84 | #8 X 3/4″ BLACK SCREW | $0.99 | ||
 | 253669 | 85 | WIRE HARNESS | $74.99 | ||
 | 104345 | 87 | VIDEO JACK STAR WASHER | $0.99 | ||
| 211399 | 88 | UPRIGHT ENDCAP | NLA | Unavailable to order | ||
 | 189813 | 89 | FILTER WIRE | $23.99 | ||
| 256836 | 90 | Warning Decal | NLA | Unavailable to order | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 116927 | 95 | TIE HOLDER CLAMP | $0.99 | |||
| 116926 | 96 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | 97 | 8″ CABLE TIE | $2.99 | |||
 | 157600 | 98 | BUMPER | $1.99 | ||
| 013581 | 99 | IDLER ARM BOLT | $1.99 | |||
| 348858 | 100 | Upright TV Cable | $0.99 | |||
| 201129 | 101 | WHEEL HOUSING | NLA | Unavailable to order | ||
| 232473 | 102 | POWER CORD ASSEMBLY | $68.49 | |||
| 252433 | 104 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 192228 | 105 | SPRING PLATE | $3.49 | |||
| 201376 | 106 | LEFT HANDGRIP KIT, BOTTOM | NLA | Unavailable to order | ||
| 235600 | 107 | PULSE BAR WARNING DECAL | NLA | Unavailable to order | ||
 | 014126 | 108 | TRACK WASHER | $0.99 | ||
 | 014132 | 109 | 3/8″ WASHER | $0.99 | ||
| 014157 | 112 | #8 STAR WASHER | $0.99 | |||
| 158157 | 113 | Static Decal | NLA | Unavailable to order | ||
 | 013162 | 114 | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 162866 | 115 | REAR WALKING BOARD SCREW | $1.49 | ||
 | 014063 | 116 | 1/4″ FLAT WASHER | $0.99 | ||
| 252924 | 117 | CONSOLE BACK | $101.99 | |||
| 013523 | 119 | SPRING BOLT | $1.49 | |||
| 158440 | 120 | CUSHION ADJ. PIN | $0.99 | |||
| 163870 | 121 | MOTOR BUSHING | $1.49 | |||
| 201359 | 123 | ROD,CUSH ADJ,BKESV 201360B | $77.99 | |||
| 236124 | 124 | INCLINE BRACKET | $7.99 | |||
 | 136176 | 125 | 3/8″ X 3″ Screw | NLA | Unavailable to order | |
| 201377 | 126 | RIGHT HANDGRIP, TOP | NLA | Unavailable to order | ||
| 201378 | 127 | RIGHT HANDGRIP, BOTTOM | NLA | Unavailable to order | ||
| 189759 | 128 | CUSHION ADJ GEAR | NLA | Unavailable to order | ||
| 189767 | 129 | CUSHION ADJ. WHEEL | $8.49 | |||
| 241917 | 130 | CUSHION ADJ. KNOB | NLA | Unavailable to order | ||
| 013540 | 131 | M4 X 19MM FLAT HEAD SCREW | $0.99 | |||
| 190493 | 132 | 1/2″ SCREW | $0.99 | |||
| 013496 | 133 | 1″ HANDRAIL BOLT | $1.99 | |||
| 215158 | 135 | ACCESS DOOR | $1.99 | |||
 | 208603 | 136 | KEY/CLIP | $19.99 |
