Image 15.0R Treadmill - IMTL39105.1 / IMTL391051

Image 15.0R Treadmill – IMTL39105.1 / IMTL391051

Brand: Image

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

75 Parts Available for Image 15.0R Treadmill - IMTL39105.1 / IMTL391051 ↓

Part #	Diagram #	Title	Price
117332	4	3/8″ X 3/4″ BOLT	$4.49
149442	5	5/16″ X 4″ SCREW	$4.99
147321	6	M10 SPLIT WASHER	$0.99
297197	8	Part # 297197	Contact for Pricing
228200	9	RIGHT UPRIGHT	Contact for Pricing
256836	11	Warning Decal	Contact for Pricing
169460	12	WHEEL	$3.49
119425	13	3/8″ LOCKNUT	$0.99
209505	14	PULLEY BOLT	$2.99
128272	15	WALKING PLATFORM SCREW	$0.99
242553	16	FOOT RAIL	Contact for Pricing
252154	17	RLR,DRIVE,ARPS,$227745	$151.49
113842	18	SENSOR MAGNET	$1.49
104925	19	PIVOT BOLT	Contact for Pricing
215360	20	Motor Bracket Bolt	Contact for Pricing
226038	21	RIGHT FOOT RAIL ENDCAP	Contact for Pricing
133333	22	HOOD CLIP	$0.99
174801	24	1/4″ X 1/2″ BOLT	$0.99
186819	25	#8X1/2″ WASHER HEAD SCREW	$0.99
142686	26	1/4″ FLANGE NUT	$0.99
225768	27	FAN HOUSING	$32.49
120867	28	3/8″ FLANGE NUT	$2.49
137944	29	LATCH	$10.99
225771	30	LATCH CATCH	Contact for Pricing
215280	31	REAR ENDCAP PAD	Contact for Pricing
012149	32	3/8″ NYLON LOCKNUT	$0.99
226003	34	LEFT GRIP PLATE	Contact for Pricing
102959	35	#8 X 3/4″ MACHINE SCREW	$0.99
226004	36	RIGHT CONSOLE ARM	Contact for Pricing
174797	37	5/16″ X 3″ SCREW	$4.49
014063	38	1/4″ WASHER	$0.99
146427	39	1″ TEK SCREW	$0.99
013576	40	M4 X 10MM SELF-TAP SCREW	$0.99
014157	41	#8 STAR WASHER	$0.99
209631	42	Upright Wire	NLA	Unavailable to order
207950	44	PLASTIC PLATE WASHER	$1.99
160716	45	BASE PLATE BUMPER	$3.49
102955	46	OPTIC SWITCH	$15.49
189813	48	FILTER WIRE	$23.99
013300	49	3/4″ SELF TAP SCREW	$0.99
208603	50	KEY/CLIP	$19.99
130459	52	Endcap Screw	Contact for Pricing
174320	53	3/8″ X 1 1/2″ BOLT	$2.99
013438	54	3/8″ X 1″ BOLT	$1.49
241039	55	MOTOR MOUNT BRACKET	$14.49
223520	56	INCLINE MTR/CNTRL WIRE	$12.99
157600	57	BUMPER	$1.99
013607	58	M5 X 25MM SELF-TAP SCREW	$0.99

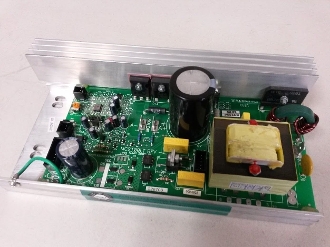

248193	59	CNTRLR,MC2100SDI-12,ARPS,NOC&P	Contact for Pricing
225761	60	LIFT FRAME	$119.49
252433	62	CAUTION DECAL	$0.99
013544	64	3/8″ X 2″ BOLT	$3.99
117544	65	U-STABILIZER CAP	$0.99
199545	66	FRONT WHEEL	$2.49
012179	67	5/16″ U-NUT	$34.99
016057	68	8″ CABLE TIE	$2.99
233239	69	BASE	Contact for Pricing
129004	70	1″ GROMMET	$1.99
223772	71	LEFT HANDRAIL	Contact for Pricing
012152	73	#8-32 HEX NUT	$0.99
183824	75	SCREW	$0.99
220476	76	HANDRAIL ENDCAP	Contact for Pricing
116926	77	TIE	$0.99
214217	79	POWER CORD ASSEMBLY	$67.49
014149	80	5/16″ STAR WASHER	$0.99
226021	81	Part # 226021	Contact for Pricing
198640	82	BELT GUIDE	$25.49
136728	83	#8 BELT GUIDE SCREW	$0.99
188015	84	FAN	$46.49
242554	88	LEFT REAR ENDCAP	$49.49
016055	89	RS CLAMP, SELF-ADHSV	$1.99
235097	90	Part # 235097	Contact for Pricing
131090	91	CLAMP	$0.99
305744	92	SINGLE IDLER ROLLER BOLT	$5.99
128457	94	WRENCH	$25.49
