Golds Gym Xr 7.9 Bench – GGBE6969.0 / GGBE69690
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
36 Parts Available for Golds Gym Xr 7.9 Bench - GGBE6969.0 / GGBE69690 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 282387 | 6 | LVR,LEG,ARPS,W/DECAL | $134.99 | |||
| 281091 | 7 | BACKREST TUBE | $40.99 | |||
| 282278 | 10 | UPRIGHT COVER | $19.99 | |||
 | 281092 | 12 | PAD TUBE | $16.99 | ||
 | 208378 | 13 | FOAM PAD | $28.99 | ||
| 282294 | 14 | SPPRT,ROD,CBNSV | ||||
 | 282296 | 15 | PEG,WT,W/HOOK,CBNSV | $52.49 | ||
| 282385 | 16 | 50MM X 1.4MM SQ INNER CAP | $2.49 | |||
| 281317 | 20 | 25MM X 2MM ROUND CAP | $0.99 | |||
 | 014063 | 22 | ISOLATOR WASHER | $0.99 | ||
| 137337 | 24 | M6 X 16MM PAN HEAD SCREW | $3.49 | |||
| 192210 | 25 | M10 X 60MM BOLT | $6.49 | |||
| 144781 | 27 | M10 X 68MM SCREW | $15.99 | |||
| 013226 | 28 | SHOULDER BOLT | $5.99 | |||
 | 144985 | 29 | #8 X 5/8″ SCREW | $0.99 | ||
| 242419 | 30 | M8 WASHER | $0.99 | |||
 | 148710 | 31 | M10 LOCKNUT | $2.49 | ||
| 194426 | 32 | M6 X 40MM SCREW | $3.49 | |||
| 284845 | 33 | TUBE,STBLZR,FRONT,CBNSV | $26.49 | |||
| 280313 | 34 | PAD CAP | $1.99 | |||
| 282303 | 35 | PLATE,CONNECT,GUSSET,CBNSV | $17.49 | |||

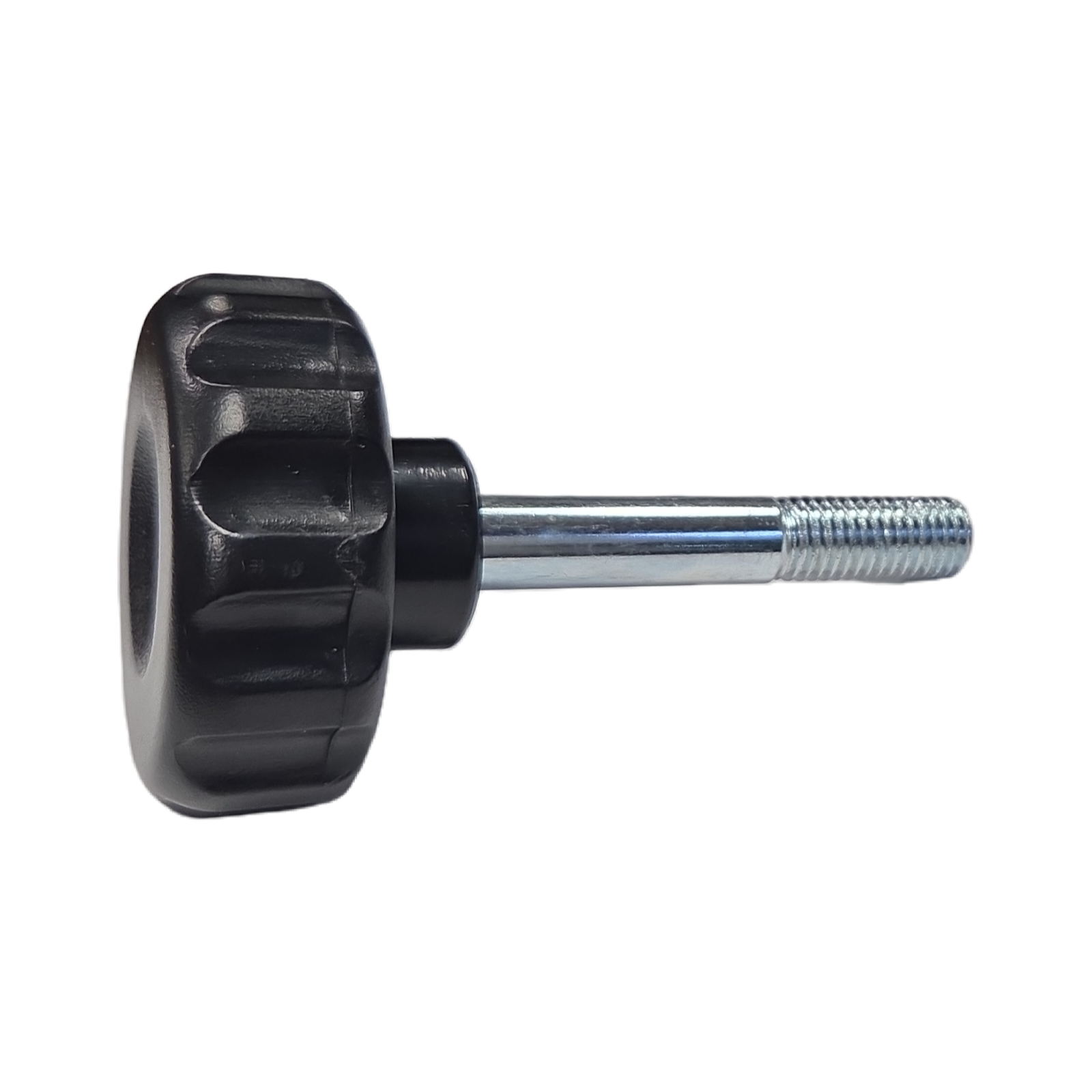

 | 140950 | 36 | LONG KNOB | $28.99 | ||
| 182114 | 37 | M10 X 33MM CARRIAGE BOLT | NLA | |||
 | 256446 | 38 | M8 NUT | $0.99 | ||
| 242365 | 40 | 3/8″ FLAT WASHER | $0.99 |
