GOLD'S GYM GG STRIDE TRAINER 410 GGEL63910.3 Elliptical

GOLD’S GYM GG STRIDE TRAINER 410 GGEL63910.3 Elliptical

Brand: Gold's Gym

123 Parts Available for GOLD'S GYM GG STRIDE TRAINER 410 GGEL63910.3 Elliptical ↓

Part #	Diagram #	Title	Price
315188	2	UPRIGHT	$186.99
280934	3	REAR UPRIGHT COVER	Contact for Pricing
280935	5	WATER BOTTLE HOLDER	$27.99
314743	6	HB,LOWER,L/R,W/BKT,LABBK	Contact for Pricing
321353	7	RESISTANCE CABLE 13.715″L	$49.99
315189	8	LEFT UPPER BODY ARM	$127.49
315190	9	RIGHT UPPER BODY ARM	$127.49
230444	10	FOAM GRIP	Contact for Pricing
246303	11	UPPER BODY ARM CAP	$0.99
314192	12	LEFT PEDAL	$113.99
314194	13	RIGHT PEDAL	$113.99
315191	14	LEFT PEDAL ARM	$185.49
319895	15	LEFT PEDAL BRACKET	$130.99
280933	16	FRONT UPRIGHT COVER	Contact for Pricing
256295	17	HANDLEBAR BUSHING (138574)	$4.99
286527	18A	SNAP FASTENER	$2.49
316998	19	PIVOT COVER A	$19.49
314746	20	FRONT LEG COVER	$46.49
314747	21	REAR LEG COVER	$27.99
281020	23	PEDAL ARM BUSHING	$6.49
345904	24	CRANK	$61.49
305948	27	CRANK ARM SPACER	$16.99
272391	28A	RIGHT PULSE WIRE	$31.99
272392	28B	LEFT PULSE WIRE	$17.49
280950	30	PEDAL ARM CAP	Contact for Pricing
314745	31	BOLT SET	$19.99
283133	32	CONSOLE COVER	$27.99
316370	34	M10 WASHER	$0.99
148710	35	M10 LOCKNUT	$2.49
322893	36	LONG BUMPER	$23.99
316080	37	SHIELD COVER	$108.99
139703	38	SMALL BEARING / FOLDING FRAME BEARING	$29.98
143742	40	SNAP RING	$3.99
113842	41	MAGNET	$1.49
322072	42	MAIN WIRE	$61.49
314681	43A	M6 WASHER	$0.99
315186	44	LEFT SHIELD	$178.49
315187	45	RIGHT SHIELD	$178.49
306492	46	DRIVE BELT	$59.99
280953	47	LEVELING FOOT	$24.49
315192	49	RIGHT PEDAL ARM	$185.49
280951	50	WHEEL	$70.49
325019	51	FLYWHEEL	$131.49
363093	52	IDLER	$116.49
319754	53	SHORT BUMPER	$12.99
193223	54	RESISTANCE MOTOR	$99.99
275248	55	M4 X 48MM SCREW	$0.99
319896	56	RIGHT PEDAL BRACKET	$130.99
131090	57	CLAMP	$0.99
186070	58	REED SWITCH/WIRE	$28.99
314683	59	M8 X 10MM SCREW	$2.49
281559	60	KEY	$2.49
281558	61	M8 LOCKNUT	$3.49
199493	62B	M6 X 16MM BUTTON SCREW	$4.62
251978	63	M10 X 41MM SCREW	$12.99
314166	65	PEDAL BRACKET SPRING	$3.99
281150	66	M6 X 20MM SHLDR SCRW,NOTE	$4.49
314749	67	M10 X 104MM SCREW	$16.99
281557	68	CRANK ARM SCREW	Contact for Pricing
168267	69	M4 X 12MM FLANGE SCREW	$0.99
314152	70	REAR STABILIZER	$113.99
184369	71	M4X16MM TABLET HLDR SCREW	$0.99
281156	72	DRIVE BELT ADJ SCREW	$8.49
314149	73	FRONT STABILIZER	$113.49
237616	74	BRASS BUSHING	$4.99
316348	75	CAM AXLE	$96.49
153770	76	M8 X 45MM BUTTON BOLT	$14.49
256446	77	M8 JAM NUT	$0.99
177034	78	M10 SPLIT WASHER	$1.49
248334	79	M10 X 20MM PATCH SCREW	$5.49
223168	80	M8 X 20MM PATCH SCREW	$5.99
315415	81	PEDAL KNOB	$18.49
314155	83	LEFT CRANK ARM	$141.99
340823	84	#10 X 16MM SCREW	Contact for Pricing
247329	85	M8 X 18MM SCREW	$2.99
277369	86	PULLEY	$174.49
215823	87	AUDIO WIRE	$11.99
208163	88	M6 X 20MM HEX SCREW	$1.99
270796	89	M8 X 15MM SCREW	$2.49
284963	91A	LEFT PULSE SENSOR/WIRE	$68.49
284964	91B	RIGHT PULSE SENSOR/WIRE	$68.49
234235	92A	ST4.2 X 16MM SCREW	$0.99
195562	92C	M4 X 16MM SCREW	$1.99
208817	92D	M4.2 X 13MM PAN HD SCREW	$0.99
276771	#	IFIT SD,JILLIAN MICHAELS	$111.49
116926	#	8″ 50 LB CABLE TIE	$0.99
130853	#	GROUND SCREW	$0.99
116566	#	15.5″ CABLE TIE	$0.99
258868	#	DECAL, GENERAL WARNING	$0.99
240351	#	CABLE CLAMP	$0.99
316322	#	DECAL, PEDAL POSITION	$13.99
166909	#	SITE WARNING DECAL	$2.49
274915	#	IFIT CARD,CIRCUIT TRNG,L3	$70.99
276772	#	IFIT SD,JILLIAN MICHAELS	$73.49
290910	#	IFIT CARD,WEIGHT LOSS,L3	$69.99
274913	#	IFIT CARD,CIRCUIT TRNG,L1	$70.99
290905	#	IFIT CARD,WELLNESS,L1	$92.49
290906	#	IFIT CARD,WELLNESS,L2	$69.49
146119	#	FLOOR MAT	$79.99
290907	#	IFIT CARD,WELLNESS,L3	$69.49
290908	#	IFIT CARD,WEIGHT LOSS,L1	$69.99
324670	#	USER’S MANUAL	$8.49
290909	#	IFIT CARD,WEIGHT LOSS,L2	$69.99
104838	#	GREASE PACKET	$8.49
248512	#	OPTIONAL TRANSFORMER / POWER ADAPTER	$18.99
297256	#	ASSEMBLY TOOL, 6MM HEX	$13.49
243374	#	SMALL SNAP RING	$12.99
328496	#	5 FRENCH DECALS ON 1SHEET	$87.99
330224	#	DECAL,REWRK,OVERLAY SHEET	$61.49
299723	#	CNSL REPROGRAMMING CARD	$85.49

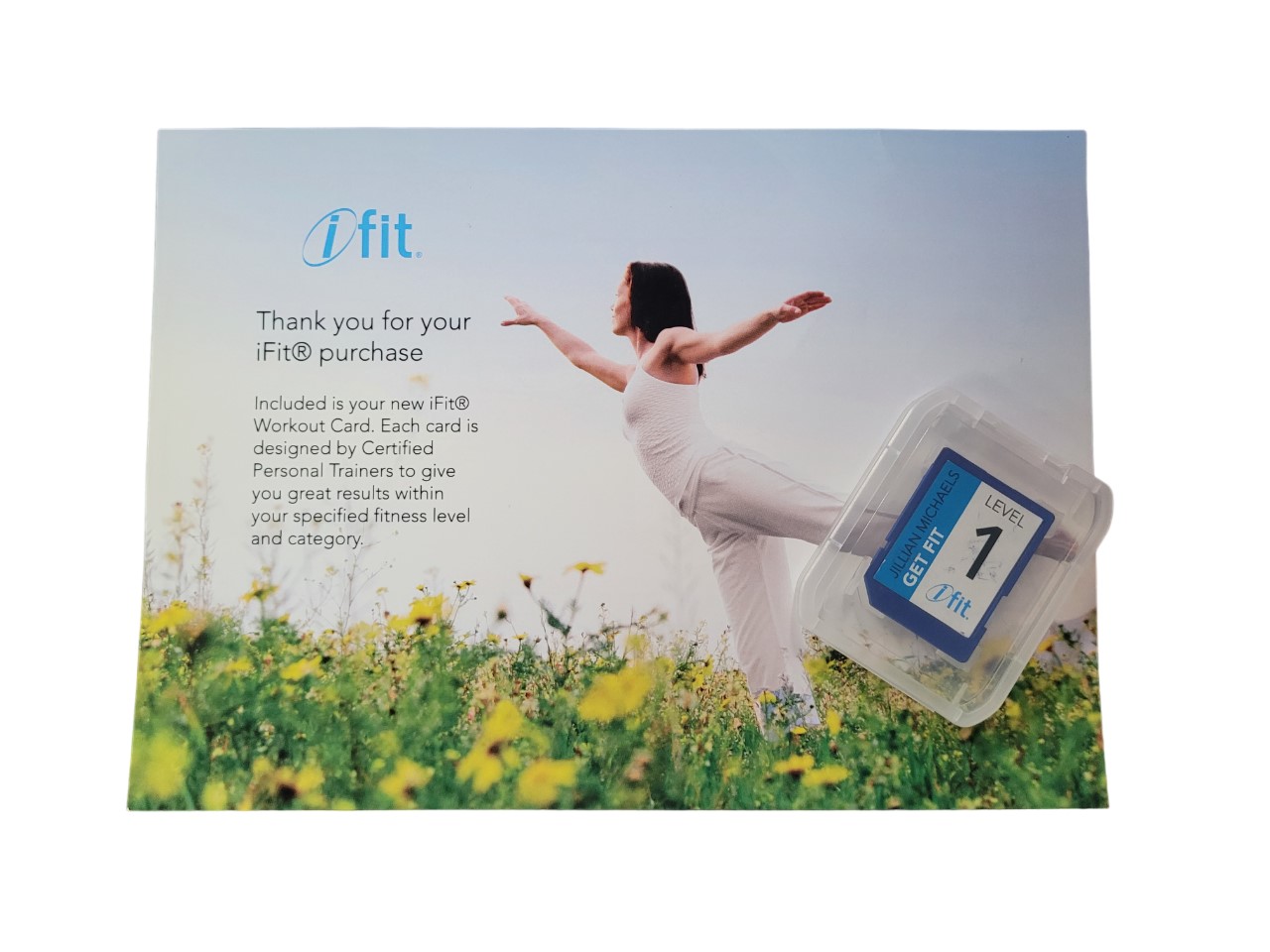

276770	#	IFIT SD,JILLIAN MICHAELS	$39.99
276775	#	IFIT SD,JILLIAN MICHAELS	$73.49
274914	#	IFIT CARD,CIRCUIT TRNG,L2	$70.99
276774	#	IFIT SD,JILLIAN MICHAELS	$70.99
301390	#	DBL X-MAS TREE FASTENER	$0.99
276773	#	IFIT SD,JILLIAN MICHAELS	$100.49
341109	#	USER’S MANUAL, FCA	$12.49
