Freemotion 790 Interactive Treadmill - SFTL19511.2 / SFTL195112

Freemotion 790 Interactive Treadmill – SFTL19511.2 / SFTL195112

Brand: Freemotion

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

127 Parts Available for Freemotion 790 Interactive Treadmill - SFTL19511.2 / SFTL195112 ↓

Part #	Diagram #	Title	Price
013322	1A	#8 X 3/4″ SCREW	$0.99
121204	1B	#8 X 1 1/4″ SCREW	$0.99
130659	1C	#8 X 3/4″ BLACK SCREW	$0.99
203283	4	5/16″ X 2″ BOLT	$2.99
013500	5	5/16″ X 1 1/2″ SCREW	$2.49
149072	6	TENSION BOLT	$3.99
135622	7	3/8″ X 2 3/4″ SCREW	$18.99
119994	8	1.25″ SCREW	$2.99
013576	9A	#8 X 1/2″ COVER SCREW	$0.99
186819	9B	#8X1/2″ WASHER HEAD SCREW	$0.99
014149	10	5/16″ STAR WASHER	$0.99
012149	11	3/8″ NUT	$0.99
163045	12	3/8″ STAR WASHER	$0.99
013300	13	#8 X 3/4″ WSHR HEAD SCREW	$0.99
346519	14	3/8″ X 1 1/2″ BOLT	$3.99
304905	15	1/2″ JAM NUT	$1.99
364027	16	1/4″ X 2 1/2″ SCREW	$2.99
159986	17	TOP INCLINE BOLT	$6.49	Unavailable to order
223785	18	FRAME PIVOT BOLT	$5.99
132315	19	ZIP TIE	$3.49
128263	20	M4 X 42MM SCREW	$0.99
136728	21	#8 BELT GUIDE SCREW	$0.99
295758	22	5/16″ DRIVE MOTOR SCREW	$3.49
301976	24	3/8″ X 1″ BOLT	$2.49
298484	25	5/16″ X 1 3/4″ BOLT	$2.49
194344	26	5/16″ X 1 1/4″ BOLT	$2.49
181385	27	5/16″ X 3.25″ SCREW	$3.99
228465	28	1/4″ X 1 3/4″ SCREW	$2.49
014164	29	FLAT WASHER	$0.99
312288	30	HOLDER,W/CUT OUT	Contact for Pricing
152478	31	5/16″ FLAT WASHER	$0.99
100553	33	1/2″ LOCKNUT	$1.49
119425	34	3/8″ LOCKNUT	$0.99
100427	35	5/16″ NUT	$0.99
133333	36	CLIP NUT	$0.99
312307	38	ECA,PULSE ASSY,AS RECD	$171.99
310113	39	CVR,DECKRAIL,L/R,W/TAPE,ARPS	Contact for Pricing
307035	41	LEFT FRAME COVER	$82.49
304869	42	Platform Bracket	$18.99
310841	43	LATCH WARNING DECAL	Contact for Pricing
306008	44	WALKING PLATFORM	$161.49

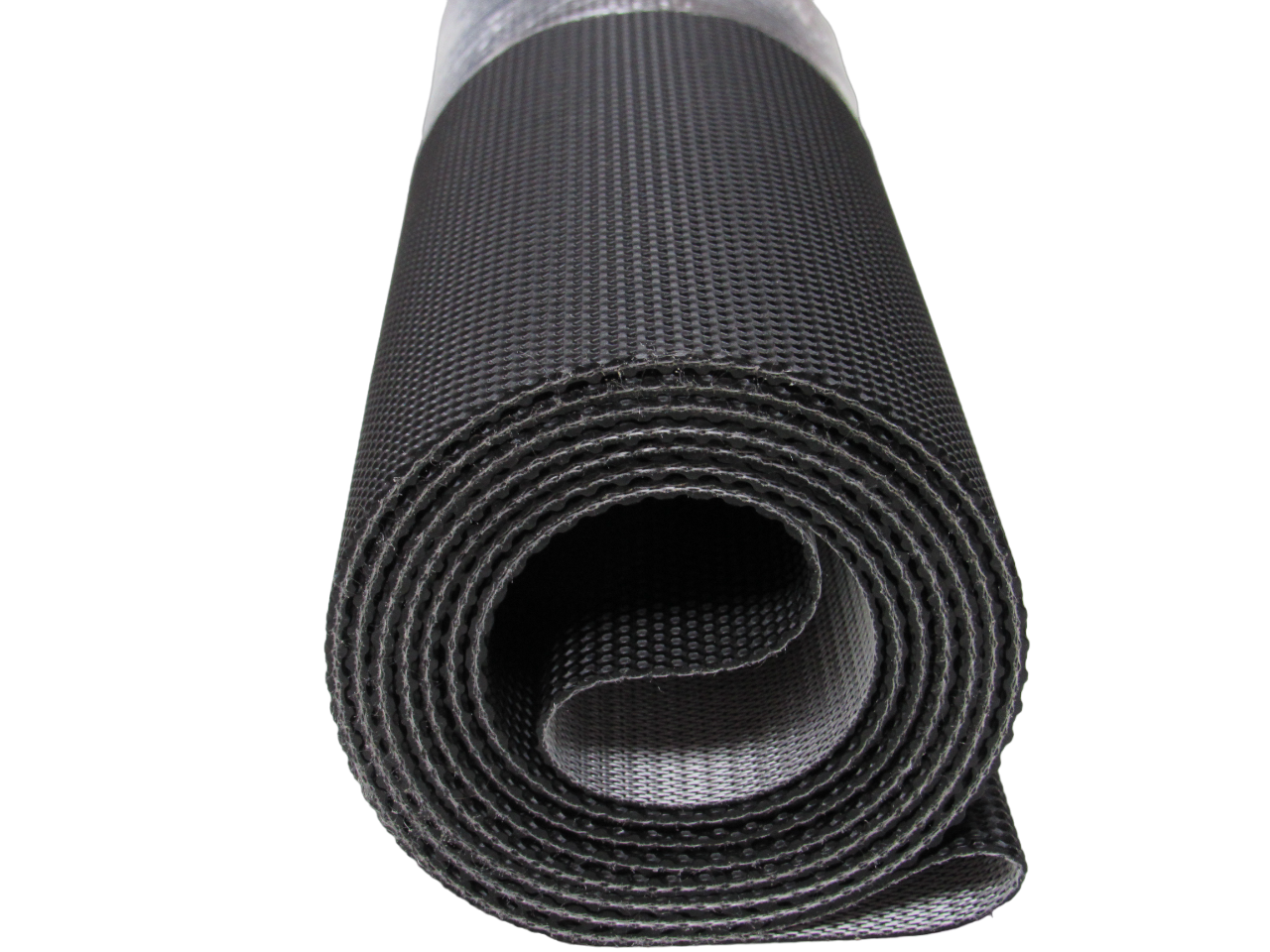

334728	45	OEM Walking Belt	$190.99
198641	46	BELT GUIDE	Contact for Pricing
137122	47	FRONT CUSHION	$17.49
240351	48	8″ WIRE TIE	$0.99
314020	49	DRIVE ROLLER/PULLEY	$143.99	Unavailable to order
195476	50	MAGNET	$16.49
131090	51	CLAMP	$0.99
157504	52	REED SWITCH	$26.99
328544	53	Storage Latch	Contact for Pricing
328330	54	Part # 328330	Contact for Pricing
317055	55	MOTOR BELT	$54.49
307037	57	RIGHT FAME COVER	$81.99
305051	58	Part # 305051	Contact for Pricing
298474	59	SMALL CUSHION	$1.99
304904	60	Rear Foot	Contact for Pricing
305413	61	IDLER ROLLER	$174.99
128457	63	3/16-7/32″ ALLEN WRENCH	$25.49
256790	64	KEY/CLIP	$19.99
312273	65	REAR FRAME COVER	$78.99
312246	66	REAR LEVELING FOOT COVER	$3.49
312276	70	HANDRAIL CAP	$8.49
312279	71	MOTOR HOOD	$84.49
302527	73	INCLINE FRAME SPACER	$1.49
302634	74A	INCLINE MOTOR	$171.99
114078	74B	LIFT SPACER	$2.49
305075	75	INCLINE FRAME	$103.49
304170	76	FRAME SPACER	$4.49
399610	77	CONTROLLER	$185.99
230979	78	BELLY PAN POST	$5.49
302705	79	CONTROLLER BRACKET	$12.49
031229	80	POWER CORD	$39.99
173169	81	SQUARE GROMMET	$0.99
186726	82	POWER SWITCH	$22.49
312250	83	Belly Pan	Contact for Pricing
321582	84	75 inch Wiring Harness	$99.99
312277	85	Left Top Handrail Cap	Contact for Pricing
312278	86	RIGHT TOP HANDRAIL CAP	$11.99
306001	87	Part # 306001	Contact for Pricing
306000	88	RIGHT HANDRAIL	$106.49
305998	89	LEFT UPRIGHT	$178.99
252433	91	DECAL, CAUTION, BASE LEG	$0.99
312311	92	Left Base Cover	Contact for Pricing
330877	94	TV TRIM	$7.49
312252	96	LEFT WHEEL CAP	$14.49	Unavailable to order
305472	97	BASE	$192.49
301345	98A	CENTER FOOT	$2.99
308472	98B	Blue Base Pad	Contact for Pricing
364361	99	CHEST HEART RATE MONITOR	$135.99
312253	100	RIGHT WHEEL CAP	$13.99
139090	101	WHEEL	$2.99
366682	103A	Part # 366682	Contact for Pricing
305084	105	TRAY BRACKET	Contact for Pricing
304169	106	HANDRAIL SPACER	$6.99
310521	107	CONSOLE FRAME	$105.49
305900	108A	Part # 305900	Contact for Pricing
305085	108B	PLATFORM CUSHION BKT,LT	$50.49
172031	109	5/16-18 GR8 BPO Screw	Contact for Pricing
306007	110A	CONSOLE FAN	$143.49
308629	110B	Fan Grill Tray	Contact for Pricing
306013	110C	30″ WIRE HRNS,FAN	$24.49
312290	110D	Part # 312290	Contact for Pricing
321484	110E	FAN EXTENSION WIRE	$28.49
144985	111	M4 X 16MM SCREW	$0.99
209460	112	HEX KEY	$7.99
305367	113	CUSHION TUBE	$3.49
242365	114	3/8″ FLAT WASHER	$0.99
348854	115A	UPRIGHT COAXIAL CABLE	$74.49
109520	115B	6″ CABLE LOOM	$4.99
251429	116	M4.2 X 12MM SCREW	$0.99
203289	118	#8 X 1/2″ SCREW, NOTE:	$0.99
183246	119	1/4″ X 1/2″ SCREW	$1.49
324666	120	Part # 324666	Contact for Pricing
265234	122	1/4″ X 1 1/4″ PATCH SCREW	$1.99
