Proform Hybrid Trainer Elliptical – 23895.0 / 238950
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
113 Parts Available for Proform Hybrid Trainer Elliptical - 23895.0 / 238950 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 392044 | 4 | Fitness Equipment Console | $173.49 | ||
| 392023 | 5 | Front Stabilizer | $70.99 | |||
| 392024 | 6 | Rear Stabilizer | $70.99 | |||
| 392074 | 7 | Right Upper Body Arm | $62.49 | |||
| 392017 | 8 | RIGHT PIVOT LEG | $53.99 | |||
| 392079 | 9 | RIGHT PEDAL ARM | $92.99 | |||
| 392048 | 10 | Left Upper Body Arm | $62.49 | |||
| 392016 | 11 | Left Pivot Leg | $69.99 | |||
| 392078 | 12 | Left Pedal Arm | $118.99 | |||
| 392028 | 13 | Pivot Knob | $31.49 | |||
| 371624 | 14 | ACCESSORY TRAY | $17.49 | |||
| 200329 | 15 | FOAM GRIP | $81.99 | |||
| 271688 | 16 | PULSE SENSOR | $60.99 | |||
| 371804 | 17 | WHEEL CAP | $2.49 | |||
 | 153209 | 18 | SPINDLE COVER | $3.49 | ||
| 234664 | 19 | M10 X 80MM SCREW | $5.49 | |||
| 372120 | 20 | WIRE COVER | $7.49 | |||
| 371499 | 21 | SIDE ACCESS COVER | $14.49 | |||
| 392046 | 22 | Left Shield | $181.49 | |||
| 392025 | 24 | CRANK ARM | $115.49 | |||
| 372009 | 25 | PIVOT COVER | $1.99 | |||
| 392080 | 26 | Rear Access Cover | $27.99 | |||
| 372252 | 27 | BACKREST | $59.99 | |||
| 392041 | 28 | SEAT | $79.99 | |||
| 392040 | 29 | SEAT HANDLEBAR | $42.99 | |||
| 392021 | 30 | Right Crank Bracket | $70.99 | |||
| 243656 | 31 | SEAT GRIP | $18.49 | |||
| 392037 | 32 | SEAT CARRIAGE | $128.49 | |||
| 243728 | 33 | SEAT HANDLEBAR CAP | $3.49 | |||
| 392039 | 34 | SEAT CARRIAGE BRACKET | $18.99 | |||
| 372253 | 35 | SEAT CARRIAGE BUSHING | $6.49 | |||
| 392026 | 37 | Carriage Knob | $31.49 | |||
| 260939 | 39 | M6 X 10MM SCREW | $0.99 | |||
| 197037 | 40 | M6 X 12MM SCREW | $0.99 | |||
| 126166 | 41 | BACKREST FRAME ENDCAP | $6.99 | |||
| 371805 | 42 | STABILIZER CAP | $3.99 | |||
| 400937 | 43 | C-MAGNET | $104.49 | |||
| 372284 | 43 | C-MAGNET | $43.49 | |||
 | 241949 | 44 | RESISTANCE MOTOR | $99.99 | ||
 | 304734 | 45 | RESISTANCE ROD | $43.49 | ||
 | 241954 | 46 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 303952 | 47 | HANDLE BRACKET | $4.99 | ||
| 299290 | 48 | LARGE PULLEY | $95.99 | |||
| 372200 | 49 | CRANK | $55.99 | |||
| 372309 | 50 | WELD SPACER | $0.99 | |||
 | 139703 | 51 | CRANK BEARING | $33.49 | ||
| 372440 | 52 | BEARING SPACER | $0.99 | |||
| 372291 | 53 | CRANK COLLAR | $11.49 | |||
| 372203 | 54 | IDLER AXLE | $39.49 | |||
| 372254 | 55 | IDLER BOLT | $4.49 | |||
| 372250 | 56 | IDLER BUSHING | $2.99 | |||
| 372197 | 57 | IDLER BRACKET | $34.99 | |||
| 372257 | 58 | SMALL PULLEY | $28.49 | |||
| 372629 | 59 | FLYWHEEL | $89.99 | |||
 | 372087 | 60 | REED SWITCH/WIRE | $23.49 | ||
| 392077 | 61 | SEAT FRAME | $125.49 | |||
 | 237631 | 62 | LEVELING FOOT | $34.99 | ||
 | 282277 | 63 | CLAMP | $3.49 | ||
 | 176559 | 64 | DRIVE BELT | $59.99 | ||
 | 332787 | 65 | PIVOT BUSHING | $20.49 | ||
| 392020 | 66 | Left Crank Bracket | $70.99 | |||
| 207203 | 67 | M8 X 10MM SET SCREW | $1.99 | |||
 | 333350 | 68 | M8 DECK MTG LOCKNUT | $1.99 | ||
 | 291494 | 69 | FLANGE SCREW | $2.49 | ||
| 372742 | 70 | RIGHT LARGE PEDAL | $62.99 | |||
| 372743 | 71 | LEFT LARGE PEDAL | $62.99 | |||
| 372744 | 72 | PEDAL INSERT | $21.49 | |||
| 372745 | 73 | PEDAL BASE | $25.99 | |||
| 392031 | 74 | RIGHT SMALL PEDAL | $55.99 | |||
| 246303 | 75 | SMALL UPPER BODY ARM CAP | $0.99 | |||
| 250420 | 76 | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 368038 | 77 | M5 X 10MM SCREW | $0.99 | |||
| 332701 | 78 | UPPER BODY COVER | $14.49 | |||
 | 371082 | 79 | PIVOT SPACER | $34.99 | ||
 | 332271 | 80 | PIVOT AXLE | $73.99 | ||
| 121642 | 81 | HANDRAIL TUBE CAP | $1.49 | |||
| 277311 | 82 | WHEEL | $3.49 | |||
 | 392011 | 83A | Pivot Cover | $8.99 | ||
 | 372122 | 83B | PIVOT COVER | $0.99 | ||
 | 362430 | 84 | M4 X 16MM SCREW | $3.49 | ||
 | 157600 | 85 | BUMPER | $1.99 | ||
 | 347975 | 86 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 331026 | 87 | M8 RAMP PVT/WHEEL WASHER | $0.99 | ||
 | 150327 | 88 | M5 NUT | $1.99 | ||
| 234926 | 90 | M4 X 10MM BLUNT SCREW | $2.99 | |||
 | 197404 | 91 | 5MM WASHER | $1.99 | ||
| 373259 | 92 | M8 X 20MM BOLT | $3.99 | |||
 | 113842 | 93 | MAGNET | $1.49 | ||
 | 372406 | 94 | UPPER WIRE | $30.99 | ||
 | 234732 | 95 | M8 X 38MM BOLT | $4.49 | ||
| 234183 | 96 | LOWER WIRE HARNESS | $60.49 | |||
| 172117 | 97 | M6 X 18MM SCREW | $3.49 | |||
| 246784 | 98 | M6 X 35MM SCREW | $0.99 | |||
| 378278 | 99 | M10 X 55MM BOLT | $1.99 | |||

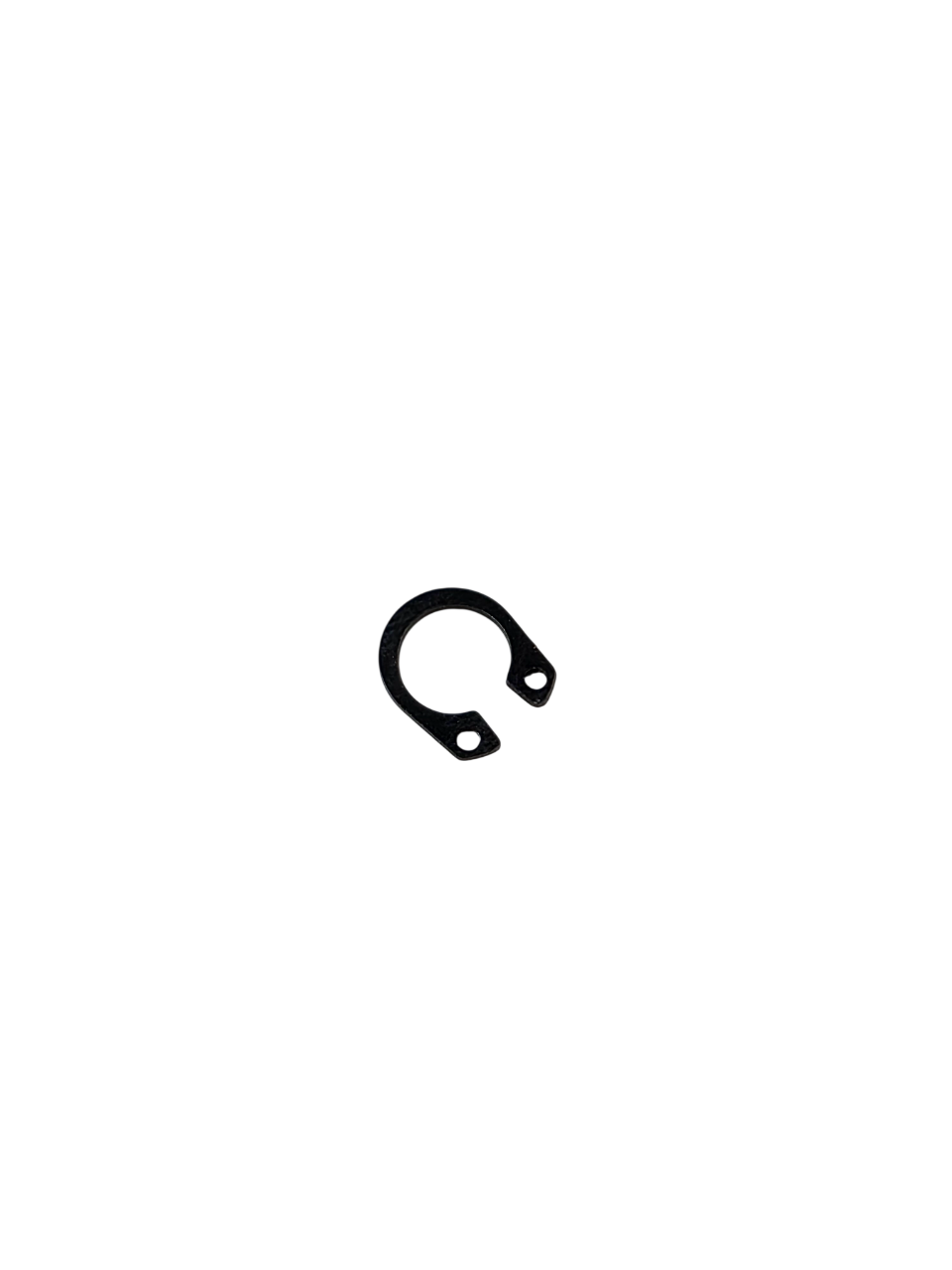

 | 370011 | 100 | M8 SNAP RING | $0.99 | ||
| 372442 | 101 | M8 X 54MM SHOULDER SCREW | $3.49 | |||
| 251830 | 102 | M8 X 38MM BOLT | $4.49 | |||
| 399152 | 103 | LEFT PULSE WIRE | $65.49 | |||
| 399154 | 104 | RIGHT PULSE WIRE | $27.49 | |||
| 378273 | 105 | M19 SNAP RING | $17.49 | |||
 | 204488 | 106 | M8 X 12MM SCREW | $3.49 | ||
| 392033 | 107 | Left Small Pedal | $71.99 | |||
| 250181 | 108 | BRIGHT M4X16MM BTTN SCREW | $0.99 | |||
| 392075 | 109 | RIGHT PEDAL BRACE | $72.99 | |||
| 014174 | 110 | M8 SPLIT WASHER | $1.99 | |||
 | 012142 | 111 | M6 NYLON LOCKNUT | $0.99 | ||
 | 133333 | 112 | CLIP | $0.99 | ||
| 392076 | 113 | LEFT PEDAL BRACE | $94.49 | |||
| 318342 | 115 | WEIGHT SCREW | $0.99 | |||
| 372718 | 116 | PEDAL BRACE BUSHING | $0.99 | |||
| 378820 | 117 | M10 X 21MM SHOULDER SCREW | $6.99 | |||
| 371791 | 118 | PEDAL AXLE | $22.99 | |||
| 130286 | 119 | M10 X 28MM WASHER | $11.49 |
