Proform 7.0 Re Elliptical – PFEL03712.1 / PFEL037121
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
81 Parts Available for Proform 7.0 Re Elliptical - PFEL03712.1 / PFEL037121 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 334929 | 4A | Fitness Equipment Console | $174.49 | |||
 | 314901 | 4B | RT CNSL BATTERY DOOR | NLA | Unavailable to order | |
 | 314900 | 4C | LT CNSL BATTERY DOOR | NLA | Unavailable to order | |
| 317006 | 5 | ACCESSORY TRAY | $23.49 | |||
| 333534 | 6 | Upper Body Leg | $63.49 | |||
 | 321678 | 7B | RESISTANCE CABLE | $46.49 | ||
| 334935 | 8 | Left Upper Body Arm | $67.99 | |||
| 334936 | 9 | Right Upper Body Arm | $67.99 | |||
| 182369 | 10 | Foam Grip | $5.49 | |||
| 246303 | 11 | 1 1/4″ ROUND ENDCAP | $0.99 | |||
| 333555 | 12 | Left Pedal | NLA | Unavailable to order | ||
| 334937 | 14 | Left Pedal Arm | $99.49 | Unavailable to order | ||
| 338317 | 15 | Pedal Bracket | $97.99 | |||
| 333439 | 16 | FRONT UPRIGHT COVER | $23.99 | |||
 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 321734 | 18 | #10 X 16MM SCREW | $3.49 | |||
| 333721 | 19 | Rear Pivot Cover | NLA | Unavailable to order | ||
| 333929 | 20 | Pulse Bar Cover | $13.49 | |||
| 333486 | 21 | Right Pulse Bar | $67.99 | |||
| 333720 | 22 | Front Pivot Cover | NLA | Unavailable to order | ||
| 343880 | 24 | CRANK | $103.99 | |||
| 333515 | 25 | RIGHT CRANK ARM | $184.49 | |||
| 333755 | 26 | Pedal Disc | $138.49 | |||
| 305948 | 27 | CRANK ARM SPACER | $16.99 | |||
| 197781 | 28 | UPPER WIRE HARNESS | NLA | Unavailable to order | ||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
| 301044 | 30 | AXLE COVER | $6.49 | |||
| 329580 | 31 | Pivot Axle | $13.99 | |||
 | 333753 | 32 | Pivot Cover | $6.49 | ||
 | 331026 | 33 | M8 X 23MM WASHER | $3.99 | ||
| 333463 | 34 | Left Front Shield | $48.49 | |||
| 333464 | 35 | Right Front Shield | $45.99 | |||
| 333756 | 36 | Disc Cover | $106.99 | |||
| 334930 | 37 | Shield Cover | $140.99 | |||
 | 139703 | 38 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 333482 | 39 | Left Pulse Bar | $67.99 | |||
| 256148 | 40D | SPACER | $6.49 | |||
 | 113842 | 41 | MAGNET | $1.49 | ||
| 334665 | 42 | Frame Wire | $54.99 | |||
 | 014033 | 43 | IDLER WASHER | $1.49 | ||
| 333751 | 44 | Left Shield | $98.99 | |||
| 333752 | 45 | Right Shield | $134.49 | |||
 | 147746 | 46 | DRIVE BELT | $59.99 | ||
 | 237631 | 47 | LARGE LEVELING FOOT | $34.99 | ||
| 333571 | 48 | STABILIZER CAP | $18.49 | |||
| 334938 | 49 | Right Pedal Arm | $154.99 | |||
| 333562 | 50 | Left Wheel Cap | $22.49 | |||
| 333564 | 51 | Right Wheel Cap | NLA | Unavailable to order | ||
 | 363093 | 52 | IDLER | $116.49 | ||
| 333465 | 53 | Front Shield Cover | $6.99 | |||
 | 193223 | 54 | RESISTANCE MOTOR | $99.99 | ||
 | 278165 | 55 | M6 X 18MM WASHER | $1.49 | ||
| 333519 | 56 | LEFT CRANK ARM | $184.49 | |||
 | 131090 | 57 | CLAMP | $0.99 | ||

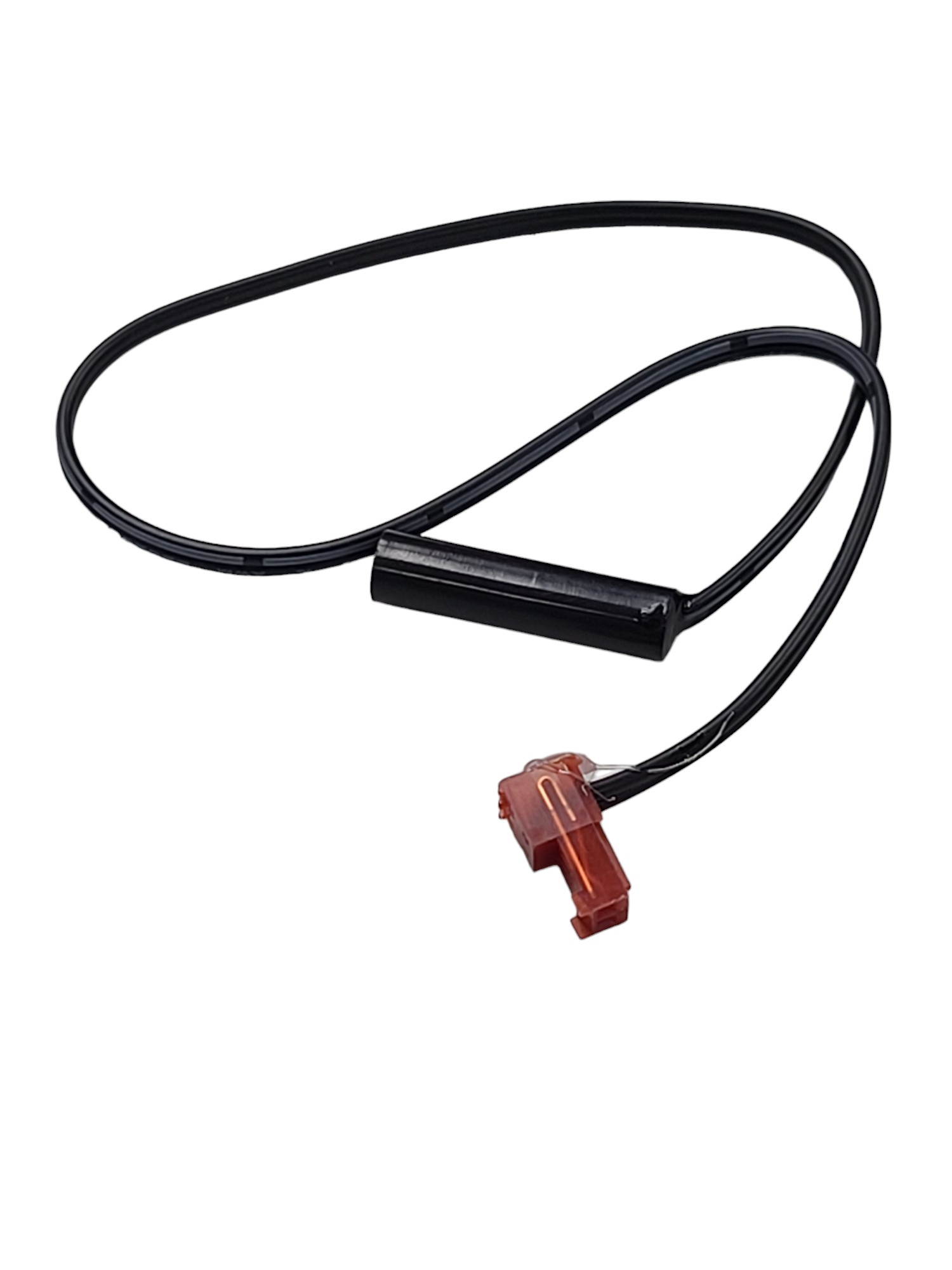

 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 314683 | 59 | M8 X 10MM HEX SCREW | $2.49 | |||
| 281559 | 60 | KEY | $2.49 | |||
 | 250961 | 61 | M4 X 19MM SCREW | $0.99 | ||
| 314850 | 62 | M6 X 16MM HEX SCREW | $65.99 | |||
| 284963 | 63A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 63B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
 | 013162 | 64A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 195562 | 64B | M4 X 16MM SCREW | $1.99 | ||
 | 281150 | 65 | IDLER PIVOT SCREW | $4.49 | ||
| 277369 | 66 | PULLEY | $174.49 | |||
| 252110 | 67 | M6 x 9mm Screw | NLA | Unavailable to order | ||
| 281557 | 68 | CRANK ARM SCREW | NLA | Unavailable to order | ||
 | 168267 | 69 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 333485 | 70 | Rear Stabilizer | $74.49 | |||
 | 013423 | 71 | GROUND SCREW | $0.99 | ||
 | 281149 | 72 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 333481 | 73 | Front Stabilizer | $76.49 | |||
| 270796 | 74 | M8 X 15MM SCREW, NOTE: | $2.49 | |||
| 295992 | 75 | M10 X 35MM SCREW | $6.99 | |||
| 183870 | 76 | M8 X 35MM BOLT | $2.49 | |||
| 281558 | 77B | RT CRANK ARM NUT | $3.49 | |||
 | 256446 | 77C | M8 LOCKNUT | $0.99 | ||
| 262800 | 78 | M10 X 93MM SCREW | $13.99 | |||
 | 249930 | 79 | M8 X 20MM SCREW | $2.99 | ||
 | 242710 | 80 | M6 X 18MM IDLER SCREW | $0.99 | ||
 | 208163 | 81 | IDLER SCREW | $1.99 |
