Nordictrack E10 Rear Drive Elliptical – NTEVEL89909.1 / NTEVEL899091
148 Parts Available for Nordictrack E10 Rear Drive Elliptical - NTEVEL89909.1 / NTEVEL899091 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 285616 | 4 | Rear Stabilizer | $112.49 | |||
| 299479 | 14 | RIGHT PEDAL | $107.49 | |||
| 299480 | 15 | LEFT PEDAL | $107.49 | |||
| 289865 | 16 | WHEEL CAP | $9.49 | |||
| 293432 | 18 | SDSHLD,RT,DLBLU | $80.99 | |||
| 290826 | 22 | CVR,UPRT,LT,ARPS,W/DECAL | $119.99 | |||
| 289970 | 24 | Front Upright Neck Cover | NLA | |||
| 289969 | 25 | CVR,UPRT NECK,RR,DLBLU | $77.99 | |||
| 289971 | 26 | ACCESSORY TRAY | $23.99 | |||
| 293440 | 27 | TOP COVER | $30.49 | |||
| 289872 | 28 | PEDAL ARM CAP | NLA | |||
 | 286527 | 29A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 29B | COVER MOUNT SCREW | $3.99 | |||
| 293439 | 30 | MAGNET COVER | $20.99 | |||
| 279656 | 31 | PEDAL ARM MAGNET | NLA | |||
 | 286547 | 32 | PEDAL ARM ROLLER | $59.99 | ||
| 290474 | 34A | PULSE SENSOR | $80.99 | |||
| 244142 | 35 | HANDGRIP | $68.49 | |||
 | 289864 | 36 | WHEEL | $30.49 | ||
| 289866 | 37 | STABILIZER CAP | $63.49 | |||
 | 142056 | 38 | DRIVE BELT | $64.49 | ||
| 285626 | 39 | RIGHT CRANK ARM | $134.49 | |||
| 250210 | 40 | HAIRPIN COTTER PIN | $1.99 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 285205 | 42 | LATCH BRACKET | $27.49 | |||
| 247036 | 44 | LIFT BRACKET | $6.99 | |||
| 246935 | 45 | LIFT AXLE BUSHING | $16.49 | |||
 | 289867 | 46 | PEDAL ARM SLEEVE | $16.99 | ||
 | 233710 | 47 | INNER SLEEVE BUSHING | $22.99 | ||
| 289399 | 48 | UPRIGHT AXLE | $80.99 | |||
 | 293610 | 50 | Latch | NLA | ||
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 250957 | 55 | #8X5/8″ FLAT HEAD SCREW | $0.99 | |||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
 | 233194 | 58 | OUTER SLEEVE BUSHING | $20.99 | ||
| 215823 | 59 | AUDIO WIRE | $11.99 | |||
 | 290674 | 60 | WIRE HARNESS | $26.49 | ||
| 286251 | 61 | FLYWHEEL | $377.49 | |||
| 250941 | 62 | M6 X 50MM PATCH SCREW | NLA | |||
| 291374 | 63 | FRAME AXLE | $35.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 287167 | 67 | Latch Button | NLA | |||
| 284207 | 68 | BUTTON HOUSING | NLA | |||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | REED SWITCH CLIP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
 | 287117 | 72 | CRANK | NLA | ||
 | 283736 | 73 | CRANK SPACER | $27.49 | ||
| 255072 | 74 | PULLEY | $91.99 | |||

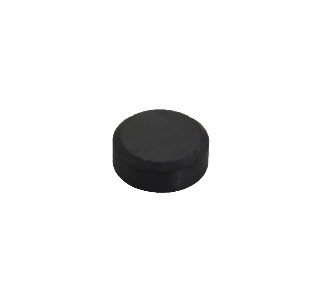

 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | CRANK BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 284576 | 78 | RESISTANCE MOTOR | $117.99 | ||
| 284578 | 79 | RESISTANCE ARM ASSEMBLY | $60.49 | |||
 | 241954 | 80 | RSISTANCE MOTOR DISK | $1.99 | ||
| 279644 | 81 | ARM LOCK | $1.49 | |||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
| 284577 | 83 | C-Magnet Bracket | NLA | |||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | M10 X 50MM HEX SCREW | $6.49 | ||
| 237611 | 86 | M8 X 28MM SCREW | $1.49 | |||
 | 143742 | 87 | LARGE SNAP RING | $3.99 | ||
| 281148 | 88 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 168267 | 89 | FAN SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
| 276024 | 91 | MOTOR DISK MOUNTING SCREW | $1.49 | |||
| 254769 | 92 | M6 NUT | $1.49 | |||
| 293429 | 93 | LIFT AXLE | $133.49 | |||
 | 256446 | 94 | M8 NUT | $0.99 | ||
 | 261150 | 95 | M8 WASHER | $2.20 | ||
 | 014033 | 96 | WASHER | $1.49 | ||
 | 208163 | 97 | M6 X 20MM HEX SCREW | $1.99 | ||
| 234286 | 98 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 281150 | 99 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 252438 | 100 | M10 X 95MM BOLT | $19.99 | |||
 | 243375 | 101 | SMALL PEDAL ARM SNAP RING | $2.49 | ||
 | 237612 | 102 | M8 X 16MM SCREW | $1.49 | ||
| 014174 | 103 | M8 SPLIT WASHER | $1.99 | |||
 | 243374 | 104 | IDLER SNAP RING | $12.99 | ||
| 272391 | 105A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 105B | LEFT PULSE WIRE | $17.49 | |||
 | 013162 | 106 | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
| 250420 | 107 | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 140206 | 108 | M10 FLAT WASHER | $1.99 | |||
| 214070 | 109 | RAIL BOLT, SEE #72 | $6.49 | |||
| 197037 | 111 | M6 X 12MM SCREW | $0.99 | |||
 | 286660 | 113 | LARGE AXLE COVER | $4.99 | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
| 250627 | 115 | POWER SWITCH | $16.49 | |||
 | 109231 | 116 | RECEPTICAL | $18.49 | ||
 | 172638 | 117 | FLYWHEEL BEARING | $23.49 | ||
 | 287202 | 118 | 16MM WAVE WASHER | $1.99 | ||
| 238524 | 119 | EURO POWER CORD | $70.99 | |||
| 195914 | 120 | CIRBRD,EURO 30i,AS RECD | NLA | |||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
| 272630 | 122 | 3/8″ X 1/2″ FLANGE SCREW | $3.99 | |||
| 224554 | 123 | CONTROL BOX COVER | $8.49 | |||
| 224553 | 124 | CONTROL BOX | $15.49 | |||
| 195915 | 125 | Power Transformer | $60.99 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
 | 013423 | 129 | LATCH PLATE SCREW | $0.99 | ||
| 291717 | 130 | RAMP | $187.99 | |||
| 289856 | 131 | Ramp Cover | NLA | |||
 | 291372 | 132 | RAMP BUSHING | $17.99 | ||
| 291377 | 133 | RAMP AXLE | NLA | |||
| 293441 | 134 | LIFT MOTOR | $149.49 | |||
 | 287374 | 135 | LIFT MOTOR WIRE | $24.99 | ||
| 286400 | 136 | RAMP ARM ROLLER | NLA | |||
| 290237 | 137 | LONG MOTOR AXLE | $11.49 | |||
| 246931 | 138 | SHORT MOTOR AXLE | $8.49 | |||
| 194883 | 139 | LIFT AXLE WASHER | NLA | |||
| 247921 | 140 | MOTOR SPACER | $3.49 | |||
| 259772 | 141 | LIFT AXLE SCREW | $3.49 | |||
| 013509 | 146 | #6 X 3/8″ SCREW, NOTE: | $0.99 | |||
| 285403 | 147 | Frame Wire Harness | NLA | |||
| 255997 | 148 | 8″ GREEN/YELLOW WIRE F/R | $32.99 | |||
 | 251511 | 149 | M8 X 35MM SCREW | $3.49 | ||
 | 234732 | 150 | M8 X 38MM BOLT | $4.49 | ||
| 208521 | 151 | POWER CORD ADAPTER | $28.49 | |||
| 208817 | 152 | M4.2 X 13MM PAN HD SCREW | $0.99 | |||
| 128263 | 153 | LONG CONSOLE SCREW | $0.99 | |||
| 314615 | 154 | M4 X 8MM SCREW | $1.49 | |||
 | 289434 | 155 | MEDIUM SNAP RING | $1.99 | ||
| 213769 | 156 | #8 X 5/8″ PAN HEAD SCREW | $0.99 | |||
| 298762 | 157 | PEDAL INSERT, WHITE | $30.49 | |||
| 302795 | 158 | RIGHT GEL PAD | $78.99 | |||
| 302794 | 159 | LEFT GEL PAD | $78.99 |
