Nordictrack E10 Rear Drive Elliptical – NTEVEL89909.0 / NTEVEL899090
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
147 Parts Available for Nordictrack E10 Rear Drive Elliptical - NTEVEL89909.0 / NTEVEL899090 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 285616 | 4 | Rear Stabilizer | $112.49 | |||
| 289891 | 14A | RIGHT PEDAL | $78.99 | |||
| 289893 | 15A | Left Pedal | NLA | |||
| 289865 | 16 | WHEEL CAP | $9.49 | |||
| 289857 | 17 | DISC | $121.49 | |||
| 293432 | 18 | SDSHLD,RT,DLBLU | $80.99 | |||
| 290826 | 22 | LEFT FRAME COVER | $131.99 | |||
| 289970 | 24 | Front Upright Neck Cover | NLA | |||
| 289969 | 25 | REAR UPRIGHT COVER | $99.99 | |||
| 289971 | 26 | ACCESSORY TRAY | $23.99 | |||
| 293440 | 27 | TOP COVER | $30.49 | |||
| 289872 | 28 | PEDAL ARM CAP | NLA | |||
 | 286527 | 29A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 29B | SNAP MOUNT SCREW | $3.99 | |||
| 293439 | 30 | MAGNET COVER | $20.99 | |||
| 279656 | 31 | PEDAL ARM MAGNET | NLA | |||
 | 286547 | 32 | PEDAL ARM ROLLER | $59.99 | ||
| 290474 | 34A | PULSE SENSOR | $80.99 | |||
| 244142 | 35 | HANDGRIP | $68.49 | |||
 | 289864 | 36 | WHEEL | $30.49 | ||
| 289866 | 37 | STABILIZER CAP | $63.49 | |||
 | 142056 | 38 | BELT | $49.99 | ||
| 285626 | 39 | RIGHT CRANK ARM | $134.49 | |||
| 250210 | 40 | HAIRPIN COTTER PIN | $1.99 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 285205 | 42 | LATCH BRACKET | $27.49 | |||
| 247036 | 44 | LIFT BRACKET | $6.99 | |||
| 246935 | 45 | LIFT BUSHING | $16.49 | |||
 | 289867 | 46 | PEDAL ARM SLEEVE | $18.99 | ||
 | 233710 | 47 | INNER BUSHING | $22.99 | ||
| 289399 | 48 | UPRIGHT AXLE | $80.99 | |||
 | 293610 | 50 | Latch | NLA | ||
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 250957 | 55 | #8 X 5/8″ SCREW | $0.99 | |||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
 | 233194 | 58 | OUTER BUSHING | $20.99 | ||
| 215823 | 59 | AUDIO WIRE | $11.99 | |||
 | 290674 | 60 | WIRE HARNESS | $26.49 | ||
| 311262 | 61 | Flywheel | NLA | |||
| 250941 | 62 | M6 X 50MM PATCH SCREW | NLA | |||
| 291374 | 63 | FRAME AXLE | $35.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 287167 | 67 | Latch Button | NLA | |||
| 284207 | 68 | BUTTON HOUSING | NLA | |||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | CLAMP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
 | 287117 | 72 | CRANK | NLA | ||
 | 283736 | 73 | CRANK SPACER | $27.49 | ||
| 255072 | 74 | LARGE PULLEY | $91.99 | |||

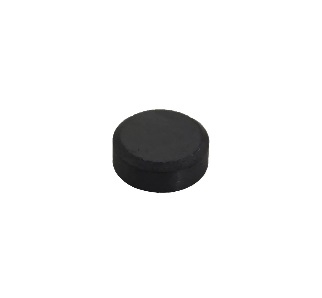

 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | FOLDING FRAME BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 241949 | 78 | RESISTANCE MOTOR | $99.99 | ||
| 284578 | 79 | ADJUSTMENT ASSEMBLY | $60.49 | |||
 | 241954 | 80 | RESISTANCE WHEEL | $1.99 | ||
| 279644 | 81 | ADJUSTMENT LOCK | $1.49 | |||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
| 282109 | 83 | C-Magnet Bracket | NLA | |||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | BELT ADJUSTMENT SCREW | $6.49 | ||
| 237611 | 86 | M8 X 25MM PATCH SCREW | $1.49 | |||
 | 143742 | 87 | SMALL SNAP RING | $3.99 | ||
| 281148 | 88 | C-MAGNET BRACKET BOLT | $3.49 | |||
 | 168267 | 89 | RESISTANCE MOTOR SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
 | 276024 | 91 | M3.5 X 12MM SCREW | $1.49 | ||
 | 012142 | 92 | M6 LOCKNUT | $0.99 | ||
| 293429 | 93 | LIFT AXLE | $133.49 | |||
 | 256446 | 94 | M8 JAM NUT | $0.99 | ||
 | 261150 | 95 | M8 X 23.5MM WASHER | $2.20 | ||
 | 014033 | 96 | M6 WASHER | $1.49 | ||
 | 208163 | 97 | PIVOT SCREW | $1.99 | ||
| 234286 | 98 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281150 | 99 | IDLER BOLT | $4.49 | ||
| 252438 | 100 | M10 X 95MM PATCH SCREW | $19.99 | |||
 | 243375 | 101 | SMALL SNAP RING | $2.49 | ||
 | 237612 | 102 | M8 X 16MM PATCH SCREW | $1.49 | ||
 | 014174 | 103 | M8 SPLIT WASHER | $1.99 | ||
 | 243374 | 104 | IDLER SNAP RING | $12.99 | ||
| 272391 | 105A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 105B | LEFT PULSE WIRE | $17.49 | |||
 | 013162 | 106A | REED SWITCH CLAMP SCRW | $0.99 | ||
| 250420 | 107 | M10 X 20MM SCREW | $2.99 | |||
| 140206 | 108 | M10 WASHER | $1.99 | |||
| 214070 | 109 | M8 X 16MM BUTTON SCREW | $6.49 | |||
 | 197037 | 111 | M6 X 12MM SCREW | $0.99 | ||
 | 286660 | 113 | LARGE AXLE COVER | $5.99 | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
| 250627 | 115 | RESET/OFF CIRCUIT BREAKER | $16.49 | |||
 | 109231 | 116 | RECEPTACLE | $18.49 | ||
 | 172638 | 117 | 6000ZZ BEARING | $23.49 | ||
 | 287202 | 118 | SMALL WAVE WASHER | $1.99 | ||
| 238524 | 119 | POWER CORD | $70.99 | |||
| 195914 | 120 | CIRBRD,EURO 30i,AS RECD | NLA | |||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
| 272630 | 122 | 3/8″ X 1/2″ FLANGE SCREW | $3.99 | |||
| 224554 | 123 | CONTROL BOX COVER | $8.49 | |||
| 224553 | 124 | CONTROL BOX | $15.49 | |||
| 195915 | 125 | Power Transformer | $60.99 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
 | 013423 | 129 | GROUND SCREW | $0.99 | ||
| 291717 | 130 | RAMP | $187.99 | |||
| 289856 | 131 | Ramp Cover | NLA | |||
 | 291372 | 132 | HANDLEBAR LEG BUSHING | $17.99 | ||
| 291377 | 133 | RAMP AXLE | NLA | |||
| 293441 | 134 | LIFT MOTOR | $149.49 | |||
 | 287374 | 135 | MOTOR POWER WIRE | $24.99 | ||
| 286400 | 136 | RAMP ARM ROLLER | NLA | |||
| 290237 | 137 | LONG MOTOR AXLE | $11.49 | |||
| 246931 | 138 | BRACKET PIN | $8.49 | |||
| 194883 | 139 | LIFT AXLE WASHER | NLA | |||
| 247921 | 140 | MOTOR SPACER | $3.49 | |||
| 259772 | 141 | LIFT AXLE SCREW | $3.49 | |||
| 013509 | 146 | #6 X 3/8″ SCREW | $0.99 | |||
| 285403 | 147 | Frame Wire Harness | NLA | |||
| 255997 | 148 | CONTROLLER GROUND WIRE | $32.99 | |||
 | 251511 | 149 | M8 X 35MM SCREW | $3.49 | ||
 | 234732 | 150 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
| 208521 | 151 | POWER CORD ADAPTER | $28.49 | |||
 | 208817 | 152 | #8 X 5/8″ SCREW | $0.99 | ||
| 128263 | 153 | M4 X 42MM SCREW | $0.99 | |||
| 314615 | 154 | M4 X 8MM SCREW | $1.49 | |||
 | 289434 | 155 | SNAP RING | $1.99 | ||
| 213769 | 156 | #8 X 5/8″ PAN HEAD SCREW | $0.99 |
