Nordictrack E 11.6 Elliptical – NTEVEL99813.0 / NTEVEL998130
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
137 Parts Available for Nordictrack E 11.6 Elliptical - NTEVEL99813.0 / NTEVEL998130 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 329382 | 4 | REAR STABILIZER | $130.49 | |||
| 332107 | 7 | Left Upper Body Leg | $63.49 | |||
| 332820 | 8 | RIGHT UPPER BODY ARM | $69.99 | |||
| 332819 | 9 | Left Upper Body Arm | $89.49 | |||
| 332339 | 11 | Console Cover | $22.49 | |||
| 341816 | 12 | RIGHT PEDAL ARM | $179.49 | |||
| 341817 | 13 | Left Pedal Arm | NLA | Unavailable to order | ||
| 341195 | 14 | RIGHT PEDAL | $134.49 | |||
| 341194 | 15 | LEFT PEDAL | $134.49 | |||
| 332407 | 18 | RIGHT SHIELD | $116.49 | |||
| 332825 | 21 | Right Frame Cover | $126.99 | |||
| 332824 | 22 | Left Frame Cover | $126.99 | |||
| 361996 | 24B | RECEIVER/WIRE | $87.49 | |||
| 315317 | 25 | FRONT UPRIGHT COVER | $66.99 | |||
| 319538 | 26 | ACCESSORY TRAY | $68.49 | |||
 | 316981 | 27 | CONTROLLER W/STANDOFFS | $124.99 | ||
| 300804 | 28 | CONTROLLER BRACKET | $29.99 | |||
| 315320 | 29 | RIGHT REAR LEG COVER | $39.49 | Unavailable to order | ||
| 315318 | 30 | RIGHT FRONT LEG COVER | $50.99 | |||
| 315321 | 31 | LEFT REAR LEG COVER | $39.49 | |||
| 315319 | 32 | LEFT FRONT LEG COVER | $73.49 | |||
| 324444 | 34 | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
 | 299478 | 35 | HANDGRIP | $57.49 | ||

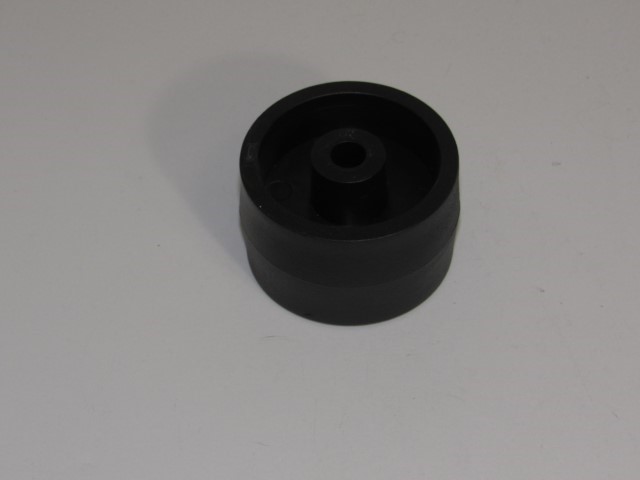

 | 148803 | 36 | WHEEL | $3.49 | ||
| 328775 | 37 | STABILIZER CAP | $19.99 | |||
 | 175643 | 38 | DRIVE BELT | $49.99 | ||
| 332103 | 39 | CRANK ARM | $128.99 | |||
| 228983 | 40 | HUB SCREW | $9.49 | |||
 | 246285 | 41 | LEVELING FOOT | $10.99 | ||
 | 319526 | 42 | LATCH BRACKET | $30.49 | ||
| 291377 | 45 | RAMP AXLE | NLA | Unavailable to order | ||
 | 291372 | 46 | HANDLEBAR LEG BUSHING | $17.99 | ||
| 293441 | 47 | LIFT MOTOR | $149.49 | |||
| 315306 | 48 | UPRIGHT AXLE | NLA | Unavailable to order | ||
| 293429 | 49 | LIFT AXLE | $133.49 | |||
| 339789 | 50 | RIGHT LIFT ARM | $68.49 | |||
| 339835 | 51 | LEFT LIFT ARM | $68.49 | |||
| 246935 | 52 | LIFT BUSHING | $16.49 | |||
| 290237 | 53 | LONG MOTOR AXLE | $11.49 | |||
| 246931 | 54 | BRACKET PIN | $8.49 | |||
 | 157600 | 55 | BUMPER | $1.99 | ||
 | 146427 | 56 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
| 208526 | 58 | M10 x 60mm Button Screw | NLA | Unavailable to order | ||
| 327046 | 59 | Power Cord Drawing | NLA | Unavailable to order | ||
 | 290674 | 60 | WIRE HARNESS | $26.49 | ||
| 362898 | 61A | EDDY MECHANISM | $319.99 | |||
| 346386 | 61C | AXLE WASHER | $23.99 | |||
 | 321678 | 61D | RESISTANCE CABLE | $46.49 | ||
 | 256446 | 61E | M8 LOCKNUT | $0.99 | ||
| 250941 | 62 | M6 X 50MM PATCH SCREW | NLA | Unavailable to order | ||
| 247259 | 63 | FRAME AXLE | $54.49 | |||
| 247258 | 64 | FRAME BUSHING | $13.49 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 302147 | 67 | LATCH BUTTON | $12.49 | |||
 | 249655 | 68 | Button Frame | NLA | Unavailable to order | |
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | CLAMP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
| 285209 | 72 | CRANK | $91.99 | Unavailable to order | ||
| 285219 | 73 | CRANK SPACER | $24.99 | |||
| 277369 | 74 | PULLEY | $174.49 | |||

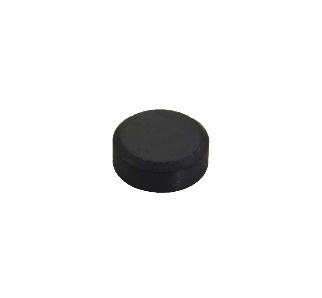

 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 193223 | 78 | RESISTANCE MOTOR | $99.99 | ||
| 286400 | 79 | RAMP ARM ROLLER | NLA | Unavailable to order | ||
| 250210 | 81 | HAIRPIN COTTER PIN | $1.99 | |||
| 247036 | 83 | LIFT BRACKET | $6.99 | |||
| 247921 | 84 | MOTOR SPACER | $3.49 | |||
 | 281149 | 85 | DRIVE BELT ADJUST SCREW | $6.49 | ||
 | 236321 | 86 | M8 X 25MM SCREW | $4.49 | ||
 | 143742 | 87 | SMALL SNAP RING | $3.99 | ||
 | 287202 | 88 | SMALL WAVE WASHER | $1.99 | ||
 | 373150 | 89 | M4 X 12MM SCREW | $0.99 | ||
| 332097 | 90 | RIGHT LINK ARM | $60.49 | |||
| 332109 | 91 | LEFT LINK ARM | $60.49 | |||
 | 286547 | 92 | PEDAL ARM ROLLER | $59.99 | ||
 | 013162 | 93A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 234235 | 93B | M4.2 X 16MM SCREW | $0.99 | ||
 | 286526 | 94 | LINK ARM AXLE | $27.49 | ||
 | 014033 | 96 | IDLER WASHER | $1.49 | ||
 | 208163 | 97 | IDLER SCREW | $1.99 | ||
| 289872 | 98 | PEDAL ARM CAP | NLA | Unavailable to order | ||
 | 281150 | 99 | IDLER PIVOT SCREW | $4.49 | ||
| 256377 | 100 | M10 X 120MM SCREW | $13.49 | |||
| 249929 | 102A | M8 X 16MM SCREW | $2.49 | |||
 | 249930 | 102B | M8 X 20MM SCREW | $2.99 | ||
 | 237612 | 102C | M8 X 16MM PATCH SCREW | $1.49 | ||
 | 275907 | 103 | M10 LOCKNUT, CRANK | $4.49 | ||
| 212500 | 104 | M8 X 45MM BOLT | $5.49 | |||
 | 012042 | 105 | M8 LOCKNUT | $1.99 | ||
 | 293160 | 106 | ARM/LEG BUSHING | $16.99 | ||
| 250420 | 107A | M10 X 20MM SCREW | $2.99 | |||
| 248334 | 107B | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 254272 | 108 | M10 x 25mm x 1.5mm Washer | $0.99 | ||
 | 287374 | 109 | MOTOR POWER WIRE | $24.99 | ||
| 210660 | 110 | M8 WASHER | $3.49 | |||
 | 322918 | 113 | CRANK AXLE COVER (244070) | $12.99 | ||
| 340834 | 114 | Magnet Cover with Magnet | $140.99 | |||
| 150731 | 115 | IDLER SNAP RING | $0.99 | |||
 | 243374 | 119 | IDLER SNAP RING | $12.99 | ||
 | 286527 | 120A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 120B | SNAP MOUNT SCREW | $3.99 | |||
| 272630 | 122 | 3/8″ X 1/2″ FLANGE SCREW | $3.99 | |||
| 128263 | 124 | M4 X 42MM SCREW | $0.99 | |||
| 250627 | 125A | POWER SWITCH | $16.49 | |||
 | 109231 | 125B | RECEPTACLE | $18.49 | ||
 | 261150 | 126 | M8 X 23.5MM WASHER | $2.20 | ||
 | 252018 | 127 | M8 X 30MM SCREW | $3.49 | ||
 | 212055 | 128 | M8 X 25MM PATCH SCREW | $2.49 | ||
 | 244067 | 129 | Outside Crank Bushing | $29.99 | ||
 | 243375 | 130 | SMALL SNAP RING | $2.49 | ||
 | 014174 | 131 | M8 SPLIT WASHER | $1.99 | ||
| 192357 | 133 | SEAT ENDCAP | $2.49 | |||
 | 244103 | 134 | Crank Bushing | NLA | Unavailable to order | |
| 260951 | 135 | PULSE WIRE | $27.49 | |||
 | 344602 | 136 | CRANK BUSHING SLEEVE | $16.99 | ||
 | 213457 | 138 | M4 X 12MM SCREW | $1.99 | ||
 | 197037 | 139 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
 | 224606 | 141 | M4 X 25MM SCREW | $0.99 | ||
| 287203 | 142 | Medium Wave Washer | NLA | Unavailable to order | ||
| 173773 | 143 | CHEST PULSE CONN WIRE | $27.99 |
