Nordictrack Asr 630 Elliptical – NTEL00507.1 / NTEL005071
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
93 Parts Available for Nordictrack Asr 630 Elliptical - NTEL00507.1 / NTEL005071 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 253066 | 4 | Front Stabilizer | $104.99 | |||
| 253056 | 5 | Right Pedal Bracket | $85.99 | |||
 | 012142 | 6 | BRACKET SPACER | $0.99 | ||
 | 247255 | 7 | LEG BEARING ASSEMBLY | $29.99 | ||
 | 186477 | 8 | ROW BAR CAP | $4.49 | ||
| 253441 | 10 | Upright for Fitness Equipment | $193.99 | |||
| 253042 | 12 | Disc for Fitness Equipment | $102.99 | |||
| 270734 | 13 | Disc Cover | $46.99 | |||
| 247271 | 14 | LEFT SHIELD | $120.49 | |||
| 247272 | 15 | Right Side Shield | NLA | Unavailable to order | ||
 | 130656 | 16 | STABILIZER ENDCAP | $5.99 | ||
 | 148803 | 17 | WHEEL | $3.49 | ||
| 247252 | 18 | PEDAL LEG AXLE | $6.49 | |||
| 247280 | 19 | LEFT UPRIGHT COVER | $27.99 | |||
| 247281 | 20 | RIGHT UPRIGHT COVER | $27.99 | |||
| 247258 | 21 | FRAME BUSHING | $13.49 | |||
| 254876 | 22 | Left Upper Body Arm | NLA | Unavailable to order | ||
| 270735 | 24 | Left Upper Body Leg | $144.99 | |||
| 247251 | 25 | LATCH AXLE | $26.99 | |||
| 247276 | 27 | Left Front Upper Body Cover | NLA | Unavailable to order | ||
| 247279 | 28 | Right Rear Upper Body Cover | NLA | Unavailable to order | ||
| 247278 | 29 | Right Front Upper Body Cover | NLA | Unavailable to order | ||
| 253440 | 30 | Link Arm | $147.49 | |||
| 224545 | 31 | M8 SMALL WASHER | $6.49 | |||
| 253050 | 32 | Pedal Arm | $145.49 | |||
| 212190 | 33 | M4 X 16MM RND HEAD SCREW | $3.99 | |||
| 253045 | 34 | LEFT PEDAL | $133.99 | |||
| 253047 | 35 | RIGHT PEDAL | $133.99 | |||
| 247266 | 36 | Left Frame Cover | NLA | Unavailable to order | ||
| 247267 | 37 | RIGHT FRAME COVER | $34.49 | |||
 | 247275 | 38 | LATCH BRACKET SPRING | $7.49 | ||
 | 233707 | 39 | LARGE WAVE WASHER | $1.49 | ||
| 247263 | 40 | Center Foot | NLA | Unavailable to order | ||
| 253382 | 41 | Latch Button | NLA | Unavailable to order | ||
| 185387 | 42 | WHEEL BEARING | $8.49 | |||
| 247274 | 43 | LARGE BUMPER | $5.99 | Unavailable to order | ||
| 253054 | 45 | LINK ARM BRACKET | $69.99 | |||
| 253087 | 46 | Adjustment Arm | $108.99 | |||
 | 244245 | 48 | IDLER PULLEY | $35.49 | ||
 | 241949 | 49 | RESISTANCE MOTOR | $112.99 | ||
 | 170205 | 50 | REED SWITCH/WIRE | $24.99 | ||
 | 131090 | 51 | CLAMP | $0.99 | ||
| 253145 | 53A | INSIDE PIVOT ARM BSHG | $70.49 | |||
| 253040 | 53B | CRANK BUSHING | $70.49 | |||
 | 100488 | 54 | LINK SNAP RING | NLA | Unavailable to order | |
| 244327 | 56 | CRANK ARM SPACER | $13.99 | |||
| 228085 | 57 | PULLEY | NLA | Unavailable to order | ||
| 228084 | 58 | CRANK HUB | $98.49 | |||
| 263347 | 59B | RIGHT CRANK BEARING SET | NLA | Unavailable to order | ||
| 248273 | 60 | CRANK SPACER | $6.49 | |||
 | 143742 | 62 | SMALL SNAP RING | $3.99 | ||
 | 283582 | 63 | 3/8″ X 1″ FLANGE SCREW | $66.99 | ||
| 247347 | 64 | Lower Wire Harness | NLA | Unavailable to order | ||
| 197780 | 65 | UPPER WIRE HARNESS | $78.49 | |||
 | 247253 | 67 | PEDAL ARM BUSHING | $32.99 | ||
| 247256 | 68 | UPRIGHT BUSHING | $12.49 | |||
| 253057 | 69 | Latch Bracket | $41.99 | |||
| 247259 | 70 | FRAME AXLE | $54.49 | |||
| 247257 | 71 | Upright Axle | NLA | Unavailable to order | ||
| 270736 | 72 | Right Upper Body Leg | NLA | Unavailable to order | ||
 | 116980 | 73 | INCLINE LEG CAP | $0.99 | ||
 | 201296 | 74 | BELT | $49.99 | ||
| 215674 | 75 | Foam Grip | NLA | Unavailable to order | ||
| 192357 | 76 | SEAT ENDCAP | $2.49 | |||
| 140234 | 77 | TRANSFER HANDLE CAP | NLA | Unavailable to order | ||
| 250957 | 79 | #8 X 5/8″ SCREW | $0.99 | |||

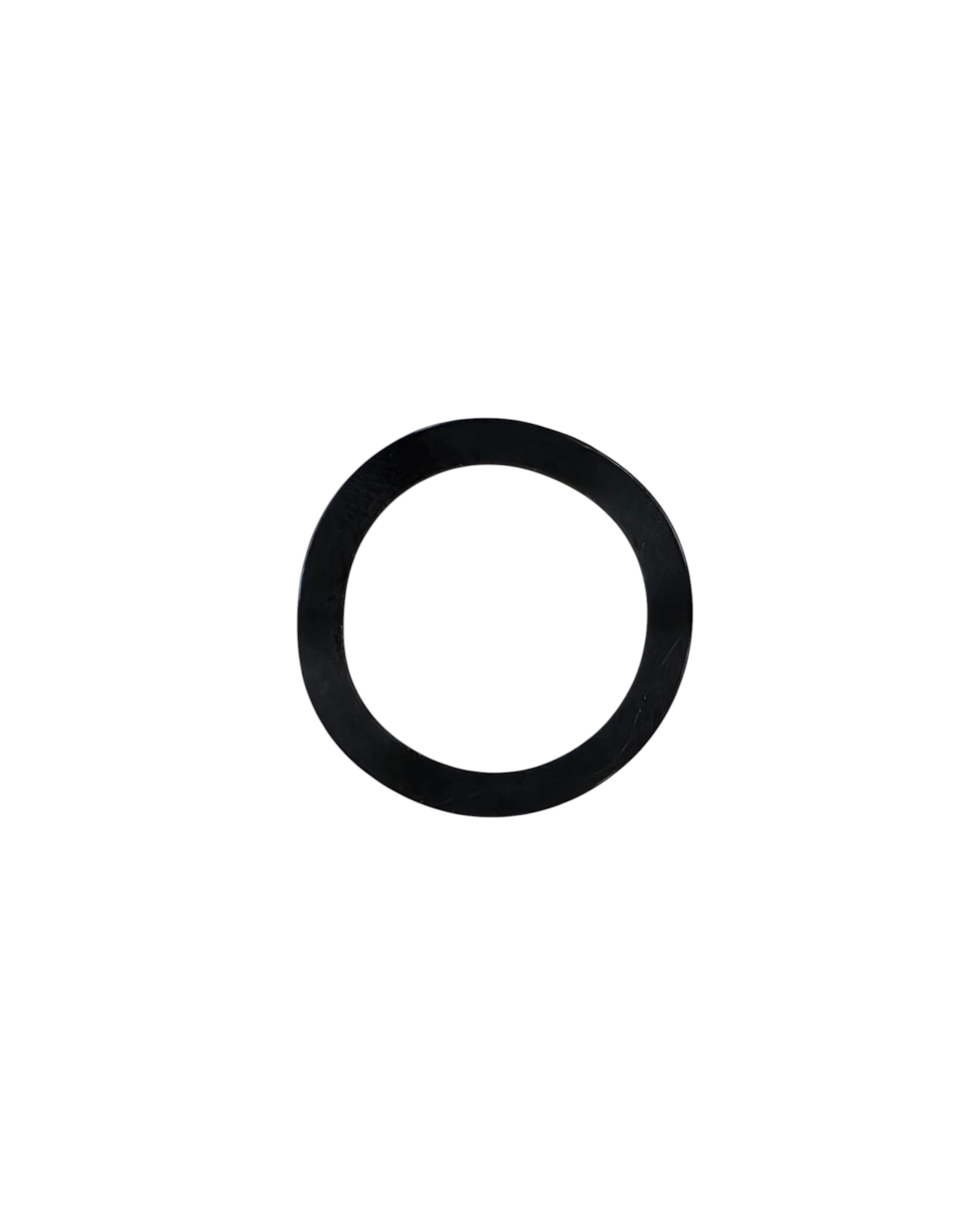

 | 213148 | 80 | 22MM X 16MM WAVE WASHER | $6.49 | ||
 | 208817 | 81 | #8 X 5/8″ SCREW | $0.99 | ||
 | 148710 | 82 | M10 LOCKNUT | $2.49 | ||
| 242711 | 83 | M6 X 10MM BOLT | $0.99 | |||
 | 191032 | 84 | M8 X 13MM SCREW, PULLEY | $1.99 | ||
| 208916 | 85 | M10 x 25mm Screw | NLA | Unavailable to order | ||
 | 207682 | 86 | M8 X 19MM BUTTON SCREW | $3.99 | ||
| 217779 | 87 | M8 X 28MM BOLT/SCREW | $4.49 | |||
| 247390 | 88 | M8 X 25MM BOLT SET | $3.49 | |||
 | 204489 | 89 | LARGE WAVE WASHER | $0.99 | ||
| 212500 | 90 | M8 X 45MM BOLT | $5.49 | |||
| 208938 | 91 | M10 X 60MM BUTTON SCREW | $5.99 | |||
 | 195562 | 92 | M4 X 16MM SCREW | $1.99 | ||
| 234664 | 93 | M10 X 80MM SCREW | $5.49 | |||
 | 012042 | 94 | M8 LOCKNUT | $1.99 | ||
| 252013 | 95 | FENDER WASHER | $0.99 | |||
 | 014172 | 96 | M8 X 23MM WASHER | $1.99 | ||
 | 014174 | 97 | M8 SPLIT WASHER | $1.99 | ||
 | 177034 | 99 | M10 SPLIT WASHER | $1.49 | ||
| 127597 | 100 | TREE FASTENER | $1.99 | |||
| 223287 | 101 | ADJUSTMENT PIN | $73.99 | |||
| 234388 | 102 | PLASTIC SPACER,1″ID,2″OD | $4.49 | |||
 | 229541 | 103 | LARGE SNAP RING | $2.99 | ||
| 254665 | 104 | M10 X 58MM SHOULDER BOLT | $4.99 | |||
| 236829 | 105 | M8 X 23MM SHOULDER SCREW | $4.99 | |||
| 193109 | 106 | M8 WASHER | $3.99 | |||
| 222789 | 107 | CRANK WASHER | $3.99 |
