PROFORM TOUR DE FRANCE CBC BIKE – PFEX39420.0
109 Parts Available for PROFORM TOUR DE FRANCE CBC BIKE - PFEX39420.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 426648 | 2 | FRONT STABILIZER | $136.49 | |||
| 424822 | 3 | REAR STABILIZER | $113.49 | |||
| 417471 | 4 | HANDLEBAR | $196.49 | |||
| 424787 | 5 | CONSOLE MOUNT | $154.99 | |||

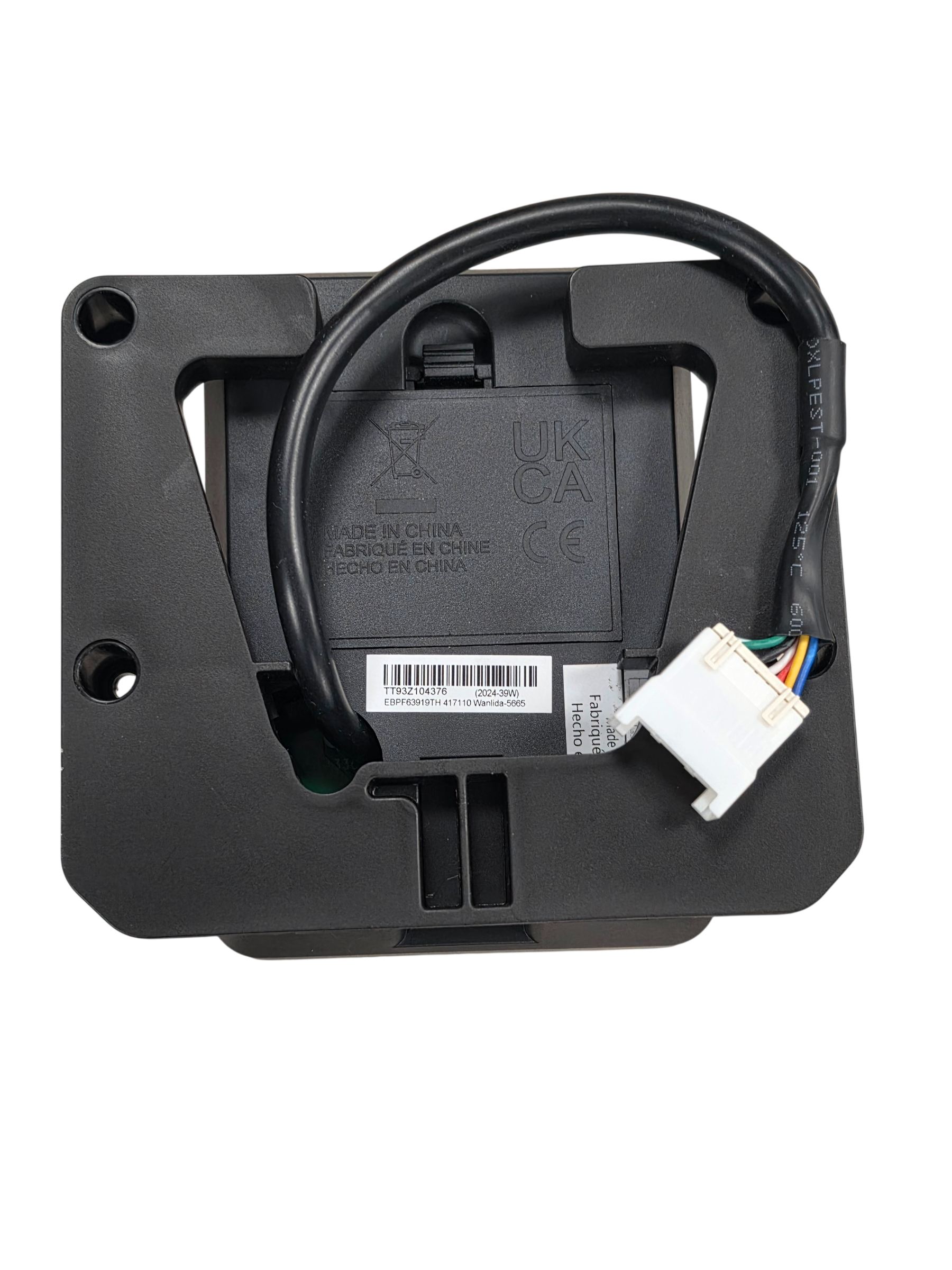

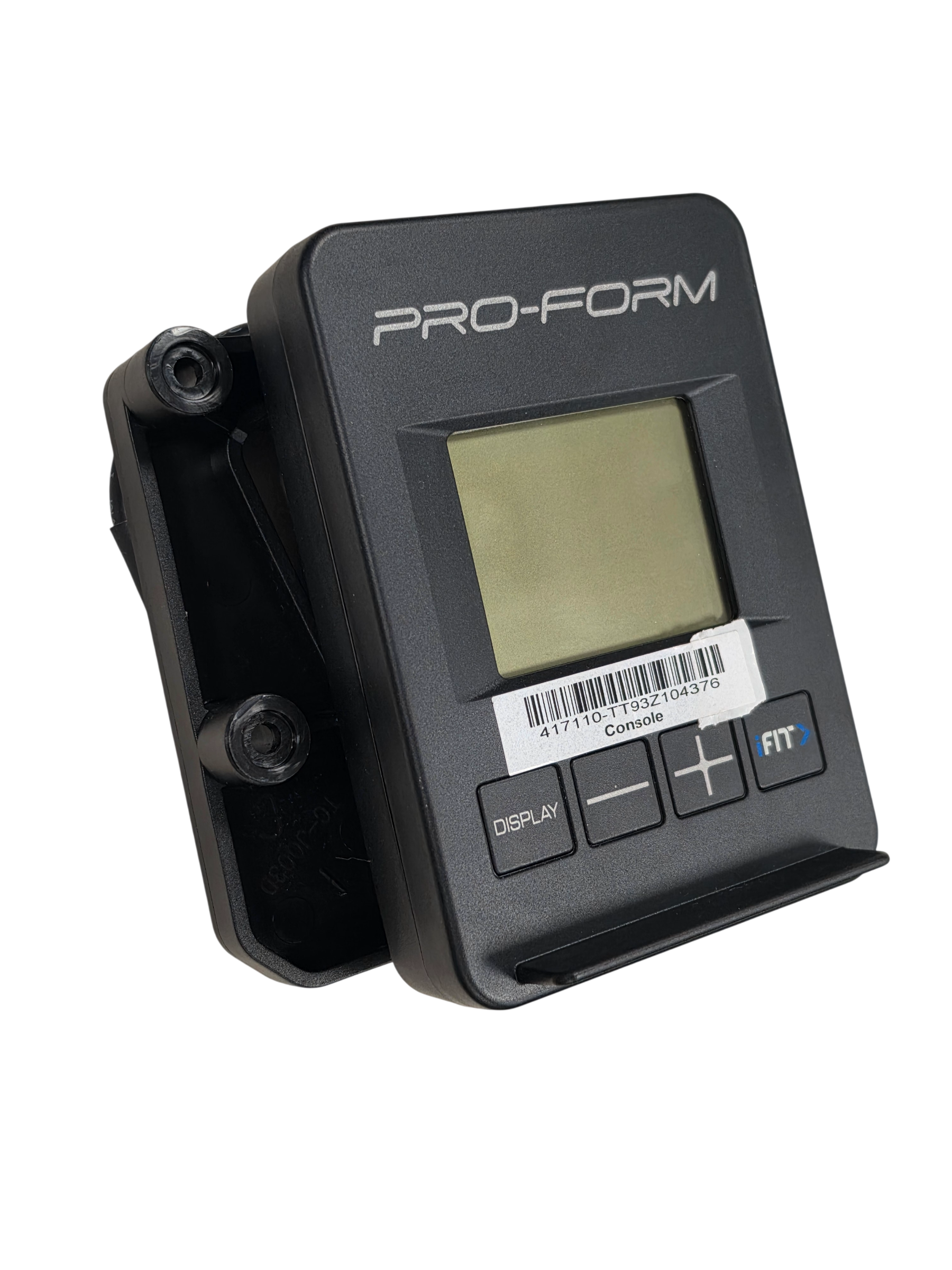

| 417442 | 6 | CONSOLE | $197.99 | |||
| 418678 | 7 | SADDLE POST | $184.99 | |||
| 415238 | 8 | SADDLE | $61.99 | |||
| 403348 | 9 | SADDLE ARM | $69.99 | |||
| 427692 | 10 | SADDLE CARRIAGE | $96.49 | |||
 | 195562 | 11 | M4 X 16MM SCREW | $1.99 | ||
| 417468 | 12 | EXTENSION WIRE | $46.49 | |||
| 424899 | 13 | CARRIAGE HANDLE | $75.99 | |||
| 424902 | 14 | ADJUSTMENT HANDLE | $77.99 | |||
 | 272906 | 15 | WATER BOTTLE HOLDER | $25.49 | ||
 | 393598 | 16 | PEDAL SET, RT ASSY | $65.49 | ||
 | 393597 | 17 | PEDAL SET, LT ASSY | $65.49 | ||
 | 404964 | 18 | CRANK/RIGHT CRANK ARM | $124.99 | ||
 | 414785 | 19 | LEFT CRANK ARM (REPLACES # 404963) | $65.49 | ||
| 414622 | 20 | RESISTANCE CABLE | $23.49 | |||
| 414355 | 21 | RESISTANCE BRACKET | $70.99 | |||
| 398618 | 22 | RESISTANCE SPRING | $18.49 | |||
| 398157 | 23 | RESISTANCE MAGNET | $43.99 | |||
 | 411458 | 24 | Resistance Motor | $94.99 | ||
| 403173 | 25 | BRAKE KNOB | $57.49 | |||
| 417420 | 26 | CONSOLE BRACKET | $112.49 | |||
| 403085 | 27 | BRAKE SHAFT | $74.49 | |||
| 398918 | 28 | BRAKE SPRING | $14.99 | |||
| 398947 | 29 | BRAKE BRACKET | $106.99 | |||
| 398701 | 30 | BRAKE SPACER | $11.99 | |||
| 407400 | 31A | IDLER | $119.49 | |||
| 398990 | 31B | IDLER ARM | $75.49 | |||
| 376548 | 31C | IDLER | $65.49 | |||
| 373273 | 31D | Idler Axle | $17.99 | |||
| 375928 | 31E | Idler Bushing | $1.99 | |||
| 150731 | 31F | IDLER RETAINER RING | $0.99 | |||
| 398992 | 31G | IDLER WASHER | $9.49 | |||
| 398719 | 32 | COVER BRACKET | $41.99 | |||
| 398406 | 33 | RIGHT HUB COVER | $20.49 | |||
| 398403 | 34 | OUTER BELT COVER | $132.49 | |||
| 398402 | 35 | INNER BELT COVER | $130.99 | |||
| 398407 | 36 | IDLER COVER | $19.99 | |||
| 398408 | 37 | LEFT HUB COVER | $29.49 | |||
| 398716 | 38 | MOTOR COVER | $21.99 | |||
| 414731 | 39 | BRAKE COVER | $108.99 | |||
| 398016 | 40 | SADDLE POST SLEEVE | $68.49 | |||
| 429084 | 41 | HANDLEBAR SLEEVE | $39.99 | |||
 | 153209 | 42 | SPINDLE COVER | $3.49 | ||
| 317094 | 43 | SNAP RING | $2.99 | |||
 | 291606 | 44 | CRANK BEARING | $22.49 | ||
| 417649 | 45 | PULLEY | $102.99 | |||
 | 399111 | 46 | DRIVE BELT | $49.99 | ||
| 426710 | 47 | FLYWHEEL | $203.49 | |||
| 398413 | 48 | FLYWHEEL AXLE | $72.49 | |||
| 398412 | 49 | FLYWHEEL BEARING | $68.99 | |||
| 398414 | 50 | FLYWHEEL SPACER | $27.49 | |||
| 426666 | 51 | WHEEL | $23.99 | |||
 | 306282 | 52 | FOOT | $4.99 | ||
 | 246285 | 53 | LEVELING FOOT | $10.99 | ||
| 424903 | 54 | STABILIZER CAP | $25.49 | |||
| 398899 | 55 | SADDLE POST CAP | $19.99 | |||
 | 392825 | 56 | INNER PIVOT DISC | $17.76 | ||
 | 411085 | 57 | REED SWITCH/WIRE | $25.99 | ||
 | 282277 | 58 | CLAMP | $3.49 | ||
| 399651 | 59 | ONE-WIRE GROMMET | $2.49 | |||
| 399086 | 60 | FLYWHEEL WASHER | $3.99 | |||
 | 133333 | 61 | CLIP | $0.99 | ||
 | 113842 | 62 | MAGNET | $1.49 | ||
 | 384942 | 63 | M8 X 20MM SCREW | $6.49 | ||
 | 333350 | 64 | M8 DECK MTG LOCKNUT | $1.99 | ||
| 385952 | 65 | M10 X 60MM SCREW | $28.49 | |||
 | 246700 | 66 | CRANK SCREW | $1.49 | ||
| 403083 | 67 | BRAKE NUT | $12.49 | |||
 | 148710 | 68 | M10 LOCKNUT | $2.49 | ||
 | 232289 | 69 | M10 X 25MM SCREW | $28.49 | ||
| 398984 | 70 | M6 BOLT SET | $18.49 | |||
 | 392829 | 71 | OUTER PIVOT DISC | $34.99 | ||
| 249931 | 72 | M8 SEAT ADJ SCREW | $3.49 | |||
| 398702 | 73 | M6 X 45MM SHOULDER SCREW | $20.99 | |||
| 135578 | 75 | M12 NYLON LOCKNUT | $6.99 | |||
| 400224 | 76 | M5 X 35MM BOLT | $17.49 | |||
| 400230 | 77 | M5 LOCKNUT | $21.99 | |||
| 398898 | 78 | BRAKE BUSHING | $19.99 | |||
| 197037 | 79 | M6 X 12MM SCREW | $0.99 | |||
| 373150 | 80 | M4 X 12MM SCREW | $0.99 | |||
 | 213457 | 81 | M4 X 12MM SCREW | $1.99 | ||
| 415602 | 82 | LOWER WIRE | $73.99 | |||
| 228822 | 83 | M8 X 80MM BOLT | $9.49 | |||
 | 186819 | 84 | 1/2″ SCREW | $0.99 | ||
| 398405 | 85 | M12 NUT | $6.99 | |||
 | 194878 | 87 | M4 X 19MM SCREW | $2.99 | ||
| 378126 | 88 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
| 417397 | 89 | CONSOLE DECK | $103.49 | |||
| 417467 | 90 | UPPER WIRE | $73.99 | |||
 | 224113 | 91 | M8 X 18MM WASHER | $2.49 | ||
| 425271 | # | USER’S MANUAL | $23.99 | |||
| 307906 | # | 15MM-17MM COMBO WRENCH | $34.49 | |||
| 412202 | # | 6MM ALLEN WRENCH | $53.99 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 430812 | # | USER’S MANUAL,SPG | $23.99 | |||
| 290295 | # | DECAL, NFW WARNING | $6.49 | |||
| 425270 | # | LITPAC, NOTE: | $190.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 364584 | # | DECAL,WARNING,PINCH POINT | $44.99 | |||
| 330224 | # | DECAL,REWRK,OVERLAY SHEET | $61.49 | |||
| 328496 | # | 5 FRENCH DECALS ON 1SHEET | $87.99 | |||
| 428883 | # | USER’S MANUAL,SP5 | $23.99 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 425269 | # | HARDWARE KIT, NOTE: | $64.99 |
