PROFORM SMART POWER 10.0 BIKE – PFEX16718.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
116 Parts Available for PROFORM SMART POWER 10.0 BIKE - PFEX16718.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 398005 | 2 | FRONT STABILIZER | $120.99 | |||
| 398001 | 3 | REAR STABILIZER | $105.99 | |||
| 403788 | 4 | HANDLEBAR/UPPER WIRE | $173.49 | |||
| 403058 | 5 | CONSOLE MOUNT | $145.49 | |||
| 403781 | 6A | CONSOLE (RESET CNSL) | $765.99 | |||
| 403797 | 6B | REPROGRAM MODULE | $108.49 | |||
| 418676 | 7 | SADDLE POST | $110.49 | |||
| 403796 | 8 | SADDLE | $61.99 | |||
| 403348 | 9 | SADDLE ARM | $69.99 | |||
| 427692 | 10 | SADDLE CARRIAGE | $96.49 | |||
| 427690 | 11 | LEFT WEIGHT REST | $71.99 | |||
| 427688 | 12 | RIGHT WEIGHT REST | $71.49 | |||
| 372139 | 13 | CARRIAGE HANDLE | $60.49 | |||
| 398704 | 14 | ADJUSTMENT HANDLE | $73.49 | |||
| 403771 | 15 | WATER BOTTLE HOLDER | $43.99 | |||
 | 393598 | 16 | PEDAL SET, RT ASSY | $65.49 | ||
 | 393597 | 17 | PEDAL SET, LT ASSY | $65.49 | ||
| 407925 | 18 | CRANK/RIGHT CRANK ARM | $197.49 | |||
| 408930 | 19 | LEFT CRANK ARM | $114.99 | |||
 | 398917 | 20 | RESISTANCE CABLE | $27.49 | ||
| 398618 | 22 | RESISTANCE SPRING | $18.49 | |||
| 398157 | 23 | RESISTANCE MAGNET | $43.99 | |||
 | 193223 | 24 | RESISTANCE MOTOR | $99.99 | ||
| 403173 | 25 | BRAKE KNOB | $57.49 | |||
| 403061 | 26 | CONSOLE BRACKET | $99.49 | |||
| 403085 | 27 | BRAKE SHAFT | $74.49 | |||
| 398918 | 28 | BRAKE SPRING | $14.99 | |||
| 407238 | 29 | BRAKE BRACKET | $63.99 | |||
| 398701 | 30 | BRAKE SPACER | $11.99 | |||
| 407400 | 31A | IDLER | $119.49 | |||
| 398992 | 31B | IDLER WASHER | $9.49 | |||
| 398719 | 32 | COVER BRACKET | $41.99 | |||
| 398406 | 33 | RIGHT HUB COVER | $20.49 | |||
| 398403 | 34 | OUTER BELT COVER | $132.49 | |||
| 398402 | 35 | INNER BELT COVER | $130.99 | |||
| 398407 | 36 | IDLER COVER | $19.99 | |||
| 398408 | 37 | LEFT HUB COVER | $29.49 | |||
| 398716 | 38 | MOTOR COVER | $21.99 | |||
| 399126 | 39 | BRAKE COVER | $108.99 | |||
| 398016 | 40 | SADDLE POST SLEEVE | $68.49 | |||
| 429084 | 41 | HANDLEBAR SLEEVE | $39.99 | |||
 | 153209 | 42 | SPINDLE COVER | $3.49 | ||
| 317094 | 43 | SNAP RING | $2.99 | |||
 | 291606 | 44 | CRANK BEARING | $22.49 | ||
| 398881 | 45 | PULLEY | $125.49 | |||

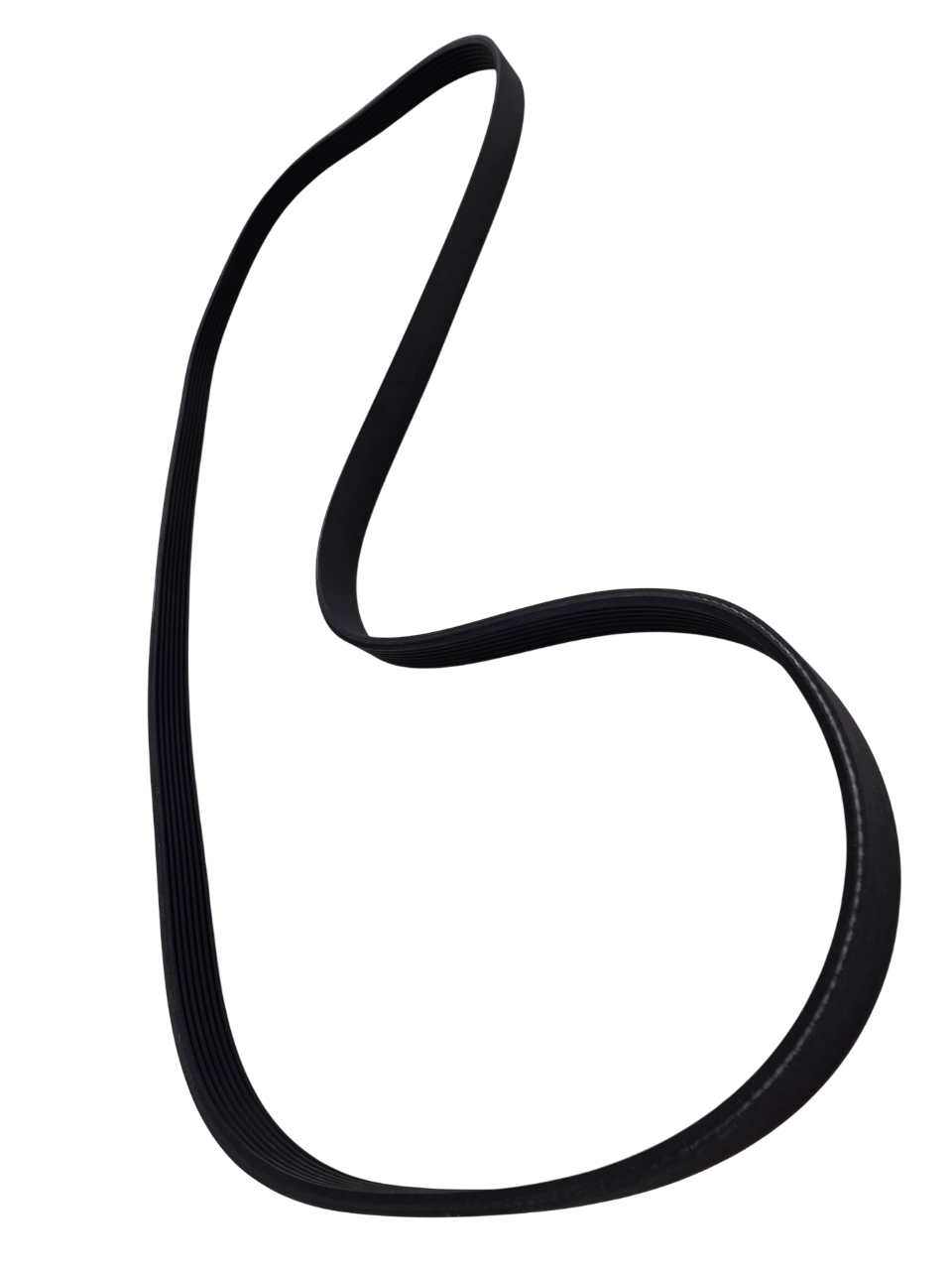

 | 399111 | 46 | DRIVE BELT | $49.99 | ||
| 425460 | 47 | FLYWHEEL | $397.49 | |||
| 398413 | 48 | FLYWHEEL AXLE | $72.49 | |||
| 398412 | 49 | FLYWHEEL BEARING | $68.99 | |||
| 398414 | 50 | FLYWHEEL SPACER | $27.49 | |||
 | 219825 | 51 | WHEEL | $24.99 | ||
 | 306282 | 52 | FOOT | $4.99 | ||
 | 246285 | 53 | LEVELING FOOT | $10.99 | ||
| 320579 | 54 | STABILIZER CAP | $14.49 | |||
| 398899 | 55 | SADDLE POST CAP | $19.99 | |||
| 403064 | 56 | BRACKET MOUNT | $66.99 | |||
| 378667 | 57 | REED SWITCH | $14.49 | |||
 | 282277 | 58 | CLAMP | $3.49 | ||
| 398525 | 59 | HAND WEIGHT | $111.49 | |||
| 399086 | 60 | FLYWHEEL WASHER | $3.99 | |||
 | 133333 | 61 | HOOD CLIP | $0.99 | ||
 | 113842 | 62 | MAGNET | $1.49 | ||
 | 384942 | 63 | M8 X 20MM SCREW | $6.49 | ||
 | 333350 | 64 | M8 LOCKNUT | $1.99 | ||
| 385952 | 65 | M10 X 60MM SCREW | $28.49 | |||
 | 246700 | 66 | CRANK SCREW | $1.49 | ||
 | 148710 | 68 | M10 NUT | $2.49 | ||
 | 232289 | 69 | M10 X 25MM SCREW | $28.49 | ||
| 398984 | 70 | M6 BOLT SET | $18.49 | |||
| 277705 | 71 | M6 X 15MM SCREW | $3.49 | |||

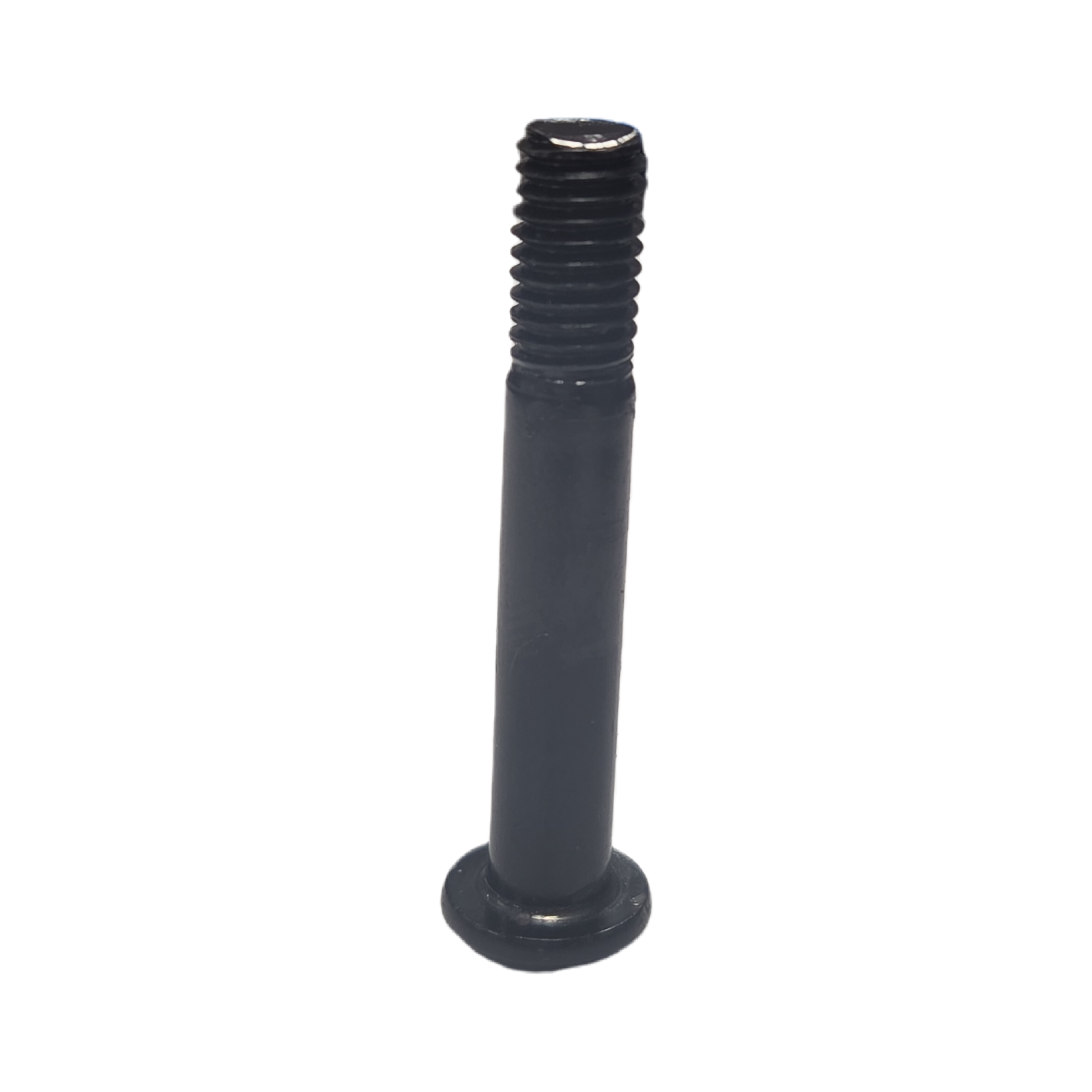

| 392660 | 72 | M8 X 50MM BOLT | $3.49 | |||
| 398702 | 73 | M6 X 45MM SHOULDER SCREW | $20.99 | |||
| 400224 | 76 | M5 X 35MM BOLT | $17.49 | |||
| 400230 | 77 | M5 LOCKNUT | $21.99 | |||
| 398898 | 78 | BRAKE BUSHING | $19.99 | |||
 | 197037 | 79 | M6 X 12MM SCREW, NOTE: | $0.99 | ||
| 373150 | 80 | M4 X 12MM SCREW | $0.99 | |||
 | 195562 | 81 | M4 X 16MM SCREW | $1.99 | ||
| 403555 | 82 | LOWER WIRE | $25.99 | |||
| 222439 | 83 | THRUST WASHER | $2.49 | |||
 | 186819 | 84 | #8 X 1/2″ SILVER SCREW | $0.99 | ||
| 398405 | 85 | M12 NUT | $6.99 | |||
 | 339802 | 86 | POWER ADAPTER | $24.99 | ||
 | 194878 | 87 | M4 X 19MM SCREW | $2.99 | ||
| 378126 | 88 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
 | 355585 | 89 | POWER WIRE/RECEPTACLE | $25.97 | ||
| 403349 | 90 | 6-PIN WIRE,YLW CONN | $53.99 | |||
| 403350 | 91 | 8-PIN WIRE,RED CONN | $65.49 | |||
| 193109 | 92 | M8 SMALL WASHER | $3.99 | |||
| 271277 | 93 | M8 X 80MM BOLT | $9.49 | |||
 | 392829 | 94 | OUTER PIVOT DISC | $34.99 | ||
 | 392825 | 95 | INNER PIVOT DISC | $17.76 | ||
| 392828 | 96 | UPPER/LOWER PIVOT DISC | $16.99 | |||
 | 392819 | 97 | CENTER PIVOT DISC | $9.49 | ||
| 399651 | 98 | WIRE PROTECTOR | $2.49 | |||
| 395580 | 99 | PLASTIC SPACER | $3.49 | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 403157 | # | LITPAC, NOTE: | $178.49 | |||
| 290295 | # | DECAL, NFW WARNING | $6.49 | |||
| 307906 | # | 15MM-17MM COMBO WRENCH | $34.49 | |||
| 427967 | # | USER’S MANUAL,SP8 | $23.99 | |||
| 403158 | # | USERS MANUAL | $23.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 412211 | # | 4MM ALLEN WRENCH | $44.99 | |||
| 412202 | # | 6MM ALLEN WRENCH | $53.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 403548 | # | HARDWARE KIT NOTE: LITPAC | $118.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364584 | # | DECAL,WARNING,PINCH POINT | $44.99 | |||
| 454054 | # | USER’S MANUAL | $60.99 | |||
| 328496 | # | 5 FRENCH DECALS ON 1SHEET | $87.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 330224 | # | DECAL,REWRK,OVERLAY SHEET | $61.49 | |||
| 403272 | TS03 | 18″ WIRE HRNS | $73.49 | |||
| 403413 | TS09 | 30″ WIRE HRNS | $69.99 |
