PROFORM PRO TRAINER 500 ROWER – PFRW48124.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
57 Parts Available for PROFORM PRO TRAINER 500 ROWER - PFRW48124.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 451550 | 2 | RAIL | $194.49 | |||
| 451549 | 3 | STABILIZER | $139.99 | |||
| 405648 | 4 | LEFT FLYWHEEL | $141.99 | |||
| 363138 | 5 | SEAT CARRIAGE | $27.49 | |||
| 451557 | 6 | ACCENT RING | $62.49 | |||
| 405724 | 7 | RIGHT SHIELD | $29.49 | |||
| 405723 | 8 | LEFT SHIELD | $28.99 | |||
| 405764 | 9 | DISC | $26.99 | |||
 | 363155 | 10 | STRAP GROMMET | $2.49 | ||
 | 415742 | 11 | BUNGEE CORD | $24.99 | ||
 | 406351 | 12 | ROW BAR/STRAP ASSEMBLY | $52.99 | ||
| 321268 | 13 | PEDAL SPRING | $3.49 | |||
| 397293 | 14 | Custom Washer for Fitness Equipment | $6.99 | |||
| 397306 | 15 | SPCR,CSTM WSHR,TPU,LT,.33X1.52 | $6.99 | |||
 | 363918 | 16 | FOOTREST STRAP | $19.99 | ||
 | 363149 | 17 | RIGHT FOOTREST | $28.99 | ||
 | 367369 | 18 | RIGHT FOOT PAD | $24.99 | ||
 | 363153 | 19 | RIGHT FOOTREST BRACKET | $8.49 | ||
 | 363152 | 20 | LEFT FOOTREST BRACKET | $8.49 | ||
 | 363148 | 21 | LEFT FOOTREST | $28.99 | ||
 | 367368 | 22 | LEFT FOOT PAD | $14.99 | ||
 | 363663 | 23 | SEAT | $143.99 | ||
 | 176420 | 25 | SNAP RING | $6.49 | ||
 | 153209 | 26 | SPINDLE COVER | $3.49 | ||
| 213148 | 28 | WAVE WASHER | $6.49 | |||
| 406349 | 29 | PULLEY ASSEMBLY | $172.99 | |||
| 406318 | 30 | AXLE | $116.49 | |||
| 363182 | 31 | PIVOT BUSHING | $2.49 | |||
 | 363166 | 32 | STOP | $1.99 | ||
| 365018 | 33 | BUMPER | $5.49 | |||
 | 363157 | 34 | RAIL HANDLE | $26.99 | ||
| 363171 | 35 | FOLDING CLAMP | $4.99 | |||
| 363163 | 36 | RAIL FOOT | $8.99 | |||
 | 363915 | 37 | SMALL CARRIAGE ROLLER | $7.49 | ||
 | 363164 | 38 | RAIL CAP | $3.99 | ||
 | 363914 | 39 | LARGE CARRIAGE ROLLER | $32.99 | ||
 | 362437 | 40 | CARRIAGE AXLE | $13.99 | ||
 | 363159 | 41 | STABILIZER FOOT | $3.49 | ||
| 365455 | 42 | WHEEL | $3.99 | |||

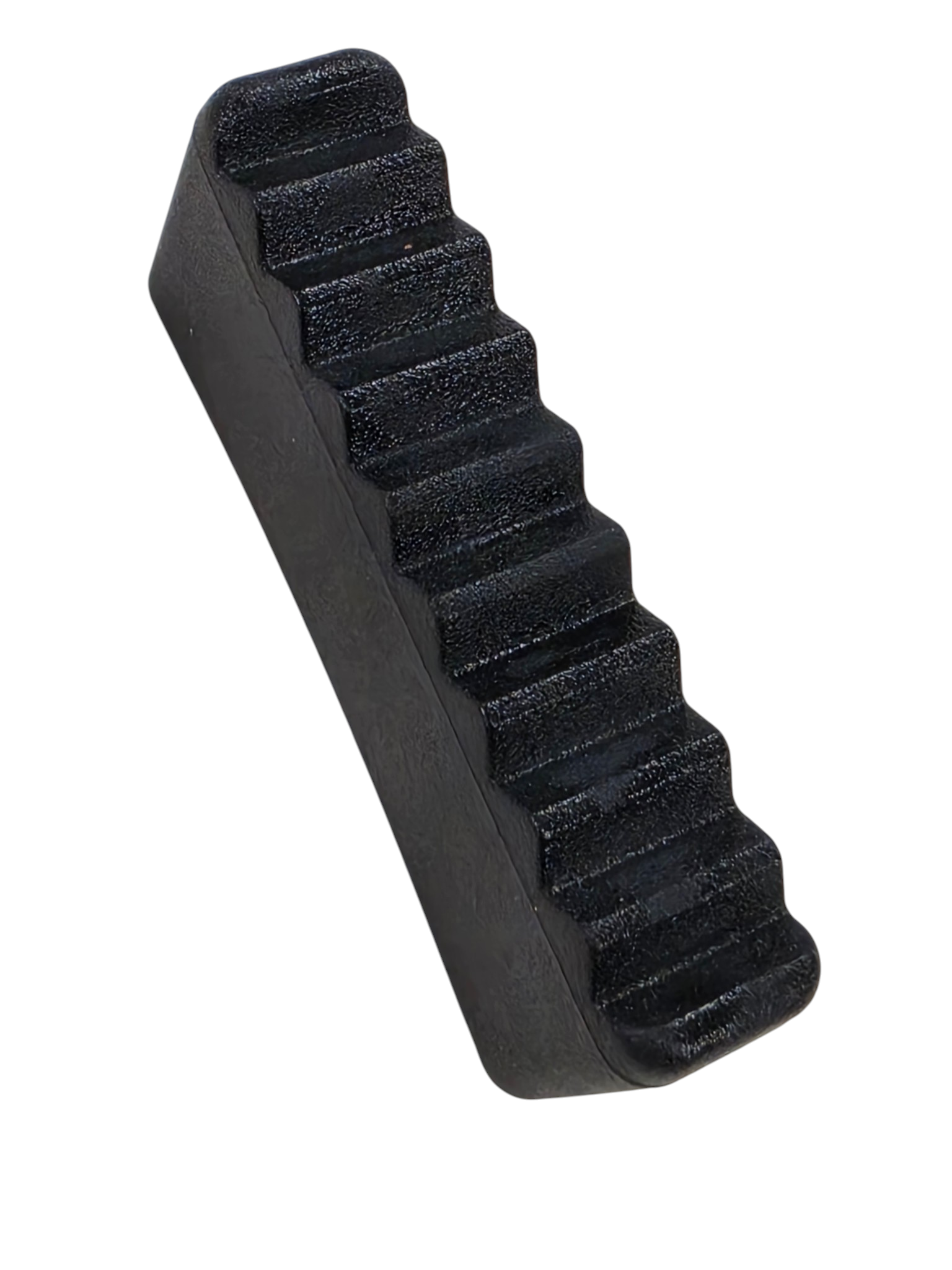

| 363158 | 43 | STORAGE FOOT | $12.99 | |||
| 400874 | 44 | SMALL RAIL PULLEY | $23.99 | |||
| 406281 | 45 | STRAP ROLLER A | $6.49 | |||
| 363142 | 46 | STRAP AXLE | $2.49 | |||
 | 415813 | 47 | REED SWITCH/WIRE | $43.99 | ||
| 363912 | 48 | FRAME PULLEY | $13.49 | |||
| 363165 | 49 | FRAME FOOT | $4.99 | |||
 | 282277 | 50 | CLAMP | $3.49 | ||
| 367365 | 51 | ROW BAR REST | $32.49 | |||
| 363156 | 52 | FRAME HANDLE | $7.49 | |||
| 362434 | 53 | PIVOT AXLE | $6.49 | |||
| 400889 | 54 | 17MM SPACER | $3.99 | |||
| 400891 | 55 | 2.3MM SPACER | $2.99 | |||
| 350010 | 56 | M6 X 15MM WASHER | $0.99 | |||
 | 012142 | 57 | M6 NYLON LOCKNUT | $0.99 | ||
 | 281801 | 58 | M8 WASHER | $7.49 | ||
| 368570 | 59 | M8 X 12MM SCREW | $0.99 | |||
| 207678 | 60 | M10 X 40MM SCREW | $6.49 | |||
| 451869 | 61 | M8 X 16MM SOCKET SCREW | $1.49 | |||
 | 197404 | 62 | 5MM WASHER | $1.99 | ||
 | 360925 | 63 | M5 X 10MM SCREW | $0.99 | ||
| 405643 | 64 | RIGHT FLYWHEEL | $104.49 | |||
| 277705 | 65 | M6 X 15MM SCREW | $3.49 | |||
 | 339153 | 66 | M10 FLANGE NUT | $0.99 | ||
 | 363913 | 67 | RAIL PULLEY | $14.99 | ||
 | 195562 | 68 | M4 X 16MM SCREW | $1.99 | ||
| 313568 | 69 | M4 X 19MM, SELF-TAP SCRW | $0.99 | |||
| 363916 | 70 | STRAP ROLLER | $7.99 | |||
| 262341 | 71 | M6 X 12MM SCREW | $3.49 | |||
| 400890 | 72 | 4.8MM SPACER | $0.99 | |||
| 427816 | 73 | GROUND SCREW | $0.99 | |||
| 451548 | 75 | CONSOLE | $246.49 | |||
| 451551 | 76 | NECK | $118.49 | |||
| 451497 | 77 | UPRIGHT | $42.99 | |||
| 396430 | 78 | Console Adjustment Knob Assembly | $22.99 | |||
| 450108 | 79 | WIRE GROMMET | $1.49 | |||
| 397291 | 80 | CVR,UPRT PVT,RT,LWR,BLK | $24.49 | |||
| 397292 | 81 | CVR,UPRT PVT,LT,LWR,BLK | $24.49 | |||
| 346492 | 82 | M8 X 35MM SOCKET SCREW | $4.99 | |||
| 207204 | 83 | M8 X 52MM BOLT | $2.99 | |||
 | 113842 | 85 | MAGNET | $1.49 | ||
 | 333350 | 86 | M8 DECK MTG LOCKNUT | $1.99 | ||
| 405765 | 87 | REAR STOP | $5.49 | |||
| 375759 | 88 | BEARING BRACKET W/ BRNG | $33.99 | |||
 | 303952 | 89 | HANDLE BRACKET | $4.99 | ||
| 303957 | 90 | LINK ARM | $24.99 | |||
| 405652 | 91 | MAGNET BRACKET | $32.99 | |||
| 400871 | 92 | 58MM PULLEY AXLE | $16.99 | |||
| 400870 | 93 | 83MM PULLEY AXLE | $24.49 | |||
 | 133333 | 94 | CLIP | $0.99 | ||
| 409918 | 95 | M4 X 20MM BLUNT SCREW | $3.49 | |||
| 275979 | 96 | M6 X 12MM HEX SCREW | $1.99 | |||
| 387819 | 97 | M6 WASHER | $1.49 | |||
| 369188 | 98 | 6MM WASHER | $28.49 | |||
| 373150 | 99 | M4 X 12MM SCREW | $0.99 | |||
 | 411461 | 100 | RESISTANCE MOTOR | $89.99 | ||
 | 144520 | 101 | M5 NUT | $0.99 | ||
 | 241954 | 102 | RSISTANCE MOTOR DISK | $1.99 | ||
| 256183 | 103 | M3 X 8MM SCREW,NOTE: | $1.49 | |||
| 234366 | 104 | M4 X 8MM MACHINE SCREW | $1.49 | |||
 | 213457 | 105 | M4 X 12MM SCREW | $1.99 | ||
| 370627 | 106 | M10 LOCKNUT | $3.49 | |||
| 409917 | 107 | M4 X 10MM SCREW | $0.99 | |||
 | 337717 | 108A | Power Adapter | $28.99 | ||
 | 214003 | 108B | POWER JACK NUT | $5.49 | ||
| 451478 | 109 | MAIN WIRE | $27.49 | |||
| 184369 | 110 | TABLET HOLDER SCREW | $0.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 451517 | # | USER’S MANUAL,ENGLISH | $23.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 266080 | # | DECAL, GENERAL WARNING | $10.99 | |||
| 367985 | # | DECAL, UPRT SITE WARNING | $0.99 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 408571 | # | 5MM ALLEN WRENCH | $6.49 | |||
| 451520 | # | HARDWARE KIT, NOTE: | $22.99 | |||
| 341182 | # | AUDIO WIRE | $11.99 | |||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 451519 | # | USER’S MANUAL,SP5 | $47.49 | |||
| 451516 | # | LITPAC, NOTE: | $101.99 | |||
 | 411086 | TS5 | POWER RECEPTACLE/WIRE | $44.99 |
