PROFORM PRO C10R BIKE – PFEX73921.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
96 Parts Available for PROFORM PRO C10R BIKE - PFEX73921.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 318549 | 2 | FRONT STABILIZER | $119.49 | |||
| 355472 | 3 | REAR STABILIZER | $158.49 | |||
| 437030 | 4 | UPRIGHT | $109.99 | |||
| 353240 | 5 | ACCESSORY TRAY | $67.49 | |||
| 328385 | 6 | ADJUSTMENT LEVER | $70.99 | |||
| 436764 | 7 | SEAT CARRIAGE | $213.49 | |||
| 341320 | 8 | BACKREST W/SUPPORT | $175.99 | |||
| 436734 | 9 | SEAT FRAME | $122.99 | |||
 | 334783 | 10 | SEAT | $173.99 | ||
| 394495 | 12 | LEFT PEDAL/STRAP | $103.99 | |||
 | 355668 | 13 | RIGHT PEDAL/STRAP | $103.99 | ||
| 436729 | 14 | HANDLEBAR | $197.99 | |||
| 436494 | 15A | CONSOLE | $668.49 | |||
| 411549 | 15B | CONSOLE FAN | $55.49 | |||
| 436894 | 16 | CONSOLE COVER | $44.99 | |||
 | 131090 | 17 | CLAMP | $0.99 | ||
 | 415813 | 18 | REED SWITCH/WIRE | $43.99 | ||
 | 317007 | 19 | WHEEL | $27.49 | ||
 | 251978 | 20 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 240819 | 21 | M10 X 80MM SCREW | $14.99 | |||
| 355264 | 22 | STABILIZER CAP | $14.99 | |||
| 355557 | 23 | LEVELING FOOT | $24.99 | |||
 | 355564 | 24 | M8 X 15MM SCREW | $2.99 | ||
 | 333350 | 25 | M8 LOCKNUT | $1.99 | ||
| 355501 | 26 | M8 X 63MM BOLT | $11.49 | |||
| 355905 | 27 | M5 X 20MM SCREW | $1.99 | |||
| 358960 | 28 | M8 X 38MM SCREW | $5.49 | |||
| 360731 | 29A | LEFT SEAT HANDGRIP | $27.49 | |||
| 360730 | 29B | RIGHT SEAT HANDGRIP | $27.49 | |||
| 437029 | 30 | CRANK ARM CAP | $133.49 | |||
| 415081 | 31 | MAIN WIRE | $80.49 | |||
 | 014174 | 32 | M8 SPLIT WASHER | $1.99 | ||
 | 199493 | 33A | M6 X 16MM SCREW | $4.62 | ||
 | 208939 | 33B | M6X16MM SEAT ADJ HANDLE | $2.49 | ||
 | 355569 | 34 | M6 WASHER | $0.99 | ||
 | 014018 | 35 | M6 SPLIT WASHER | $0.99 | ||
| 318151 | 36 | BRAKE PLATE | $6.49 | |||
| 373471 | 37 | BRAKE AXLE | $124.49 | |||
 | 263599 | 38 | BRAKE PAD SPACER | $15.49 | ||
 | 373474 | 39 | BRAKE | $44.99 | ||
| 373407 | 40 | HNDL,PUSH ON,.5X1.125″,EBONY | $35.99 | |||
| 339121 | 41 | M6 X 30MM SCREW | $2.49 | |||
| 249928 | 42 | M8 X 20MM BUTTON SCREW | $1.99 | |||
| 375537 | 43 | M6 X 13MM SCREW | $6.49 | |||
| 317898 | 44 | UPPER ROLLER | $19.99 | |||
| 355270 | 45 | LOWER ROLLER | $12.99 | |||
| 317905 | 46 | ROLLER AXLE | $19.99 | |||
| 373404 | 47 | CARRIAGE RAIL | $113.99 | |||
| 355267 | 48 | CARRIAGE BUMPER | $1.49 | |||
 | 195562 | 49A | M4 X 16MM SCREW | $1.99 | ||
| 350331 | 49B | M4 X 15MM SCREW | $0.99 | |||
 | 339802 | 50 | POWER ADAPTER | $24.99 | ||
| 238294 | 52 | M4 X 16MM GROUND SCREW | $0.99 | |||
 | 411086 | 53A | POWER RECEPTACLE/WIRE | $44.99 | ||
 | 214003 | 53B | POWER JACK NUT | $5.49 | ||
 | 224606 | 54A | M4 X 25MM SCREW | $0.99 | ||
| 436738 | 55 | DISC | $157.99 | |||
 | 213457 | 56 | M4 X 12MM SCREW | $1.99 | ||
| 436257 | 57 | LEFT FRONT SHIELD | $187.99 | |||
| 436256 | 58 | RIGHT FRONT SHIELD | $187.99 | |||
| 436942 | 59 | LEFT REAR SHIELD | $170.49 | |||
| 436941 | 60 | RIGHT REAR SHIELD | $170.49 | |||
 | 144335 | 61 | BELT | $89.99 | ||
| 370274 | 62A | EDDY MECHANISM | $272.99 | |||
| 355675 | 62B | RESISTANCE CABLE | $26.99 | |||
| 382231 | 62C | M6X15MM SCREW, MECH BKT | $3.99 | |||
| 355661 | 63 | IDLER | $63.99 | |||

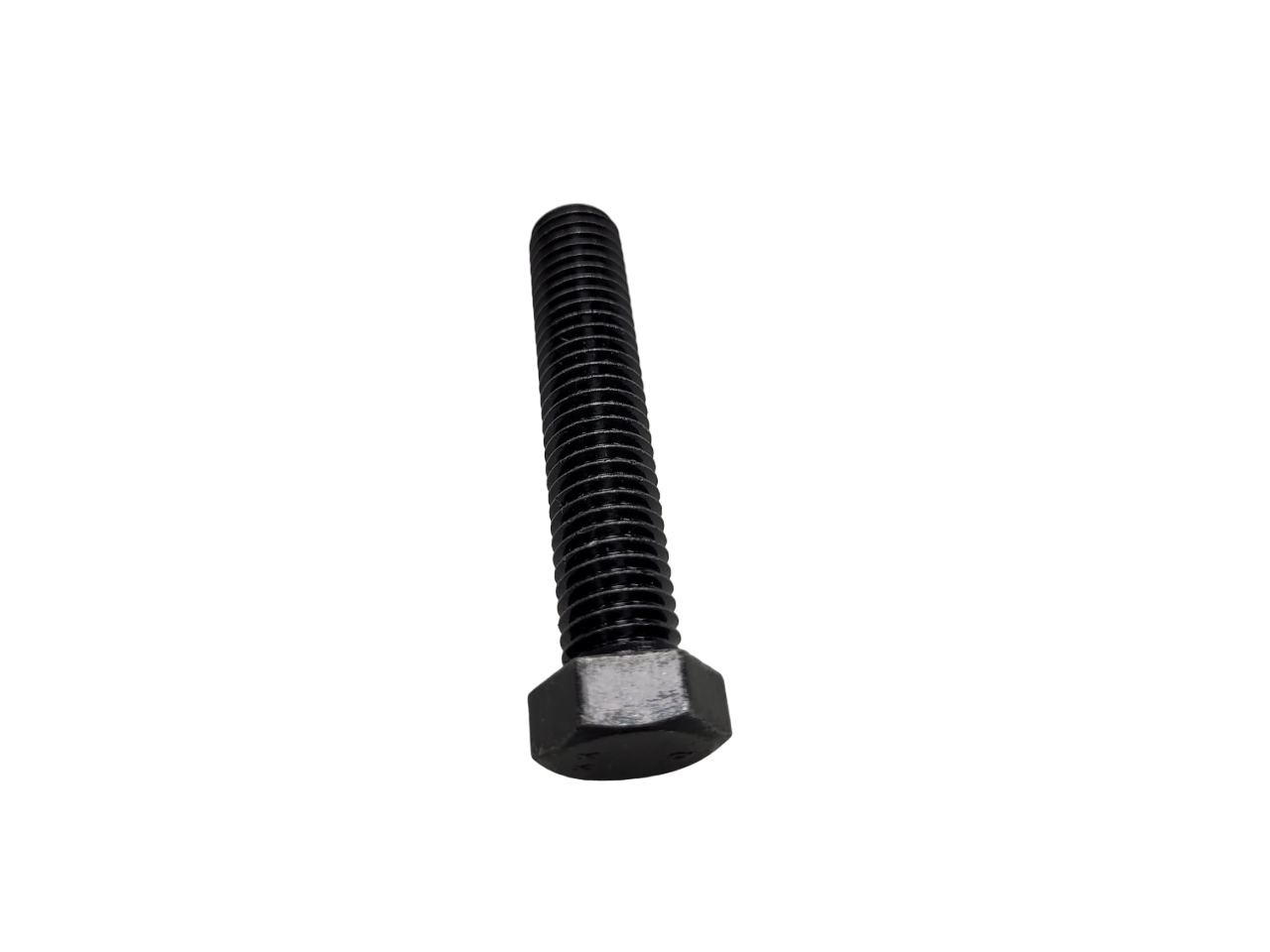

 | 281149 | 64 | BELT ADJUSTMENT SCREW | $6.49 | ||
| 354710 | 65 | M4X12MM WASHER HEAD SCREW | $0.99 | |||
 | 411458 | 66 | RESISTANCE MOTOR | $94.99 | ||
 | 113842 | 67 | MAGNET | $1.49 | ||
| 365145 | 68 | SHIELD COVER | $28.49 | |||
| 246701 | 69 | 5/16″ FLANGE SCREW | $5.49 | |||
 | 434914 | 70A | LEFT CRANK ARM | $84.99 | ||
 | 153209 | 70B | CRANK CAP | $3.49 | ||
| 434913 | 71A | RIGHT CRANK ARM | $104.99 | |||
 | 143742 | 72 | LARGE SNAP RING | $3.99 | ||
 | 139703 | 73 | CRANK BRACKET BEARING | $33.49 | ||
| 355567 | 74 | CRANK | $105.99 | |||
| 255072 | 75 | PULLEY | $91.99 | |||
| 166909 | # | DECAL,SITE WARNING | $2.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 436763 | # | HARDWARE KIT,NOTE: | $125.99 | |||
| 436759 | # | LITPAC,NOTE: | $190.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
| 436760 | # | USER’S MANUAL,ENG | $23.99 | |||
| 266082 | # | DECAL, GENERAL WARNING | $4.49 | |||
| 449574 | # | USER’S MANUAL,SP8 | $23.99 |
