PROFORM HIIT TRAINER LITE 5.9 ELLIPTICAL – 23645.4
115 Parts Available for PROFORM HIIT TRAINER LITE 5.9 ELLIPTICAL - 23645.4 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 405333 | 2 | BASE | $279.99 | |||
| 407478 | 3 | STABILIZER | $113.49 | |||
| 414538 | 4 | UPRIGHT | $205.99 | |||
| 405781 | 5 | CONSOLE | $268.99 | |||
| 404377 | 6 | UPPER WIRE | $69.99 | |||
| 271688 | 7 | PULSE SENSOR | $60.99 | |||
 | 113842 | 8 | MAGNET | $1.49 | ||
 | 250961 | 9 | M4.2 X 19MM SCREW | $0.99 | ||
 | 272906 | 10 | WATER BOTTLE HOLDER | $25.49 | ||
| 212416 | 11 | UPPER BODY ARM CAP | $6.99 | |||
| 405778 | 12 | LEFT HANDLEBAR | $130.99 | |||
| 405779 | 13 | RIGHT HANDLEBAR | $130.99 | |||
| 404391 | 14 | HANDLEBAR SLEEVE | $69.99 | |||
| 408299 | 15 | LEFT HANDLEBAR LEG | $194.99 | |||
| 408298 | 16 | RIGHT HANDLEBAR LEG | $194.99 | |||
| 405773 | 17 | LEFT PEDAL LEG | $227.49 | |||
| 405772 | 18 | RIGHT PEDAL LEG | $227.49 | |||
| 385092 | 19 | PEDAL | $146.49 | |||
| 404936 | 20 | PEDAL LEG CAP | $24.99 | |||
| 405775 | 21 | PIVOT SHIELD | $132.49 | |||
| 404972 | 22 | OUTER PIVOT COVER | $68.49 | |||
| 404973 | 23 | INNER PIVOT COVER | $60.99 | |||
| 397431 | 24 | PIVOT BUSHING | $25.99 | |||
| 405465 | 25 | FLEX SPACER | $29.99 | |||
| 405656 | 26 | UPRIGHT BUSHING | $43.99 | |||
| 405522 | 27 | LEFT SHIELD | $157.49 | |||
| 405523 | 28 | RIGHT SHIELD | $157.49 | |||
| 405520 | 29 | LEFT SHIELD COVER | $110.49 | |||
| 405521 | 30 | RIGHT SHIELD COVER | $110.49 | |||
| 420597 | 31 | CENTER SHIELD COVER | $73.99 | |||
| 405525 | 32 | LOWER SHIELD COVER | $60.99 | |||
 | 317007 | 33 | WHEEL | $27.49 | ||
| 410315 | 34 | FOOT | $26.99 | |||
 | 237631 | 35 | LEVELING FOOT | $34.99 | ||
| 375925 | 36 | STABILIZER CAP | $14.99 | |||
| 404756 | 37 | DISC COVER | $24.99 | |||
| 404757 | 38 | CRANK DISC | $76.49 | |||
| 405473 | 39 | CRANK ARM | $150.49 | |||
| 405478 | 40 | SMALL CRANK SPACER | $9.49 | |||
| 408375 | 41 | CRANK BEARING | $171.99 | |||
| 405480 | 42 | LARGE CRANK SPACER | $16.99 | |||
| 405485 | 43 | FLYWHEEL | $234.49 | |||
| 405436 | 44 | CRANK PULLEY | $118.49 | |||
| 405475 | 45 | CRANK | $144.99 | |||
| 405486 | 46 | MAGNET BRACKET | $175.99 | |||
 | 241949 | 47 | RESISTANCE MOTOR | $99.99 | ||
| 303957 | 48 | LINK ARM | $24.99 | |||
 | 241954 | 49 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 303952 | 50 | HANDLE BRACKET | $4.99 | ||
| 321268 | 51 | PEDAL SPRING | $3.49 | |||
| 405482 | 52 | UPPER PULLEY | $171.99 | |||
| 400150 | 53 | PULLEY AXLE | $32.49 | |||
| 409512 | 54 | LEG AXLE | $43.99 | |||
| 373903 | 55 | OUTER PEDAL COVER | $2.99 | |||
| 404536 | 56 | CRANK CAP | $29.99 | |||
 | 277016 | 57 | BEARING | $62.49 | ||
| 405452 | 58 | PEDAL LEG BUSHING | $29.99 | |||
| 405481 | 59 | PEDAL LEG SPACER | $26.99 | |||
| 378927 | 60 | RSW,2MTAF/RND,RS,020″ | $22.49 | |||
 | 282277 | 61 | CLAMP | $3.49 | ||
 | 133333 | 62 | CLIP | $0.99 | ||
| 234017 | 63 | KEY | $2.49 | |||
| 405477 | 64 | M8 X 32MM WASHER | $6.49 | |||
| 404856 | 65 | M8 X 30MM WASHER | $3.49 | |||
| 405483 | 66 | PULLEY AXLE SPACER | $6.49 | |||
| 405822 | 67 | BELTS, LT/RT ASSY, NOTE: | $152.49 | |||
| 404482 | 68 | M8 X 16MM SCREW | $13.49 | |||
| 408365 | 69 | EYEBOLT | $26.99 | |||
| 408349 | 70 | ADJUSTMENT BRACKET | $19.99 | |||
| 283894 | 71 | M10 X 45MM SCREW | $9.49 | |||
| 404857 | 72 | M8 X 72MM SCREW | $13.49 | |||
 | 347975 | 73 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 248334 | 74 | M10 X 19MM SCREW | $5.49 | |||
| 408482 | 75 | M10 X 20MM HEX SCREW | $9.49 | |||
| 277730 | 76 | CRANK ARM BOLT | $8.99 | |||
| 375537 | 77 | M6 X 13MM SCREW | $6.49 | |||
 | 275907 | 78 | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
| 249933 | 79 | M6 WASHER | $0.99 | |||
 | 012142 | 80 | M6 NYLON LOCKNUT | $0.99 | ||
| 283304 | 82 | M5 X 7MM SCREW | $3.49 | |||
| 400145 | 83 | PIVOT AXLE | $104.49 | |||
| 273353 | 84 | M4 X 38MM SCREW | $0.99 | |||
 | 251978 | 85 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 413795 | 86 | M10 X 70MM SCREW, NOTE: | $17.99 | |||
| 396757 | 87 | M8 X 12MM HEX SCREW | $2.49 | |||
| 172677 | 88 | M3.5 X 12MM SCREW | $0.99 | |||
 | 186819 | 89 | 1/2″ SCREW | $0.99 | ||
| 404854 | 90 | M8 X 80MM BOLT | $3.49 | |||
| 404845 | 91 | M10 WASHER | $3.49 | |||
| 262341 | 92 | M6 X 12MM SCREW | $3.49 | |||
 | 195562 | 93 | M4 X 16MM SCREW | $1.99 | ||
| 300568 | 94 | M4 X 12MM FLANGE SCREW | $17.99 | |||
 | 224606 | 95 | M4 X 25MM SCREW | $0.99 | ||
 | 337717 | 96A | Power Adapter | $28.99 | ||

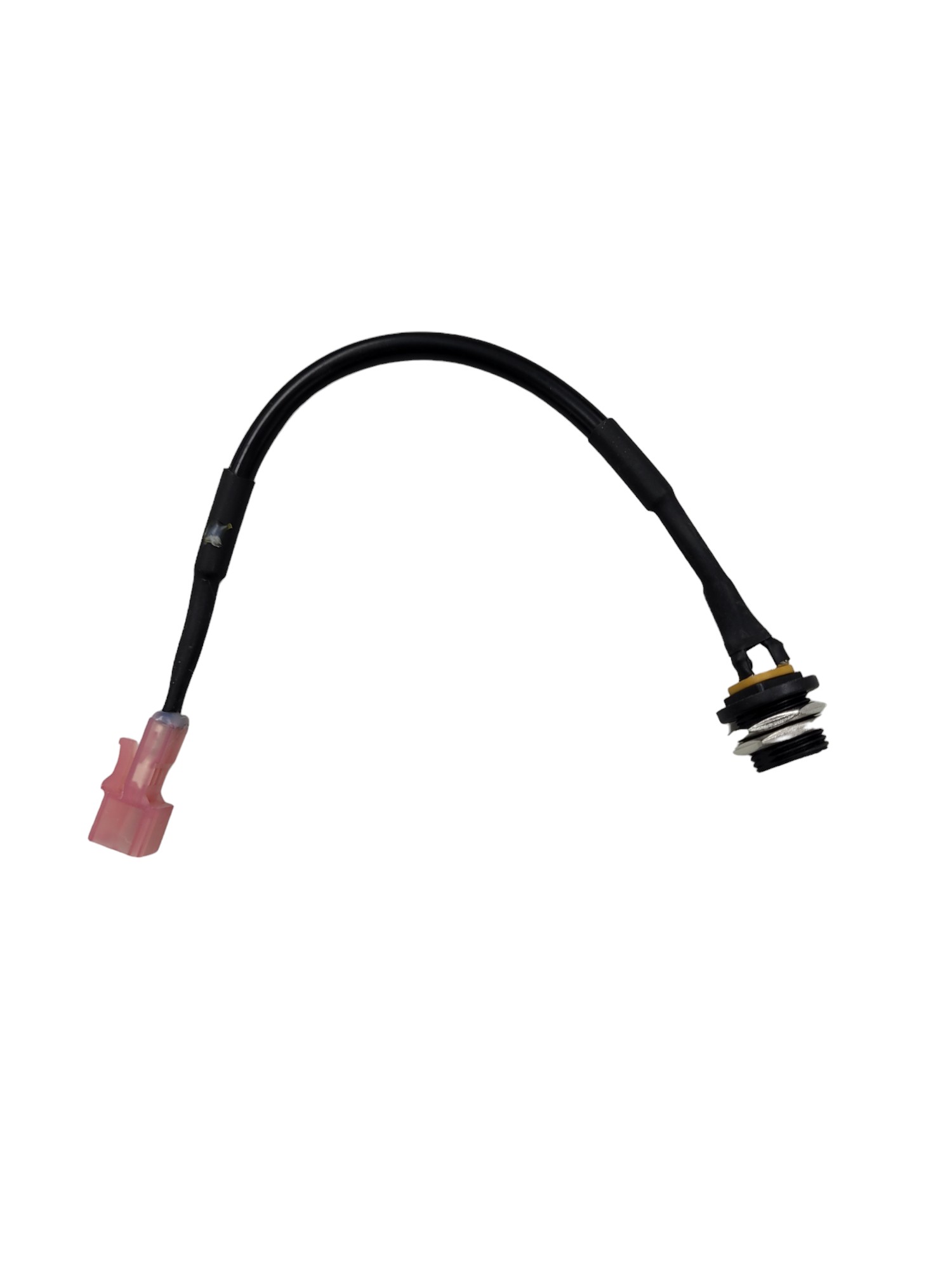

 | 355585 | 96B | POWER WIRE/RECEPTACLE | $25.97 | ||
 | 214003 | 96C | POWER JACK NUT | $5.49 | ||
| 286654 | 97 | M8 x 18mm Patch Hex Screw | $2.99 | |||
| 404376 | 98 | LOWER WIRE | $82.99 | |||
| 410103 | 99 | M4 X 19MM FLANGE SCREW | $3.49 | |||
| 410288 | 100 | M5 X 10MM SCREW | $3.49 | |||
| 399158 | 101 | Pulse Wire | $59.99 | |||
| 405796 | 102 | FOAM GRIP | $60.99 | |||
| 418329 | # | ILITPAC, INCLUDES HWKIT | $259.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 104838 | # | LUBE, GREASE | $8.49 | ||
| 405734 | # | ALIGNMENT TOOL | $29.99 | |||
 | 306510 | # | 5MM ALLEN WRENCH | $6.49 | ||
| 119894 | # | HEX KEY | $2.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 258870 | # | DECAL, GENERAL WARNING | $3.49 | |||
| 414537 | # | HARDWARE KIT, NOTE: | $149.49 |
