PROFORM 440 ES BIKE – PFEX15917.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
128 Parts Available for PROFORM 440 ES BIKE - PFEX15917.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 400958 | 2 | FRONT STABILIZER | $119.99 | |||
| 394716 | 3 | REAR STABILIZER | $82.99 | |||
| 394744 | 4 | UPRIGHT | $74.49 | |||
| 394743 | 5 | CONSOLE | $248.78 | Unavailable to order | ||
| 394718 | 6 | LEFT HANDLEBAR | $49.99 | |||
| 359854 | 7A | LEFT PULSE SENSOR | $86.99 | |||
| 399153 | 7B | LEFT PULSE WIRE | $21.99 | |||
| 359853 | 8A | RIGHT PULSE SENSOR | $86.99 | |||
| 399155 | 8B | RIGHT PULSE WIRE | $40.99 | |||
| 359855 | 9 | ACCESSORY TRAY | $28.49 | |||
| 388175 | 10 | RAIL | $95.49 | |||
 | 394724 | 11 | SEAT CARRIAGE | $60.49 | ||
 | 334783 | 12 | SEAT | $173.99 | ||
| 341320 | 13 | BACKREST W/SUPPORT | $175.99 | |||
| 394733 | 15 | SEAT HANDLE | $74.49 | |||
| 394726 | 16 | SEAT LEVER | $21.99 | |||
| 356952 | 17 | BRAKE BRACKET | $26.49 | |||
| 394729 | 18 | SEAT HANDLEBAR | $39.99 | |||
| 394747 | 19 | UPRIGHT COVER | $62.49 | |||
| 360921 | 20 | UPPER BRACKET COVER | $18.99 | |||
| 394745 | 21 | LEFT SHIELD | $69.49 | |||
| 394746 | 22 | RIGHT SHIELD | $69.99 | |||
| 362978 | 23 | LOCK RING | $23.49 | |||
| 365145 | 24 | SHIELD COVER | $28.49 | |||
| 394748 | 25 | CRANK COVER | $1.99 | |||
 | 320579 | 26 | CAP | $14.49 | ||
| 223890 | 27 | STABILIZER FOOT | $8.99 | |||
| 317078 | 28 | LEVELING FOOT | $27.49 | |||
| 394897 | 29 | RIGHT PEDAL/STRAP | $64.99 | |||
 | 394896 | 30 | LEFT PEDAL/STRAP | $64.99 | ||
| 364303 | 31 | EDDY MECHANISM | $183.99 | |||
| 366151 | 32 | IDLER | $74.49 | |||
 | 193223 | 33 | RESISTANCE MOTOR | $99.99 | ||
 | 321353 | 34 | RESISTANCE CABLE 13.715″L | $49.99 | ||
 | 372087 | 35 | REED SWITCH/WIRE | $23.49 | ||
 | 250961 | 36 | M4 X 19MM SCREW | $0.99 | ||

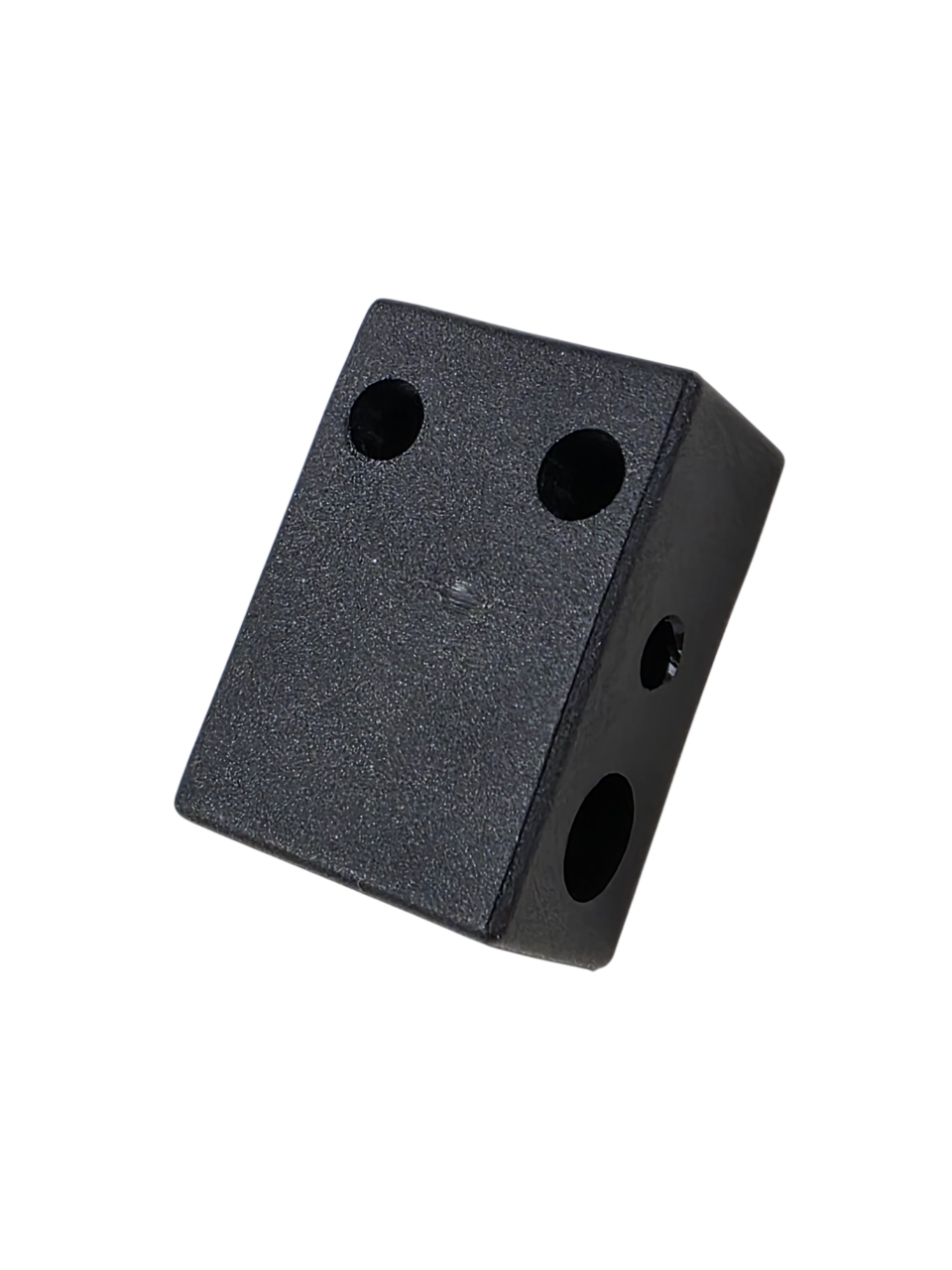

 | 363953 | 37 | REED SWITCH CLAMP/SCREW | $2.49 | ||
 | 139703 | 38 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
 | 113842 | 39 | MAGNET | $1.49 | ||
| 255072 | 40 | PULLEY | $91.99 | |||
| 361144 | 41 | MAIN WIRE | $52.49 | |||
| 286763 | 42 | M6 X 50MM PATCH SCREW | $2.99 | |||
| 360904 | 43 | RIGHT REAR SHIELD | $68.99 | |||
| 256377 | 44 | M10 X 120MM PATCH SCREW | $13.49 | |||
| 361240 | 45 | IDLER SCREW | $5.49 | |||
| 360903 | 46 | LEFT REAR SHIELD | $68.99 | |||
| 249928 | 47 | M8 X 20MM BUTTON BOLT | $1.99 | |||
 | 014030 | 48 | M8 WASHER | $0.99 | ||
| 240451 | 49 | M8 X 50MM BOLT | $0.99 | |||
| 195728 | 50 | M10 FLANGE NUT | $3.49 | |||
| 339121 | 51 | M6 X 30MM SCREW | $2.49 | |||
| 281655 | 52 | 4.2 X 25MM SCREW NOTE: | $1.49 | |||
 | 391253 | 53 | M5 X 21MM SCREW | $0.99 | ||
 | 242966 | 54 | M10 X 55MM SCREW | $11.99 | ||
 | 168267 | 55 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 358960 | 56 | M8 X 38MM SCREW | $5.49 | |||
 | 148803 | 57 | WHEEL | $24.99 | ||
 | 290160 | 58A | POWER RECEPTACLE/WIRE | $35.99 | ||
 | 214003 | 58B | POWER JACK NUT | $5.49 | ||
 | 153283 | 59 | DRIVE BELT | $123.99 | ||
| 248334 | 60 | M10 X 20MM PATCH SCREW | $5.49 | |||
 | 013423 | 61 | M4 X 16MM PHILLIPS SCREW | $0.99 | ||
| 242711 | 62 | M6 X 10MM SCREW | $0.99 | |||
| 350331 | 63 | M4 X 15MM SCREW | $0.99 | |||
| 394731 | 64 | REAR RAIL COVER | $8.49 | |||
| 394730 | 65 | FRONT RAIL COVER | $8.49 | |||
 | 157600 | 66 | FOOT/BUMPER | $1.99 | ||
 | 242710 | 67 | M6 X 18MM IDLER SCREW | $0.99 | ||
 | 014033 | 68 | M6 WASHER | $1.49 | ||
| 360919 | 69 | UPPER ROLLER | $4.49 | |||
| 360918 | 70 | LOWER ROLLER | $1.49 | Unavailable to order | ||
| 361241 | 71 | AXLE | $6.49 | |||
| 394727 | 72 | BRAKE | $25.49 | |||
 | 263595 | 73 | BRAKE | $9.49 | ||
 | 148710 | 74 | M10 LOCKNUT | $2.49 | ||
| 184366 | 75 | M10 X 45MM BTTN HEAD BOLT | $6.49 | |||
 | 014018 | 76 | M6 SPLIT WASHER | $0.99 | ||
| 299905 | 77 | BRAKE SPACER | $0.99 | |||
| 331242 | 78 | GROMMET | $6.49 | |||
| 394723 | 79 | ACCESSORY TRAY BRACKET | $10.99 | |||
| 360920 | 80 | LOWER BRACKET COVER | $14.49 | |||
| 394719 | 81 | RIGHT HANDLEBAR | $49.99 | |||
| 394749 | 82 | CONSOLE BRACKET | $61.49 | |||
| 394751 | 83 | ADJUSTMENT KNOB | $60.49 | |||
| 394750 | 84 | UPRIGHT BRACKET | $50.49 | |||
| 326088 | 87 | SMALL BUSHING | $6.49 | |||
| 326087 | 88 | LARGE BUSHING | $9.49 | |||
| 327243 | 89 | M8 X 15MM SHOULDER SCREW | $0.99 | |||
| 360730 | 90 | RIGHT SEAT HANDGRIP | $27.49 | |||
| 324241 | 91 | PIVOT AXLE | $32.99 | |||
 | 331026 | 92 | M8 X 23MM WASHER | $3.99 | ||
| 360731 | 93 | LEFT SEAT HANDGRIP | $27.49 | |||
 | 191032 | 94 | M8 X 16MM SCREW | $1.99 | ||
| 330796 | 95 | M8 NUT | $3.49 | |||
| 287526 | 96 | M10 X 130MM BOLT | $11.99 | |||
 | 339153 | 97 | CRANK NUT | $0.99 | ||
| 434913 | 99 | RIGHT CRANK ARM | $104.99 | |||
 | 359916 | 100 | LEFT CRANK ARM | $99.99 | ||
| 208938 | 101 | M10 X 60MM BUTTON BOLT | $5.99 | |||
 | 333350 | 102 | M8 LOCKNUT | $1.99 | ||
| 246785 | 103 | M6 X 16MM SCREW | $3.49 | |||
 | 143742 | 104 | SNAP RING | $3.99 | ||
 | 364657 | 105 | CRANK | $52.49 | Unavailable to order | |
| 361242 | 106 | FRAME CAP | $6.49 | |||
 | 337717 | 107 | Power Adapter | $18.99 | ||
 | 014174 | 108 | M8 SPLIT WASHER | $1.99 | ||
| 359866 | 109 | STABILIZER CAP | $9.49 | |||
| 252438 | 110 | M10 X 95MM PATCH SCREW | $19.99 | |||
| 265270 | 111 | M4 X 30MM SCREW | $3.49 | |||
| 342081 | 112 | M6 X 16MM WASHER | $1.99 | |||
 | 012042 | 113 | M8 LOCKNUT | $1.99 | ||
 | 372664 | 114 | TABLET HOLDER | $96.99 | ||
 | 184369 | 115 | M4X16MM TABLET HLDR SCREW | $0.99 | ||
| 240351 | # | CABLE CLAMP | $0.99 | |||
 | 304951 | # | 6MM ALLEN WRENCH | $10.99 | ||
| 330224 | # | DECAL,REWRK,OVERLAY SHEET | $61.49 | |||
| 328496 | # | 5 FRENCH DECALS ON 1SHEET | $87.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 364361 | # | IFIT HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 166909 | # | SITE WARNING DECAL | $2.49 | |||
| 397581 | # | USER’S MANUAL | $23.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
 | 130659 | # | M4 X 19MM SCREW | $0.99 | ||
 | 133333 | # | CLIP NUT | $0.99 | ||
 | 304974 | # | ASSEMBLY TOOL, 4MM HEX | $4.49 | ||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 287205 | # | DECAL, GENERAL WARNING | $22.49 |
