PROFORM 325 CSX BIKE – PFEVEX74916.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
89 Parts Available for PROFORM 325 CSX BIKE - PFEVEX74916.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 318549 | 2 | FRONT STABILIZER | $119.49 | |||
| 355472 | 3 | REAR STABILIZER | $158.49 | |||
| 373628 | 5 | ACCESSORY TRAY | $94.99 | |||
| 328385 | 6 | ADJUSTMENT LEVER | $70.99 | |||
| 375574 | 7 | SEAT CARRIAGE | $176.49 | |||
| 317936 | 8 | BACKREST FRAME | $105.99 | |||
| 355575 | 9 | SEAT FRAME | $168.99 | |||
| 355660 | 10 | SEAT | $180.49 | |||
| 355659 | 11 | BACKREST | $192.99 | |||
| 394495 | 12 | LEFT PEDAL/STRAP | $103.99 | |||
 | 355668 | 13 | RIGHT PEDAL/STRAP | $103.99 | ||
| 373405 | 14 | HANDLEBAR | $187.49 | |||
| 383556 | 15A | CONSOLE | $294.99 | |||
| 383561 | 15B | MAIN WIRE EXTENSION | $50.49 | |||
 | 372664 | 17 | TABLET HOLDER | $96.99 | ||
| 328919 | 18 | M4 X 12MM MACHINE SCREW | $4.99 | |||
 | 317007 | 19 | WHEEL | $27.49 | ||
 | 251978 | 20 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 240819 | 21 | M10 X 80MM SCREW/BOLT | $14.99 | |||
| 355264 | 22 | STABILIZER CAP | $14.99 | |||
| 355557 | 23 | LEVELING FOOT | $24.99 | |||
 | 355564 | 24 | M8 X 15MM SCREW | $2.99 | ||
 | 333350 | 25 | M8 LOCKNUT | $1.99 | ||
| 355501 | 26 | M8 X 63MM BOLT | $11.49 | |||
| 311656 | 27 | M6 X 40MM SCREW | $12.99 | |||
| 249931 | 28A | M8 X 40MM BOLT | $3.49 | |||
| 302928 | 28B | M8 X 40MM SCREW | $3.49 | |||
| 355674 | 29 | HANDGRIP | $79.99 | |||
 | 186477 | 30 | HANDLEBAR CAP | $4.49 | ||
| 355275 | 31 | SEAT FRAME CAP | $2.99 | |||
| 355272 | 32 | BACKREST FRAME CAP | $3.99 | |||
 | 199493 | 33A | M6 X 16MM TPRD BTTN SCREW | $4.62 | ||
 | 208939 | 33B | M6X16MM SEAT ADJ HANDLE | $2.49 | ||
 | 014018 | 34 | M6 SPLIT WASHER | $0.99 | ||
 | 355569 | 35 | M6 WASHER | $0.99 | ||
| 318151 | 36 | BRAKE PLATE | $6.49 | |||
| 373471 | 37 | BRAKE AXLE | $124.49 | |||
 | 263599 | 38 | BRAKE SPACER | $15.49 | ||
 | 373474 | 39 | BRAKE | $44.99 | ||
| 355263 | 40 | LEVER HANDLE | $17.99 | |||
| 355570 | 41 | M8 X 30MM SCREW | $4.99 | |||
| 249928 | 42A | M8 X 20MM BOLT | $1.99 | |||
 | 249930 | 42B | M8 X 20MM SCREW | $2.99 | ||
 | 174801 | 43 | M6 X 13MM SCREW | $0.99 | ||
| 317898 | 44 | UPPER ROLLER | $19.99 | |||
| 355270 | 45 | LOWER ROLLER | $12.99 | |||
| 317905 | 46 | ROLLER AXLE | $19.99 | |||
| 373404 | 47 | CARRIAGE RAIL | $113.99 | |||
| 355267 | 48 | CARRIAGE BUMPER | $1.49 | |||
 | 195562 | 49 | M4 X 16MM SCREW | $1.99 | ||
| 399157 | 50 | PULSE WIRE | $59.99 | |||
 | 121642 | 51 | ROUND SEAT FRAME CAP | $1.49 | ||
| 238294 | 52 | M4 X 16MM GROUND SCREW | $0.99 | |||
 | 355585 | 53 | POWER WIRE/RECEPTACLE | $25.97 | ||
 | 373436 | 54 | PULSE SENSOR | $129.99 | ||
| 353237 | 55 | DISC | $157.99 | |||
 | 213457 | 56 | M4 X 16MM FLANGE SCREW | $1.99 | ||
 | 144335 | 61 | DRIVE BELT | $89.99 | ||
| 355675 | 62B | RESISTANCE CABLE | $26.99 | |||
| 382231 | 62C | M6X15MM SCREW, MECH BKT | $3.99 | |||
| 355661 | 63 | IDLER | $63.99 | |||
 | 281149 | 64 | M10 X 50MM HEX SCREW | $6.49 | ||
| 354710 | 65 | M4X12MM WASHER HEAD SCREW | $0.99 | |||
 | 193223 | 66 | RESISTANCE MOTOR | $99.99 | ||
 | 113842 | 67 | MAGNET | $1.49 | ||
 | 153209 | 68 | CRANK ARM CAP | $3.49 | ||
| 246701 | 69 | 5/16″ FLANGE SCREW | $5.49 | |||
| 206633 | 70 | LEFT CRANK ARM | $87.99 | |||
| 206634 | 71 | RIGHT CRANK ARM | $134.49 | |||
 | 143742 | 72 | SNAP RING | $3.99 | ||

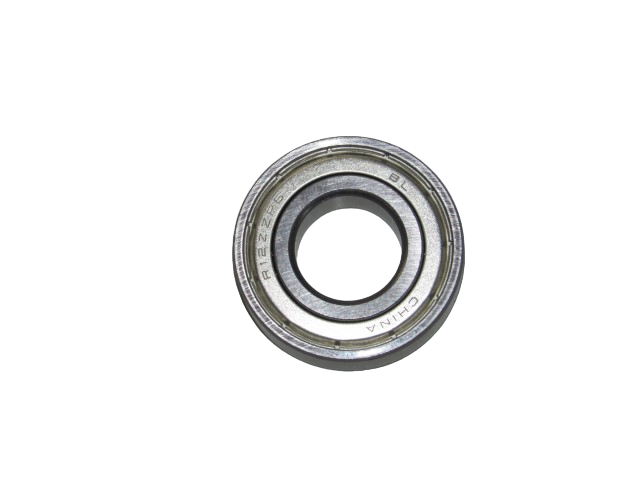

 | 139703 | 73 | BEARING | $33.49 | ||
| 355567 | 74 | CRANK | $105.99 | |||
| 255072 | 75 | PULLEY | $91.99 | |||
 | 014174 | 76 | M8 SPLIT WASHER | $1.99 | ||
| 383560 | 77 | MAIN WIRE | $72.99 | |||
 | 373621 | 78 | REED SWITCH/WIRE | $26.49 | ||
 | 224606 | 79 | M4 X 25MM SCREW | $0.99 | ||
 | 348251 | 80 | POWER ADAPTER DRAWING | $19.99 | ||
 | 131090 | 81 | CLIP | $0.99 | ||
| 297169 | # | DECAL, GENERAL WARNING | $6.49 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 132315 | # | WIRE CLAMP | $3.49 | |||
| 297170 | # | DECAL, GEN WARNING, 9LANG | $42.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
