Proform 325 Csx Bike – PFEX53915.0 / PFEX539150
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
96 Parts Available for Proform 325 Csx Bike - PFEX53915.0 / PFEX539150 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 318549 | 2 | FRONT STABILIZER | $119.49 | |||
| 355472 | 3 | REAR STABILIZER | $158.49 | |||
| 355574 | 4 | UPRIGHT | $107.99 | |||
| 373628 | 5 | ACCESSORY TRAY | $94.99 | |||
| 328385 | 6 | ADJUSTMENT LEVER | $70.99 | |||
| 375574 | 7 | SEAT CARRIAGE | $176.49 | |||
| 317936 | 8 | BACKREST FRAME | $105.99 | |||
| 355575 | 9 | SEAT FRAME | $168.99 | |||
| 355660 | 10 | SEAT | $180.49 | |||
| 355659 | 11 | BACKREST | $192.99 | |||
| 394495 | 12 | LEFT PEDAL/STRAP | $156.99 | |||
 | 355668 | 13 | RIGHT PEDAL/STRAP | $103.99 | ||
| 373405 | 14 | HANDLEBAR | $187.49 | |||
| 383554 | 15A | CONSOLE | $294.99 | |||
| 383561 | 15B | MAIN WIRE EXTENSION | $50.49 | |||
| 373406 | 16 | CVR,CNSL BK,EBONY | $42.49 | |||
 | 372664 | 17 | TABLET HOLDER | $96.99 | ||
| 328919 | 18 | M4 X 12MM MACHINE SCREW | $4.99 | |||
 | 317007 | 19 | WHEEL | $27.49 | ||
 | 251978 | 20 | M10 X 41MM SCREW | $12.99 | ||
| 240819 | 21 | M10 X 80MM PATCH SCREW | $14.99 | |||
| 355264 | 22 | STABILIZER CAP | $14.99 | |||
| 355557 | 23 | LEVELING FOOT | $24.99 | |||
 | 355564 | 24 | M8 X 15MM SCREW | $2.99 | ||
 | 333350 | 25 | M8 LOCKNUT | $1.99 | ||
| 355501 | 26 | M8 X 63MM BOLT | $11.49 | |||
| 311656 | 27 | M6 X 40MM BOLT | $12.99 | |||
| 249931 | 28A | M8 X 40MM PATCH SCREW | $3.49 | |||
| 302928 | 28B | M8 X 40MM BOLT | $3.49 | |||
| 355674 | 29 | HANDGRIP | $79.99 | |||
 | 186477 | 30 | UPPER BODY ENDCAP | $4.49 | ||
| 355275 | 31 | SEAT FRAME CAP | $2.99 | |||
| 355272 | 32 | BACKREST FRAME CAP | $3.99 | |||
 | 199493 | 33A | M6 X 16MM BUTTON SCREW | $4.62 | ||
 | 208939 | 33B | M6 X 16MM BUTTON SCREW | $2.49 | ||
 | 014018 | 34 | M6 SPLIT WASHER | $0.99 | ||

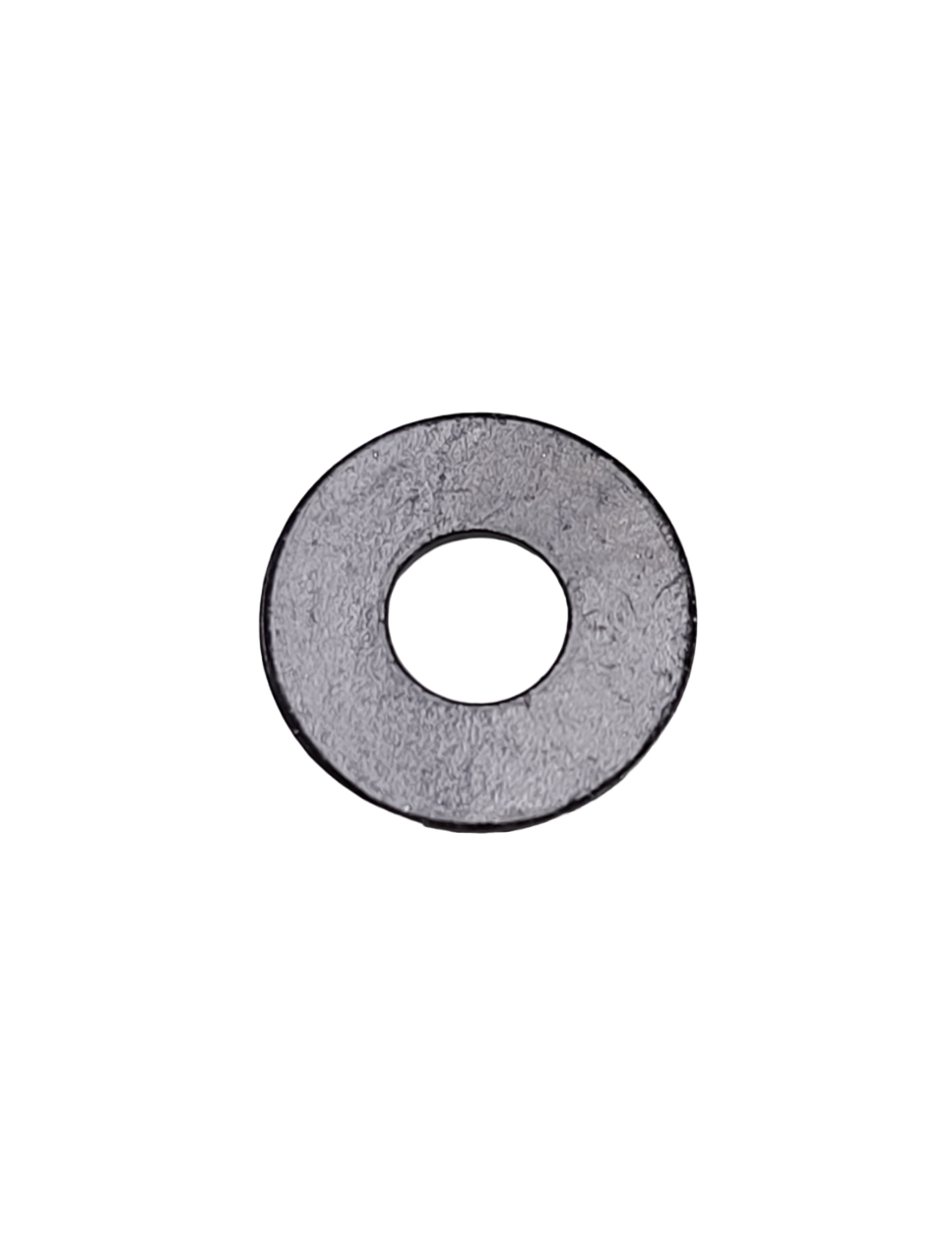

 | 355569 | 35 | M6 WASHER | $0.99 | ||
| 318151 | 36 | BRAKE PLATE | $6.49 | |||
| 373471 | 37 | BRAKE AXLE | $124.49 | |||
 | 263599 | 38 | BRAKE PAD SPACER | $15.49 | ||
 | 373474 | 39 | BRAKE | $44.99 | ||
| 373407 | 40 | HNDL,PUSH ON,.5X1.125″,EBONY | $35.99 | |||
| 355570 | 41 | M8 X 30MM PATCH SCREW | $4.99 | |||
| 249928 | 42A | M8 X 20MM BUTTON BOLT | $1.99 | |||
 | 249930 | 42B | M8 X 20MM SCREW | $2.99 | ||
 | 174801 | 43 | REAR FOOT SCREW | $0.99 | ||
| 317898 | 44 | UPPER ROLLER | $19.99 | |||
| 355270 | 45 | LOWER ROLLER | $12.99 | |||
| 317905 | 46 | ROLLER AXLE | $19.99 | |||
| 373404 | 47 | CARRIAGE RAIL | $113.99 | |||
| 355267 | 48 | CARRIAGE BUMPER | $1.49 | |||
 | 195562 | 49 | M4 X 16MM SCREW | $1.99 | ||
| 399157 | 50 | PULSE WIRE | $68.99 | |||
 | 121642 | 51 | HANDLEBAR CAP | $1.49 | ||
 | 355585 | 53A | POWER WIRE/RECEPTACLE | $38.99 | ||
| 238294 | 53B | M4 X 16MM GROUND SCREW | $0.99 | |||

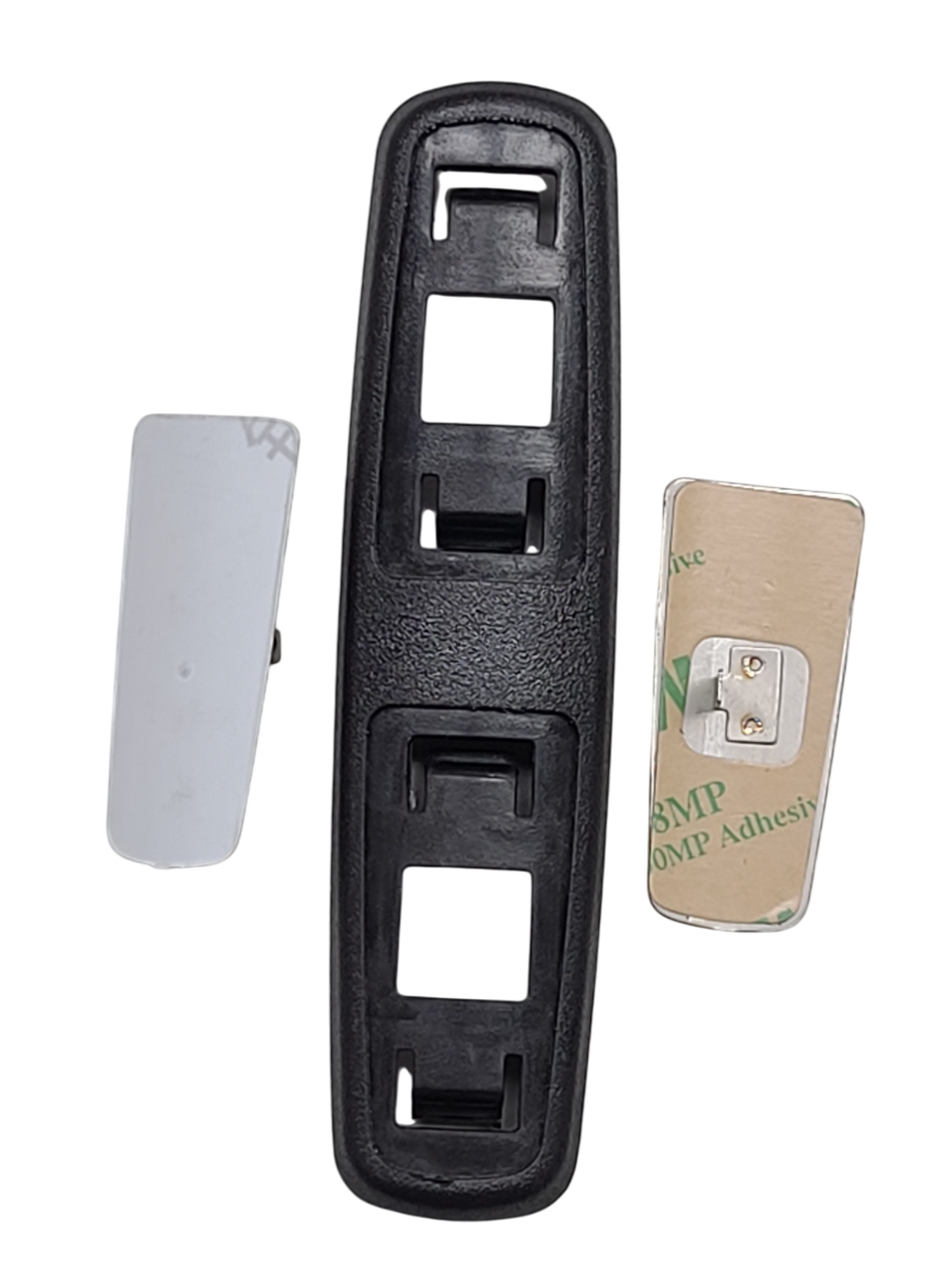

 | 373436 | 54 | PULSE SENSOR | $129.99 | ||
| 353237 | 55 | DISC | $157.99 | |||
 | 213457 | 56 | M4 X 12MM SCREW | $1.99 | ||
| 373412 | 57 | LEFT FRONT SHIELD | $177.99 | |||
| 373411 | 58 | RIGHT FRONT SHIELD | $177.99 | |||
| 373414 | 59 | LEFT REAR SHIELD | $161.49 | |||
| 373413 | 60 | RIGHT REAR SHIELD | $161.49 | |||
 | 144335 | 61 | BELT | $59.99 | ||
| 370274 | 62A | EDDY MECHANISM | $272.99 | |||
| 355675 | 62B | RESISTANCE CABLE | $26.99 | |||
| 355661 | 63 | IDLER | $63.99 | |||
 | 281149 | 64 | M10 X 50MM HEX SCREW | $6.49 | ||
| 354710 | 65 | M4 X 12MM ROUND HEAD SCRW | $0.99 | |||
 | 193223 | 66 | RESISTANCE MOTOR | $99.99 | ||
 | 113842 | 67 | MAGNET | $1.49 | ||
 | 153209 | 68 | CRANK ARM CAP | $8.99 | ||
| 246701 | 69 | 5/16″ FLANGE SCREW | $5.49 | |||
| 206633 | 70 | LEFT CRANK ARM | $87.99 | Unavailable to order | ||
| 206634 | 71 | RIGHT CRANK ARM | $134.49 | |||
 | 143742 | 72 | SNAP RING | $3.99 | ||
 | 139703 | 73 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
| 355567 | 74 | CRANK | $105.99 | |||
| 255072 | 75 | PULLEY | $91.99 | |||
 | 014174 | 76 | M8 SPLIT WASHER | $1.99 | ||
| 383560 | 77 | MAIN WIRE | $72.99 | |||
 | 373621 | 78 | REED SWITCH/WIRE | $26.49 | ||
 | 224606 | 79 | M4 X 25MM SCREW | $0.99 | ||
 | 337717 | 80 | Power Adapter | $18.99 | ||
 | 131090 | 81 | CLAMP | $0.99 | ||
| 166909 | # | SITE WARNING DECAL | $2.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 297256 | # | ASSEMBLY TOOL, 6MM HEX | $13.49 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 266082 | # | DECAL, GENERAL WARNING | $4.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 373409 | # | USER’S MANUAL | $23.99 |
