NORDICTRACK X24 BIKE – NTEX02425.0
164 Parts Available for NORDICTRACK X24 BIKE - NTEX02425.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 432505 | 3 | POWER SWITCH | $31.99 | ||
| 432228 | 4 | SHOE PIN | $6.49 | |||
 | 390986 | 5 | M6 SHOULDER SCREW | $6.49 | ||
| 405254 | 6 | INNER LEG SLEEVE | $21.49 | |||
| 433121 | 7 | HANDLEBAR POST | $130.49 | |||
| 1000245 | 8 | CONSOLE SUPPORT | $125.49 | |||
| 390125 | 9 | M8-1.25X32.04 Shoulder Screw | $9.49 | |||
| 455156 | 10 | CONSOLE (XENON) | $1104.99 | |||
| 234366 | 12 | M4 X 8MM MACHINE SCREW | $1.49 | |||
| 433120 | 13 | SADDLE POST | $206.99 | |||
| 432507 | 14 | HAND WEIGHT | $191.49 | |||
 | 405291 | 16 | PULLEY | $92.49 | ||
 | 234235 | 17A | M4.2 X 16MM SCREW | $0.99 | ||
 | 195562 | 17B | M4 X 16MM SCREW | $1.99 | ||
| 279001 | 18 | M10 X 20MM FLAT HEAD BOLT | $3.49 | |||
| 433123 | 19B | RIGHT PEDAL | $145.99 | |||
| 1000183 | 20 | PIVOT AXLE | $33.49 | |||
| 433122 | 21B | LEFT PEDAL | $145.99 | |||
| 393525 | 23 | HANDLEBAR CAP | $3.49 | |||
| 1000184 | 24 | PIVOT BUSHING | $19.99 | |||
 | 393033 | 25 | DRIVE BELT | $44.99 | ||
| 407731 | 26 | ADJUSTMENT ASSEMBLY | $40.99 | |||
 | 148710 | 27 | M10 NUT | $2.49 | ||
| 405174 | 28 | POST CLAMP | $60.99 | |||
| 405280 | 29 | RIGHT BASE COVER | $26.99 | |||
| 405284 | 31 | SHIELD COVER | $10.99 | |||
| 432230 | 33 | RIGHT DISC | $46.49 | |||
| 405243 | 34A | RIGHT INCLINE MOTOR COVER | $31.99 | |||
| 405245 | 34B | INCLINE MOTOR SLEEVE, RT | $17.99 | |||
| 405242 | 35A | LEFT INCLINE MOTOR COVER | $31.99 | |||
| 405244 | 35B | INCLINE MOTOR SLEEVE, LT | $17.99 | |||
| 433105 | 36 | UPPER INCLINE MOTOR COVER | $22.49 | |||
| 432232 | 37 | LEFT DISC | $69.99 | |||
| 431897 | 38 | HAND WEIGHT TRAY | $64.99 | |||
| 432026 | 39 | HANDLEBAR POST CAP | $3.49 | |||
| 408221 | 40 | ACCESSORY TRAY | $41.49 | |||
| 412541 | 41 | M8 SADDLE SCREW | $3.99 | |||
| 444208 | 42 | INNER CLAMP | $3.49 | |||
| 405260 | 43 | CARRIAGE CAP | $6.49 | |||
| 399651 | 44 | WIRE PROTECTOR | $2.49 | |||
| 405247 | 45 | RIGHT SADDLE POST SLEEVE | $26.99 | |||
| 405246 | 46 | LEFT SADDLE POST SLEEVE | $26.99 | |||
| 1000270 | 47 | RT HANDLEBAR POST SLEEVE | $14.99 | |||
| 1000271 | 48 | LT HANDLEBAR POST SLEEVE | $14.99 | |||
 | 219825 | 49 | WHEEL | $24.99 | ||
 | 391402 | 50 | LINK ARM | $16.99 | ||
 | 241954 | 51 | RSISTANCE MOTOR DISK | $1.99 | ||
| 452650 | 54 | SADDLE | $81.49 | |||
| 132315 | 55 | CABLE TIE | $3.49 | |||

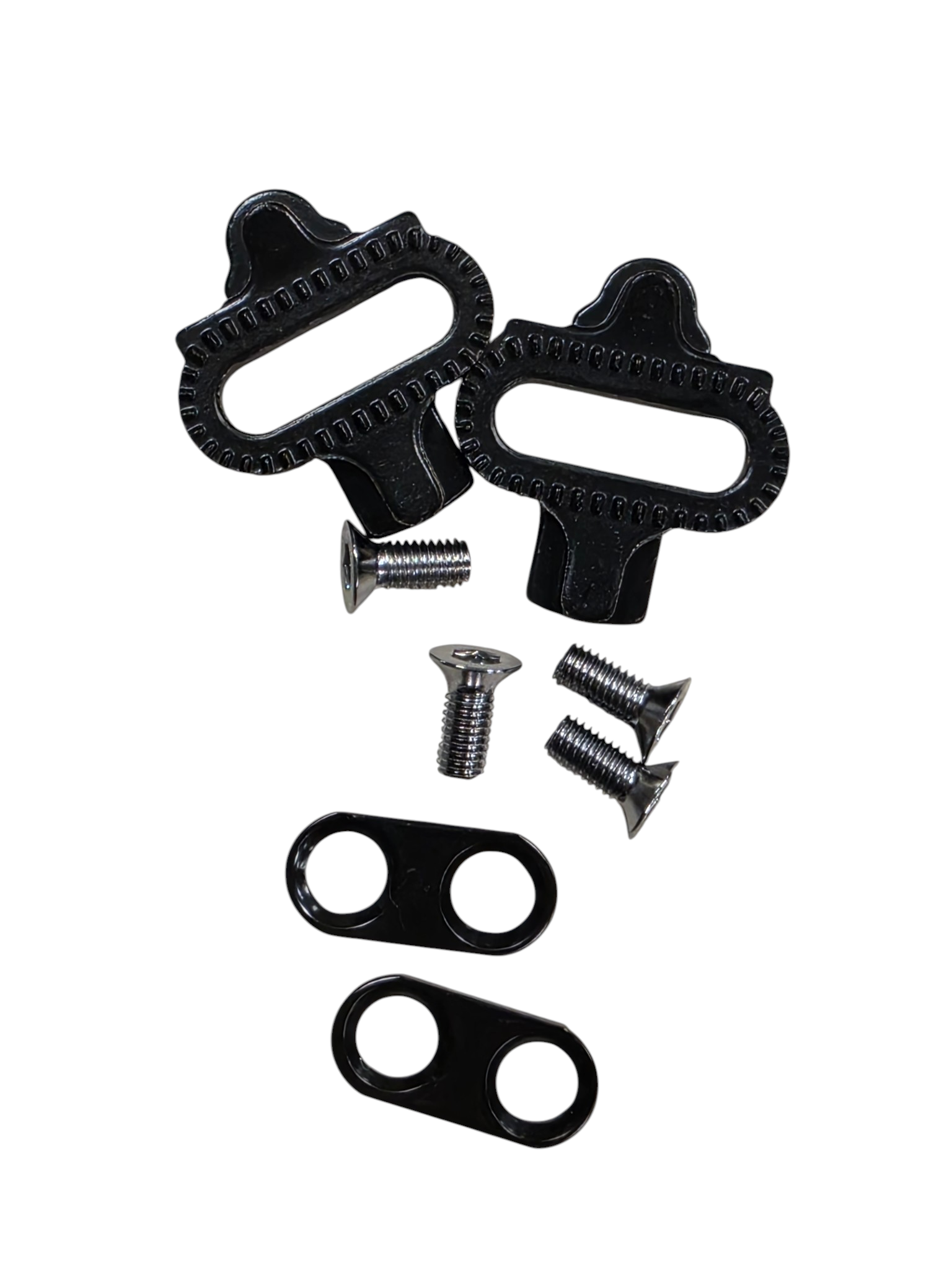

| 432967 | 56 | Speed CLEAT ASSEMBLY (One Side) | $74.49 | |||
| 379071 | 57A | M4 X 10MM SCREW, NOTE: | $3.49 | |||
 | 213457 | 57D | M4 X 12MM SCREW | $1.99 | ||
 | 013576 | 57E | #8 X 1/2″ SCREW | $0.99 | ||
| 433107 | 59A | LOWER LEG, LEFT | $42.99 | |||
| 433108 | 59B | LOWER LEG, RIGHT | $42.99 | |||
| 144528 | 60 | #8 X 3/8″ SCREW | $0.99 | |||
 | 223089 | 61 | LINKARM WHEEL BKT SCRW | $6.99 | ||
| 409335 | 62 | OUTER LEG SLEEVE | $21.49 | |||
 | 390160 | 63 | FRAME BEARING | $125.99 | ||
| 438324 | 64A | LEG COVER, RIGHT | $10.99 | |||
| 438326 | 64B | LEG COVER, LEFT | $10.99 | |||
| 392827 | 66 | LARGE LEG BUSHING | $24.99 | |||
| 433119 | 67 | CARRIAGE | $139.99 | |||
| 390117 | 68 | LEG SPACER | $24.99 | |||
| 408346 | 69 | SMALL LEG BUSHING | $10.99 | |||
| 405263 | 70 | RIGHT GRIP | $14.99 | |||
| 405262 | 71 | LEFT GRIP | $14.99 | |||
| 392533 | 72 | RIGHT CONTROL | $68.49 | |||
| 392534 | 73 | LEFT CONTROL | $68.49 | |||
| 408514 | 74 | SHAFT COVER | $54.99 | |||
| 405250 | 75 | SHAFT COVER SLEEVE | $21.49 | |||
| 1000182 | 76 | STABILIZER CAP | $4.99 | |||
 | 306282 | 77 | FOOT | $4.99 | ||
 | 430157 | 79 | CONTROLLER | $134.99 | ||
| 1000296 | 80 | CONTROLLER COVER | $24.99 | |||
| CC1661 | 81 | M3 X 6MM MACHINE SCREW | $1.49 | |||
 | 411461 | 82 | RESISTANCE MOTOR | $89.99 | ||
| 412998 | 84 | M12 X 25MM CAP SCREW | $4.99 | |||
| 405256 | 85 | POST KNOB CAP | $1.99 | |||
 | 133333 | 86 | HOOD CLIP | $0.99 | ||
| 412109 | 87 | INCLINE MOTOR BUSHING | $2.49 | |||
| 390124 | 88 | AXLE,.472X1.789″,THRD,INT,TZP | $9.49 | |||
| 426554 | 89A | INCLINE MOTOR | $359.99 | |||
| 441625 | 89B | INCLINE MOTOR SENSOR KIT | $26.49 | |||
| 391409 | 90 | BKT,MAG,ASSY,W/MAGS | $143.49 | |||
| 433112 | 91 | RIGHT MAGNET BKT COVER | $127.99 | |||
| 433111 | 92 | LEFT MAGNET BKT COVER | $127.99 | |||
| 396528 | 93 | M8 X 12MM PATCH SCREW | $10.99 | |||
| 195561 | 94 | M10 X 55MM BOLT | $11.49 | |||
| 431929 | 95 | O-RING | $1.99 | |||
| 348908 | 96 | M6 X 15MM SCREW | $2.49 | |||
| 392660 | 98 | M8 X 50MM BOLT | $3.49 | |||
 | 333350 | 99 | M8 LOCKNUT | $1.99 | ||
| 438505 | 100 | POST KNOB | $26.49 | |||
| 408204 | 101 | CARRIAGE KNOB | $17.99 | |||
| 246785 | 102 | M6 X 15MM SCREW | $3.49 | |||
 | 239031 | 103 | M4 X 10MM SCREW | $1.49 | ||
| 432229 | 104 | ROLLER | $6.49 | |||
| 441080 | 105 | M10 WASHER | $2.99 | |||
| 431895 | 106 | TRAY COVER | $48.49 | |||
| 185162 | 107 | M4 X 14MM SCREW | $1.49 | |||
| 456236 | 108 | M6 WASHER | $1.99 | |||
| 453150 | 109 | FRONT BRACKET MOUNT | $98.99 | |||
| 450977 | 111 | METAL SPACER | $39.49 | |||
| 450978 | 112 | PLASTIC SPACER | $6.49 | |||
 | 431889 | 113 | SMALL SADDLE BRACKET | $47.49 | ||
| 432058 | 114 | SADDLE BRACKET COVER | $66.99 | |||
 | 411083 | 115 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 116 | CLAMP | $3.49 | ||
| 405279 | 117 | LEFT BASE COVER | $26.99 | |||
 | 418190 | 119 | POWER ADAPTER | $54.99 | ||
| 405265 | 121 | UPPER BRAKE BUSHING | $3.49 | |||
| 453258 | 122 | LOWER WIRE | $65.49 | |||
| 453259 | 123 | UPPER WIRE | $68.99 | |||
| 453261 | 124 | EXTENSION WIRE | $44.99 | |||
| 453260 | 125 | CONTROL WIRE | $26.49 | |||
| 368570 | 126 | M8 X 12MM SCREW | $0.99 | |||
 | 223812 | 127 | M8 WASHER | $1.99 | ||
 | 150327 | 128 | M5 NUT | $1.99 | ||
| 404736 | 129 | M5 X 8MM SCREW | $3.49 | |||
| 276024 | 130 | M3.5 X 12MM, NOTE: | $1.49 | |||
 | 433548 | 131 | ADJUSTMENT BLOCK | $2.99 | ||
| 342203 | 132 | M4 X 12MM MACHINE BOLT | $0.99 | |||
 | 373258 | 133 | M10 X 20MM HEX SCREW | $5.49 | ||
| 450973 | 134 | LARGE PLASTIC WASHER | $0.99 | |||
| 398550 | 136 | SHOE PIN | $9.49 | |||
 | 113842 | 137 | MAGNET | $1.49 | ||
| 368545 | 138 | M6 X 15MM SCREW | $0.99 | |||
| 453798 | 139 | LARGE THRUST WASHER | $1.99 | |||
| 433113 | 140 | BRAKE KNOB CAP | $2.99 | |||
 | 012142 | 141 | M6 LOCKNUT | $0.99 | ||
| 432215 | 142 | LOWER BRAKE KNOB | $10.99 | |||
| 405264 | 143 | LOWER BRAKE BUSHING | $3.49 | |||
| 398666 | 144 | SPRING STOP | $3.49 | |||
| 398554 | 145 | Compression Spring 2.5X.6X.059″ TZP | $6.49 | |||
| 398734 | 146 | M4 X 6MM SCREW | $0.99 | |||
| 405232 | 147 | BRAKE SHAFT | $31.49 | |||
| 398669 | 148 | ROLL PIN | $0.99 | |||
| 348640 | 149 | E-RING | $0.99 | |||
| 426496 | 151 | UPPER LEG AXLE | $63.99 | |||
| 453797 | 152 | M30 NUT | $34.49 | |||
 | 453158 | 153 | MOUNT COVER | $3.99 | ||
 | 453819 | 155 | UPPER DISPLAY COVER | $14.49 | ||
| 432335 | 156A | CROWN FASTENER | $1.99 | |||
 | 233523 | 157 | M6 X 15MM SCREW | $3.49 | ||
| 444209 | 158 | OUTER CLAMP | $3.49 | |||
| 444123 | 159 | M6 X 25MM SCREW | $14.49 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 450416 | # | PHILLIPS SCREW DRIVER | $76.99 | |||
| 450417 | # | 16MM COMBO WRENCH | $64.99 | |||
| 450574 | # | 5MM ALLEN WRENCH, T-HNDL | $64.99 | |||
| 450986 | # | M34 OPEN END WRENCH | $47.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 414806 | # | M4 SET SCREW | $1.99 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
| 455344 | # | WIRE PULL HOOK | $6.49 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 432834 | # | 5MM ALLEN WRENCH | $14.49 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 450573 | # | 4MM ALLEN WRENCH, T-HNDL | $28.49 | |||
| 411121 | TS7 | 20″ WIRE HARNESS | $22.99 |
