NORDICTRACK E 9.5 Z ELLIPTICAL – NTEL89820.7
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
49 Parts Available for NORDICTRACK E 9.5 Z ELLIPTICAL - NTEL89820.7 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 393285 | 2 | REAR STABILIZER | $148.99 | |||
 | 393826 | 3 | ACCESS COVER | $59.49 | ||
| 438667 | 4 | UPRIGHT | $322.49 | |||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 347381 | 6 | FRONT STABILIZER | $192.49 | |||
| 438666 | 7 | CONSOLE | $358.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 406048 | 9 | CRANK BEARING SLEEVE | $29.99 | ||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 349845 | 11 | INCLINE MOTOR | $165.99 | |||
| 397058 | 12 | INCLINE MOTOR ARM | $119.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
| 349894 | 14 | RAMP ARM SPACER | $8.99 | |||
| 422087 | 15 | REAR STABILIZER COVER | $97.49 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
 | 428353 | 18 | CRANK | $149.49 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 428356 | 20 | CRANK ARM | $192.49 | |||
 | 299478 | 21 | HANDGRIP | $57.49 | ||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | BUMPER | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 275907 | 26 | M10 LOCKNUT, CRANK | $4.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
 | 413564 | 28C | EDDY MECHANISM SCREW | $4.99 | ||

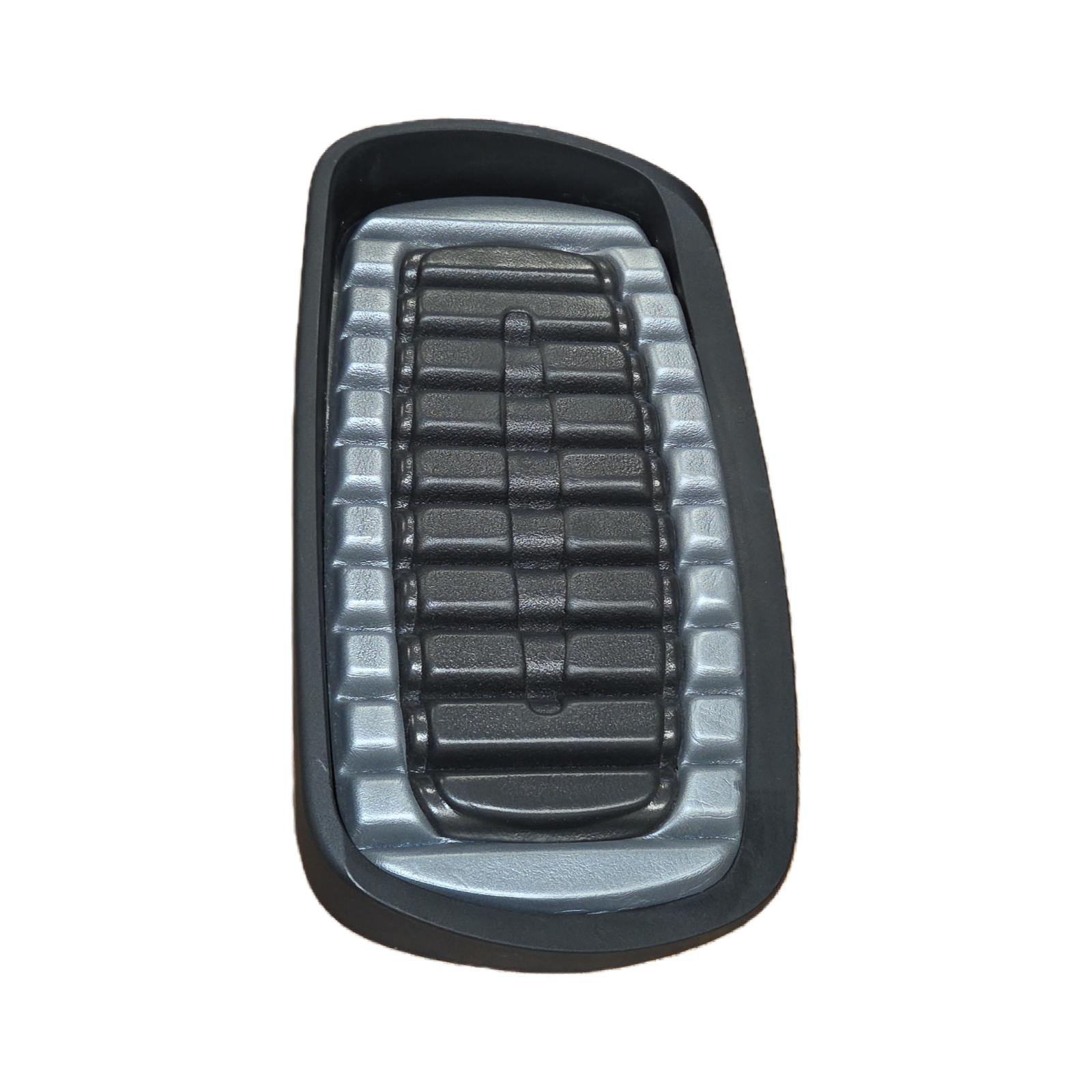

 | 393278 | 29 | RIGHT PEDAL | $114.95 | ||
 | 348200 | 30 | STABILIZER CAP | $24.99 | ||
| 250420 | 31 | M10 X 20MM SCREW | $2.99 | |||
 | 416364 | 32 | ROLLER ARM BEARING SLEEVE | $16.99 | ||
 | 237631 | 33 | LARGE LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
 | 133333 | 35 | CLIP NUT | $0.99 | ||
 | 014033 | 36 | IDLER WASHER | $1.49 | ||
 | 393306 | 37 | ACCESSORY TRAY | $129.99 | ||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | REED SWITCH CLAMP | $3.49 | ||
 | 277016 | 40 | FRAME BEARING | $62.49 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 442339 | 44 | LEFT PEDAL ARM | $298.49 | |||
| 380033 | 45 | LEFT ROLLER ARM | $285.99 | |||
| 420241 | 46 | LEFT UPPER BODY LEG | $171.99 | |||
| 393290 | 47 | LEFT UPPER BODY ARM | $108.49 | |||
 | 313668 | 48 | STRAIN-RELIEF BUSHING | $9.49 | ||
| 393280 | 49 | LEFT PEDAL | $144.49 | |||
| 367635 | 50 | M4 X 12MM SELF-TAP SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 337966 | 53 | ROLLER ARM COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 442307 | 56 | ROLLER ARM BUSHING | $63.99 | |||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 442342 | 58 | RIGHT PEDAL ARM | $298.49 | |||
| 380020 | 59 | RIGHT ROLLER ARM | $176.49 | |||
| 419468 | 60 | RIGHT UPPER BODY LEG | $194.99 | |||
| 393291 | 61 | RIGHT UPPER BODY ARM | $108.49 | |||
| 299643 | 63 | HANDLEBAR GRIP | $57.49 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 393304 | 65 | RIGHT ARM FRONT COVER | $64.99 | |||
| 393305 | 66 | RIGHT ARM REAR COVER | $47.99 | |||
| 393302 | 67 | LEFT ARM FRONT COVER | $64.99 | |||
| 393303 | 68 | LEFT ARM REAR COVER | $47.99 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||
 | 420239 | 70 | LEFT LEG OUTER COVER | $107.49 | ||
| 393297 | 71 | DISC | $139.49 | |||
 | 420240 | 72 | LEFT LEG INNER COVER | $93.99 | ||
| 403251 | 73 | LEFT SHIELD | $140.49 | |||
| 403252 | 74 | RIGHT SHIELD | $140.49 | |||
| 403263 | 75 | CENTER SHIELD COVER | $111.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 428362 | 77 | CRANK COVER | $21.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 383085 | 79 | FRONT CONSOLE COVER | $54.49 | |||
| 394579 | 80 | REAR CONSOLE COVER | $66.99 | |||
 | 393307 | 81 | LOWER TRAY COVER | $54.49 | ||
 | 191032 | 82A | M8 X 13MM SCREW, PULLEY | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | M4 X 12MM GROUND SCREW | $0.99 | |||
| 331242 | 85 | RECTANGLE GROMMET | $6.49 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | IDLER SCREW | $1.99 | ||
 | 353545 | 90 | M6 X 19MM WASHER | $3.49 | ||
| 397183 | 91 | DRIVE BELT ADJ SCREW | $51.99 | |||
 | 227701 | 92 | M10 X 25MM SCREW | $2.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 351856 | 94 | MOTOR ARM SPACER | $1.99 | |||
 | 206321 | 95 | M8 X 19MM SCREW, NOTE | $3.49 | ||
| 013226 | 96 | M8 X 45MM BOLT | $5.99 | |||
 | 223812 | 97 | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 428358 | 99 | INNER ARM BEARING | $64.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4X16MM SCREW, CRANK AXLE | $3.49 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
| 347127 | 104 | M10 X 114MM SCREW | $21.49 | |||
| 441909 | 105 | M4 X 25MM SCREW,NOTE: | $0.99 | |||
| 393300 | 106 | LOWER RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 X 13MM SCREW | $5.99 | ||
 | 208583 | 109 | M10 X 58MM BOLT | $5.99 | ||
| 416413 | 110 | UPPER WIRE | $104.49 | |||
| 324737 | 111 | 20″ WIRE HRNS, RESIST MTR | $30.49 | |||
| 378126 | 112 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
| 392990 | 113 | DRIVE BELT | $90.99 | |||
 | 316981 | 114 | CONTROLLER W/STANDOFFS | $124.99 | ||
 | 125819 | 115 | STANDOFF | $3.99 | ||
| 403264 | 116 | DISC RING | $109.49 | |||
| 393829 | 117 | FRONT SHIELD COVER | $66.99 | |||
| 394571 | 118 | REAR SHIELD COVER | $98.99 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
 | 384942 | 120 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 287322 | 121A | M8 X 16MM WASHER | $10.99 | ||
 | 397523 | 121B | PLASTIC FRAME BUSHING | $26.49 | ||
| 350182 | 122 | M10 X 48MM BOLT | $9.49 | |||
| 428360 | 123 | OUTER ARM BEARING | $64.99 | |||
 | 184369 | 124 | M4 X 16MM MACHINE SCREW | $0.99 | ||
| 273353 | 126 | M4 X 38MM SCREW,NOTE | $0.99 | |||
| 393298 | 127 | DISC BRACKET | $44.49 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 X 22MM WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
 | 372664 | 132 | TABLET HOLDER | $96.99 | Unavailable to order | |
 | 340140 | 135 | M6 X 26MM WASHER | $1.49 | ||
| 130286 | 136 | M8 FLAT WASHER | $11.49 | |||
| 437942 | # | DECAL, GENERAL WARNING | $10.99 | |||
| 341182 | # | AUDIO CORD | $11.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 132315 | # | ZIP TIE | $3.49 | |||
| 451182 | # | LITPAC, NOTE: | $171.49 | |||
| 394546 | # | HARDWARE KIT NOTE: | $140.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 148382 | TS4 | 20″ WHITE WIRE,M/F | $6.99 | |||
| 203981 | TS5 | 018″ BLUE WIRE | $40.49 | |||
| 178060 | TS6 | 14″ GREEN WIRE | $4.99 | |||
| 351172 | TS7 | 20″ CNCTLR/LIFT MTR WIRE | $50.99 |
