NORDICTRACK COMM.S22I STUDIO CYCLE BIKE – NTEX02117NB.3
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
96 Parts Available for NORDICTRACK COMM.S22I STUDIO CYCLE BIKE - NTEX02117NB.3 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 391383 | 2 | BASE | $182.49 | |||
| 391404 | 3 | FRONT STABILIZER | $115.49 | |||
| 391406 | 4 | REAR STABILIZER | $97.99 | |||
 | 390986 | 5 | M6 SHOULDER SCREW | $6.49 | ||
| 391389 | 6 | PIVOT CLAMP | $60.99 | |||
| 393594 | 7 | TUBE,HB ADJ SLIDE,ARPS,W/DECAL | $142.99 | |||
| 393676 | 8 | CONSOLE SUPPORT | $108.99 | |||
| 390125 | 9 | M8-1.25X32.04 Shoulder Screw | $9.49 | |||
| 430154 | 10A | CONSOLE,NO FAN (RESET) | $823.49 | |||
| 408510 | 10B | CNSL RE-PROG THUMBDRIVE | $106.99 | |||
| 425520 | 10C | CONSOLE FAN ASSY ONLY | $180.99 | |||
 | 239031 | 10D | M4 X 10MM SCREW | $1.49 | ||
| 404032 | 10E | DECAL,NORDICTRACK CONSOLE | $20.99 | |||
| 391412 | 11 | CONSOLE BRACKET | $68.49 | |||
| 225358 | 12 | M4 X 10MM SELF-TAP SCREW | $1.99 | |||
| 393593 | 13 | TUBE,SEAT POST,ARPS,W/DECAL | $195.99 | |||
| 424950 | 14 | HAND WEIGHT | $175.49 | |||
 | 390707 | 15 | M6 CRANK SCREW | $6.49 | ||
 | 391468 | 16 | PULLEY | $110.49 | ||
 | 265598 | 17 | M4 X 14MM SCREW, WT TRAY | $0.99 | ||
| 279001 | 18 | M10 X 20MM FLAT HEAD SCRW | $3.99 | |||
| 438705 | 19 | CRANK/RIGHT CRANK ARM | $213.99 | Unavailable to order | ||
| 390108 | 20 | PIVOT AXLE | $40.99 | |||
| 438687 | 21 | LEFT CRANK ARM | $174.99 | |||
| 405102 | 22 | Flywheel Assembly | $461.99 | |||
| 393525 | 23 | HANDLEBAR CAP | $3.49 | |||
| 390116 | 24 | PIVOT BUSHING | $24.99 | |||
 | 393033 | 25 | DRIVE BELT | $44.99 | ||
| 407731 | 26 | ADJUSTMENT ASSEMBLY | $40.99 | |||
 | 148710 | 27 | M10 LOCKNUT | $2.49 | ||
| 392921 | 28 | POST CLAMP | $97.99 | |||
| 392714 | 29 | RIGHT BASE COVER | $29.99 | |||
| 393583 | 30 | RIGHT SHIELD | $119.99 | |||
| 392715 | 31 | SHIELD COVER | $19.99 | |||
| 393582 | 32 | LEFT SHIELD | $87.49 | |||
| 392720 | 33 | RIGHT DISC | $24.99 | |||
| 392711 | 34 | RIGHT INCLINE MOTOR COVER | $43.99 | |||
| 392710 | 35 | LEFT INCLINE MOTOR COVER | $43.99 | |||
| 393595 | 36 | UPPER INCLINE MOTOR COVER | $24.99 | |||
| 392719 | 37 | LEFT DISC | $40.99 | |||
| 405268 | 38 | HAND WEIGHT TRAY | $39.99 | |||
| 392820 | 39 | HANDLEBAR POST CAP | $3.49 | |||
| 403489 | 40 | ACCESSORY TRAY | $60.99 | |||
 | 392992 | 41 | M8 SADDLE SCREW | $3.49 | ||
| 404942 | 42 | SADDLE NUT | $9.49 | |||
| 333510 | 43 | CARRIAGE COVER | $8.49 | |||
| 399650 | 44 | ONE-WIRE GROMMET | $2.49 | |||
| 402996 | 45 | RIGHT SADDLE POST SLEEVE | $19.99 | |||
| 402997 | 46 | LEFT SADDLE POST SLEEVE | $19.99 | |||
| 392817 | 47 | RT HANDLEBAR POST SLEEVE | $24.99 | |||
| 392818 | 48 | LT HANDLEBAR POST SLEEVE | $24.99 | |||
 | 219825 | 49 | FRONT WHEEL | $24.99 | ||
 | 391402 | 50 | LINK ARM | $16.99 | ||
 | 241954 | 51 | RESISTANCE DISC | $1.99 | ||
| 404940 | 52 | LOWER SADDLE CLAMP | $54.49 | |||
| 404938 | 53 | UPPER SADDLE CLAMP | $54.49 | |||
| 393418 | 54 | SEAT,SADDLE,BLK | $79.99 | |||
| 132315 | 55 | WIRE TIE | $3.49 | |||
 | 393597 | 56A | LEFT PEDAL | $135.99 | ||
 | 393598 | 56B | RIGHT PEDAL | $135.99 | ||
| 379071 | 57 | M4 X 10MM BLUNT SCREW | $3.49 | |||
| 393586 | 58A | LEFT UPPER LEG | $65.49 | |||
| 393587 | 58B | RIGHT UPPER LEG | $65.49 | |||
| 403027 | 59A | LEFT LOWER LEG | $54.49 | |||
| 403028 | 59B | RIGHT LOWER LEG | $54.49 | |||
| 400231 | 60 | M4 X 8MM SCREW, NOTE: | $0.99 | |||
| 368057 | 61 | M8 X 20MM WASHER | $0.99 | |||
| 402934 | 62 | LEG SLEEVE | $16.99 | |||
 | 390160 | 63 | FRAME BEARING | $125.99 | ||
| 391478 | 64 | LEFT LEG COVER | $16.99 | |||
| 391477 | 64 | RIGHT LEG COVER | $16.99 | |||
| 248364 | 65 | GROUND SCREW | $0.99 | |||
| 392827 | 66 | LARGE LEG BUSHING | $24.99 | |||
| 393592 | 67 | CARRIAGE | $110.49 | |||
| 390117 | 68 | LEG SPACER | $24.99 | |||
| 392826 | 69 | SMALL LEG BUSHING | $19.99 | |||
| 392822 | 70 | RIGHT GRIP | $29.99 | |||
| 392821 | 71 | LEFT GRIP | $29.99 | |||
| 392533 | 72 | RIGHT CONTROL | $68.49 | |||
| 392534 | 73 | LEFT CONTROL | $68.49 | |||
| 393585 | 74 | SHAFT COVER | $24.99 | |||
| 392784 | 75 | SHAFT COVER SLEEVE | $19.99 | |||
 | 320579 | 76 | CAP | $14.49 | ||
 | 306282 | 77 | FOOT | $4.99 | ||
 | 246285 | 78 | LEVELING FOOT | $10.99 | ||
 | 412766 | 79 | CONTROLLER | $194.99 | ||
| 410341 | 80 | CONTROLLER COVER | $47.49 | |||
 | 410344 | 81 | SCREW KIT, NOTE: | $24.99 | Unavailable to order | |
 | 411461 | 82 | RESISTANCE MOTOR | $99.99 | ||
 | 195562 | 83 | M4 X 16MM SCREW | $1.99 | ||
| 354710 | 84 | M4 X 12MM WSHR HEAD SCREW | $0.99 | |||
| 391472 | 85 | POST KNOB CAP | $16.99 | |||
 | 133333 | 86 | #8 CLIP | $0.99 | ||
| 317332 | 87 | LIFT MOTOR BUSHING | $3.99 | |||
| 390124 | 88 | AXLE,.472X1.789″,THRD,INT,TZP | $9.49 | |||
| 412767 | 89 | INCLINE MOTOR | $170.99 | |||
| 391409 | 90 | BKT,MAG,ASSY,W/MAGS | $143.49 | |||
| 393591 | 91 | RT MAGNET BRACKET COVER | $19.99 | |||
| 393590 | 92 | LT MAGNET BRACKET COVER | $19.99 | |||
| 396528 | 93 | M8 X 12MM PATCH SCREW | $10.99 | |||
| 198679 | 94 | M10 X 50MM BOLT | $5.99 | |||
 | 293984 | 96 | M6 X 25MM SCREW | $4.49 | ||
| 412555 | 97 | HANDLEBAR ASSY | $270.99 | |||
 | 392660 | 98 | M8 X 50MM BOLT | $3.49 | ||
 | 333350 | 99 | M8 NUT | $1.99 | ||
 | 438696 | 100 | POST KNOB | $23.49 | ||
| 391813 | 101 | KNOB,RND,ASSY,W/INSERT STUD | $26.49 | |||
| 251429 | 102 | M4 X 12MM BOLT | $0.99 | |||
| 391487 | 104 | M10 CLAMP SCREW | $6.49 | |||
| 248334 | 105 | M10 X 20MM SCREW | $5.49 | |||

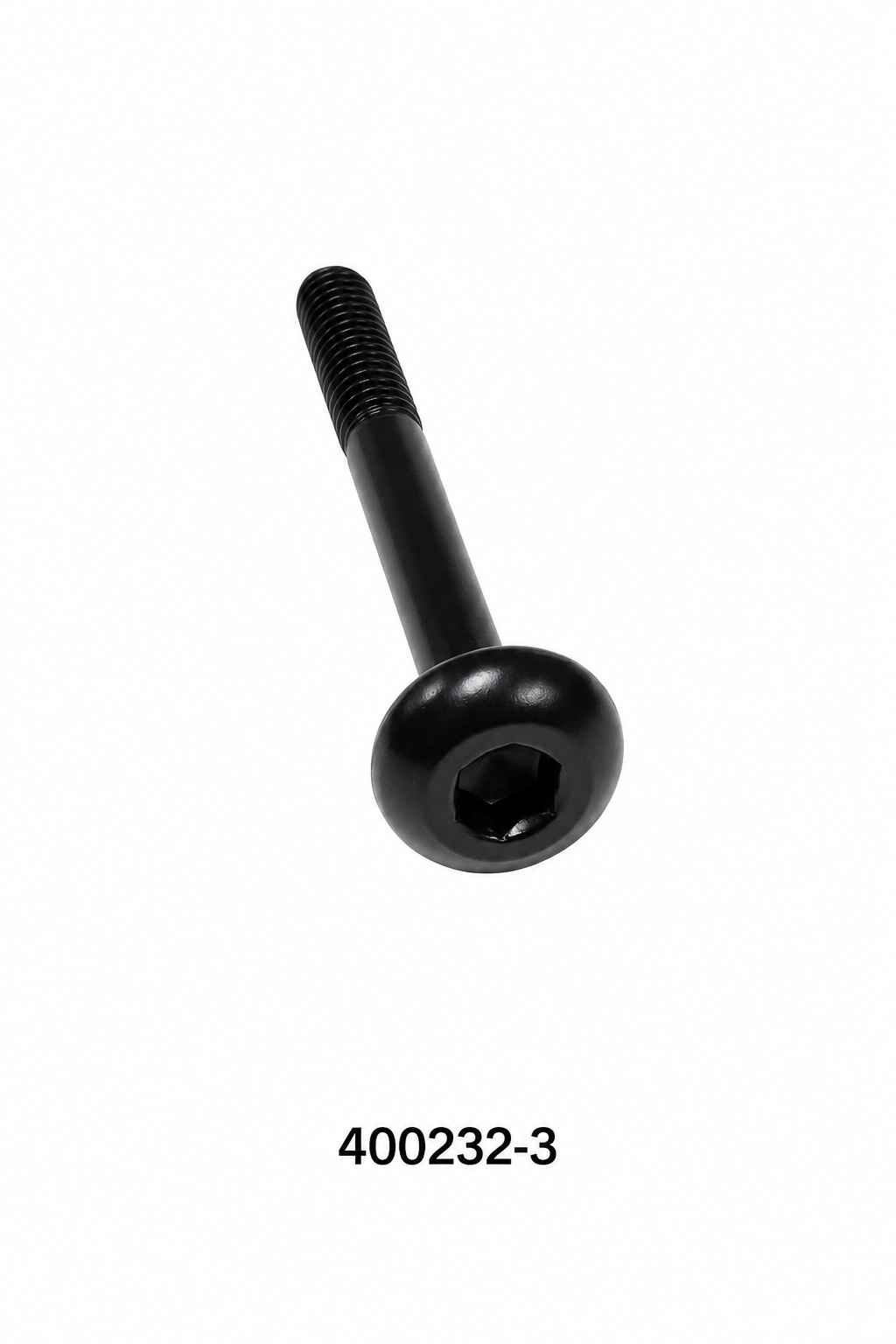

 | 400232 | 106 | M8 X 83MM BOLT | $6.49 | ||
| 185162 | 107 | SCREW | $1.49 | |||
| 387819 | 108 | BRAKE WASHER | $1.99 | |||
| 391398 | 109 | BRACKET MOUNT | $54.49 | |||
| 399651 | 110 | GROMMET | $2.49 | |||
| 392828 | 111 | UPPER/LOWER PIVOT DISC | $16.99 | |||
 | 392819 | 112 | CENTER PIVOT DISC | $9.49 | ||
 | 392825 | 113 | INNER PIVOT DISC | $17.76 | ||
 | 392829 | 114 | OUTER PIVOT DISC | $34.99 | ||
 | 411083 | 115 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 116 | CLAMP | $3.49 | ||
| 392713 | 117 | LEFT BASE COVER | $29.99 | |||
 | 264511 | 118 | POWER SWITCH | $32.99 | ||
 | 313668 | 119 | GROMMET | $9.49 | ||
 | 393479 | 120 | POWER CORD | $68.49 | ||
| 400631 | 121 | UPPER BRAKE BUSHING | $3.49 | |||
 | 417688 | 122 | Lower Wire Harness | $57.49 | ||
| 411540 | 123 | UPPER/YELLOW WIRE | $29.99 | |||
| 411536 | 124 | EXTENSION/RED WIRE | $34.99 | |||
| 411538 | 125 | CONTROL WIRE | $28.49 | |||
 | 204488 | 126 | M8 X 12MM SCREW | $3.49 | ||
 | 223812 | 127 | M8 WASHER, NOTE | $1.99 | ||
 | 150327 | 128 | M5 NYLON LOCKNUT | $1.99 | ||
 | 404736 | 129 | M5 SCREW | $3.49 | ||
| 256183 | 130 | M3 X 8MM SELF-TAP SCREW | $1.49 | |||
| 392785 | 131 | ADJUSTMENT BLOCK | $16.99 | |||
 | 234926 | 132 | M4 X 10MM SCREW | $2.99 | ||
| 335464 | 133 | M3 X 20MM SCREW | $7.49 | |||
| 395580 | 134 | PLASTIC SPACER | $3.49 | |||
 | 113842 | 137 | MAGNET | $1.49 | ||
| 373267 | 138 | M6 X 12MM SCREW, NOTE: | $0.99 | |||
| 222439 | 139 | THRUST WASHER | $2.49 | |||
| 400931 | 140 | Adjustable Resistance Knob with Decal | $6.49 | |||
 | 012142 | 141 | M6 NUT | $0.99 | ||
| 402986 | 142 | BRAKE KNOB | $16.99 | |||
| 398668 | 143 | LOWER BRAKE BUSHING | $3.49 | |||
| 398666 | 144 | SPRING STOP | $3.49 | |||
| 413813 | 145 | BRAKE SPRING | $6.49 | |||
| 398734 | 146 | M4 X 6MM SCREW | $0.99 | |||
| 402995 | 147 | BRAKE SHAFT | $60.99 | |||
| 398669 | 148 | ROLL PIN | $0.99 | |||
| 348640 | 149 | E-RING | $0.99 | |||
| 398671 | 150 | BRAKE SHOE | $29.99 | |||
| 398550 | 151 | SHOE PIN | $9.49 | |||
| 437419 | 152 | M4 X 12MM SCREW | $0.99 | |||
| 430274 | # | PWR SUPPLY WIRE TIES | $15.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 353097 | # | 2FT TWIST TIE | $7.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 408571 | # | 6MM ALLEN WRENCH | $6.49 | |||
| 408570 | # | 5MM ALLEN WRENCH | $3.49 | |||
| 423088 | # | HRDWR KIT, IN LITPAC | $8.49 | |||
| 412862 | # | USER’S MANUAL | $23.99 | |||
| 439076 | # | 15MM OPEN END WRENCH | $28.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 166909 | # | DECAL,SITE WARNING,ENG | $2.49 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
| 412861 | # | LITPAC,INCLUDES HWKIT | $108.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 411228 | TS18 | 34″ WIRE HARNESS | $25.49 | |||
| 101896 | TS4 | RESISTOR WIRE | $3.49 | |||
| 393478 | TS5 | 14″ BLUE WIRE, F-FLG | $23.49 | |||
 | 214773 | TS6 | CONTROLLER GROUND WIRE | $2.99 | ||
| 411121 | TS7 | 20″ WIRE HARNESS | $22.99 | |||
| 404749 | TS8 | 34″ WIRE HARNESS,REVERSED | $48.99 |
