NORDICTRACK 24 STUDIO BIKE – NTEX24125.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
147 Parts Available for NORDICTRACK 24 STUDIO BIKE - NTEX24125.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 455364 | 2 | FRONT STABILIZER | $148.49 | |||
| 420585 | 3 | REAR STABILIZER | $165.99 | |||

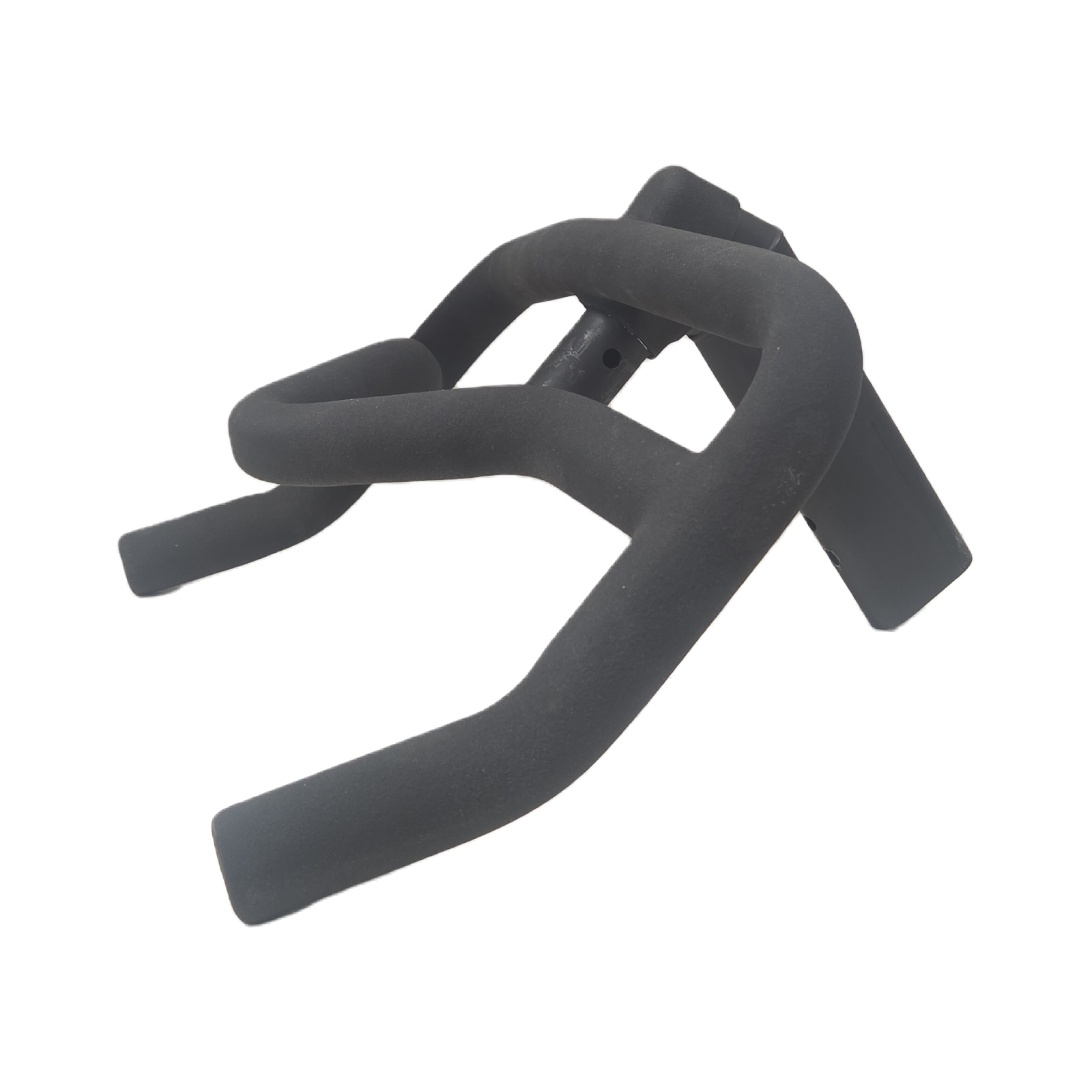

| 455744 | 4 | HANDLEBAR | $198.49 | |||
| 455382 | 5 | CONSOLE MOUNT | $82.99 | |||
| 455519 | 6 | CONSOLE (XENON) | $818.49 | |||
| 455522 | 7 | SADDLE POST | $163.49 | |||
| 1000540 | 8 | SADDLE | $96.49 | |||
| 403348 | 9 | SADDLE ARM | $69.99 | |||
| 398757 | 10 | SADDLE CARRIAGE | $104.49 | |||
| 398986 | 11 | LEFT WEIGHT REST | $62.99 | |||
| 398985 | 12 | RIGHT WEIGHT REST | $62.99 | |||
| 372139 | 13 | CARRIAGE HANDLE | $60.49 | |||
| 398704 | 14 | ADJUSTMENT HANDLE | $73.49 | |||

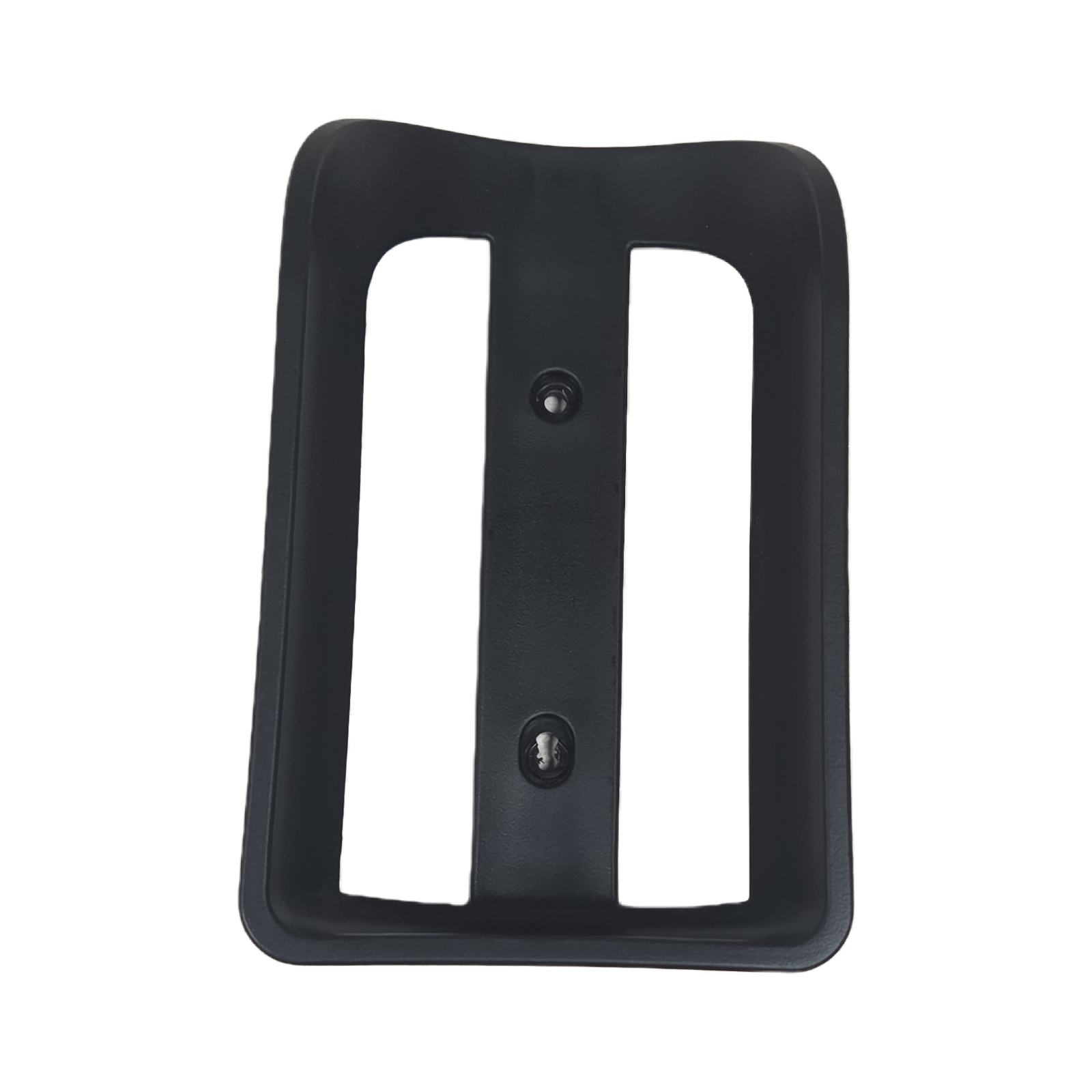

| 455530 | 15 | WATER BOTTLE HOLDER | $10.99 | |||
| 433123 | 16 | RIGHT PEDAL | $145.99 | |||
| 433122 | 17 | LEFT PEDAL | $145.99 | |||

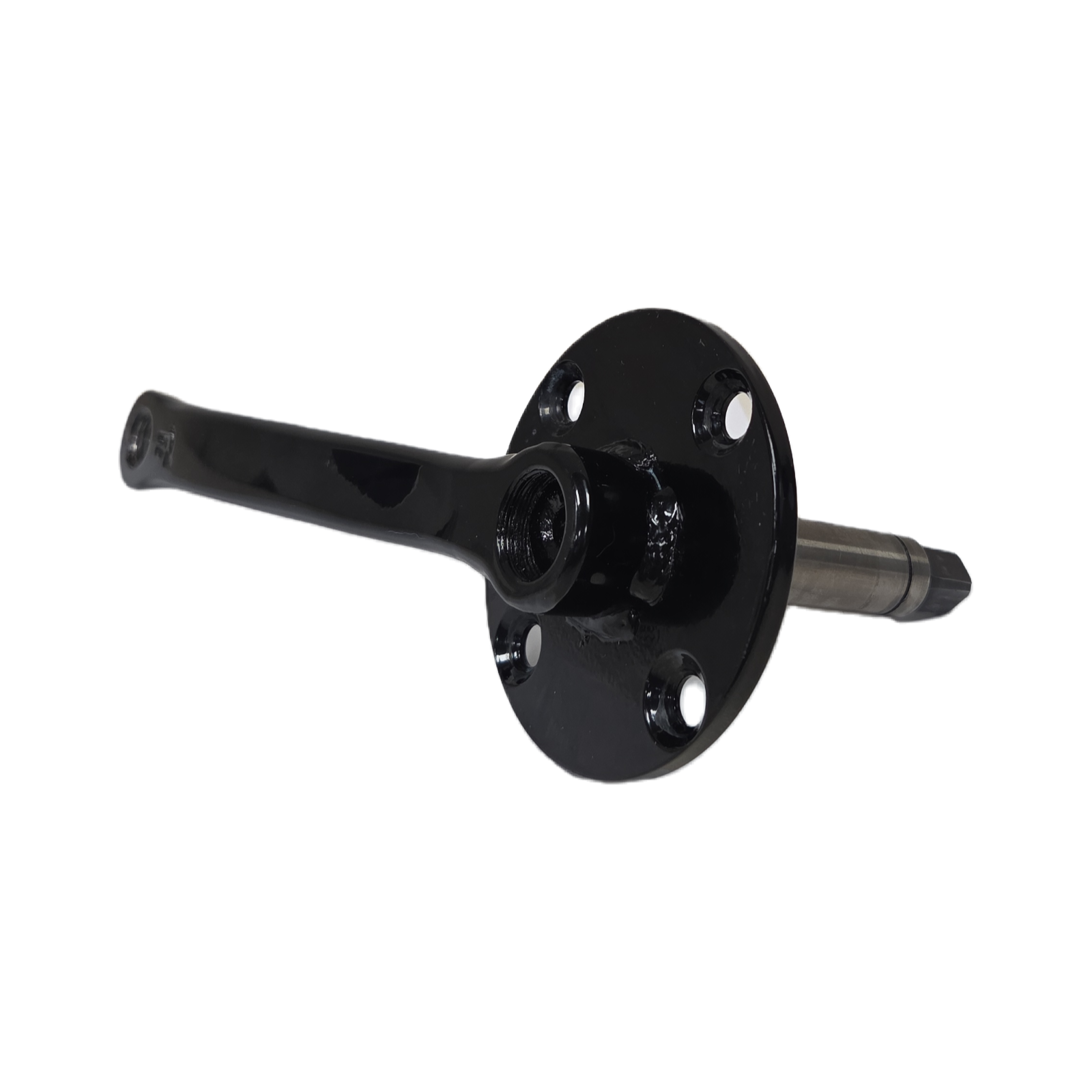

| 455526 | 18 | CRANK/RIGHT CRANK ARM | $199.99 | |||

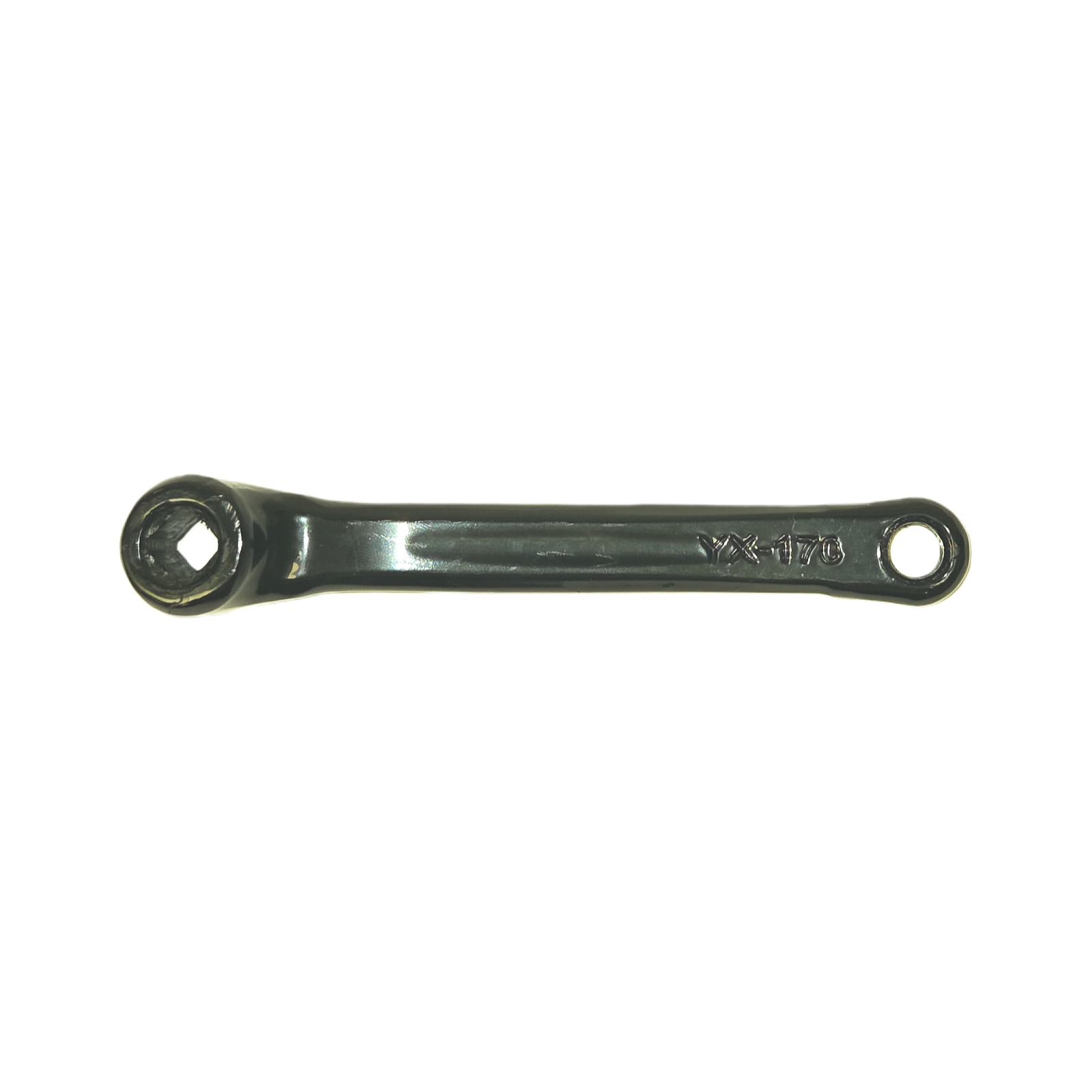

| 455525 | 19 | LEFT CRANK ARM | $142.99 | |||

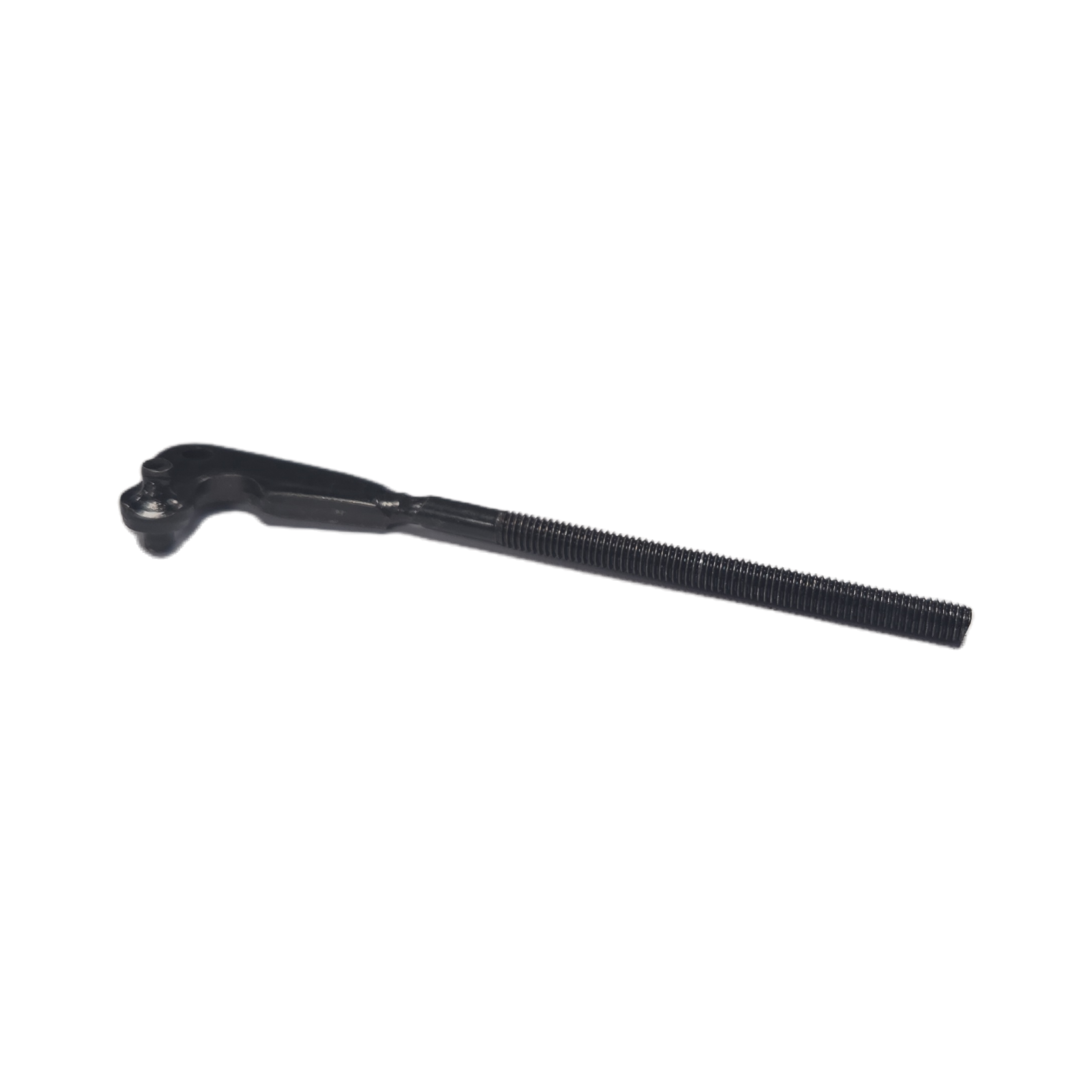

| 1000768 | 20 | RESISTANCE ARM | $13.99 | |||

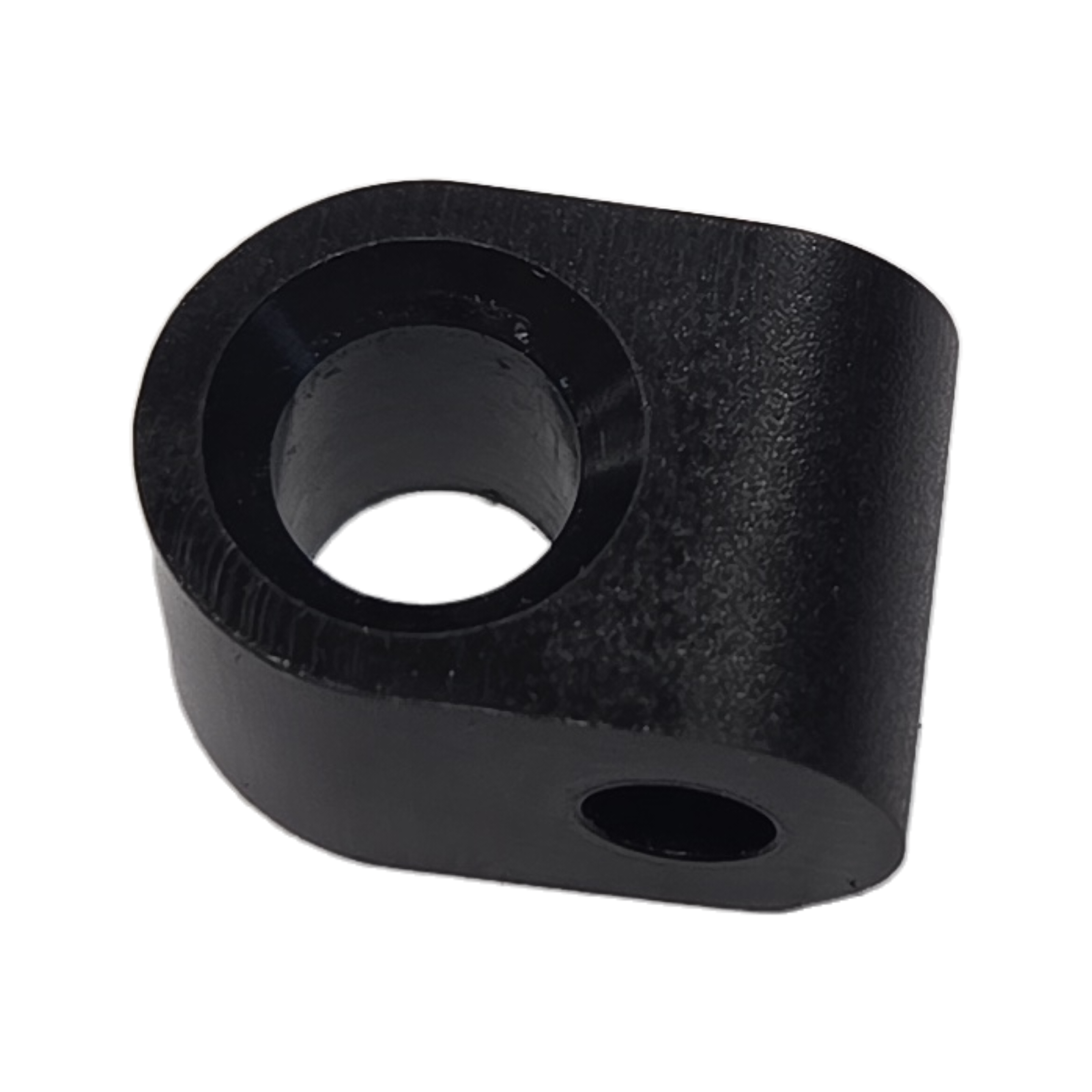

| 1000769 | 21 | RESISTANCE BLOCK | $1.99 | |||
 | 241954 | 22 | RESISTANCE DISC | $1.99 | ||
 | 276024 | 23 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
 | 411461 | 24 | RESISTANCE MOTOR | $99.99 | ||
| 433113 | 25 | BRAKE KNOB CAP | $2.99 | |||
| 455180 | 26 | CONSOLE BRACKET | $48.99 | |||

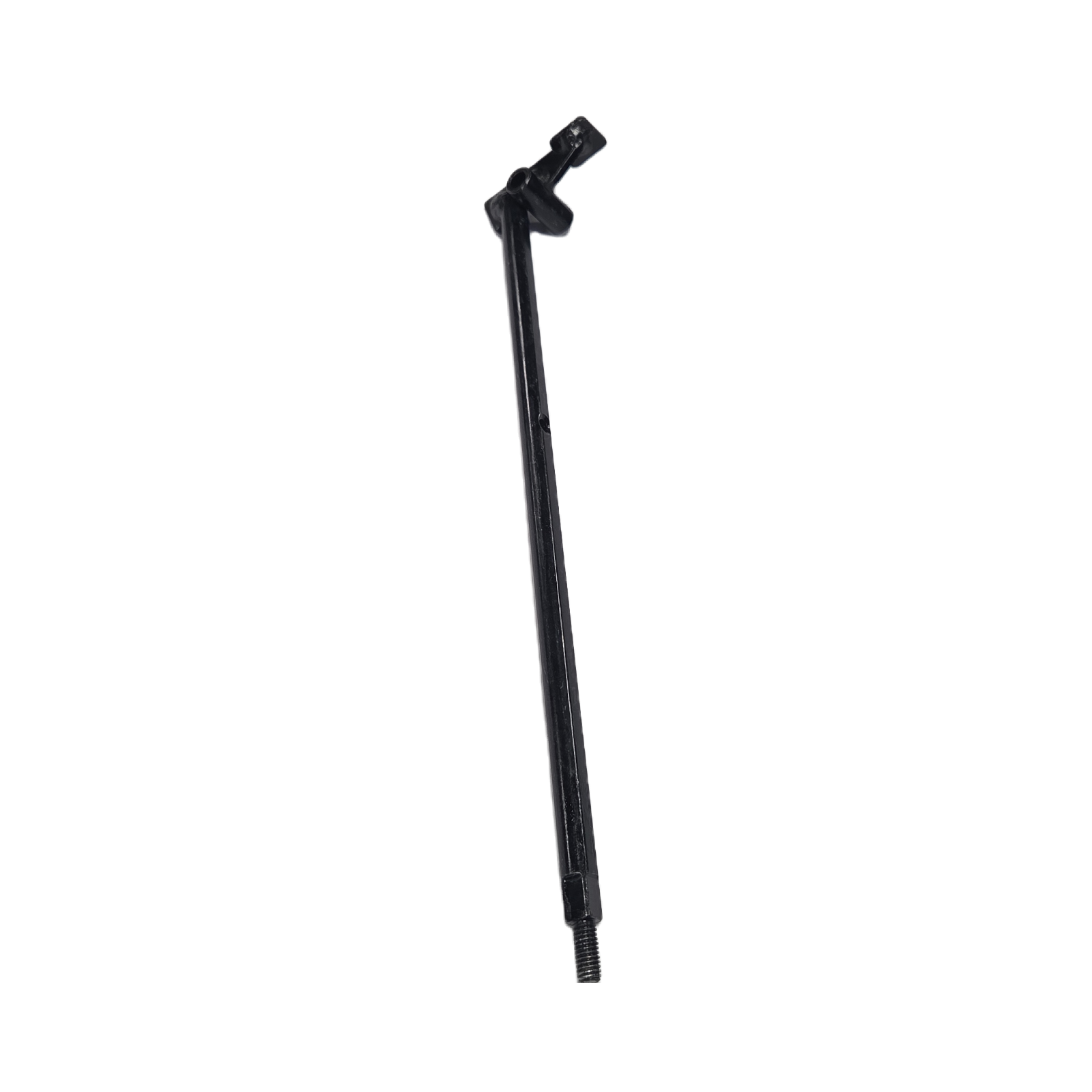

| 455384 | 27 | BRAKE SHAFT | $87.99 | |||
| 398554 | 28 | BRAKE SPRING | $6.49 | |||
| 405237 | 29 | BRAKE BRACKET | $49.49 | |||
| 348640 | 30 | E-RING | $0.99 | |||
| 407400 | 31A | IDLER ASSY | $119.49 | |||
| 376548 | 31B | IDLER | $65.49 | |||
| 373273 | 31C | Idler Axle | $17.99 | |||
| 375928 | 31D | Idler Bushing | $1.99 | |||
| 398992 | 31E | IDLER BRACKET WASHER | $9.49 | |||
| 150731 | 31F | IDLER SNAP RING | $0.99 | |||
| 398719 | 32 | COVER BRACKET | $41.99 | |||
| 398406 | 33 | RIGHT HUB COVER | $20.49 | |||
| 398403 | 34 | OUTER BELT COVER | $132.49 | |||
| 398402 | 35 | INNER BELT COVER | $130.99 | |||
| 398407 | 36 | IDLER COVER | $19.99 | |||
| 398408 | 37 | LEFT HUB COVER | $29.49 | |||
| 455388 | 38 | MOTOR BRACKET | $7.49 | |||

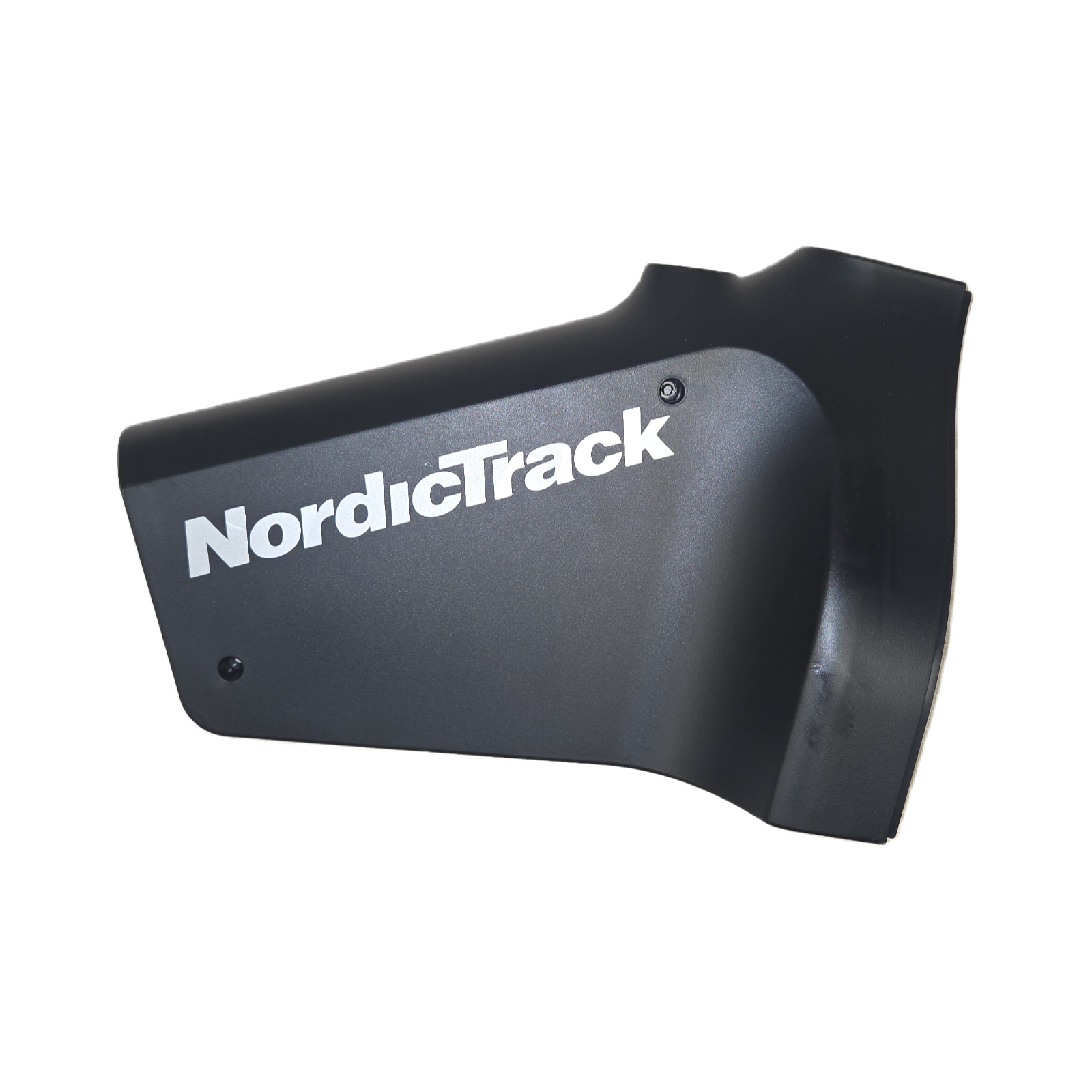

| 455528 | 39 | RIGHT BRAKE COVER | $30.99 | |||
| 398016 | 40 | SADDLE POST SLEEVE | $68.49 | |||
| 398205 | 41 | HANDLEBAR SLEEVE | $34.49 | |||
 | 153209 | 42 | CRANK ARM CAP | $8.99 | ||
| 317094 | 43 | SNAP RING | $2.99 | |||
 | 291606 | 44 | CRANK BEARING | $22.49 | ||

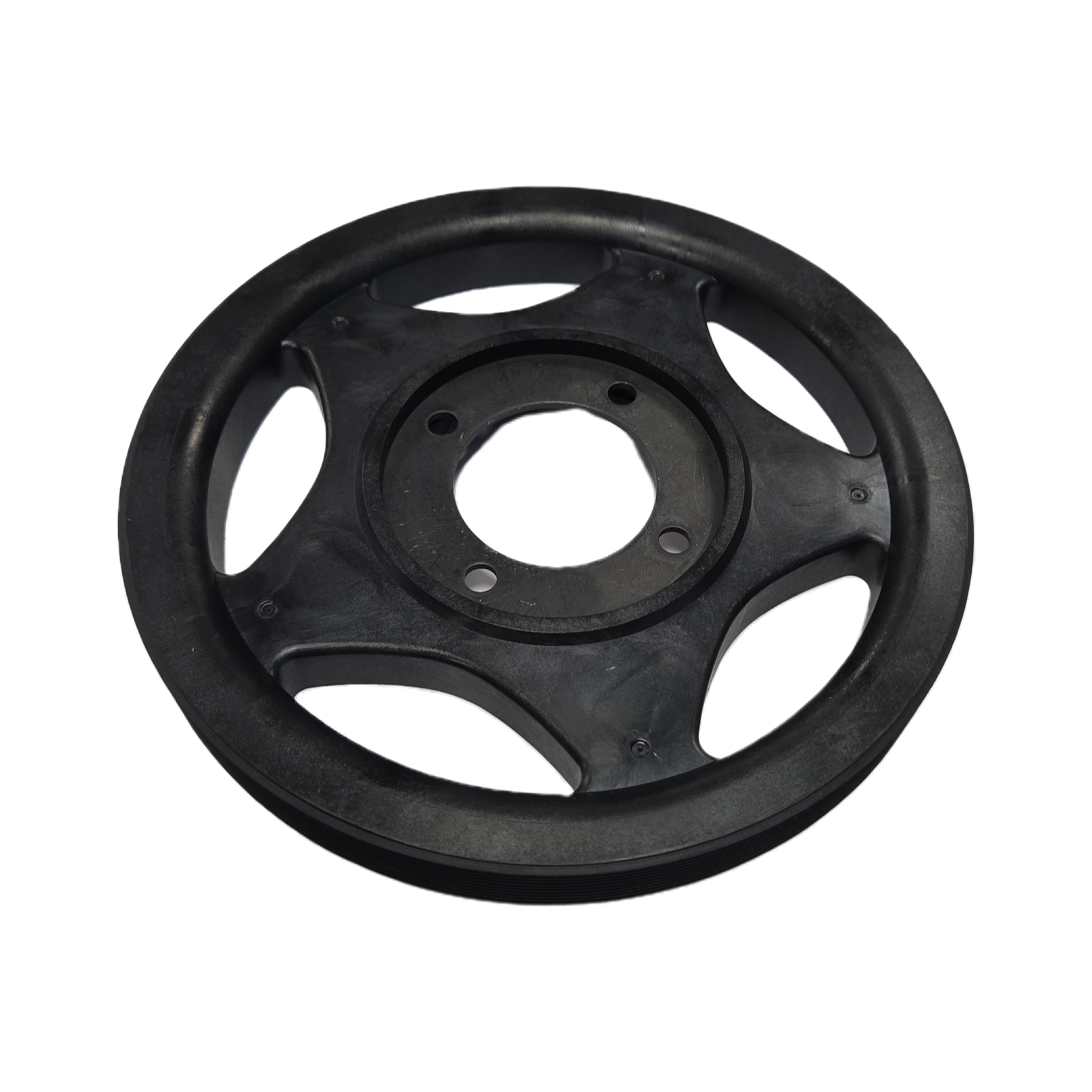

| 455321 | 45 | PULLEY | $69.99 | |||
| 1000541 | 46 | DRIVE BELT | $45.99 | |||
| 455386 | 47 | FLYWHEEL | $278.99 | |||

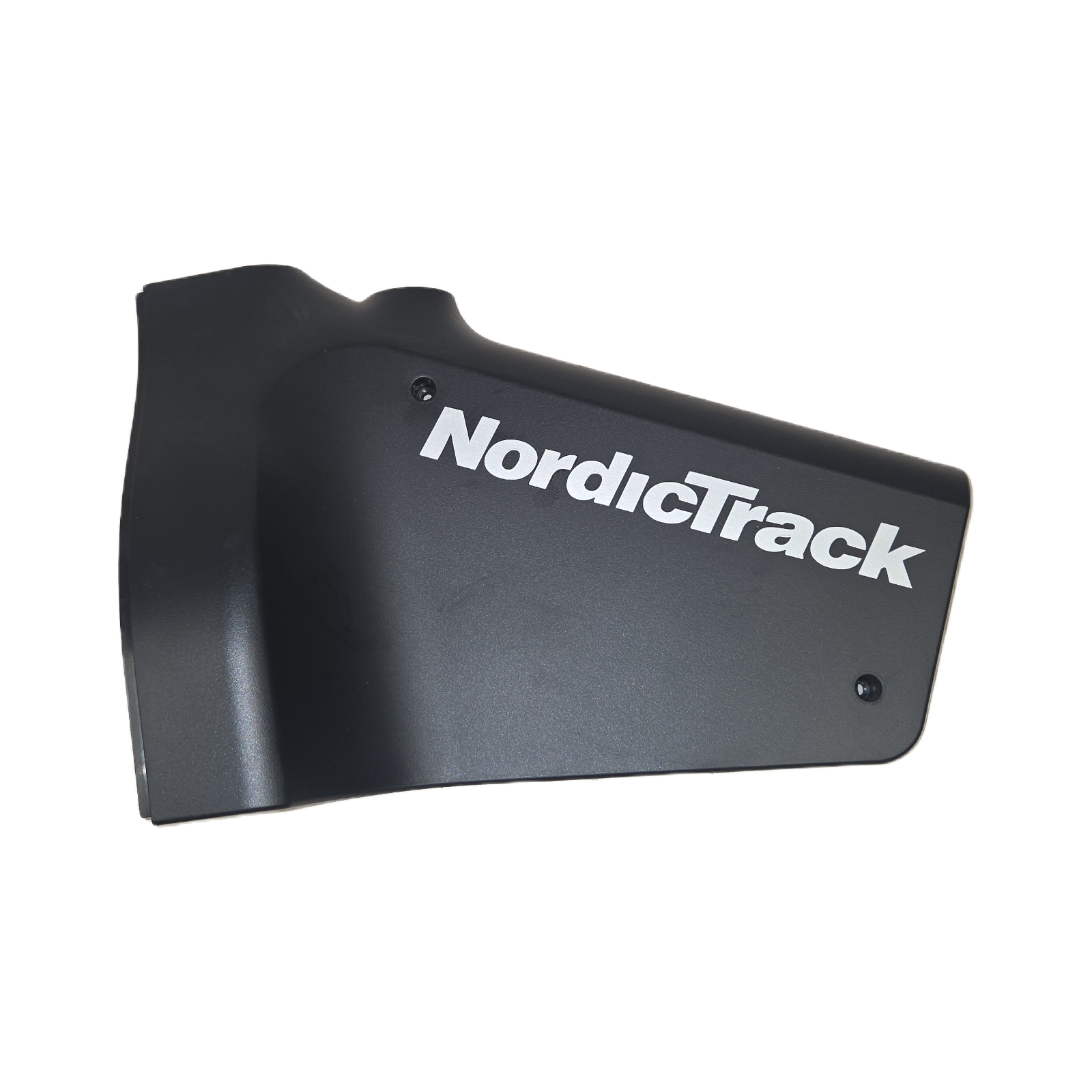

| 455520 | 48 | LEFT BRAKE COVER | $30.99 | |||

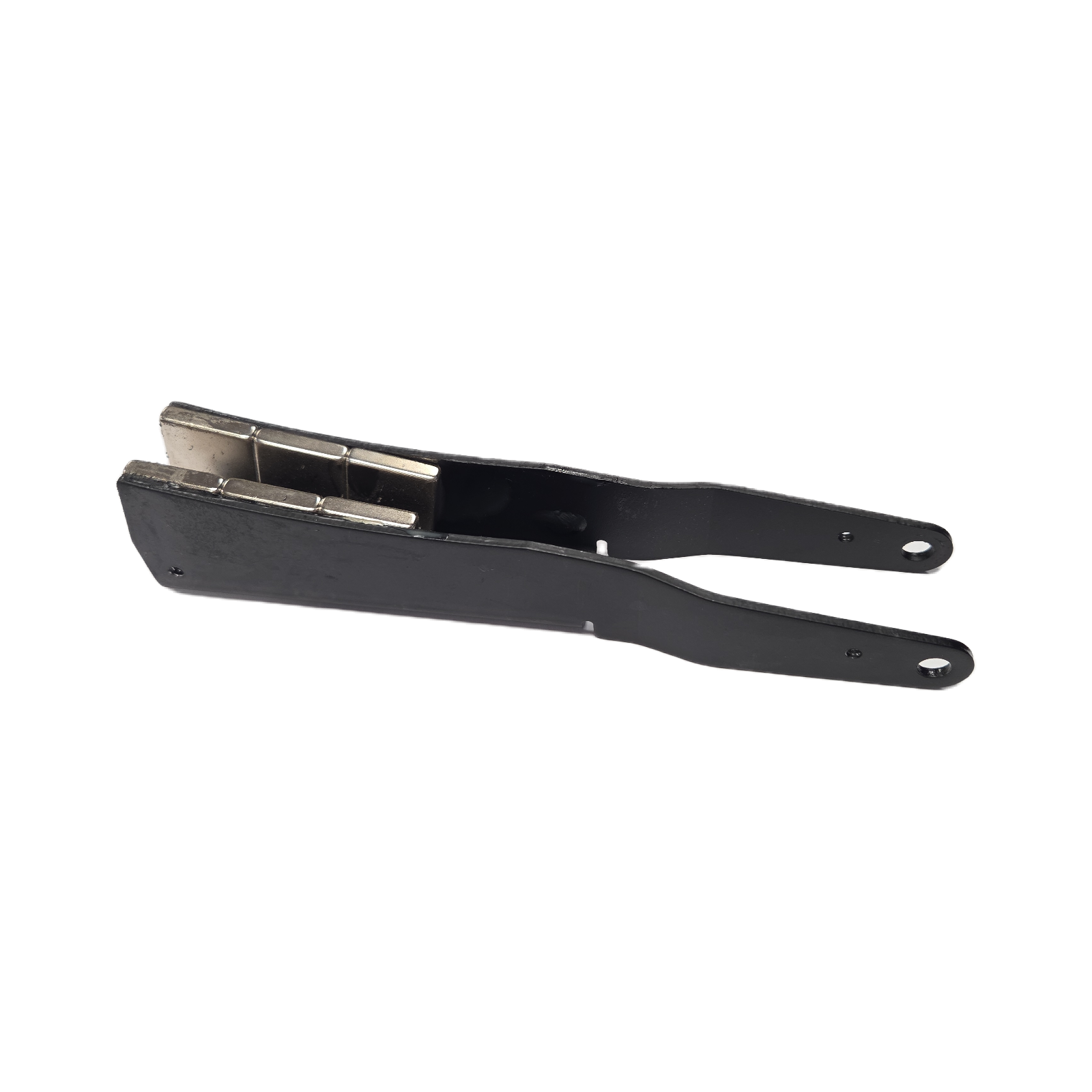

| 455392 | 49 | RESISTANCE BRACKET | $147.99 | |||

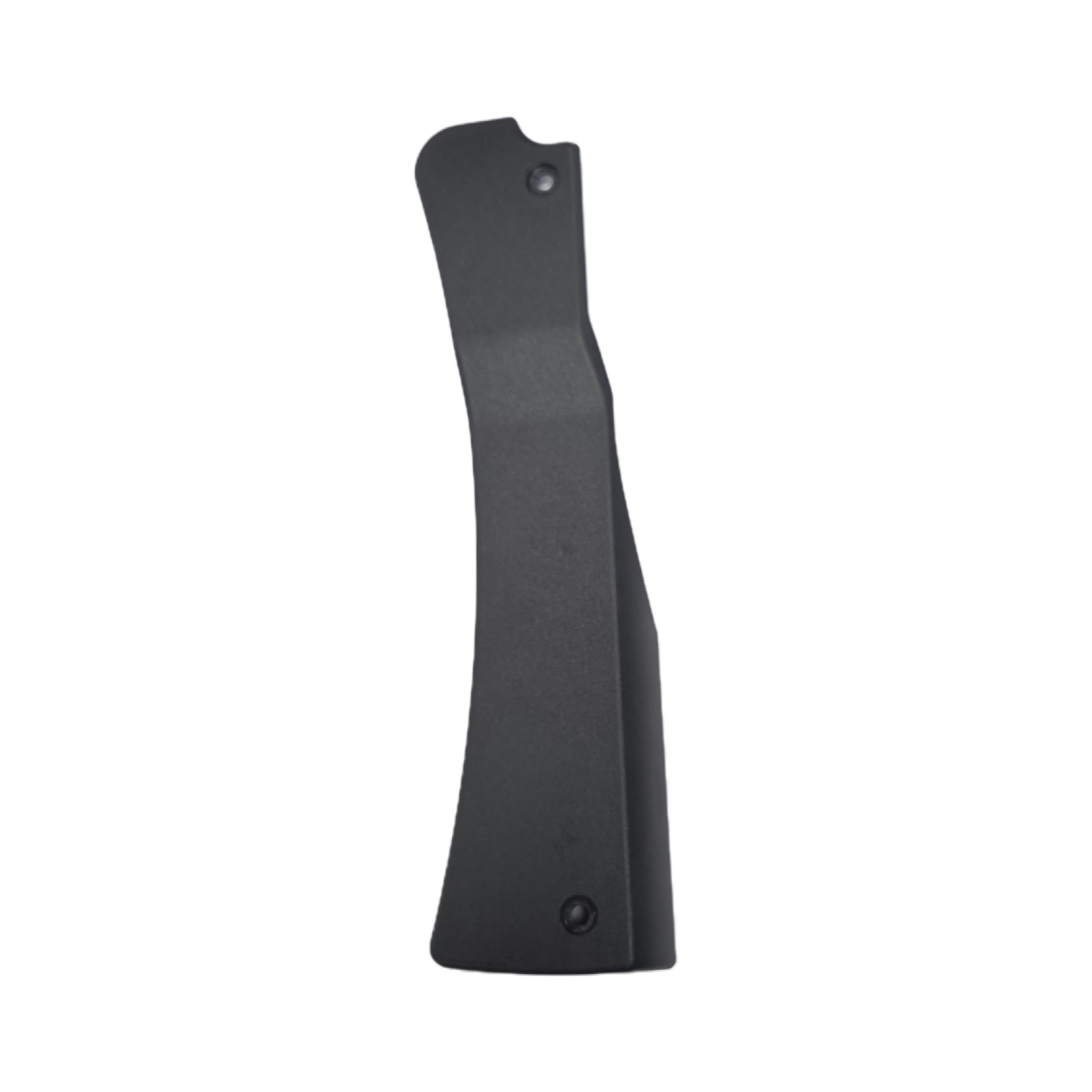

| 455395 | 50A | LEFT BRACKET COVER | $6.99 | |||

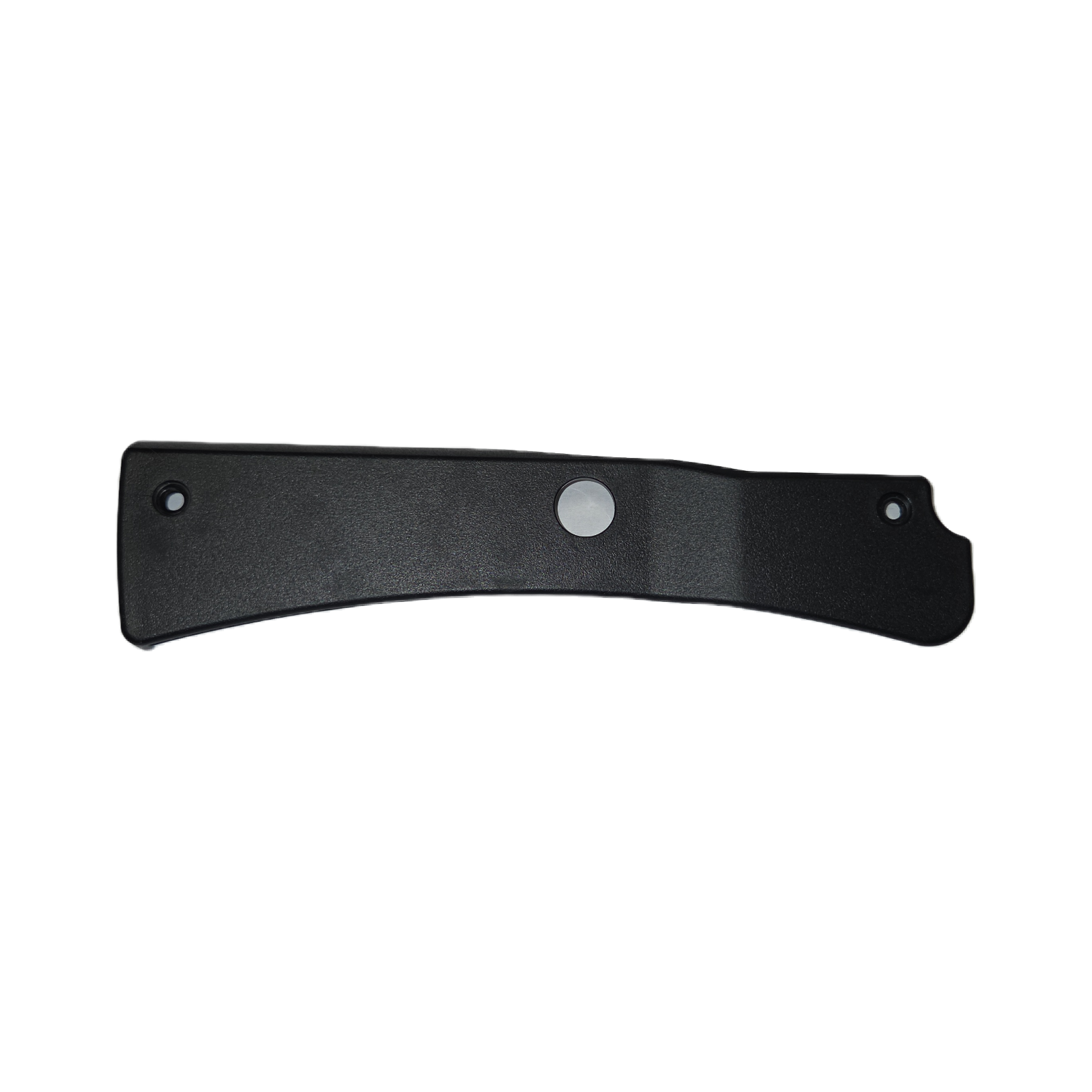

| 455441 | 50B | RIGHT BRACKET COVER | $6.99 | |||
 | 219825 | 51 | WHEEL | $24.99 | ||
 | 306282 | 52 | FOOT | $4.99 | ||
 | 246285 | 53 | LEVELING FOOT | $10.99 | ||
| 320579 | 54 | CAP | $14.49 | |||
| 398899 | 55 | SADDLE POST CAP | $19.99 | |||
| 453150 | 56 | FRONT BRACKET MOUNT | $107.49 | |||
 | 411085 | 57 | REED SWITCH/WIRE | $25.99 | ||
 | 282277 | 58 | CLAMP | $3.49 | ||
| 398525 | 59 | HAND WEIGHT | $111.49 | |||

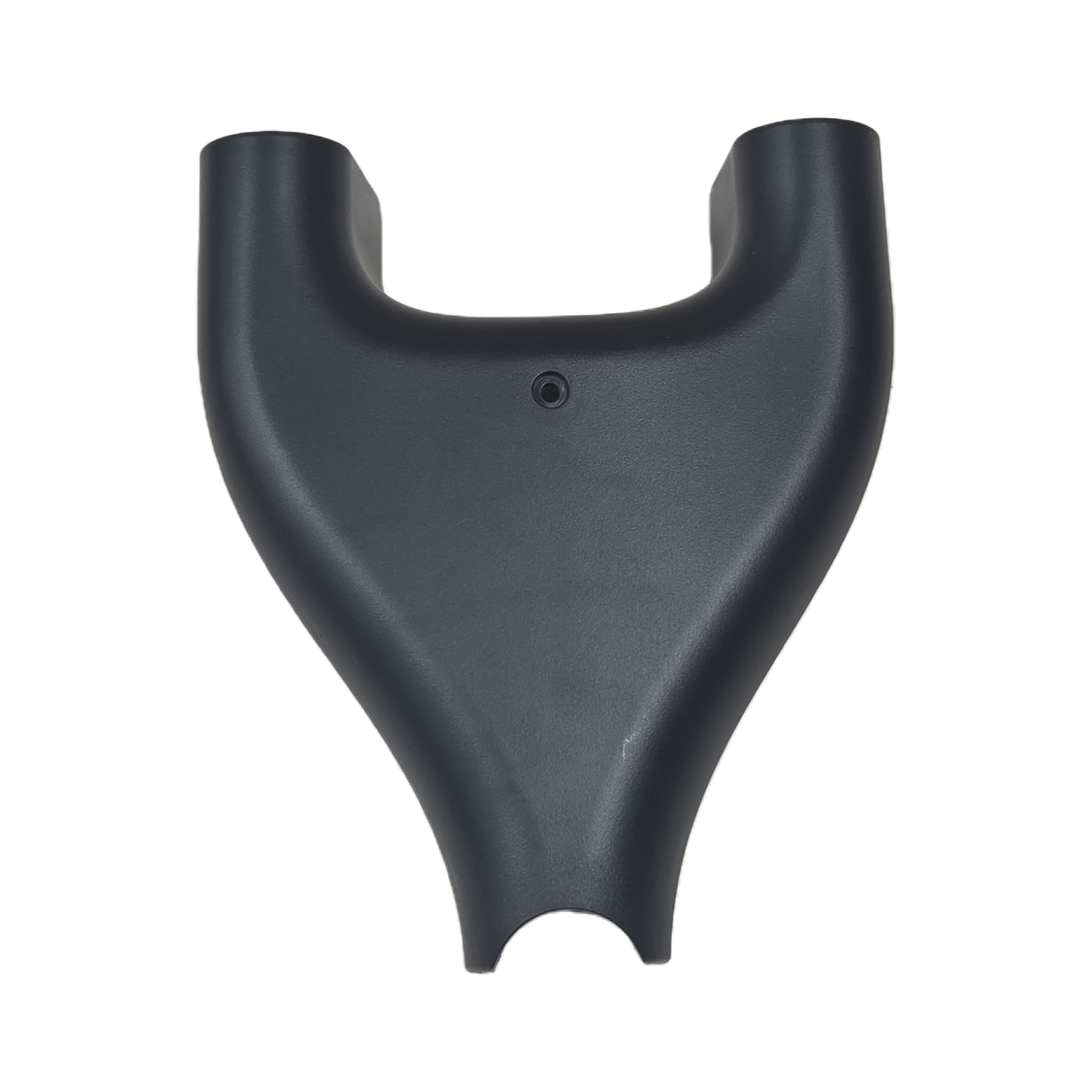

| 455394 | 60 | FRONT COVER | $24.99 | |||
 | 133333 | 61 | CLIP NUT | $0.99 | ||
 | 113842 | 62 | MAGNET | $1.49 | ||
 | 384942 | 63 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 333350 | 64 | M8 LOCKNUT | $1.99 | ||
 | 193237 | 65 | M10 X 65MM SCREW, NOTE | $4.99 | ||
 | 246700 | 66 | CRANK SCREW | $1.49 | ||
 | 012142 | 67 | BRACKET SPACER | $0.99 | ||
 | 148710 | 68 | M10 LOCKNUT | $2.49 | ||
 | 232289 | 69 | M10 X 25MM SCREW | $28.49 | ||

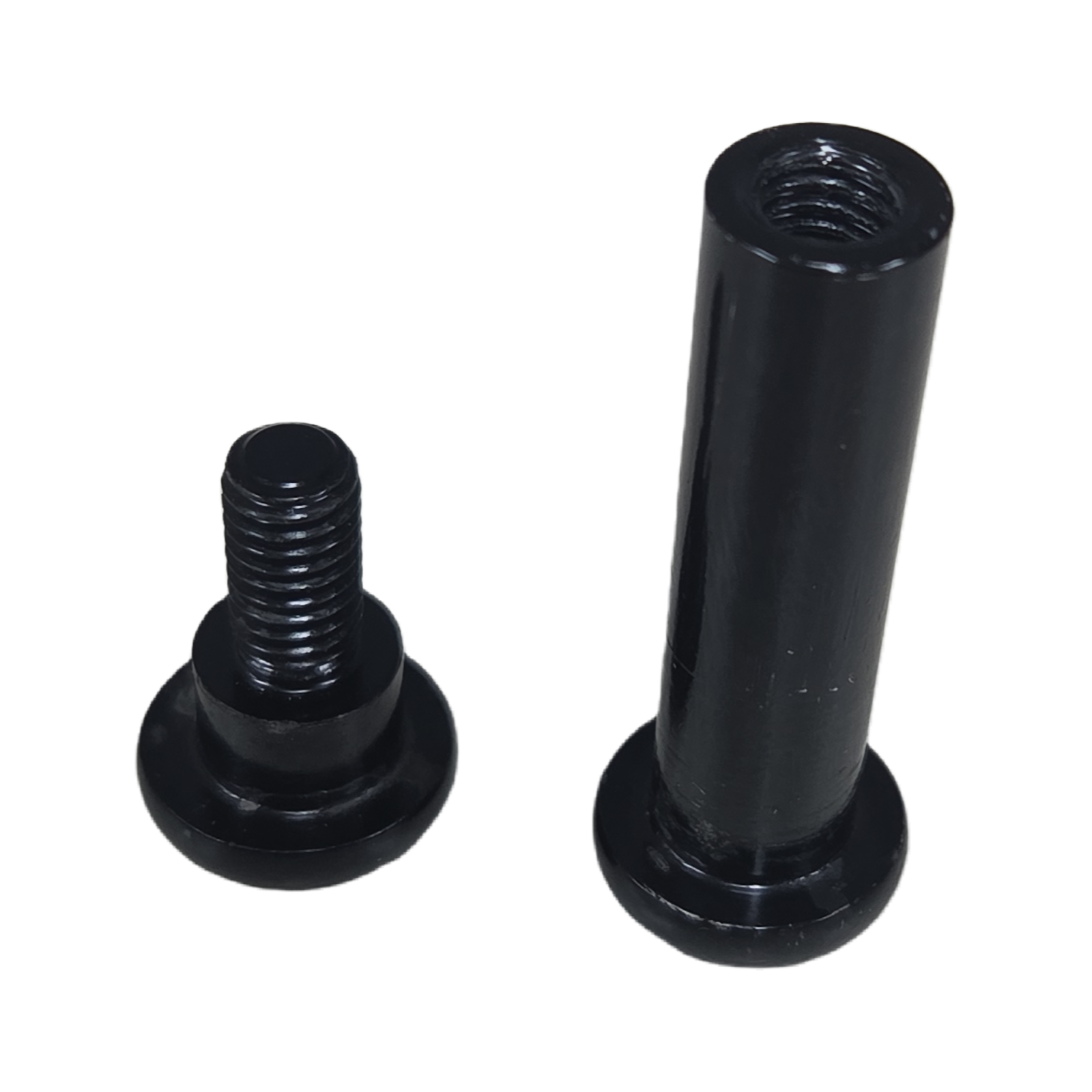

| 455494 | 70 | M6 UNION BOLT | $21.99 | |||
| 262341 | 71 | M6 X 12MM SCREW | $3.49 | |||
| 392660 | 72 | M8 X 50MM BOLT | $3.49 | |||
 | 150327 | 73 | M5 NUT | $1.99 | ||
| 135578 | 75 | M12 LOCKNUT | $6.99 | |||
| 398550 | 76 | SHOE PIN | $9.49 | |||
| 398734 | 77 | M4 X 6MM SCREW | $0.99 | |||
| 405265 | 78 | UPPER BRAKE BUSHING | $3.49 | |||
 | 197037 | 79 | M6 X 12MM SCREW | $0.99 | ||
 | 404736 | 80 | M5 SCREW | $3.49 | ||
 | 137337 | 81 | M6 X 16MM SCREW | $3.49 | ||

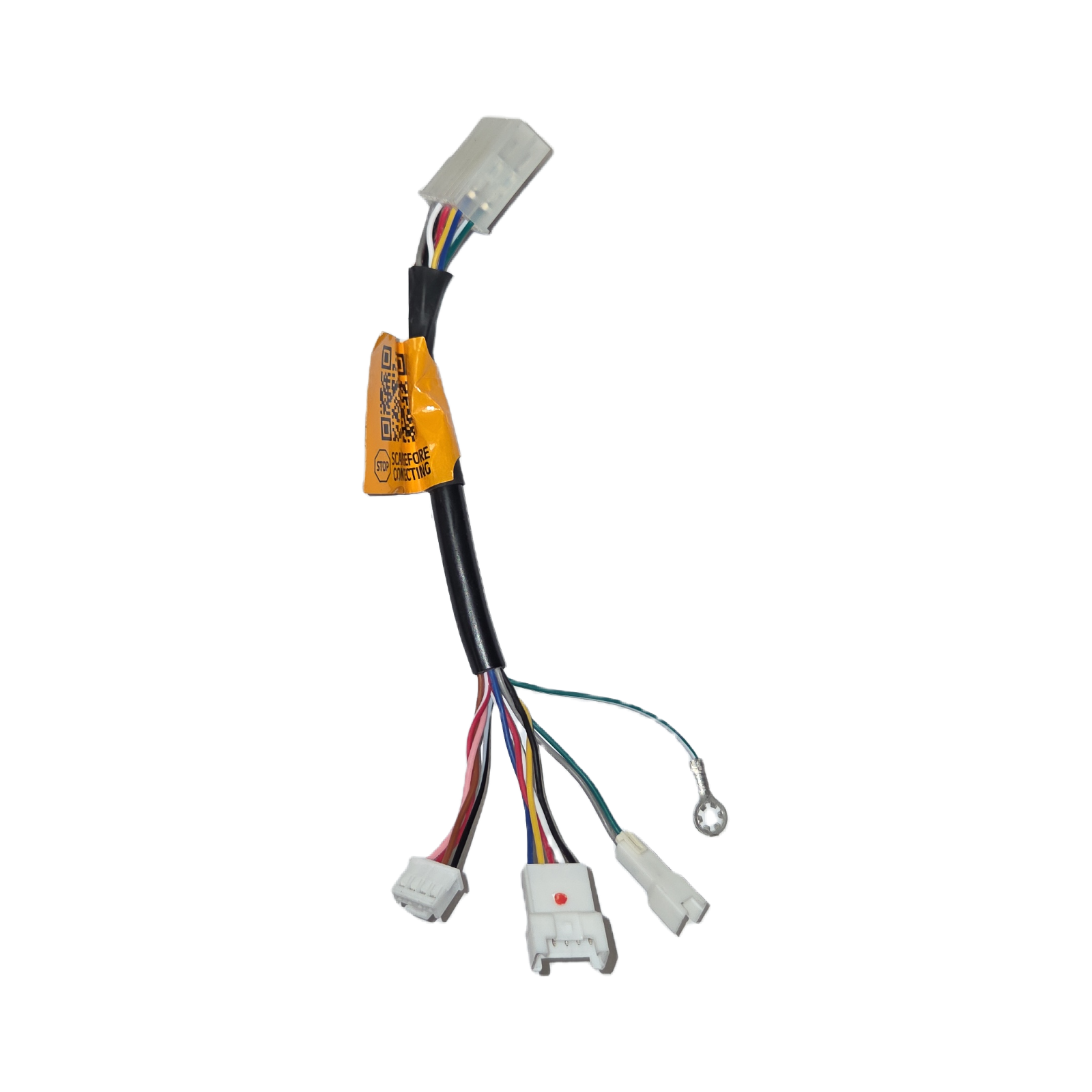

| 455542 | 82 | FRAME WIRE | $44.99 | |||
| 453798 | 83 | KEYED WASHER, NOTE | $1.99 | |||
 | 186819 | 84 | #8 X 1/2″ SCREW | $0.99 | ||
| 453797 | 85 | PIVOT NUT | $34.49 | |||
 | 277969 | 86 | POWER ADAPTER | $28.99 | ||
| 373150 | 87A | M4 X 12MM SCREW | $0.99 | |||
 | 213457 | 87B | M4X12MM SEAT STOP SCREW, | $1.99 | ||
| 378126 | 88 | M4 X 19MM FLANGE SCREW | $3.49 | |||

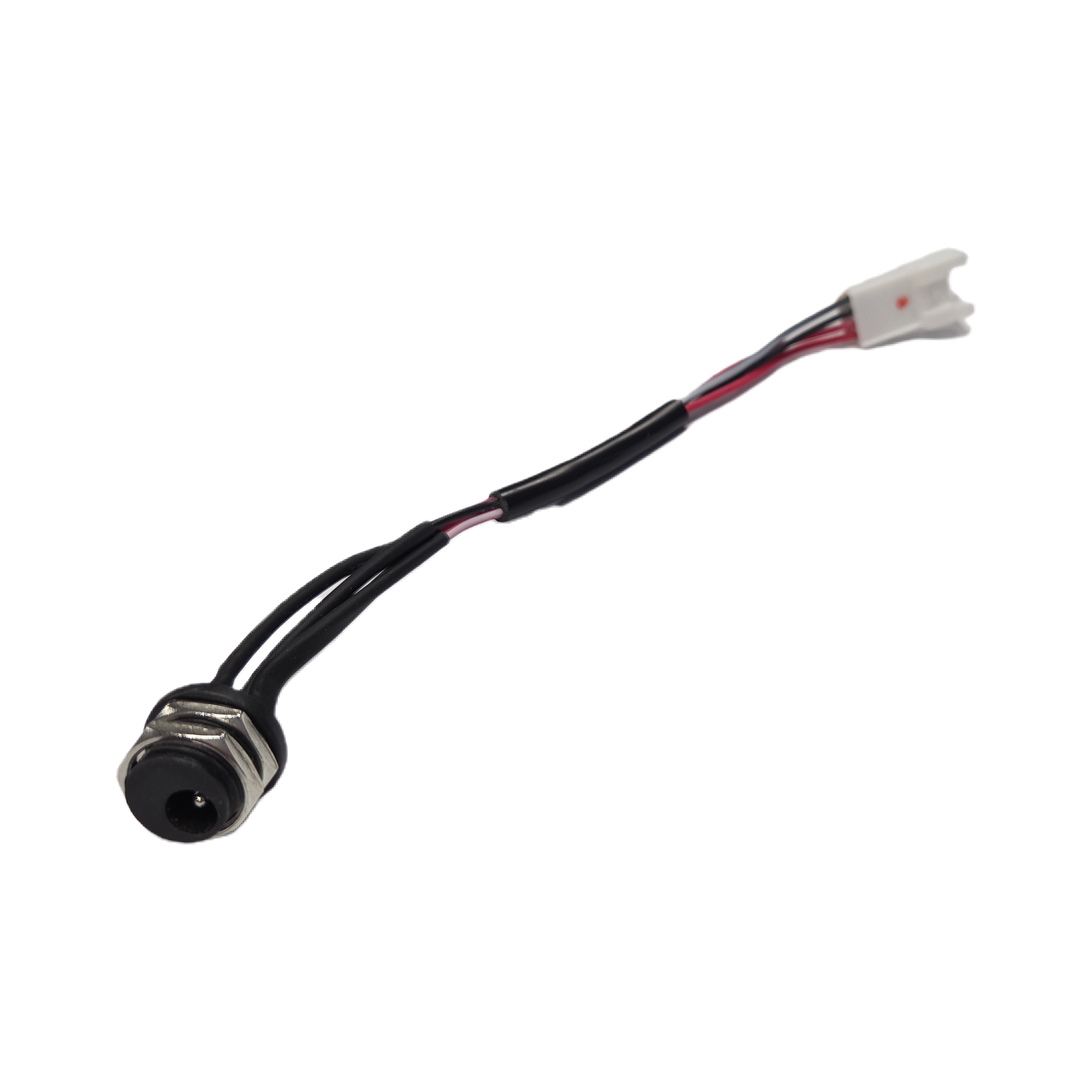

| 455573 | 89 | POWER WIRE/RECEPTACLE | $19.49 | |||

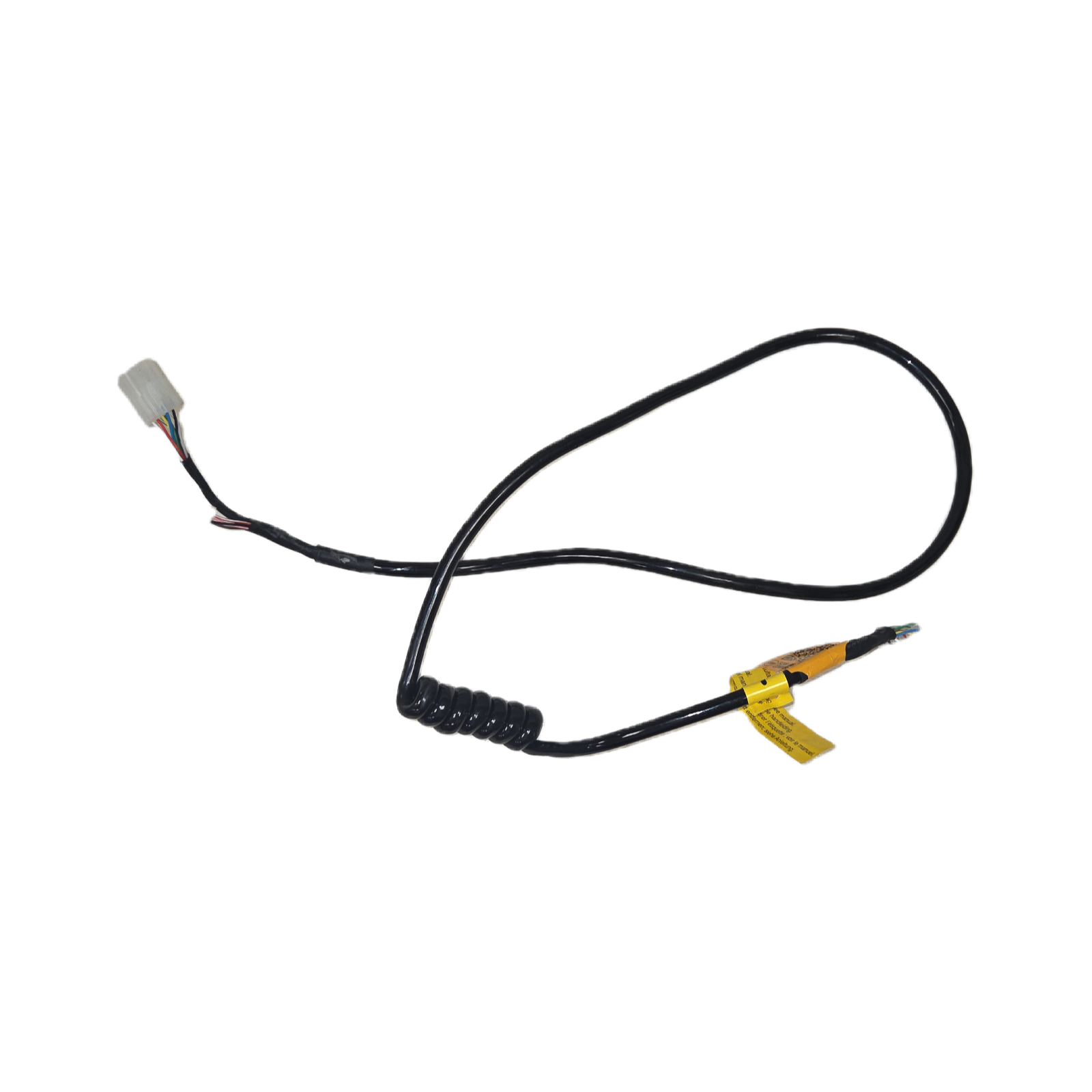

| 455533 | 90 | HANDLEBAR WIRE | $88.49 | |||

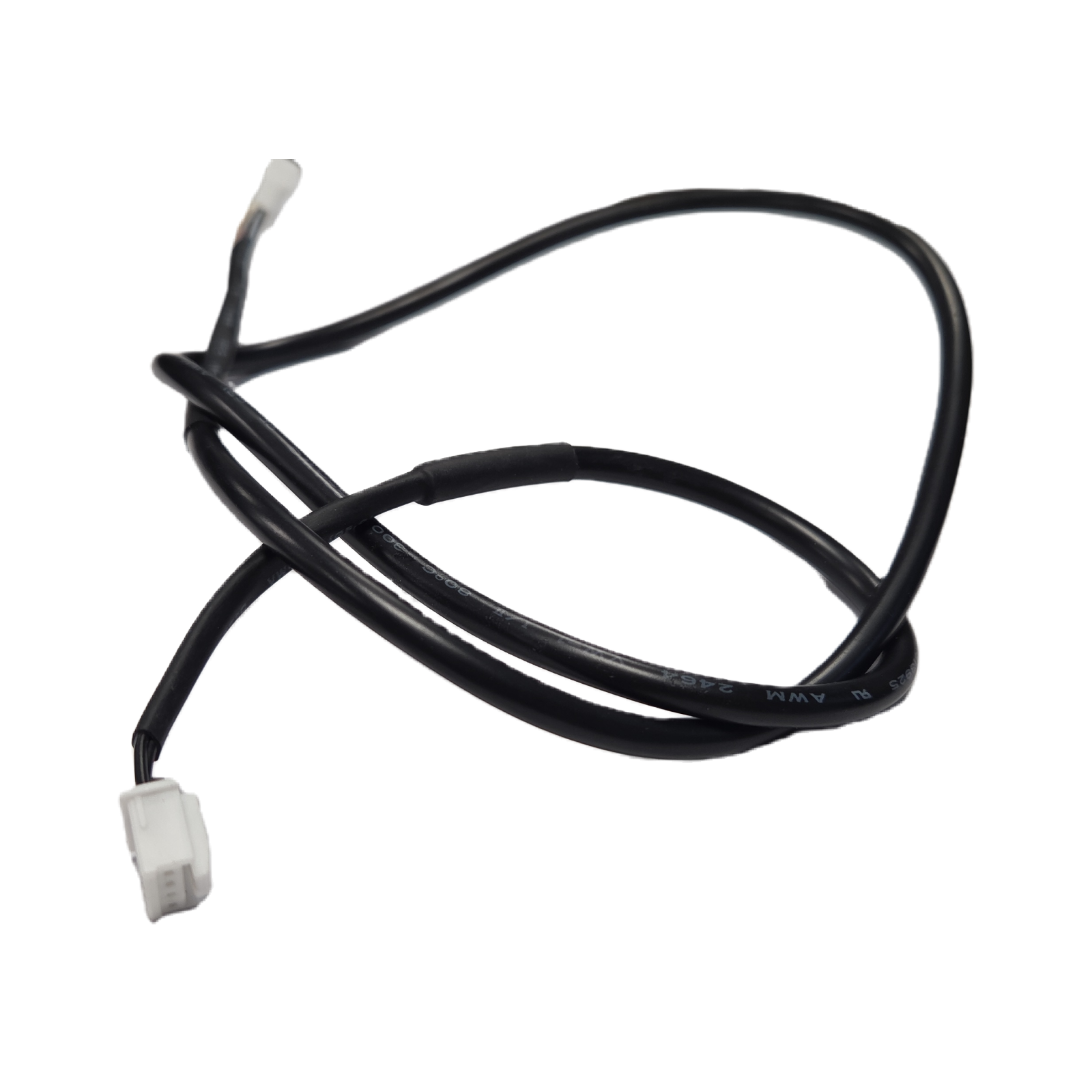

| 455574 | 91 | MOUNT WIRE | $22.99 | |||
 | 239031 | 92 | M4 X 10MM MACHINE SCREW | $1.49 | ||
 | 453158 | 93 | MOUNT COVER | $3.99 | ||
| 432058 | 94 | REAR BRACKET MOUNT | $66.99 | |||
 | 431889 | 95 | INNER PIVOT BUSHING | $47.49 | ||
| 450977 | 96 | UPPER/LOWER PIVOT DISC | $39.49 | |||
| 450978 | 97 | CENTER PIVOT DISC | $6.49 | |||
 | 391488 | 98 | M6 X 25MM CAP SCREW,NOTE | $2.49 | ||
| 450973 | 99 | PLASTIC SPACER | $0.99 | |||
 | 432967 | 100 | Speed CLEAT ASSEMBLY (One Side) | $74.49 | ||
 | 453819 | 101 | DISPLAY UPPER COVER | $14.49 | ||
| 455193 | 102 | DISPLAY LOWER COVER | $17.99 | |||
 | 432335 | 103A | CROWN FASTENER | $1.99 | ||
 | 013576 | 103B | CROWN SCREW | $0.99 | ||
| 398669 | 104 | ROLL PIN | $0.99 | |||
| 432215 | 105 | BRAKE KNOB | $10.99 | |||
| 405264 | 106 | LOWER BRAKE BUSHING | $3.49 | |||
| 398666 | 107 | SPRING STOP | $3.49 | |||
| 308338 | 108 | M6 WASHER | $6.99 | |||
| 132315 | 109 | WIRE TIE | $3.49 | |||
| 398702 | 110 | M6 SHOULDER BOLT | $20.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 439076 | # | 15MM OPEN END WRENCH | $28.49 | |||
| 455466 | # | TOOL KIT, NOTE | $98.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 1001969 | # | USER’S MANUAL,SP13 | $60.99 | |||
| 380825 | # | M4 X 16MM COVER SCREW | $2.49 | |||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
| 450575 | # | 6MM ALLEN WRENCH, T-HNDL | $92.99 | |||
| 437209 | # | 3MM ALLEN WRENCH | $0.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 450986 | # | M34 OPEN END WRENCH | $47.99 | |||
| 455465 | # | HARDWARE KIT, NOTE | $81.49 | |||
| 352397 | # | M4X12MM INNR SHIELD SCREW | $0.99 | |||
| 290295 | # | DECAL, GENERAL WRNG | $6.49 | |||
| 408571 | # | 6MM ALLEN WRENCH | $6.49 | |||
| 364361 | # | CHEST HEARTRATE MONITOR | $135.99 | |||
| 432834 | # | 5MM ALLEN WRENCH | $14.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 386951 | # | DECAL,PINCH POINT WARNING | $6.49 | |||
| 450573 | # | 4MM ALLEN WRENCH, T-HNDL | $28.49 | |||
| 404032 | # | DECAL,NORDICTRACK CONSOLE | $20.99 | |||
| 456254 | # | LITPAC, NOTE | $201.49 |
