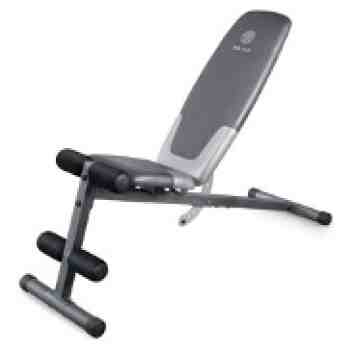

GOLD”S GYM GOLD”S GYM XR 5.9 BENCH – GGBE4869.5
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
32 Parts Available for GOLD''S GYM GOLD''S GYM XR 5.9 BENCH - GGBE4869.5 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 338436 | 1 | FRAME | $100.49 | |||
| 338442 | 2 | FRONT LEG | $46.99 | |||
| 336850 | 3 | REAR LEG | $65.49 | |||
| 339116 | 4 | REAR STABILIZER | $73.99 | |||
| 336907 | 5 | BACKREST FRAME | $68.49 | |||
| 338432 | 6 | PIVOT BRACKET | $73.49 | |||
| 336911 | 7 | BACKREST | $78.99 | |||
| 336912 | 8 | SEAT | $50.49 | |||
| 338425 | 9 | FOAM PAD | $16.99 | |||
| 338424 | 10 | PAD TUBE | $19.99 | |||
 | 239042 | 11 | 19MMX1.5MM RND INNER CAP | $3.99 | ||
| 100290 | 12 | STABILIZER ENDCAP | $8.99 | |||
| 110913 | 13 | 50MM SQUARE INT ENDCAP | $1.99 | |||
| 284573 | 14 | 45MM SQUARE INNER CAP | $0.99 | |||
| 284574 | 15 | 25MM X 50MM INNER CAP | $3.49 | |||
| 132889 | 16 | M10 X 63MM BOLT | $12.99 | |||
| 225399 | 17 | M6 X 60MM BOLT | $3.49 | |||
| 164086 | 18 | M10 X 65MM CARRIAGE BOLT | $13.99 | |||
 | 148710 | 19 | M10 LOCKNUT | $2.49 | ||
| 140206 | 20 | M10 WASHER | $1.99 | |||
| 336913 | 21 | LOCKING PIN | $12.99 | |||
| 242419 | 22 | M8 WASHER | $0.99 | |||
| 292588 | 23 | M10 X 85MM BOLT | $6.49 | |||
| 140208 | 24 | M6 X 16MM SCREW | $3.49 | |||
 | 373258 | 25 | M10 X 20MM BOLT | $5.49 | ||
| 132651 | 26 | M10 X 70MM BOLT | $15.99 | |||
 | 195562 | 28 | M4 X 16MM SCREW | $1.99 | ||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 253229 | # | DECAL, GENERAL WARNING | $17.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 336914 | # | USER’S MANUAL | $12.49 | |||
| 253211 | # | DECAL, MAXT WEIGHT | $1.49 |
