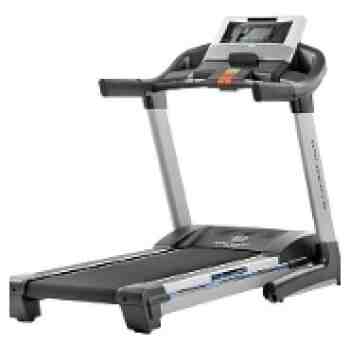

Golds Gym Maxx Personal Trainer880 Treadmill – GGTL80608.0 / GGTL806080
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
97 Parts Available for Golds Gym Maxx Personal Trainer880 Treadmill - GGTL80608.0 / GGTL806080 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | #8 X 1/2″ AB SCREW | $0.99 | ||
 | 013544 | 4 | 3/8″ X 2″ BOLT | $3.99 | ||
| 131483 | 5 | 1/4″ X 3/4″ SCREW | $1.49 | |||
 | 215482 | 6 | 3/8″ X 4″ SCREW | $6.49 | ||
| 259840 | 7 | 5/16″ X 1″ BOLT | $1.99 | |||
 | 012149 | 8 | 3/8″ LOCKNUT | $0.99 | ||
 | 163045 | 9 | 3/8″ STAR WASHER | $0.99 | ||
 | 014149 | 10 | STAR WASHER | $0.99 | ||
 | 013300 | 11 | FINGER GUARD SCREW | $0.99 | ||
 | 013322 | 12 | #8 X 3/4″ SCREW | $0.99 | ||
 | 161411 | 13 | BASE PAD SPACER | $0.99 | ||
| 257587 | 14 | Latch Bracket | NLA | |||
 | 013607 | 15 | RSW CLAMP SCREW | $0.99 | ||
| 153210 | 16 | M4.2 X 18MM SCREW | $0.99 | |||
| 013186 | 17 | 1/4″ X 1″ SCREW | $0.99 | |||
| 257728 | 18 | 5/16″ X 4 1/4″ BOLT | $5.49 | |||
| 259140 | 19 | 3/8″ X 1 1/4″ BOLT | $2.49 | |||
 | 305744 | 20 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 21 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 174320 | 22 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
 | 186819 | 24 | ELECTRONICS SCREW | $0.99 | ||
| 251606 | 25 | Foot Rail Screw | NLA | |||
| 259500 | 26 | MOTOR BOLT | $2.99 | |||
| 244582 | 27 | CUSHION STOP | NLA | |||
 | 186726 | 28 | POWER SWITCH | $22.49 | ||
| 136728 | 29 | BELT GUIDE SCREW | $0.99 | |||
| 014129 | 30 | M6 LARGE WASHER | $0.99 | |||
| 014126 | 31 | TRACK WASHER | $0.99 | |||
| 227198 | 32 | REAR ROLLER GROUND WIRE | $2.49 | |||
| 203451 | 33 | 5/16″ CAGE NUT | $3.99 | |||
| 258889 | 34 | #8 X 1 3/4″ SCREW | $0.99 | |||
| 215823 | 35 | AUDIO WIRE | $11.99 | |||
| 136012 | 36 | WALKING PLATFORM NUT | $0.99 | |||
 | 133333 | 37 | COVER CLIP | $0.99 | ||
 | 236089 | 38 | UPRIGHT WIRE | $71.49 | ||
| 200747 | 39 | GROUND WIRE | $3.49 | |||
 | 260685 | 40 | FRONT CUSHION | $24.49 | ||
| 256836 | 42 | Warning Decal | NLA | |||
| 262784 | 43 | WALKING PLATFORM CUSHION | $39.49 | |||
| 261811 | 44 | WALKING PLATFORM | $150.49 | |||
 | 263241 | 45 | OEM WALKING BELT | $119.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
| 261968 | 47 | CUSHION TRACK | $20.49 | |||
 | 251133 | 48 | FRAME SPACER | $1.49 | ||
| 258344 | 49 | Front Roller Spacer | $3.49 | |||
 | 222902 | 50 | MAG,CUST,.39X.15″ | NLA | ||
| 260686 | 51 | FRONT ROLLER/PULLEY | $151.99 | |||
| 116566 | 52 | 15 1/2″ CABLE TIE | $0.99 | |||
| 328546 | 53 | Latch Assembly | NLA | |||
 | 254305 | 58 | REAR ROLLER | $114.99 | ||
 | 257496 | 59 | Left Rear Foot | NLA | ||
| 257495 | 60 | Right Rear Foot | NLA | |||
 | 260687 | 62 | MOTOR BELT | $61.99 | ||
| 225552 | 63 | MOTOR ISOLATOR | $3.99 | |||
 | 293895 | 64 | DRIVE MOTOR | $269.99 | ||
| 240351 | 66 | ANCHORED CABLE TIE | $0.99 | |||
 | 214773 | 67 | 6″ JUMPER WIRE | $2.99 | ||
 | 031229 | 68 | POWER CORD | $39.99 | ||
 | 173169 | 69 | POWER CORD PLATE | $0.99 | ||
 | 263076 | 70 | Part # 263076 | NLA | ||
 | 165798 | 71 | REED SWITCH | $19.49 | ||
 | 131090 | 72 | CLAMP | $0.99 | ||
| 252866 | 73 | BELLY PAN | $109.49 | |||
| 257188 | 76 | Left Upright Spacer | NLA | |||
| 251437 | 77 | BASE ENDCAP | $1.49 | |||
| 257189 | 79 | Right Upright Spacer | $63.99 | |||
 | 254499 | 80 | Spacer Bolt | NLA | ||
 | 157600 | 81 | BASE PAD | $1.99 | ||
| 252433 | 82 | CAUTION DECAL, NOTE: | $0.99 | |||
| 262006 | 83 | Base | $175.49 | |||
 | 139090 | 84 | WHEEL | $2.99 | ||
| 116926 | 85 | RELEASABLE TIE | $0.99 | |||
| 016057 | 86 | 8″ CABLE TIE | $2.99 | |||
| 256037 | 87 | ACCESS DOOR | $2.99 | |||
| 235761 | 88 | HANDRAIL U-NUT | $2.49 | |||
| 255904 | 90 | TRAY | $6.99 | |||
| 262007 | 91 | Back Console | NLA | |||
| 132315 | 92 | CABLE CLAMP | $3.49 | |||
| 255891 | 93 | Console Base | NLA | |||
| 255894 | 95 | Pulse Bar Bottom | NLA | |||
| 262008 | 96 | Handrail | $25.49 | |||
| 257190 | 97 | FRONT HANDRAIL CAP | $2.99 | |||
 | 257191 | 98 | UPRIGHT CAP | $2.99 | ||
| 258408 | 99 | LEFT HANDRAIL TRIM | $1.99 | |||
 | 256957 | 100 | KEY/CLIP | $12.99 | ||
 | 215822 | 101 | 4″ WIRE | $5.99 | ||
| 273382 | 103 | iFit Card Kit | NLA | |||
| 252990 | 104 | INCLINE MOTOR SPACER | NLA | |||
| 125214 | 105 | #8 X 2″ SCREW | $0.99 | |||
| 258409 | 106 | RIGHT HANDRAIL TRIM | $1.99 | |||
| 014157 | 107 | #8 STAR WASHER | $0.99 | |||
 | 144985 | 108 | M4 X 16MM CUPPED SCREW | $0.99 |
