Proform 975S Bike – PFEX9757.0 / PFEX97570
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
36 Parts Available for Proform 975S Bike - PFEX9757.0 / PFEX97570 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 144519 | 11 | M5 X 30MM SCREW | $2.49 | |||
 | 144520 | 12 | M5 NUT | $0.99 | ||
| 127551 | 14 | M6 X 25MM BOLT | $0.99 | |||
| 144507 | 15 | BACKREST | $184.49 | |||
| 134537 | 18 | M6 X 38MM BUTTON BOLT | $5.99 | |||
| 127597 | 21 | TREE FASTENER | $1.99 | |||
| 013129 | 22 | M4 x 16mm Screw | NLA | |||
| 144380 | 24 | M6 x 16mm Screw | NLA | |||
| 144379 | 25 | M10 X 25MM SCREW,NOTE | $1.99 | |||
| 112006 | 26 | M10 LOCK WASHER | $0.99 | |||
 | 134367 | 28 | Part # 134367 | NLA | ||
 | 295560 | 31 | CRANK BEARING ASSEMBLY | $54.99 | ||
 | 012105 | 36 | M8 FLANGE NUT | $3.49 | ||
| 012111 | 39 | M6 NUT | $1.49 | |||
 | 177035 | 42A | V-PULLEY BEARING | $71.99 | ||
 | 134368 | 45 | Part # 134368 | NLA | ||
| 144524 | 46 | M10 X 52MM ZINC BTTN BOLT | $18.49 | |||
| 052012 | 47 | FRONT WHEEL | $5.99 | |||
| 141510 | 49 | FRAME ENDCAP | NLA | |||
 | 131090 | 50 | CLAMP | $0.99 | ||
| 013062 | 51 | M6 X 56MM BOLT | NLA | |||
| 014003 | 53 | 1/4″ FLAT WASHER | $0.99 | |||
| 163823 | 54 | CLAMP WASHER ASSEMBLY | $23.49 | |||
| 012009 | 55 | 1/4″ NYLON LOCKNUT | $0.99 | |||
| 106106 | 57 | RETURN SPRING | NLA | |||
| 129147 | 59 | M8 X 65MM HEX BOLT | $8.99 | |||
 | 012042 | 60 | COVER CLIP | $1.99 | ||
 | 132699 | 61 | DRIVE BELT | $54.49 | ||
 | 121642 | 62 | 1.25″ ROUND ENDCAP | $1.49 | ||
| 134278 | 64 | FRAME BUSHING | NLA | |||
 | 012142 | 66 | M6 NYLON LOCKNUT | $0.99 | ||

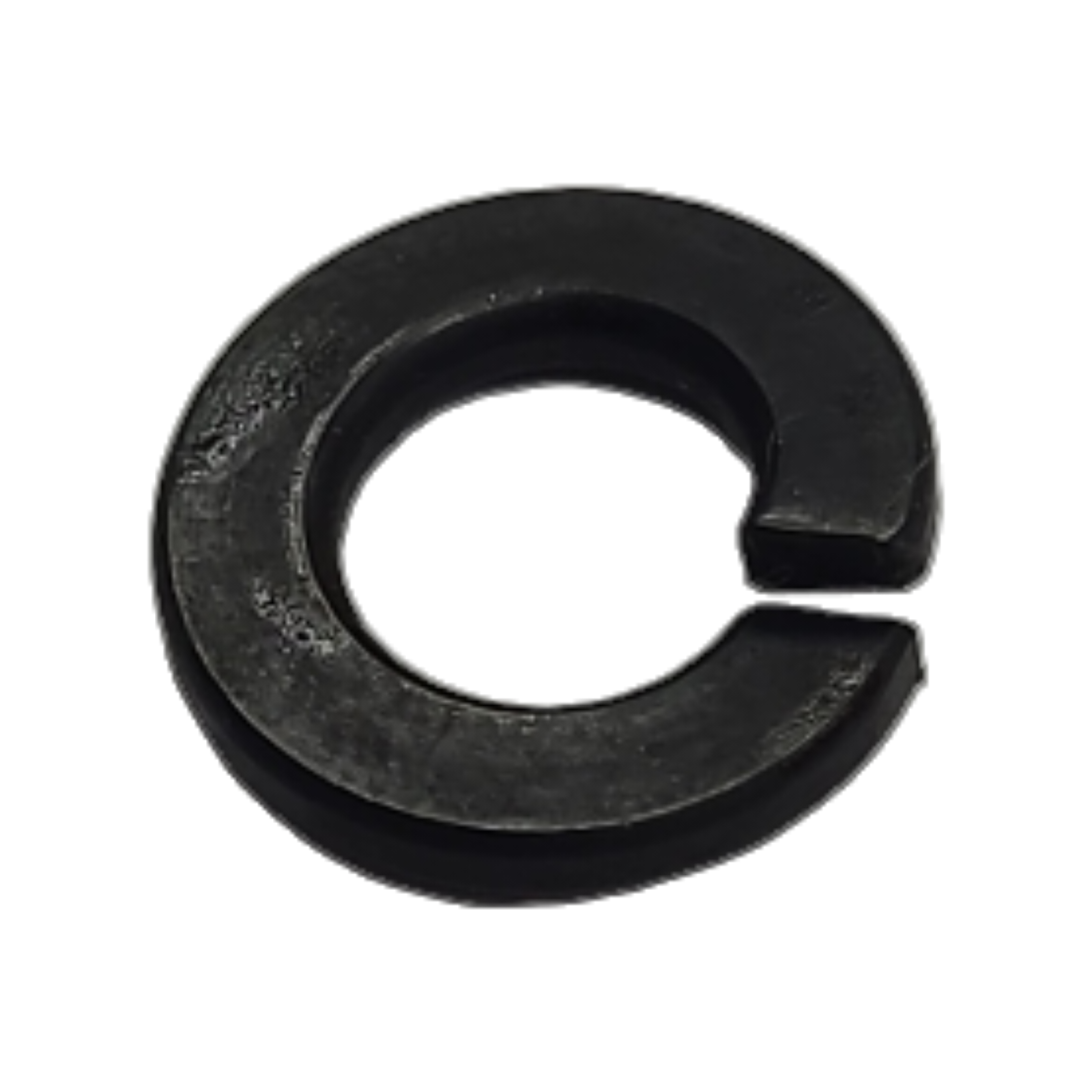

| 014126 | 67 | TRACK WASHER | $0.99 | |||
| 144378 | 70 | M10 SCREW | NLA | |||
 | 014132 | 71 | IDLER PULLEY WASHER | $0.99 | ||
 | 148710 | 72 | M10 LOCKNUT | $2.49 | ||
| 014067 | 73 | WASHER | $0.99 |
