Proform 350 Csx Bike – PFEVEX74914.1 / PFEVEX749141
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
92 Parts Available for Proform 350 Csx Bike - PFEVEX74914.1 / PFEVEX749141 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 328385 | 6 | ADJUSTMENT LEVER | $70.99 | |||
| 375574 | 7 | SEAT CARRIAGE | $176.49 | |||
| 317936 | 8 | BACKREST FRAME | $117.49 | |||
| 355575 | 9 | SEAT FRAME | $168.99 | |||
| 355660 | 10 | SEAT | $180.49 | |||
| 355659 | 11 | BACKREST | $192.99 | |||
| 355667 | 12 | Left Pedal | NLA | |||
 | 355668 | 13 | RIGHT PEDAL/STRAP | $103.99 | ||
| 373464 | 14 | HANDLEBAR | $193.49 | |||
| 383561 | 15C | MAIN WIRE EXTENSION | $50.49 | |||
| 353280 | 16 | CONSOLE COVER | $29.49 | |||
| 355587 | 17 | PIVOT BRACKET | $111.99 | |||
 | 317007 | 19 | WHEEL | $27.49 | ||
 | 251978 | 20 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 240819 | 21 | M10 X 80MM SCREW | $14.99 | |||
| 355264 | 22 | STABILIZER CAP | $14.49 | |||

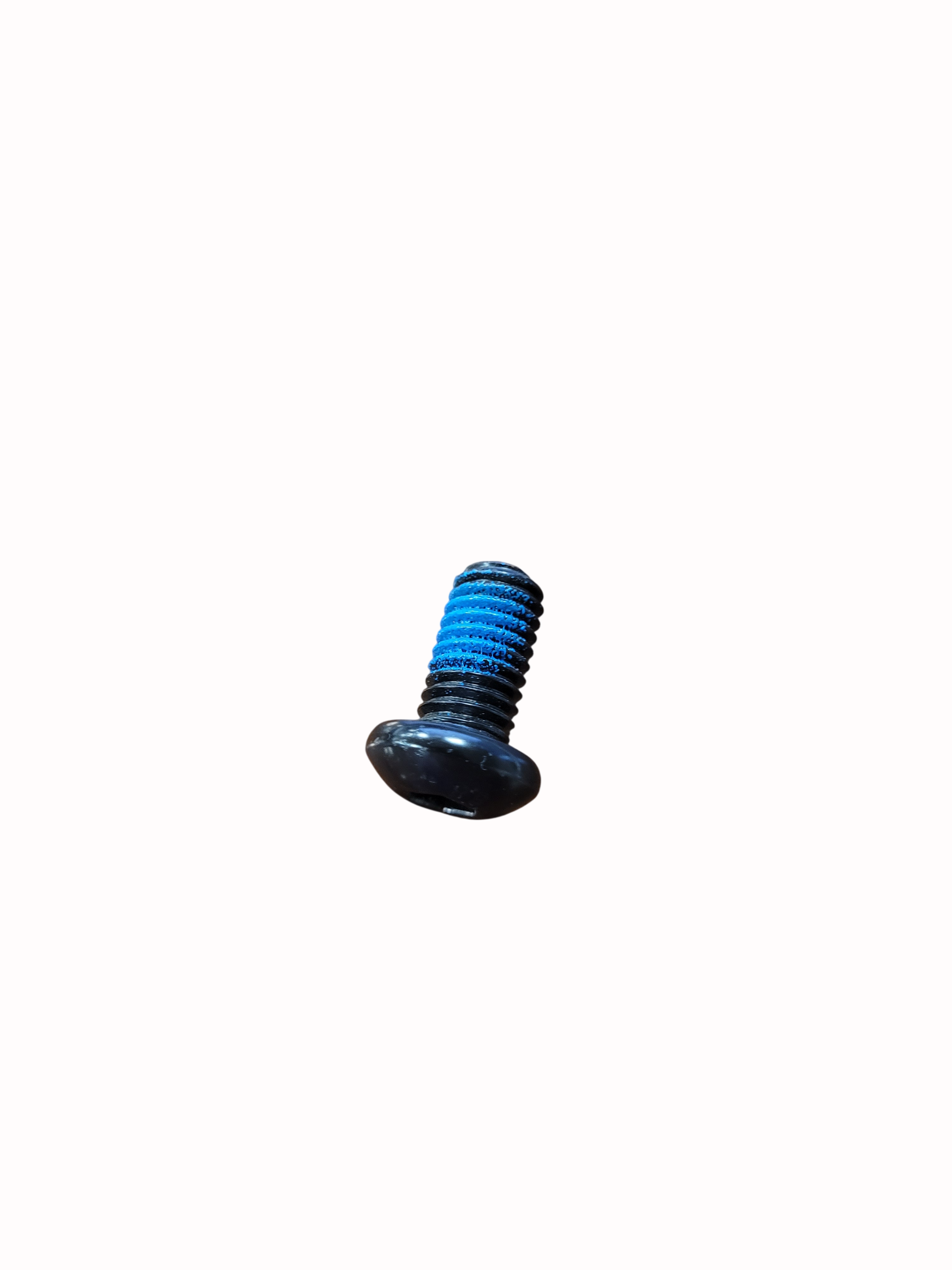

| 355564 | 24 | M8 X 15MM SCREW | $2.99 | |||
 | 333350 | 25 | M8 LOCKNUT | $1.99 | ||
| 355501 | 26 | M8 X 63MM BOLT | $11.49 | |||
| 311656 | 27 | M6 X 40MM SCREW | $12.99 | |||
| 249931 | 28A | M8 SEAT ADJ SCREW | $3.49 | |||
| 302928 | 28B | M8 SEAT FRAME SCREW | $3.49 | |||
| 355674 | 29 | HANDGRIP | $79.99 | |||
 | 186477 | 30 | ROW BAR CAP | $4.49 | ||
| 355275 | 31 | SEAT FRAME CAP | $2.99 | |||
| 355272 | 32 | BACKREST FRAME CAP | $3.99 | |||
 | 199493 | 33A | M6 X 15MM SCREW | $4.62 | ||
 | 208939 | 33B | M6 X 16MM BUTTON SCREW | $2.49 | ||
 | 014018 | 34 | M6 SPLIT WASHER | $0.99 | ||
 | 355569 | 35 | M6 WASHER | $0.99 | ||
| 318151 | 36 | BRAKE PLATE | $6.49 | |||
| 373471 | 37 | BRAKE AXLE | $124.49 | |||
 | 263599 | 38 | BRAKE PAD SPACER | $15.49 | ||
 | 373474 | 39 | BRAKE | $42.99 | ||
| 355263 | 40 | LEVER HANDLE | $17.99 | |||
| 355570 | 41 | M8 X 30MM SCREW | $4.99 | |||
| 249928 | 42A | M8 X 20MM BTTN SCRW, NOTE | $1.99 | |||
| 249930 | 42B | M8 X 20MM SCREW | $2.99 | |||
 | 174801 | 43 | 1/4″ X 1/2″ SCREW | $0.99 | ||
| 317898 | 44 | UPPER ROLLER | $19.99 | |||
| 355270 | 45 | LOWER ROLLER | $12.99 | |||
| 317905 | 46 | ROLLER AXLE | $19.99 | |||
| 355583 | 47 | CARRIAGE RAIL | $107.49 | |||
| 355267 | 48 | CARRIAGE RAIL BUMPER | $0.99 | |||
 | 195562 | 49 | M4 X 16MM SCREW | $1.99 | ||
| 355596 | 50 | PIVOT BRACKET INNER BSHNG | $8.99 | |||
| 355597 | 51 | PIVOT BRACKET OUTER BSHNG | $5.49 | |||
| 013434 | 52 | M8 X 10MM SCREW | $1.49 | |||
| 197037 | 53 | M6 X 12MM SCREW, NOTE: | $0.99 | |||
 | 373436 | 54 | PULSE SENSOR | $129.99 | ||
| 353237 | 55 | DISC | $24.49 | |||
 | 213457 | 56 | M4 X 12MM SCREW | $1.99 | ||
 | 144335 | 61 | DRIVE BELT | $89.99 | ||
| 370274 | 62A | EDDY MECHANISM | $272.99 | |||
| 355675 | 62B | RESISTANCE CABLE | $26.99 | |||
| 382231 | 62C | M6X15MM SCREW, MECH BKT | $3.99 | |||
| 355661 | 63 | IDLER | $63.99 | |||
 | 281149 | 64 | M10 X 50MM HEX SCREW | $6.49 | ||
| 354710 | 65 | M4X12MM WASHER HEAD SCREW | $0.99 | |||
 | 193223 | 66 | RESISTANCE MOTOR | $99.99 | ||
 | 113842 | 67 | MAGNET | $1.49 | ||
 | 153209 | 68 | SPINDLE COVER | $3.49 | ||
| 246701 | 69 | 5/16″ FLANGE SCREW | $5.49 | |||
| 206633 | 70 | LEFT CRANK ARM | $87.99 | |||
| 206634 | 71 | RIGHT CRANK ARM | $134.49 | |||
 | 143742 | 72 | LARGE SNAP RING | $3.99 | ||
 | 139703 | 73 | CRANK BEARING | $33.49 | ||
| 355567 | 74 | CRANK | $105.99 | |||
| 255072 | 75 | PULLEY | $91.99 | |||
| 014174 | 76 | M8 SPLIT WASHER | $1.99 | |||
 | 383558 | 77 | MAIN WIRE | $72.99 | ||
 | 170205 | 78 | REED SWITCH/WIRE | $24.99 | ||
 | 224606 | 79 | M4 X 25MM SCREW | $0.99 | ||
| 355496 | 80 | M8 X 88mm Bolt | NLA | |||
 | 131090 | 81 | REED SWITCH CLIP | $0.99 | ||
 | 348251 | 82 | POWER ADAPTER | $19.99 | ||
 | 355585 | 83A | POWER WIRE/RECEPTACLE | $25.97 | ||
 | 214003 | 83B | POWER JACK NUT | $5.49 | ||
| 355584 | 84 | Pulse Wire | NLA | |||
| 238294 | 85 | M4 X 16MM GROUND SCREW | $0.99 | |||
| 121642 | 86 | HANDRAIL TUBE CAP | $1.49 | |||
| 361996 | 87 | CHEST PULSE RECEIVER | $87.49 | |||
| 355769 | 88 | Extension Wire | $23.49 |
