Proform 290 Csr Bike – PFEX02309.0 / PFEX023090
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
85 Parts Available for Proform 290 Csr Bike - PFEX02309.0 / PFEX023090 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 263517 | 5 | Shield Cover | NLA | Unavailable to order | ||
| 287440 | 6 | RING,SDSHLD,ASSY,W/CNCTR | $34.49 | |||
| 263532 | 7 | Upright Knob | NLA | Unavailable to order | ||
| 286940 | 8A | Multi-Purpose Cushion Pad 18.5×15.91″ | $136.99 | |||
| 267019 | 8B | BACK BOARD | $27.99 | |||
| 286939 | 9 | PAD,CSHN,12.96X20.41″,MULTI | $118.49 | |||
| 267188 | 11 | HB,2 HAND,W/PULSE GRIPS | NLA | Unavailable to order | ||
 | 263599 | 12 | BRAKE PAD SPACER | $15.49 | ||
| 294301 | 13 | SDSHLD,LT,ARPS,W/DECAL | $16.49 | |||
| 294302 | 14 | SDSHLD,RT,ARPS,W/DECAL | $16.49 | |||
| 284360 | 15 | STBLZR,FT,LT,LABBK | $85.99 | |||
| 294300 | 16 | STBLZR,REAR,ARPS,W/DECAL | $18.49 | |||
| 231736 | 17 | Wheel for Fitness Equipment | $16.99 | |||
| 269300 | 18 | Upper Roller | NLA | Unavailable to order | ||
| 243756 | 19 | LEVELING FOOT | $29.49 | |||
 | 231757 | 20 | Upright Bushing | NLA | Unavailable to order | |
| 256305 | 21 | RIGHT PEDAL/STRAP | $67.99 | |||
| 256304 | 22 | LEFT PEDAL/STRAP | $67.99 | |||
| 231740 | 24 | LEFT CRANK ARM | NLA | Unavailable to order | ||
| 267014 | 25 | BRAKE BRACKET | $13.99 | |||
| 284438 | 26 | SDSHLD,LT,RR,EBONY | $96.99 | |||
| 284439 | 27 | SDSHLD,RT,RR,EBONY | $96.99 | |||
 | 143742 | 28 | SMALL SNAP RING | $3.99 | ||
| 263720 | 29 | Pulley | $61.49 | |||
 | 113842 | 30 | MAGNET | $1.49 | ||
| 243317 | 31 | CRANK | NLA | Unavailable to order | ||
 | 116014 | 32 | SMALL SPACER | $11.49 | ||
 | 139703 | 33 | FOLDING FRAME BEARING | $33.49 | ||
| 259194 | 35 | Eddy Axle with Clutch | NLA | Unavailable to order | ||
| 243654 | 36 | SEAT CARRIAGE CAP | $2.99 | |||
 | 121642 | 37 | 1.25″ ROUND ENDCAP | $1.49 | ||
 | 244245 | 38 | IDLER PULLEY | $35.49 | ||
| 241963 | 39 | IDLER | $62.49 | Unavailable to order | ||
| 284361 | 40 | STBLZR,FT,RT,LABBK | $85.99 | |||
| 267015 | 41 | SEAT LEVER | $44.99 | |||
| 243642 | 43 | Wire Harness | NLA | Unavailable to order | ||
 | 014033 | 44 | IDLER WASHER | $1.49 | ||
 | 131090 | 45 | CLAMP | $0.99 | ||
| 164675 | 46 | REED SWITCH/WIRE | $29.99 | |||
 | 211011 | 47 | DRIVE BELT | $59.99 | ||
| 243299 | 48 | Endcap for Rear Stabilizer | $15.99 | |||
 | 263596 | 49 | ADJUSTMENT HANDLE | $8.49 | ||
| 263777 | 50 | FLANGE SCREW | $64.49 | |||
| 243768 | 51 | M6 x 42mm Patch Screw | $1.49 | |||
| 261944 | 52 | M8 X 50MM BUTTON SCREW | $6.99 | |||
 | 012142 | 53 | BRACKET SPACER | $0.99 | ||
| 249929 | 54 | M8 X 16MM SCREW | $2.49 | |||
 | 014174 | 55 | M8 SPLIT WASHER | $1.99 | ||
 | 157600 | 56 | BUMPER | $1.99 | ||
 | 195562 | 57 | M4 X 16MM SCREW | $1.99 | ||
| 286670 | 59 | HB,3D,RT,W/MTG TUBE,LABBK | $58.49 | |||
| 286667 | 60 | HB,3D,LT,W/MTG TUBE,LABBK | $62.99 | |||
 | 012042 | 61 | M8 LOCKNUT | $1.99 | ||
| 231756 | 62 | M10 x 63mm Bolt Set | $4.99 | |||
| 231789 | 63 | Wheel Bushing | $3.49 | |||
 | 263595 | 64 | BRAKE PAD | $9.49 | ||
| 263572 | 65 | Frame Cover | $27.49 | |||
| 243298 | 66 | Front Stabilizer Endcap | $15.99 | |||
| 271087 | 67 | M10 X 40mm Patch Screw | $6.49 | |||
| 286933 | 68 | Part # 286933 | NLA | Unavailable to order | ||
| 238899 | 69 | M8 X 48MM BUTTON SCREW | $5.99 | |||
 | 013423 | 70 | GROUND SCREW | $0.99 | ||
| 263587 | 71 | Lower Roller | NLA | Unavailable to order | ||
| 288717 | 72 | M8-1.25x53mm Screw | $3.49 | |||
| 207684 | 73 | M6 x 20mm Button Screw | NLA | Unavailable to order | ||
| 286938 | 74 | BKT,CUP HOLDER,BKESV | $19.99 | |||
| 305287 | 75 | Roller Axle | $6.99 | |||
| 266623 | 76 | M6 X 10MM BUTTON SCREW | $0.99 | |||
 | 242710 | 77 | M6 X 18MM IDLER SCREW | $0.99 | ||
| 207685 | 78 | 3/8″ X 1 1/4″ BOLT, NOTE: | $7.99 | |||
| 263189 | 79 | 44-inch Wire Harness for HealthRider | NLA | Unavailable to order | ||
| 126942 | 80 | #8 X 3/4″ TEK SCREW, NOTE | $0.99 | |||
| 263773 | 81 | M6 x 38mm Screw | NLA | Unavailable to order | ||
 | 013162 | 82 | REED SWITCH CLAMP SCRW | $0.99 | ||
| 243587 | 83 | Endcap for Fitness Equipment Frame | $5.49 | |||

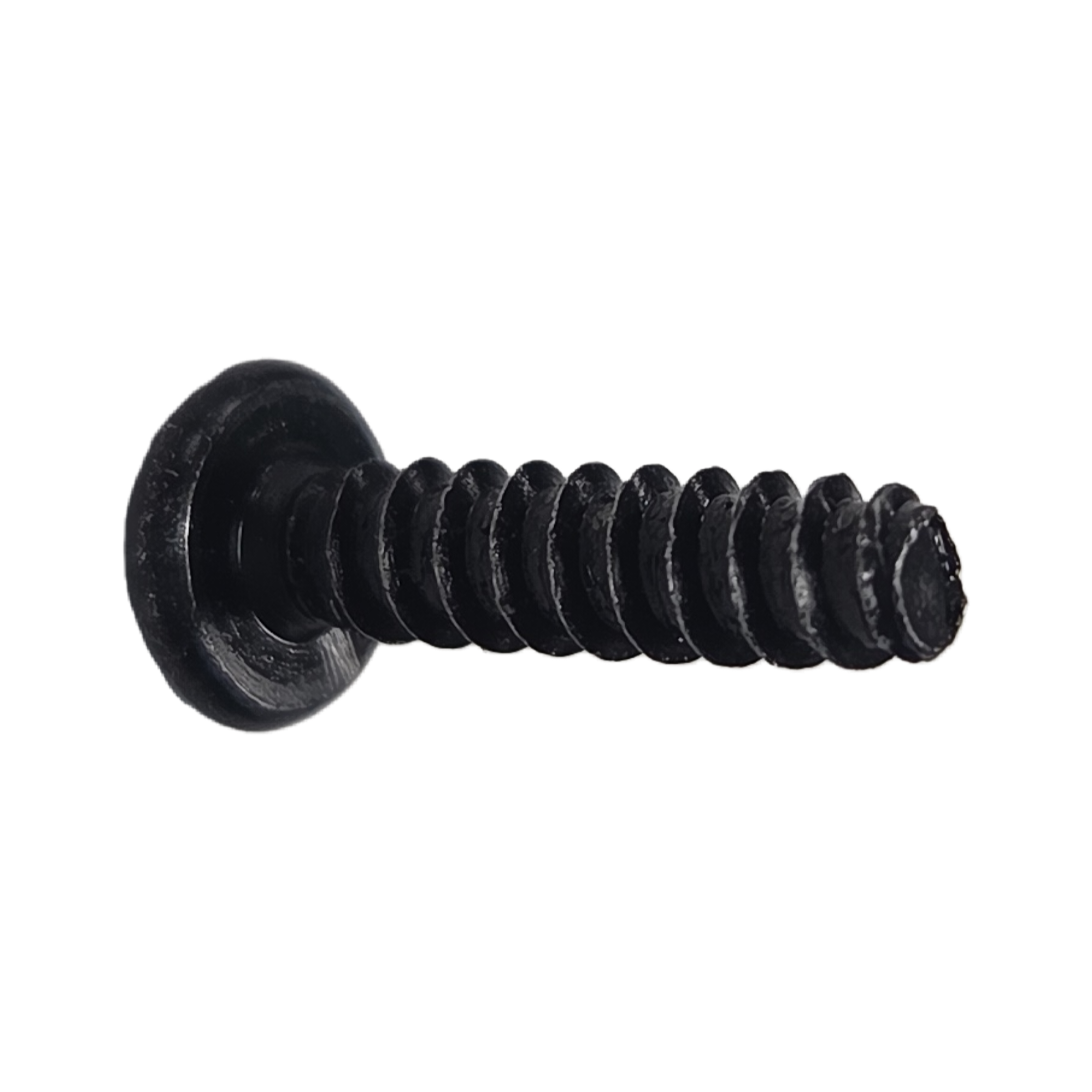

 | 250961 | 84 | M4 X 19MM SCREW | $0.99 | ||
 | 153209 | 85 | CRANK ARM CAP | $8.99 | ||
| 284362 | 86 | RAIL,SEAT,CHROME | $163.49 | |||
 | 148710 | 87 | M10 LOCKNUT | $2.49 | ||
| 215823 | 88 | AUDIO WIRE | $11.99 | |||
 | 234931 | 89 | M8 JAMNUT | $0.99 | ||
| 286671 | 90 | CVR,UPRT,RR,EBONY | $21.99 | |||
| 286672 | 91 | CVR,UPRT,FR,EBONY | $21.99 | |||
| 286924 | 92 | M4 X 8MM SCREW | $0.99 | |||
 | 248512 | 93 | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 |
