Nordictrack World Tour Cycle / Bike - NTEX05117.0 / NTEX051170

Nordictrack World Tour Cycle / Bike – NTEX05117.0 / NTEX051170

Brand: NordicTrack

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

157 Parts Available for Nordictrack World Tour Cycle / Bike - NTEX05117.0 / NTEX051170 ↓

Part #	Diagram #	Title	Price
391406	4	REAR STABILIZER	$97.99
390986	5	M6 SHOULDER SCREW	$6.49
391389	6	PIVOT CLAMP	$60.99
393594	7	TUBE,HB ADJ SLIDE,ARPS,W/DECAL	$142.99
393676	8	CONSOLE SUPPORT	$108.99
390125	9	M8-1.25X32.04 Shoulder Screw	$9.49
395875	10A	Console for NordicTrack EBNT05117	NLA
402973	10B	FAN CROSSFLOW,ARPS,W/RI	$129.49
395876	10C	ECA,REPROG,ARPS,EBNT05117	$108.49
395852	11	CONSOLE BRACKET	$68.49
234366	12	M4 X 8MM MACHINE SCREW	$1.49
393593	13	TUBE,SEAT POST,ARPS,W/DECAL	$195.99
393009	14	WEIGHT,3LB,ASSY,W/PARTS&DECALS	$138.99
390707	15	M6 CRANK SCREW	$6.49
391468	16	PULLEY	$110.49
265598	17	M4 X 14MM SCREW, WT TRAY	$0.99
279001	18	M10 X 20MM FLAT HEAD BOLT	$3.49
405008	19	ARM,CRANK,ARPS,RT,W/DECAL	NLA
390108	20	PIVOT AXLE	$40.99
405102	22	Flywheel Assembly	$461.99
390116	24	PIVOT BUSHING	$24.99
393033	25	DRIVE BELT	$44.99
407731	26	ADJUSTMENT ASSEMBLY	$40.99
392921	28	POST CLAMP	$97.99
392714	29	RIGHT BASE COVER	$29.99
396380	30	RIGHT SHIELD	$87.49
392715	31	SHIELD COVER	$19.99
396379	32	LEFT SHIELD	$87.49
392720	33	RIGHT DISC	$24.99
392711	34	RIGHT INCLINE MOTOR COVER	$43.99
392710	35	LEFT INCLINE MOTOR COVER	$43.99
393595	36	UPPER INCLINE MOTOR COVER	$24.99
392719	37	LEFT DISC	$40.99
392823	38	CVR,WGT HLDR,BLK	~~$49.51~~ $47.03
392820	39	HANDLEBAR POST CAP	$3.49
392992	41	M8 SADDLE SCREW	$3.49
404942	42	SADDLE NUT	$9.49
333510	43	CARRIAGE COVER	$8.49
399651	44	WIRE PROTECTOR	$2.49
392816	45	RIGHT SADDLE POST SLEEVE	$24.99
392815	46	LEFT SADDLE POST SLEEVE	$24.99
392817	47	RT HANDLEBAR POST SLEEVE	$24.99
392818	48	LT HANDLEBAR POST SLEEVE	$24.99
219825	49	WHEEL	$24.99
391402	50	LINK ARM	$16.99
241954	51	RSISTANCE MOTOR DISK	$1.99
404940	52	LOWER SADDLE CLAMP	$54.49
404938	53	UPPER SADDLE CLAMP	$54.49
393418	54	SEAT,SADDLE,BLK	$79.99
132315	55	WIRE TIE	$3.49
393597	56A	PEDAL SET, LT ASSY	$65.49
393598	56B	PEDAL SET, RT ASSY	$65.49
213457	57	M4 X 12MM SCREW	$1.99
393586	58A	LEFT UPPER LEG	$65.49
393587	58B	RIGHT UPPER LEG	$65.49
393588	59A	LOWER LEG LEFT	$54.49
393589	59B	LOWER LEG RIGHT	$54.49
400231	60	M4 X 8MM SCREW, NOTE:	$0.99
368057	61	M8 WASHER	$0.99
402935	62A	LEFT FORK FRONT	$194.99
402936	62B	RIGHT FORK FRONT	$194.99
390160	63	FRAME BEARING	$125.99
391477	64A	RIGHT LEG COVER	$16.99
391478	64B	LEFT LEG COVER	$16.99
331242	65	GROMMET	$6.49
392827	66	LARGE LEG BUSHING	$24.99
393592	67	CARRIAGE	$110.49
390117	68	LEG SPACER	$24.99
392826	69	SMALL LEG BUSHING	$19.99
392822	70	RIGHT GRIP	$29.99
392821	71	LEFT GRIP	$29.99
392533	72	RIGHT CONTROL	$68.49
392534	73	LEFT CONTROL	$68.49
393585	74	SHAFT COVER	$24.99
392784	75	SHAFT COVER SLEEVE	$19.99
320579	76	STABILIZER CAP	$14.49
306282	77	FOOT	$4.99
246285	78	LEVELING FOOT	$10.99
402796	79	CONTROLLER	$159.99
392991	80	CONTROLLER COVER	$24.99
013497	81	M4 X 6MM SCREW	NLA
241949	82	RESISTANCE MOTOR	$99.99
195562	83	M4 X 16MM SCREW	$1.99
354710	84	M4X12MM WASHER HEAD SCREW	$0.99
391472	85	POST KNOB CAP	$16.99
133333	86	#8 HOOD CLIP	$0.99
317332	87	INCLINE MOTOR BUSHING	$3.99
390124	88	AXLE,.472X1.789″,THRD,INT,TZP	$9.49
394812	89	INCLINE MOTOR	$304.99
391409	90	BKT,MAG,ASSY,W/MAGS	$143.49
393591	91	RT MAGNET BRACKET COVER	$19.99
393590	92	LT MAGNET BRACKET COVER	$19.99
396528	93	M8 X 12MM PATCH SCREW	$10.99
198679	94	M10 X 52MM SCREW,NOTE:	$5.99
148710	95	M10 NUT	$2.49
313601	96	M6 X 25MM SCREW	$3.49
393675	97	HANDLEBAR	$270.99
392660	98	M8 X 50MM BOLT	$3.49
333350	99	M8 LOCKNUT	$1.99
390115	100	KNOB,RND,ASSY,W/INSERT STUD	$23.49
391813	101	KNOB,RND,ASSY,W/INSERT STUD	$26.49
379071	103	M4 X 10MM SCREW, NOTE:	$3.49
391487	104	M10 CLAMP SCREW	$6.49
248334	105	M10 X 19MM SCREW	$5.49
400232	106	M8 X 83MM BOLT	$6.49
185162	107	M4 X 14MM SCREW	$1.49
387819	108	M6 WASHER	$1.49
391398	109	BRACKET MOUNT	$54.49
399561	110	MAIN WIRE	$48.99
392828	111	UPPER/LOWER PIVOT DISC	$16.99
392819	112	CENTER PIVOT DISC	$9.49
392825	113	INNER PIVOT DISC	$17.76
392829	114	OUTER PIVOT DISC	$34.99
372449	115	REED SWITCH/WIRE	$23.49
282277	116	CLAMP	$3.49
392713	117	LEFT BASE COVER	$29.99
264511	118	POWER SWITCH	$32.99
313668	119	POWER CORD GROMMET	$9.49
393479	120	POWER CORD	$68.49
398550	121	SHOE PIN	$9.49
398299	122	LOWER WIRE	$43.99
398346	123	EXTNSN WIRE,YLW CONNECTOR	$23.99
398300	124	UPPER WIRE,RED CONNECTOR	$68.49
204488	126	M8 X 12MM SCREW	$3.49
223812	127	M8 WASHER	$1.99
150327	128	M5 NUT	$1.99

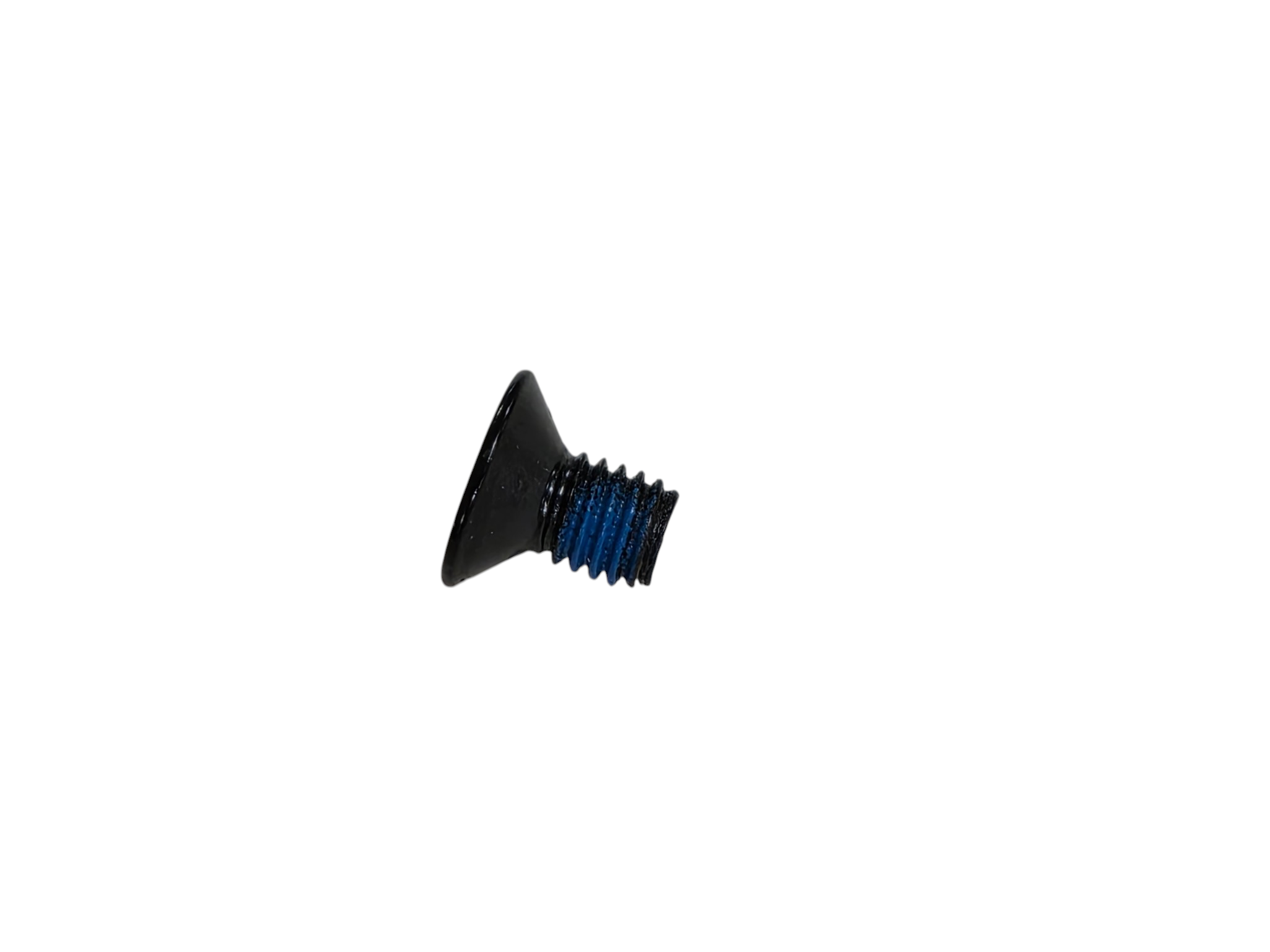

404736	129	M5 X 8MM SCREW	$3.49
256183	130	M3 X 8MM SCREW,NOTE:	$1.49
392785	131	ADJUSTMENT BLOCK	$16.99

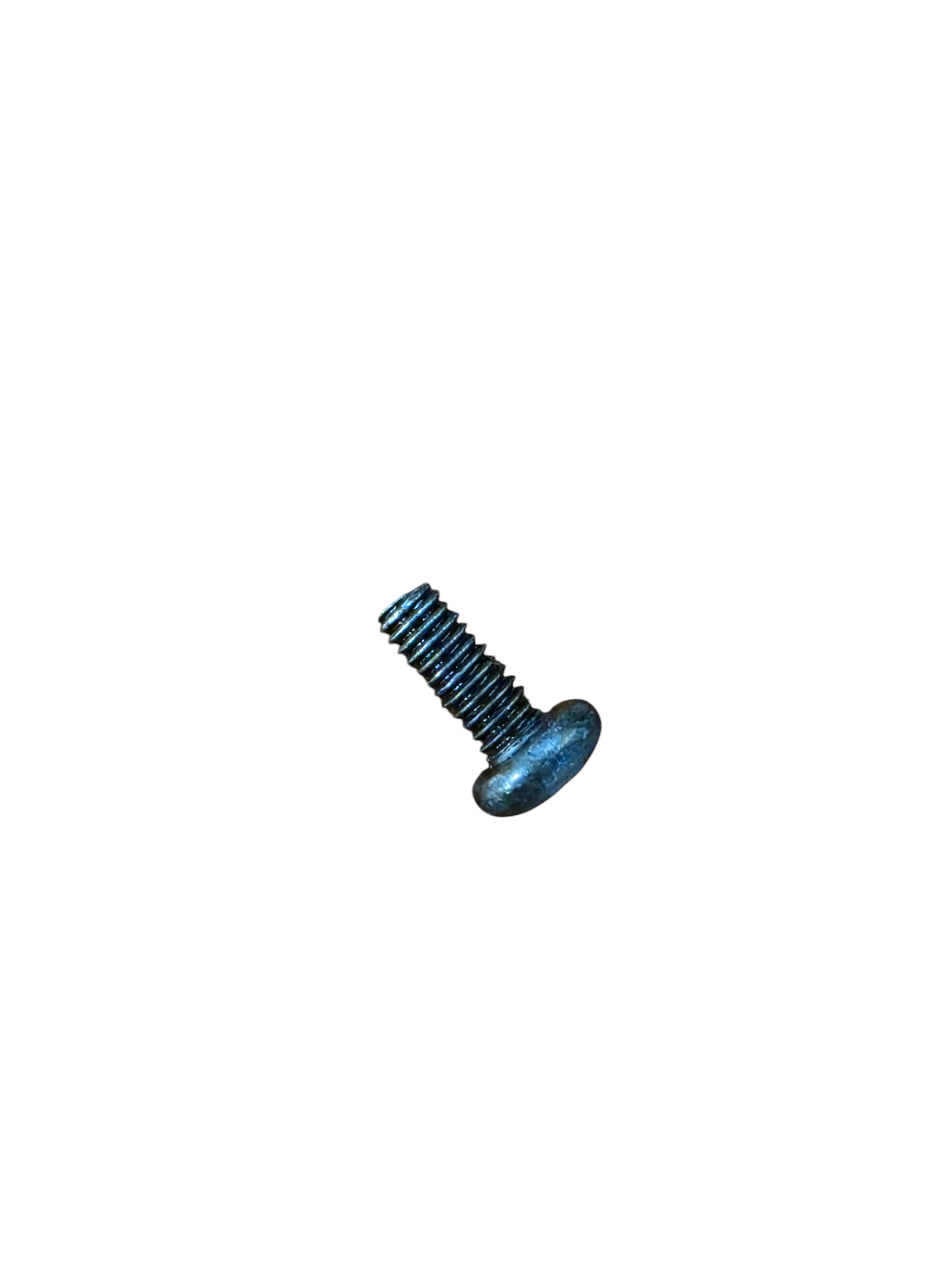

234926	132	M4 X 10MM BLUNT SCREW	$2.99
194878	133	M4 X 19MM SCREW	$2.99
395580	134	PLASTIC SPACER	$3.49
113842	137	MAGNET	$1.49
373267	138	M6 X 12MM HEX SCREW	$0.99
222439	139	THRUST WASHER	$2.49
400931	140	Adjustable Resistance Knob with Decal	$6.49
012142	141	M6 LOCKNUT	$0.99
400927	142	BRAKE KNOB W/CVR & DECAL	$16.99
400631	143A	UPPER BRAKE BUSHING	$3.49
398668	143B	LOWER BRAKE BUSHING	$3.49
398666	144	SPRING STOP	$3.49
398554	145	Compression Spring 2.5X.6X.059″ TZP	$6.49
398734	146	M4 X 6MM SCREW	$0.99
398676	147	BRAKE SHAFT	$52.49
398669	148	ROLL PIN	$0.99
348640	149	E-RING	$0.99
398671	150	BRAKE SHOE	$29.99
251429	151	M4 X 12MM	$0.99
392929	TS11	CONTROL WIRE	$27.49
393239	TS18	31″ WIRE HRNS	$29.99
101896	TS4	4″ WHITE WIRE, M/F	$3.49
393478	TS5	14″ BLUE WIRE, F-FLG	$23.49
214773	TS6	CONTROLLER GROUND WIRE	$2.99
324878	TS7	20″ WIRE HRNS,RESIST MTR	$19.49
404749	TS8	34″ WIRE HARNESS,REVERSED	$48.99
