Nordictrack Vx 650 Bike - NTIVEX59016.0 / NTIVEX590160

Nordictrack Vx 650 Bike – NTIVEX59016.0 / NTIVEX590160

Brand: NordicTrack

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

74 Parts Available for Nordictrack Vx 650 Bike - NTIVEX59016.0 / NTIVEX590160 ↓

Part #	Diagram #	Title	Price
387265	1	CNSL,EBNI59016,ARPS,PROG	Contact for Pricing
355584	4	Pulse Wire	Contact for Pricing
387135	5	GRIP,PULSE,ASSY,L/R	Contact for Pricing
387113	6	CNSLPLATE,143x135x3MM,BLK	Contact for Pricing
353058	7	UPPER WIRE	$61.99
380825	8	M4 X 16MM COVER SCREW	$2.49
387125	9	CVR,UPRT,FR,BASE,BLK	Contact for Pricing
387374	10	M4 X 15MM MACHINE SCREW	$1.49
387126	11	CVR,UPRT,RR,BASE,BLK	Contact for Pricing
387333	12	SCREW,UNION SET,ASSY,BPO	Contact for Pricing
387141	13	KNOB,ADJ,CNSL PVT,BLK	Contact for Pricing
387335	14	WSHR,SPRNG,BPO,10X15X.5MM	Contact for Pricing
387266	16	UPRT,CNSL,ARPS,W/DECAL	Contact for Pricing
363625	17	M8 X 19MM WASHER	$0.99
014174	18	M8 SPLIT WASHER	$1.99
223089	19	M8 X 15MM SCREW	$6.99
387270	20	CVR,SDSHLD,ARPS,FR,W/DECAL	Contact for Pricing
388212	21	WIRE,HRNS,30″	Contact for Pricing
220148	22	M5 X 20MM SCREW	$1.49
372087	24	REED SWITCH/WIRE	$23.49
387143	25	KNOB,ADJ,SEAT,HRZNTL,BLK	Contact for Pricing
387129	26	BSHG,PLSTC,1.988X2.224X6.024″	Contact for Pricing
387110	27	TUBE,SEAT POST,W/CRG,ULTSV	Contact for Pricing
387130	28	ENDCAP,OVAL,60V30X39.125MM,BLK	Contact for Pricing
387111	31	BKT,SEAT MTG,ULTSV	Contact for Pricing
383026	32	SEAT,SADDLE,MULTI	Contact for Pricing
310631	33	M10 x 45mm Carriage Bolt	$8.49
387336	34	WSHR,FLAT,BPO,M10X25X3MM	Contact for Pricing
387142	35	KNOB,ADJ,SEAT,VERTICAL,BLK	Contact for Pricing
387271	36	PEDAL,LT,ARPS,W/DECAL	Contact for Pricing
387272	37	PEDAL,RT,ARPS,W/DECAL	Contact for Pricing
390153	38	SCREW,HWHMS,CSTM,BPO,M8-1.25	Contact for Pricing
387138	39A	ARM,CRANK,LT,BLK	Contact for Pricing
387139	39B	ARM,CRANK,RT,BLK	Contact for Pricing
387334	40	SCREW,PHRHMS,BPO,M5-.8X8MM	Contact for Pricing
390150	41	FSTNR,DBL X-MAS TREE	Contact for Pricing
387116	42	CVR,SDSHLD,LWR RR,PSWET	Contact for Pricing
387268	43	SDSHLD,LT,ARPS,W/DECAL	Contact for Pricing
387269	44	SDSHLD,RT,ARPS,W/DECAL	Contact for Pricing
390156	45	RTNR,C-CLIP,15MM	Contact for Pricing
390154	46	WSHR,FLAT,???,M17X22X1	Contact for Pricing
259192	47	MAIN BEARING	$23.49
387127	48	CVR,MECH BOLT,BLK	Contact for Pricing
339153	49	M10 FLANGE NUT	$0.99
247752	50	U-BRACKET	$4.49

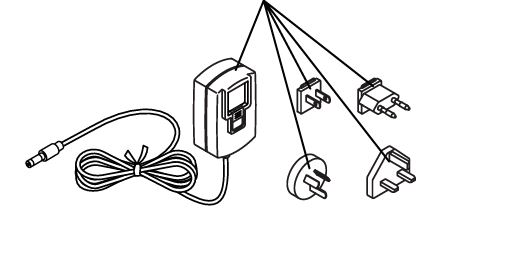

345526	52	PWR ADPTR,EUROPE & UK	$78.99
387122	53	FOOT,ADJUSTABLE,BLK	Contact for Pricing
387112	54	STBLZR,RR,BLK	Contact for Pricing
233736	55	M8 X 55MM BOLT	$8.99
316448	56A	RECEPTACLE/WIRE	$40.99	Unavailable to order
214003	56B	POWER JACK NUT	$5.49
387155	57	TCD,NO MECH,RESIST MTR	Contact for Pricing
387131	58	MECH,EDDY,ASSY,292MM,32MM PULY	Contact for Pricing
387117	59	FOOT,W/WHL,RT,BLK	Contact for Pricing
246786	60	M5 X 14MM SCREW	$1.99
333350	61	M8 LOCKNUT	$1.99
387343	62	WSHR,FLAT,BPO,M8X24X2MM	Contact for Pricing
387134	63	SPRNG,EXTNSN,138X16MM	Contact for Pricing
387133	64	PULY,IDLER,ASSY	Contact for Pricing
249928	65	M8X20MM SCREW,RAMP WHEELS	$1.99
387124	66	CVR,CRANK BOLT,BLK	Contact for Pricing
387140	67	CLAMP,RSW	Contact for Pricing
292368	68	#8 X 1″ SCREW	$1.99
213148	69	22MM X 16MM WAVE WASHER	$6.49
390155	70	WSHR,FLAT,???,M17.5X22X.5	Contact for Pricing
387132	71	PULY,V6,17X232X19MM,W/MAGS	Contact for Pricing
387137	72	AXLE,CRANK,WLDMNT,W/PLATE	Contact for Pricing
310434	73	M8 X 12MM SCREW	$2.49
387154	74	BELT,V6,STD,15.748″L,J-SEC	Contact for Pricing
387123	75	FOOT,W/WHL,LT,BLK	Contact for Pricing
387260	76	STBLZR,FR,BLK	Contact for Pricing
372664	77	TABLET HOLDER	$96.99	Unavailable to order
012111	79	M6 NUT	$1.49
113842	80	MAGNET	$1.49
