Nordictrack Grand Tour Bike – NTEX71017.1 / NTEX710171
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
125 Parts Available for Nordictrack Grand Tour Bike - NTEX71017.1 / NTEX710171 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 383873 | 1 | BASE | $272.99 | |||
| 376096 | 4 | SEAT CARRIAGE | $105.99 | |||
| 367918 | 5 | SEAT | $199.99 | |||
| 376515 | 6 | HANDLEBAR POST | $184.99 | |||
| 376065 | 7 | HANDLEBAR | $192.49 | |||
| 375573 | 8 | WATER BOTTLE HOLDER | $63.49 | |||
| 401538 | 9A | CONSOLE (RESET CNSL) | $418.22 | |||
| 397217 | 9B | CNSL REPROG THUMB DRIVE | $106.99 | |||
 | 398534 | 10 | TABLET HOLDER | $107.49 | ||
| 376508 | 11 | LEFT SHIELD | $129.49 | |||
| 376509 | 12 | RIGHT SHIELD | $129.49 | |||
| 376510 | 13 | ACCESS COVER | $44.49 | |||
| 376175 | 14 | RIGHT MECHANISM SHIELD | $73.99 | |||
| 397516 | 15 | HAND WEIGHT | $185.99 | |||
| 376513 | 16 | RIGHT MOTOR COVER | $54.49 | |||
| 376514 | 17 | LEFT MOTOR COVER | $58.99 | |||
| 376180 | 18 | SHIELD DISC | $120.99 | |||
| 376176 | 19 | RIGHT SHIELD RING | $62.99 | |||
| 376327 | 20 | RIGHT PIVOT COVER | $34.99 | |||
| 383905 | 21A | RIGHT PIVOT CAP | $43.99 | |||
| 383904 | 21B | LEFT PIVOT CAP | $43.99 | |||
| 376089 | 22 | FRONT STABILIZER | $138.49 | |||
| 320579 | 24 | STABILIZER CAP | $14.49 | |||
 | 190983 | 25 | LEVELING FOOT | $32.49 | ||
 | 157600 | 26 | BUMPER | $1.99 | ||
| 228682 | 27 | REAR WHEEL | $50.99 | |||
| 299259 | 28 | SEAT CARRIAGE CAP | $3.49 | |||
 | 176994 | 29 | ADJUSTMENT KNOB | $46.49 | ||
| 386618 | 30 | LIFT MOTOR | $176.49 | |||
 | 193223 | 31 | RESISTANCE MOTOR | $99.99 | ||
| 376489 | 32 | WIRE COVER | $12.99 | |||
| 397178 | 33 | CONSOLE BRACKET | $104.49 | |||
 | 362430 | 34A | M4 X 16MM SCREW | $3.49 | ||
 | 195562 | 34B | M4 X 16MM SCREW | $1.99 | ||
 | 372087 | 35 | REED SWITCH/WIRE | $23.49 | ||
| 360225 | 36 | CLAMP,RSW,BLK | NLA | |||

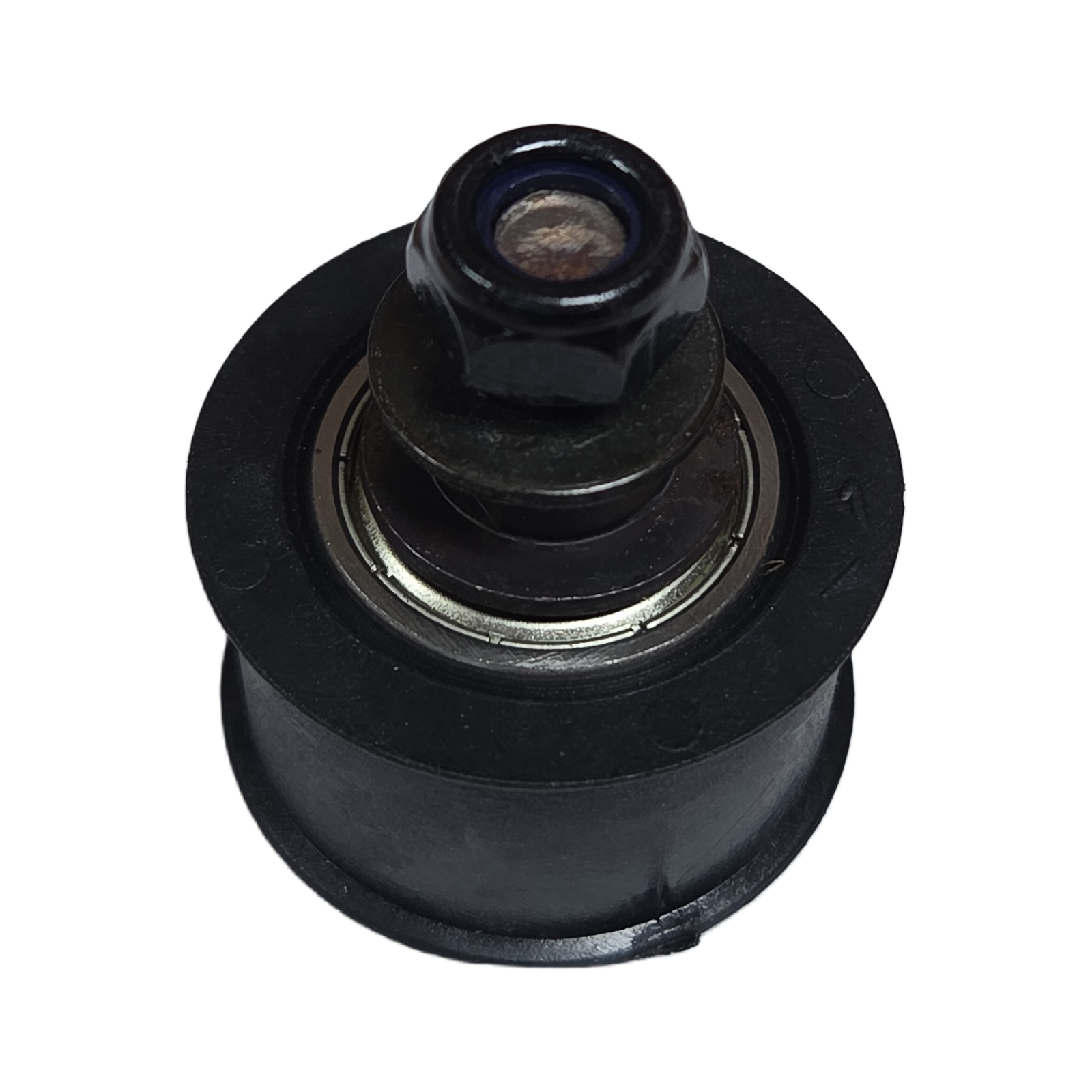

| 381248 | 37 | IDLER PULLEY | $84.99 | |||
| 379073 | 38 | M4 X 25MM SCREW | $0.99 | |||
| 208527 | 39 | STOP BOLT | $3.49 | |||
| 376295 | 40A | EDDY MECHANISM | $267.49 | |||
| 402679 | 40B | FIXKIT,TENSION CABLE | $30.99 | |||
| 402376 | 40C | SPACER,EDDY MECH | $1.49 | |||
| 378126 | 40D | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
| 376418 | 41 | MECHANISM RING | $65.49 | |||
| 376058 | 42 | POST BUSHING | $72.49 | |||
| 376174 | 43 | LEFT MECHANISM SHIELD | $76.49 | |||
| 376177 | 44 | LEFT SHIELD RING | $62.99 | |||
| 014174 | 45 | M8 SPLIT WASHER | $1.99 | |||
| 376328 | 46 | LEFT PIVOT COVER | $34.99 | |||
| 359256 | 47 | POST KNOB | $42.49 | |||
 | 264511 | 48 | POWER SWITCH | $32.99 | ||
 | 313668 | 49 | POWER CORD GROMMET | $9.49 | ||
| 377062 | 50 | CONTROLLER | $177.49 | |||
| 376544 | 51 | BOARD BRACKET | $27.49 | |||
 | 125819 | 52 | PLASTIC STAND-OFF | $3.99 | ||
| 259618 | 53 | PULLEY | $130.99 | |||
| 376092 | 54 | CRANK | $87.49 | |||
 | 113842 | 55 | MAGNET | $1.49 | ||
| 249929 | 56 | M8 X 16MM PATCH SCREW | $2.49 | |||
 | 139703 | 57 | CRANK BEARING | $33.49 | ||
 | 143742 | 58 | LARGE SNAP RING | $3.99 | ||
| 356559 | 59 | FRAME BUSHING | $16.99 | |||
| 368880 | 60 | PIVOT AXLE | $87.49 | |||
| 376539 | 61 | LEFT PEDAL/STRAP | $100.49 | |||
| 376540 | 62 | RIGHT PEDAL/STRAP | $100.49 | |||
| 206633 | 63 | LEFT CRANK ARM | $87.99 | |||
| 206634 | 64 | RIGHT CRANK ARM | $134.49 | |||
 | 153209 | 65 | SPINDLE COVER | $3.49 | ||

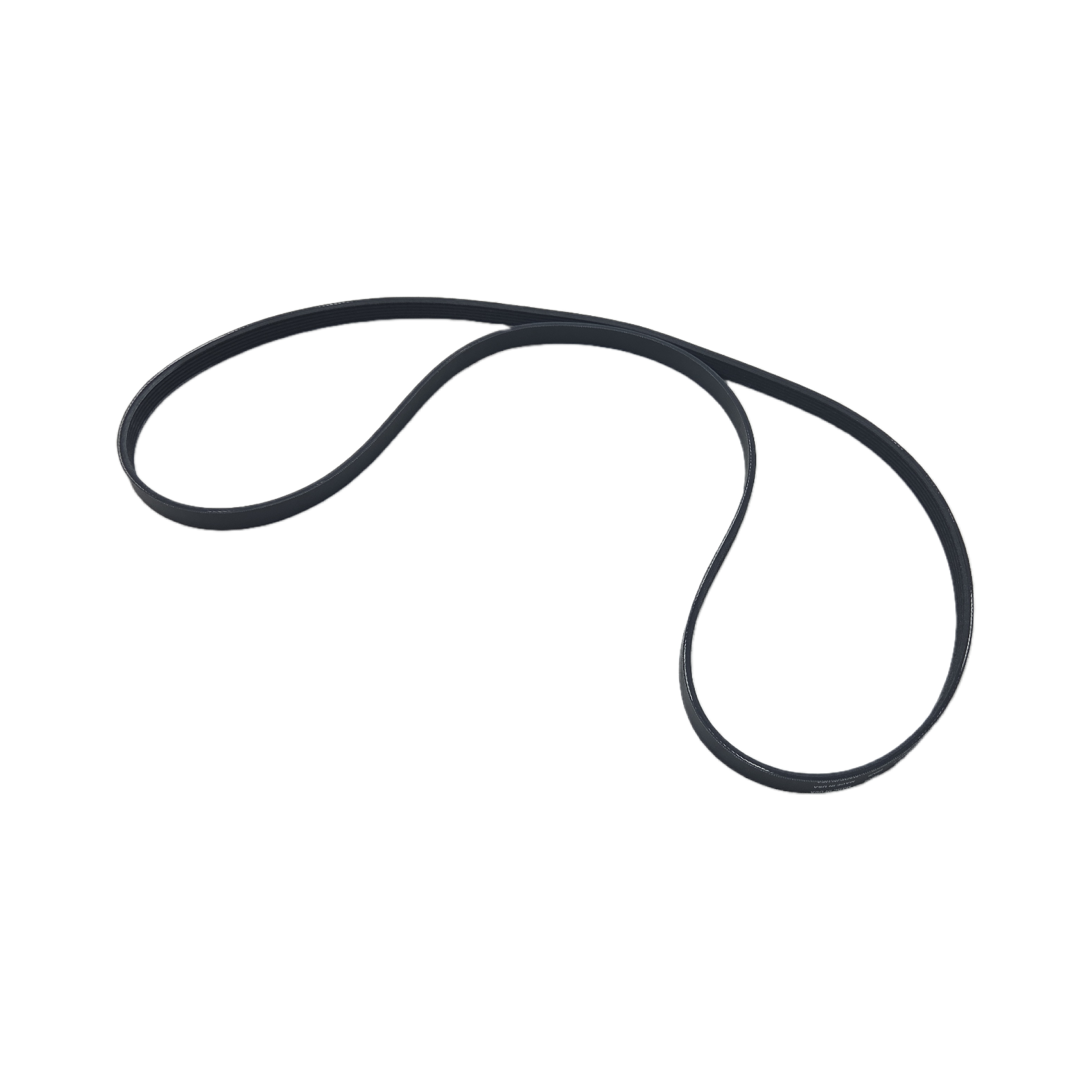

| 334323 | 66 | DRIVE BELT | $89.49 | |||
 | 342275 | 67 | POWER CORD | $49.99 | ||
| 399561 | 68 | MAIN WIRE | $48.99 | |||
| 376101 | 69 | LEFT ARMREST | $61.49 | |||
| 397215 | 70A | LEFT GRIP | $91.49 | |||
| 377998 | 70B | LEFT GRIP WIRE | $23.99 | |||
 | 012142 | 71 | M6 NYLON LOCKNUT | $0.99 | ||
| 376100 | 72 | RIGHT ARMREST | $61.49 | |||
| 380123 | 73 | M8 X 90MM SCREW | $11.49 | |||
| 163979 | 74 | M10 X 58MM SCREW | $7.49 | |||
| 240451 | 75 | M8 X 50MM BOLT | $0.99 | |||
| 362412 | 76 | M5 X 16MM SCREW | $1.49 | |||
| 380152 | 77 | M10 X 62MM BOLT | $21.99 | |||
| 246701 | 78 | 5/16″ FLANGE SCREW | $5.49 | |||
 | 204488 | 79 | M8 X 12MM SCREW | $3.49 | ||
 | 333350 | 80 | M8 DECK MTG LOCKNUT | $1.99 | ||
| 397216 | 81A | RIGHT GRIP | $91.49 | |||
| 377997 | 81B | RIGHT GRIP WIRE | $23.99 | |||
| 184369 | 82 | TABLET HOLDER SCREW | $0.99 | |||
| 376099 | 83 | HAND WEIGHT REST | $22.99 | |||
| 229817 | 84 | WHEEL SPACER | $24.49 | |||
| 203289 | 86 | #8X3/8″ SCRW,BATTERY DOOR | $0.99 | |||
| 376105 | 87 | LARGE MOTOR BUSHING | $2.49 | |||
| 260541 | 88 | M4 X 50MM SCREW | $1.99 | |||
| 250181 | 89 | BRIGHT M4X16MM BTTN SCREW | $0.99 | |||
| 380153 | 90 | M6 X 41MM SCREW | $7.99 | |||
| 379070 | 91 | M4 X 6MM SCREW | $0.99 | |||
| 286924 | 92A | 1/4″ ISLTR SCRW, | $0.99 | |||
| 379071 | 92B | M4 X 10MM SCREW, NOTE: | $3.49 | |||
 | 213457 | 93 | M4 X 12MM SCREW | $1.99 | ||
| 273353 | 94 | M4 X 38MM SCREW | $0.99 | |||
| 377818 | 95 | HANDLEBAR KNOB | $59.49 | |||
| 379072 | 96 | M4X12MM FLNG SCREW, NOTE: | $0.99 | |||
| 374449 | 97A | BRAKE PAD/LOCK | $10.99 | |||
| 374447 | 97B | BRAKE PAD SKID PLATE | $3.49 | |||
| 376093 | 98 | SMALL MOTOR BUSHING | $1.99 | |||
| 376103 | 99 | HANDLEBAR CARRIAGE | $80.99 | |||
 | 148710 | 100 | M10 LOCKNUT | $2.49 | ||
| 374572 | 102 | HANDLEBAR CARRIAGE CAP | $7.99 | |||
| 381392 | 103 | M6 X 20MM SCREW | $4.99 | |||
| 380106 | 104 | 38MM WASHER | $5.99 | |||
| 235235 | 105 | M4 X 16MM FLANGE SCREW | $0.99 | |||
 | 276104 | 106 | #8 X 5/8″ MACHINE SCREW | $0.99 | ||
 | 208939 | 107 | M6 X 16MM BUTTON SCREW | $1.99 | ||
| 254875 | 108 | M4 X 45MM SCREW | $1.99 | |||
| 381391 | 109 | M8 X 22MM WASHER | $1.99 | |||
 | 013576 | 110 | M4 X 16MM FLAT HEAD SCREW | $0.99 | ||
 | 215822 | 111 | 4″ GREEN WIRE, M/RING | $5.99 | ||
| 153325 | TS18 | 24″ GREEN WIRE, M/R | $6.99 | |||
| 382851 | TS19 | 32″ WIRE HRNS | $23.99 | |||
| 379249 | TS21 | 4″ BLACK WIRE, F/M | $23.49 | |||
| 163251 | TS4 | 10″ WHITE WIRE | $4.99 | |||
| 378690 | TS5 | 16″ BLUE WIRE, F/F | $26.49 | |||
 | 214773 | TS6 | CONTROLLER GROUND WIRE | $2.99 | ||
| 380370 | TS7 | 8″ WHITE WIRE | $24.99 | |||
| 386357 | TS8 | 32″ WIRE HRNS | $24.99 |
