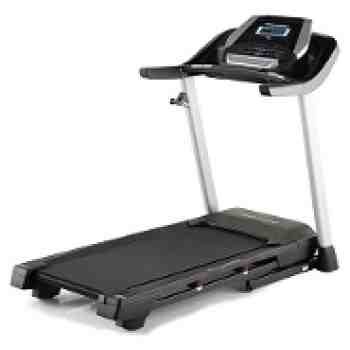

Proform 520 Treadmill – PFTL1004.1 / PFTL10041
47 Parts Available for Proform 520 Treadmill - PFTL1004.1 / PFTL10041 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 119994 | 1 | 3/8″ X 1 1/4″ SCREW | $2.99 | |||
 | 119038 | 4 | KEY/CLIP | $5.49 | ||
| 111869 | 6 | CAGE NUT | $2.99 | |||
| 013141 | 8 | BASE MOUNTING SCREW | $0.99 | |||
| 119946 | 10 | PULSE/CLOTHES CLIP | $88.99 | |||
| 112609 | 17 | FRONT ROLLER ADJUST BOLT | $0.99 | |||
| 014127 | 18 | ADJUSTMENT WASHER | $0.99 | |||
 | 014132 | 19 | 3/8″ BLACK WASHER | $0.99 | ||
| 112001 | 20 | 3/8″ X 3″ HEX BOLT | $2.49 | |||
 | 013162 | 21 | BELLYPAN SCREW | $0.99 | ||
| 108080 | 24 | SCREW | $0.99 | |||
 | 109382 | 30 | CIRCUIT BREAKER | $15.99 | ||
 | 031229 | 32 | POWER CORD | $39.99 | ||
| 117806 | 33 | Incline Wheel Bolt | NLA | |||
 | 012056 | 38 | NUT | $0.99 | ||
| 013547 | 39 | MOTOR TENSION BOLT | $0.99 | |||
 | 012149 | 40 | 3/8″ JAM NUT | $0.99 | ||
| 014157 | 43 | #8 STAR WASHER | $0.99 | |||
 | 125819 | 44 | PLASTIC STAND-OFF | $3.99 | ||
| 130471 | 48 | WALKING BELT W/NAILS | $112.99 | |||
| 012152 | 49 | #8 NUT | $0.99 | |||
 | 102955 | 50 | PHOTO SWITCH | $15.49 | ||
| 102959 | 51 | #8X3/4″ SCREW,FRAME GRNDS | $0.99 | |||
| 109370 | 52 | OPTIC DISK | NLA | |||
| 119375 | 54 | INCLINE MOTOR BOLT | $0.99 | |||
| 135713 | 55 | Lift Motor | NLA | |||
 | 013322 | 58 | #8 X 3/4″ SCREW | $0.99 | ||
 | 105444 | 62 | SHORT ADJUSTMENT BOLT | $0.99 | ||
| 016029 | 63 | 4″ CABLE TIE | NLA | |||
| 016057 | 64 | 8″ CABLE TIE | $2.99 | |||
| 116927 | 65 | CABLE TIE CLAMP | $0.99 | |||
| 016028 | 68 | TOOL CLAMP | NLA | |||
| 119779 | 71 | Platform Screw | NLA | |||
| 107503 | 74 | Motor Bolt | NLA | |||
| 120867 | 75 | MOTOR TENSION NUT | $2.49 | |||
| 113278 | 77 | Flywheel | NLA | |||
 | 220769 | 78 | MOTOR BELT | $17.99 | ||
| 123385 | 79 | MOTOR BOLT | $2.99 | |||
| 119070 | 81 | Speed Disk | NLA | |||
| 105477 | 84 | FLANGE NUT | $0.99 | |||
| 120866 | 89 | SMALL SCREW | $0.99 | |||
| 109520 | 90 | 6″ CABLE LOOM | $4.99 | |||
| 045017 | 91 | 7/32″ WRENCH | $2.99 | |||
| 116926 | 92 | RELEASABLE CABLE TIE | $0.99 | |||
| 014086 | 93 | UPRIGHT WASHER | $0.99 | |||
 | 014117 | 94 | STAR WASHER | $0.99 | ||
| 122812 | 97 | MOTOR TENSION WASHER | $0.99 |
