Proform 485 P Elliptical – PFEVEL2483.0 / PFEVEL24830
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
46 Parts Available for Proform 485 P Elliptical - PFEVEL2483.0 / PFEVEL24830 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 200640 | 4 | RIGHT SIDESHIELD | $175.49 | |||
| 200635 | 6 | Left Handlebar | $45.49 | |||
| 200627 | 9 | REAR STABILIZER | $51.49 | |||
| 200632 | 10 | FRONT STABILIZER | $51.49 | |||
| 200629 | 12 | RIGHT PEDAL ARM | $31.99 | |||
| 200655 | 13 | LEFT PEDAL | $54.49 | |||
| 200631 | 18 | SIDESHIELD BRACKET | $8.49 | |||
 | 158068 | 19 | DRIVE BELT | $64.99 | ||
| 174916 | 20 | Rear Endcap | NLA | Unavailable to order | ||
 | 197610 | 24 | Foam Grip | NLA | Unavailable to order | |
| 181908 | 25 | IDLER ARM | $69.99 | |||
| 166332 | 29 | Battery Cover | NLA | Unavailable to order | ||
 | 143742 | 30 | SMALL SNAP RING | $3.99 | ||

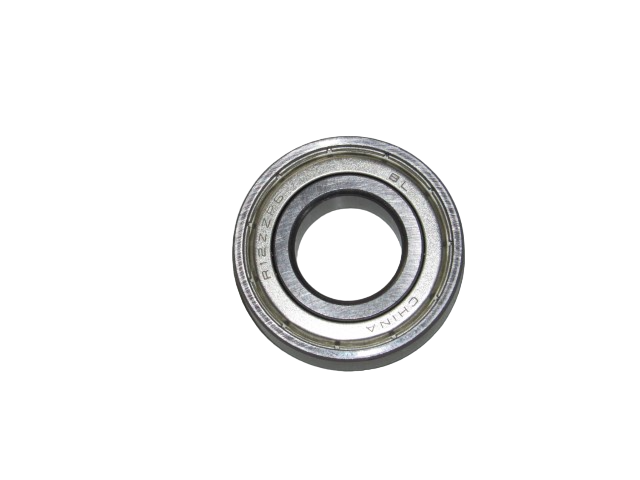

 | 139703 | 31 | FOLDING FRAME BEARING | $33.49 | ||
| 176348 | 32 | Pedal Axle | NLA | Unavailable to order | ||
 | 148710 | 33 | M10 LOCKNUT | $2.49 | ||
| 144995 | 34 | M10 X 75MM CARRIAGE BOLT | $20.99 | |||
| 126942 | 36 | #8 X 3/4″ TEK SCREW, NOTE | $0.99 | |||
| 177551 | 37 | PEDAL ARM BUSHING | NLA | Unavailable to order | ||
 | 012042 | 38 | M8 LOCKNUT | $1.99 | ||
| 195929 | 39 | Large Flywheel Washer | NLA | Unavailable to order | ||
| 181791 | 40 | Pedal Arm Bolt Set | NLA | Unavailable to order | ||
| 181787 | 41 | M6 X 72MM BOLT | NLA | Unavailable to order | ||
 | 130853 | 42 | #8 X 1/2″ SCREW | $0.99 | ||
| 200630 | 46 | HANDLEBAR CAP | $14.99 | |||
| 200636 | 48 | FRAME SPACER | $11.49 | |||
 | 256295 | 49 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 153770 | 50 | M8 X 45MM BUTTON SCREW | $14.49 | |||
| 206677 | 51 | M6 X 25MM BUTTON SCREW | $0.99 | |||
 | 195562 | 52 | M4 X 16MM SCREW | $1.99 | ||
 | 131090 | 54 | CLAMP | $0.99 | ||
 | 177515 | 55 | M10 WASHER | $0.99 | ||
| 200259 | 56 | M8 X 19mm Shoulder Screw | $5.49 | |||
| 181792 | 57 | FLYWHEEL AXLE | $28.49 | |||
 | 113842 | 58 | MAGNET | $1.49 | ||
| 112006 | 59 | M10 SPLIT WASHER | $0.99 | |||
| 175592 | 60 | FRONT PEDAL ARM BUSHING | $52.49 | |||
| 013303 | 61 | INCLINE LEG BOLT | $0.99 | |||
| 186406 | 62 | M10 X 60MM BUTTON BOLT | $17.49 | |||
 | 154848 | 64 | HOOD SCREW | $0.99 | ||
| 181903 | 65 | Lower Resistance Cable | NLA | Unavailable to order | ||
 | 012142 | 66 | BRACKET SPACER | $0.99 | ||
| 142051 | 67 | M10 SCREW | NLA | Unavailable to order | ||
| 181786 | 68 | M8 x 22mm Flat Head Bolt | NLA | Unavailable to order | ||
| 198005 | 69 | M6 X 18MM BOLT | $2.49 | |||
| 178519 | 70 | M6 X 28MM SCREW | NLA | Unavailable to order |
