Nordictrack Grand Tour Bike - NTEX71015.1 / NTEX710151

Nordictrack Grand Tour Bike – NTEX71015.1 / NTEX710151

Brand: NordicTrack

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

127 Parts Available for Nordictrack Grand Tour Bike - NTEX71015.1 / NTEX710151 ↓

Part #	Diagram #	Title	Price
383873	1	BASE	$272.99
376096	4	SEAT CARRIAGE	$105.99
367918	5	SEAT	$199.99
376515	6	HANDLEBAR POST	$184.99
376065	7	HANDLEBAR	$192.49
375573	8	WATER BOTTLE HOLDER	$63.49
376303	9A	Console for NordicTrack EBNT71015	$491.49
376304	9B	CARD,MP7,ARPS,EBNT71015	$121.99
372664	10	TABLET HOLDER	$96.99
376508	11	LEFT SHIELD	$129.49
376509	12	RIGHT SHIELD	$129.49
376510	13	ACCESS COVER	$44.49
376175	14	RIGHT MECHANISM SHIELD	$73.99
376495	15	3lb Weight Assembly with Parts and Decals	$164.49
376513	16	RIGHT MOTOR COVER	$54.49
376514	17	LEFT MOTOR COVER	$58.99
376180	18	SHIELD DISC	$120.99
376176	19	RIGHT SHIELD RING	$62.99
376327	20	RIGHT PIVOT COVER	$34.99
383904	21A	LEFT PIVOT CAP	$43.99
383905	21B	RIGHT PIVOT CAP	$43.99
376089	22	FRONT STABILIZER	$138.49
320579	24	REAR STABILIZER CAP	$14.49
190983	25	LEVELING FOOT	$32.49
157600	26	BASE PAD	$1.99
228682	27	WHEEL	$50.99
299259	28	SEAT CARRIAGE CAP	$3.49
176994	29	ADJUSTMENT KNOB	$46.49
389134	30A	AC Motor for Lift Push with Wire	$172.49
153325	30C	24″ GREEN WIRE, M/R	$6.99
382851	30D	32″ WIRE HARNESS	$23.99
380358	30E	5″ WIRE GUARD	$8.49
193223	31A	RESISTANCE MOTOR	$99.99
380370	31B	8″ WHITE WIRE HARNESS	$24.99
376489	32	WIRE COVER	$12.99
376061	33	Console Mount Bracket	$73.99
362430	34A	M4 X 16MM SCREW	$3.49
250181	34B	M4 X 16MM BRIGHT SCREW	$0.99
212190	34C	M4 X 16MM RNDHD SCREW	$3.99
372087	35	REED SWITCH/WIRE	$23.49
363953	36	REED SWITCH CLAMP/SCREW	$2.49
381248	37	IDLER PULLEY	$84.99
379073	38	M4 X 25MM SCREW	$0.99
208527	39	STOP BOLT	$3.49
376295	40A	EDDY MECHANISM	$267.49
381393	40B	TCD,NO MECH,ASSY,12.615″L	$23.99
376418	41	MECHANISM RING	$65.49
376058	42	POST BUSHING	$72.49
376174	43	LEFT MECHANISM SHIELD	$76.49
376177	44	LEFT SHIELD RING	$62.99
014174	45	M8 SPLIT WASHER	$1.99
376328	46	LEFT PIVOT COVER	$34.99
359256	47	POST KNOB	$42.49
264511	48A	POWER SWITCH	$32.99
378690	48B	16″ BLUE WIRE, F/F	$26.49
379249	48C	4″ BLACK WIRE, F/M	$23.49
313668	49	STRAIN RELIEF,NOTE:	$9.49
325862	50A	CONTROL BOARD	$142.49
214773	50B	6″ JUMPER WIRE	$2.99
376544	51	BOARD BRACKET	$27.49
125819	52	STANDOFF	$3.99
259618	53	CRANK PULLEY	$130.99
376092	54	CRANK	$87.49
113842	55	MAGNET	$1.49

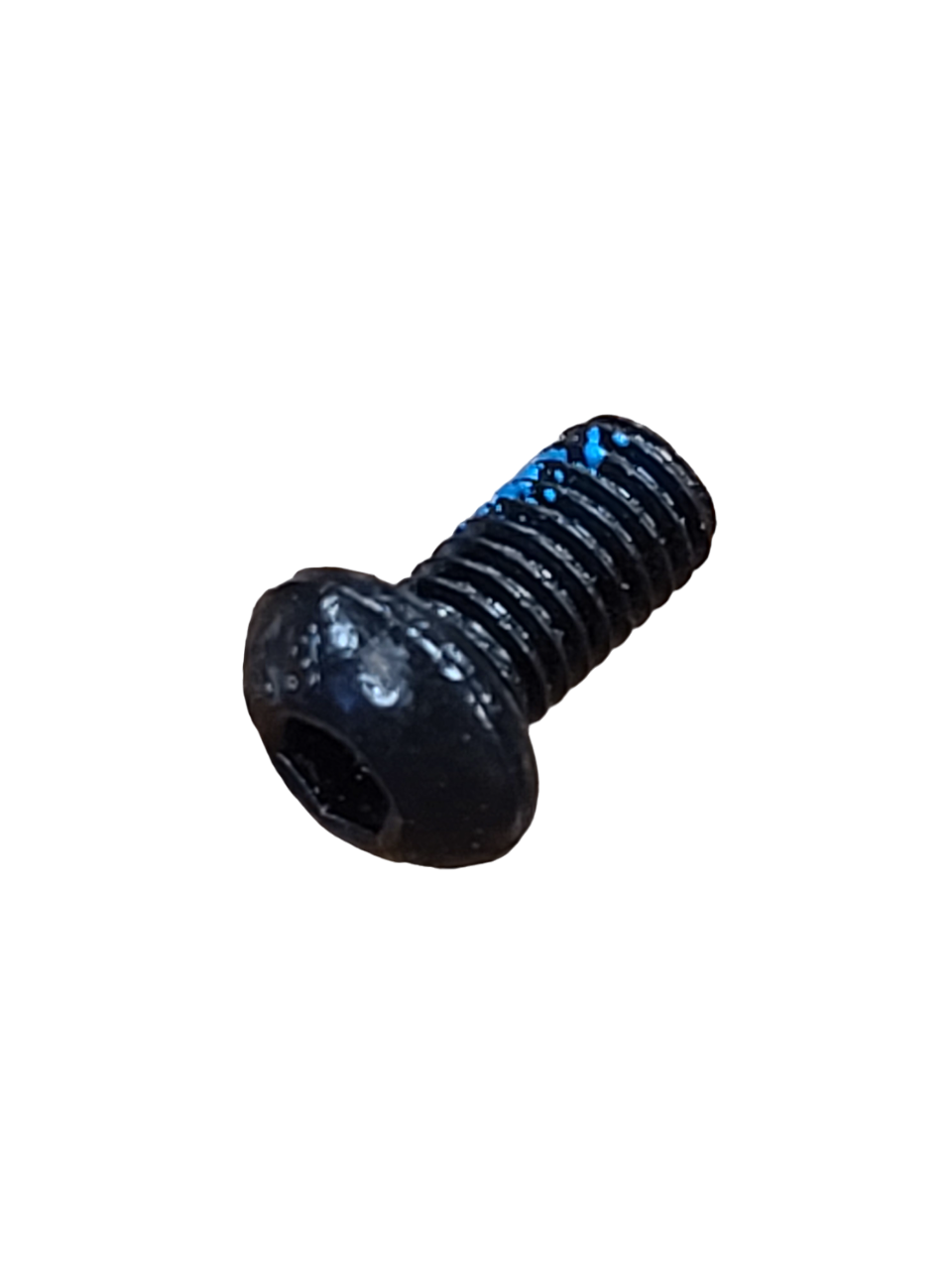

249929	56	M8 X 16MM SCREW	$2.49
139703	57	CRANK BRACKET BEARING	$33.49
143742	58	LARGE SNAP RING	$3.99
356559	59	FRAME BUSHING	$16.99
368880	60	PIVOT AXLE	$87.49
376539	61	LEFT PEDAL W/STRAP	$100.49
376540	62	RIGHT PEDAL W/STRAP	$100.49
206633	63	LEFT CRANK ARM	$87.99
206634	64	RIGHT CRANK ARM	$134.49
153209	65	CRANK CAP	$3.49
334323	66	DRIVE BELT	$49.99
342275	67A	POWER CORD	$49.99
317411	67B	POWER CORD,FCA	$82.99
163251	67C	10″ WHITE WIRE, M/F	$4.99
376101	69	LEFT ARMREST	$61.49
377998	70B	LEFT WIRE	$23.99
012142	71	M6 NYLON LOCKNUT	$0.99
376100	72	RIGHT ARMREST	$61.49
380123	73	M8 X 90MM SCREW	$11.49
163979	74	M 10X57MM LIFT FRAME BOLT	$7.49
240451	75	M80 X 50MM BUTTON SCREW	$0.99
362412	76	M5 X 16MM FLAT HEAD SCREW	$1.49
380152	77	M10 X 62MM BOLT	$21.99
246701	78	5/16″ FLANGE SCREW	$5.49
204488	79	M8X12MM CRANK PULLY SCREW	$3.49
333350	80	M8 LOCKNUT	$1.99
377997	81B	RIGHT WIRE	$23.99
130853	82	#8 X 1/2″ SCREW	$0.99
376099	83	HAND WEIGHT REST	$22.99
229817	84	WHEEL SPACER	$24.49
295505	85	Part # 295505	NLA
203289	86	#8 X 1/2″ SCREW, NOTE:	$0.99
376105	87	LARGE MOTOR BUSHING	$2.49
260541	88	M4 X 50MM SCREW	$1.99
380153	90	M6 X 41MM SCREW	$7.99
379070	91	M4 X 6MM SCREW	$0.99
286924	92A	M4 X 8MM SCREW	$0.99
379071	92B	M4 X 10MM SCREW	$3.49
213457	93B	M4 X 12MM SCREW	$1.99
273353	94	M4 X 38MM SCREW	$0.99
377818	95	HANDLEBAR KNOB	$59.49
379072	96	M4 X 12MM FLANGE SCREW	$0.99
374449	97A	BRAKE PAD/LOCK	$10.99
374447	97B	BRAKE PAD SKID PLATE	$3.49
376093	98	SMALL MOTOR BUSHING	$1.99
376103	99	HANDLEBAR CARRIAGE	$80.99
148710	100	M10 LOCKNUT	$2.49
374572	102	HANDLEBAR CARRIAGE CAP	$7.99
381392	103	M6 X 20MM SCREW	$4.99
380106	104	38MM WASHER	$5.99
235235	105	M4 X 16MM FLANGE SCREW	$0.99
381273	106	#8 X 16MM SCREW	$0.99
208939	107	M6X16MM SEAT ADJ HANDLE	$2.49
254875	108	M4 X 45MM SCREW	$1.99
381391	109	M8 X 3MM WASHER	$1.99
248364	110	M4 X 12MM BRIGHT SCREW	$0.99
215822	111A	4″ WIRE	$5.99
013576	111B	#8 X 1/2″ AB SCREW	$0.99
237533	111C	CNSL GROUND WIRE WASHER	$0.99
