IMAGE 12.5 ELLIPTICAL – IMEL5906.0

Brand: Image

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

47 Parts Available for IMAGE 12.5 ELLIPTICAL - IMEL5906.0 ↓

Part #	Diagram #	Title	Price
245472	6	STBLZR,REAR,EUSTX	$53.99
245473	8	STBLZR,FRONT,EUSTX	$47.49
245454	9	CVR,STBLZER,FRONT,EBONY	$63.99
245533	10	PEDAL,LT,ARPS,W/INSERT	$66.99
245887	17	CONSOLE	Contact for Pricing
245462	21	CVR,MTR,RT,EBONY	$67.99
245461	22	CVR,MTR,LT,EBONY	$67.99
224606	25	M4 X 25MM SCREW	$0.99
245456	27	CVR,BASE,EBONY	$39.99
224912	30	UPPER WIRE HARNESS	Contact for Pricing
225132	33	MAGNET BRACKET	Contact for Pricing
225631	34	LEFT CRANK ARM	$70.99
113842	37	MAGNET	$1.49
142056	39	DRIVE BELT	$49.99
148803	40	WHEEL	$24.99
206321	41	M8 X 19MM PATCH SCREW	$3.49
224913	42	LOWER WIRE HARNESS	Contact for Pricing
139703	44	SMALL BEARING / FOLDING FRAME BEARING	$29.98
224392	47	7.6MM SPACER	$0.99
012169	49	M8 JAM NUT	$3.49
213457	50	M4 X 12MM ROUND HEAD SCRW	$1.99
193223	52	RESISTANCE MOTOR	$99.99
131090	54	CABLE CLAMP	$0.99
190261	55	REED SWITCH WIRE	$31.49
225680	57	GUIDE ROD	Contact for Pricing
177035	60	FLYWHEEL BEARING	$71.99
224431	61	M6 EYEBOLT	$8.49
224430	62	ADJUSTMENT BRACKET	$1.99
223268	63	M8 X 47MM BUTTON SCREW	$4.99
245467	64	PLATE,RECT,3X3.5,EUSTX	$7.49

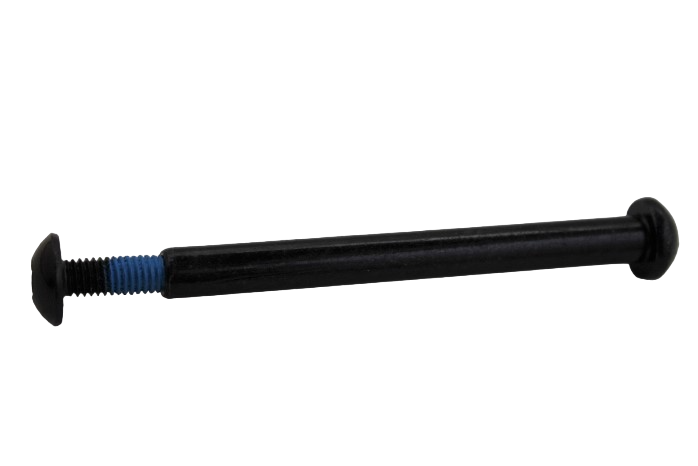

202732	65	M8 X 79MM BOLT SET	$21.99
250868	66	M8 WASHER	$3.49
014012	68	M8 X 1.2MM WASHER	$0.99
195562	69	M4 X 16MM SCREW	$1.99
211325	70	M10 X 108MM BUTTON BOLT	$5.49
252795	73	M10 SPLIT WASHER	$0.99
208855	74	COVER SCREW	$2.99
144520	77	M5 NUT	$0.99
254874	78	M5X0.8X15MM RND HD SCREW	$0.99
197404	79	M5 WASHER	$1.99
197037	80	M6 X 12MM SCREW	$0.99
198007	83	M8 X 55MM BUTTON SCREW	$6.49
198006	84	M8 X 44MM BUTTON SCREW	$5.49
014174	85	M8 SPLIT WASHER	$1.99
150327	86	M5 LOCKNUT	$1.99
013529	87	M4 X 38MM SCREW	$0.99
012042	88	M8 NYLON LOCK NUT	$1.99
251430	89	M10 JAM NUT	$1.99
012111	90	M6 NUT	$1.49
143742	92	LARGE SNAP RING	$3.99
234528	93	M8 X 54MM BOLT	$6.99
250961	95	M4 X 19MM SCREW	$0.99
164829	96	PUSH NUT TOOL	$8.49
045008	#	ALLEN WRENCH	$2.49
045021	#	6MM ALLEN WRENCH	$7.49
299925	#	WARNING DECAL	$11.49
224938	#	IFIT SPLITTER	Contact for Pricing
219196	#	UPRT WIRE HRNS WRNG DECAL	Contact for Pricing
119894	#	4MM ALLEN WRENCH	$2.49
248512	#	OPTIONAL TRANSFORMER / POWER ADAPTER	$18.99
224937	#	IFIT ADAPTER	Contact for Pricing
