Golds Gym Golds Gym Platinum System – GGSY04510.1 / GGSY045101
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
106 Parts Available for Golds Gym Golds Gym Platinum System - GGSY04510.1 / GGSY045101 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 304184 | 1 | BASE | $237.49 | |||
| 303879 | 4 | FOOT PLATE | $179.99 | |||
| 303562 | 5 | UPRIGHT | $306.49 | |||
| 303556 | 6 | Top Frame | NLA | |||
| 304190 | 7 | Butterfly Frame | NLA | |||
| 303545 | 8 | SEAT TUBE | $166.49 | |||
| 303640 | 9 | CUSHION FRAME | $110.49 | |||
| 303541 | 10 | LEG | $157.99 | |||
| 247632 | 11 | M10 X 130MM BOLT | $12.99 | |||
| 303637 | 12 | LEG LOCK FRAME | $87.49 | |||
| 303539 | 13 | LEG LEVER | $121.49 | |||
| 303481 | 14 | BURN BRACKET | $60.49 | |||
| 303512 | 15 | LEFT BUTTERFLY ARM | $196.99 | |||
| 303510 | 16 | RIGHT BUTTERFLY ARM | $196.99 | |||
| 304189 | 17 | LEFT PRESS ARM | $180.49 | |||
| 304188 | 18 | RIGHT PRESS ARM | $180.49 | |||
| 303490 | 19 | Press Handle | NLA | |||
| 303506 | 20 | LT BUTTERFLY PULLEY BKT | $76.49 | |||
| 303504 | 21 | RT BUTTERFLY PULLEY BKT | $76.49 | |||
| 303602 | 22 | LEFT BUTTERFLY PAD | $23.49 | |||
| 303599 | 24 | SEAT | $129.99 | |||
| 304100 | 26 | Resistance Band | NLA | |||
| 304088 | 27 | TOP COVER | $83.49 | |||
| 303594 | 28 | BOTTOM COVER | $81.49 | |||
| 239863 | 29 | ADJUSTMENT KNOB | $73.99 | |||
| 186135 | 30 | WEIGHT | $127.99 | |||
| 331382 | 31 | WEIGHT GUIDE | $147.99 | |||
| 303523 | 32 | WEIGHT SELECTOR | $84.49 | |||
| 304453 | 33 | GRD,WT,SHROUD,FR,ARPS | $170.49 | |||
| 304451 | 34 | GRD,WT,SHROUD,RT,ARPS | $158.99 | |||
| 303607 | 35 | Foam Pad | NLA | |||
| 303588 | 36 | FOAM PAD CAP | $3.49 | |||
| 224791 | 37 | ROLL PIN | $5.49 | |||
 | 224989 | 38 | LOCK | $7.99 | ||
| 186308 | 39 | LOCK PIN | $18.49 | |||
| 304090 | 40 | BUMPER | $14.99 | |||
 | 263328 | 41 | WEIGHT PIN | $22.99 | ||
| 303606 | 42 | PRESS ARM SPACER | $25.99 | |||
| 304092 | 43 | LOW CABLE | $158.99 | |||
| 331383 | 44 | High Cable | NLA | |||
| 331385 | 45 | Burn Cable | NLA | |||
| 343784 | 46 | DOUBLE STRAP | NLA | |||
| 304359 | 47 | LAT BAR | $118.99 | |||
| 147592 | 48 | CHAIN | $23.49 | |||
| 153134 | 49 | OPTIONAL ANKLE STRAP | $63.99 | |||
| 115383 | 50 | CABLE CLIP | $26.99 | |||

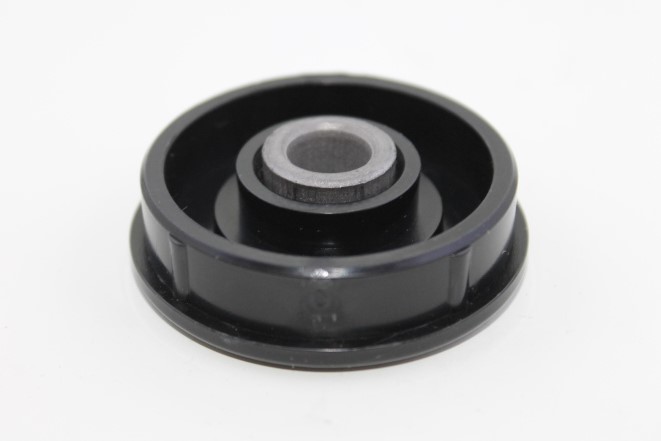

 | 331522 | 51 | BUSHING A | $27.99 | ||
| 335970 | 52 | UPPER BUTTERFLY BUSHING | $12.99 | |||
| 131221 | 53 | BASE CAP | $1.49 | |||
| 303595 | 54 | PRESS HANDLE FOAM GRIP | $9.49 | |||
 | 120733 | 55 | 1″ RND INT ENDCAP | $2.49 | ||
| 303596 | 56 | BUTTERFLY FOAM GRIP | $3.99 | |||
| 112028 | 57 | 1″ X 2″ INT ENDCAP | $8.49 | |||
| 141510 | 58 | FRAME ENDCAP | NLA | |||
| 193219 | 59 | 38mm Square Internal Endcap | NLA | |||
| 126650 | 60 | THIN BASE PAD | $0.99 | |||
| 117544 | 61 | BASE ENDCAP | $0.99 | |||
| 135884 | 62 | M6 X 16MM SCREW | $1.99 | |||
| 194171 | 63 | M10 x 93mm Bolt | NLA | |||
| 220619 | 64 | M10 x 118mm Bolt | $21.99 | |||
| 133760 | 65 | M10 X 43MM BOLT | $12.99 | |||
| 144781 | 66 | M10 X 68MM SCREW | $15.99 | |||
| 155878 | 67 | V-PULLEY | $81.49 | |||
| 196283 | 68 | 2.75″ Pulley | NLA | |||
 | 226917 | 69 | 90MM PULLEY | $80.99 | ||
| 303878 | 70 | Pulley Plate | NLA | |||
 | 194081 | 71 | CABLE TRAP | $5.99 | ||
 | 214118 | 72 | HALF GUARD | $10.99 | ||
| 241313 | 73 | 12.7mm Spacer | NLA | |||
 | 148710 | 74 | M10 LOCKNUT | $2.49 | ||
| 193237 | 75 | M10 X 65MM BOLT | $10.99 | |||
| 223086 | 76 | M10 X 49MM BUTTON BOLT | $4.49 | |||
 | 234235 | 77 | M4.2 X 16MM SCREW | $0.99 | ||
| 197179 | 78 | M10 x 95mm Bolt | NLA | |||
| 195561 | 79 | M10 X 55MM BOLT | $11.49 | |||
| 181791 | 80 | Pedal Arm Bolt Set | NLA | |||
| 143238 | 81 | M6 X 10MM SET SCREW | $3.49 | |||
| 223125 | 82 | M8 X 65MM BUTTON BOLT | $7.49 | |||
| 195577 | 83 | M10 x 125mm Screw | NLA | |||
 | 373258 | 84 | M10 X 20MM HEX SCREW | $5.49 | ||
| 278162 | 85 | M6 x 45mm Bolt | $0.99 | |||
| 306518 | 86 | M10 CURVED WASHER | $4.99 | |||
 | 012142 | 87 | M6 NYLON LOCKNUT | $0.99 | ||
 | 014132 | 88 | M10 FLAT WASHER | $0.99 | ||
| 132889 | 89 | M10 X 63MM BOLT | $12.99 | |||
| 234281 | 90 | M4.2 X 18MM SCREW | $8.49 | |||
| 194561 | 91 | M10 X 46MM BOLT | $10.99 | |||
| 303605 | 92 | LEG LEVER BUMPER | $13.49 | |||
| 211257 | 93 | M10 X 58MM BOLT | $8.49 | |||
| 304104 | 94 | 6.35MM SPACER | $3.49 | |||
| 214245 | 95 | 14.8MM SPACER | $2.99 | |||
| 173956 | 96 | BALL DETENT | $2.99 | |||
| 194885 | 97 | M10 X 36MM BOLT | $6.49 | |||
| 195560 | 98 | M10 X 45MM BOLT | $8.49 | |||
| 251430 | 99 | M10 LOCKNUT | $1.99 | |||
| 308726 | 100 | M10 X 97mm Bolt | $6.49 | |||
| 303592 | 101 | LOWER BUTTERFLY BUSHING | $6.49 | |||
 | 149217 | 102 | UPRIGHT ENDCAP | $4.49 | ||
| 214474 | 103 | HANDGRIP | $27.49 | |||
| 303589 | 105 | PLASTIC BUSHING | $3.99 | |||
| 307476 | 106 | HANDLE | $25.49 | |||
| 226395 | 107 | M4 X 12MM BOLT | $0.99 | |||
| 276016 | 108 | M4 NUT | $0.99 | |||
| 308949 | 109 | CONTAINMENT BRACKET | $27.49 |
