Proform 945 Ce Elliptical – PFEL64918.0 / PFEL649180
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
137 Parts Available for Proform 945 Ce Elliptical - PFEL64918.0 / PFEL649180 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 397936 | 1 | Frame/Ramp | NLA | Unavailable to order | ||
| 403643 | 4 | UPRIGHT | $239.99 | |||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 347381 | 6 | FRONT STABILIZER | $192.49 | |||

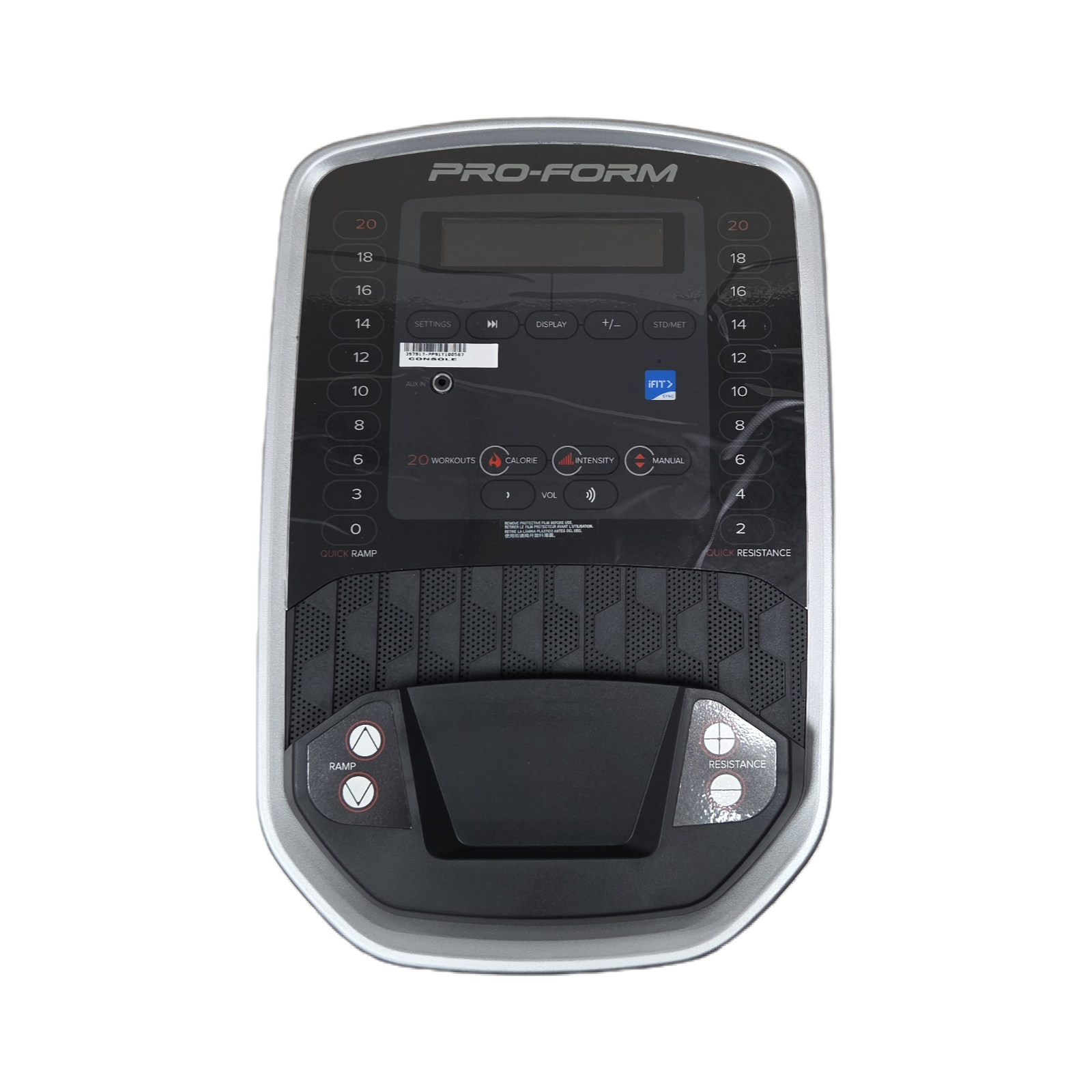

 | 397935 | 7 | CONSOLE | $270.49 | ||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 394381 | 9 | CRANK BEARING SPACER | $44.99 | ||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 349845 | 11 | INCLINE MOTOR | $165.99 | |||
| 397058 | 12 | INCLINE MOTOR ARM | $119.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
| 349894 | 14 | RAMP ARM SPACER | $8.99 | |||
| 403642 | 15 | Rear Stabilizer Cover | $87.49 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
 | 394130 | 18 | CRANK | $169.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 394127 | 20 | CRANK ARM | $149.99 | |||
| 393287 | 22 | IDLER | $120.99 | |||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | M10 LOCKNUT, CRANK | $4.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
 | 362822 | 28A | EDDY MECHANISM | $185.99 | ||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
 | 393278 | 29 | RIGHT PEDAL | $114.95 | ||
 | 348200 | 30 | STABILIZER CAP | $24.99 | ||
| 250420 | 31 | M10 X 20MM SCREW | $2.99 | |||
 | 393295 | 32 | ROLLER ARM BEARING SPACER | $31.49 | ||
 | 237631 | 33 | LARGE LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
 | 133333 | 35 | CLIP NUT | $0.99 | ||
 | 014033 | 36 | IDLER WASHER | $1.49 | ||
 | 393306 | 37 | ACCESSORY TRAY | $129.99 | ||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | REED SWITCH CLAMP | $3.49 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 394129 | 44 | LEFT PEDAL ARM | $197.49 | |||
| 380020 | 45 | RIGHT ROLLER ARM | $176.49 | |||
| 394577 | 46 | Left Upper Body Leg | $145.99 | |||
| 393290 | 47 | LEFT UPPER BODY ARM | $108.49 | |||
 | 313668 | 48 | STRAIN-RELIEF BUSHING | $9.49 | ||
| 393280 | 49 | LEFT PEDAL | $144.49 | |||
| 367635 | 50 | M4 X 12MM SELF-TAP SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 337966 | 53 | ROLLER ARM COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 399906 | 56 | ROLLER ARM BUSHING | $59.99 | |||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 394128 | 58 | RIGHT PEDAL ARM | $197.49 | |||
| 380033 | 59 | LEFT ROLLER ARM | $285.99 | |||
| 394576 | 60 | RIGHT UPPER BODY LEG | $131.49 | |||
| 393291 | 61 | RIGHT UPPER BODY ARM | $108.49 | |||
 | 299478 | 62 | HANDGRIP | $57.49 | ||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399157 | 63B | PULSE WIRE | $59.99 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 393304 | 65 | RIGHT ARM FRONT COVER | $64.99 | |||
| 393305 | 66 | RIGHT ARM REAR COVER | $47.99 | |||
| 393302 | 67 | LEFT ARM FRONT COVER | $64.99 | |||
| 393303 | 68 | LEFT ARM REAR COVER | $47.99 | |||
| 394391 | 69 | RIGHT LEG OUTER COVER | $40.99 | |||
| 394390 | 70 | LEFT LEG OUTER COVER | $40.99 | |||
| 393297 | 71 | DISC | $139.49 | |||
| 394389 | 72 | LEFT LEG INNER COVER | $45.49 | |||
| 397069 | 73 | LEFT SHIELD | $178.49 | |||
| 397070 | 74 | RIGHT SHIELD | $175.99 | |||
| 397937 | 75 | CENTER SHIELD COVER | $76.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 384941 | 77 | AXLE COVER | $9.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 383085 | 79 | FRONT CONSOLE COVER | $54.49 | |||
| 394579 | 80 | REAR CONSOLE COVER | $66.99 | |||
 | 393307 | 81 | LOWER TRAY COVER | $54.49 | ||
 | 191032 | 82A | M8 X 13MM SCREW, PULLEY | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 394392 | 83 | RIGHT LEG INNER COVER | $45.49 | |||
| 234276 | 84 | M4 X 12MM GROUND SCREW | $0.99 | |||
| 331242 | 85 | RECTANGLE GROMMET | $6.49 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | IDLER PIVOT SCREW | $4.49 | ||
 | 208163 | 89 | IDLER SCREW | $1.99 | ||
 | 353545 | 90 | M6 X 19MM WASHER | $3.49 | ||
| 397183 | 91 | DRIVE BELT ADJ SCREW | $51.99 | |||
 | 227701 | 92 | M10 X 25MM SCREW | $2.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 351856 | 94 | MOTOR ARM SPACER | $1.99 | |||
 | 249930 | 95 | M8 X 20MM SCREW | $2.99 | ||
| 013226 | 96 | M8 X 45MM BOLT | $5.99 | |||
 | 223812 | 97 | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 394133 | 99 | CRANK PULLEY SPACER | $11.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4X16MM SCREW, CRANK AXLE | $3.49 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
| 347127 | 104 | M10 X 114MM SCREW | $21.49 | |||
| 393300 | 106 | LOWER RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 X 13MM SCREW | $5.99 | ||
 | 208583 | 109 | M10 X 58MM BOLT | $5.99 | ||
| 407549 | 110 | MAIN WIRE | $91.49 | |||
| 351172 | 111 | 20″ CNCTLR/LIFT MTR WIRE | $50.99 | |||
| 378126 | 112 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
| 392990 | 113 | DRIVE BELT | $90.99 | |||
 | 316981 | 114 | CONTROLLER W/STANDOFFS | $124.99 | ||
 | 125819 | 115 | STANDOFF | $3.99 | ||
| 403641 | 117 | DISC RING | $126.49 | |||
| 397938 | 118 | REAR SHIELD COVER | $97.99 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
 | 384942 | 120 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 237616 | 121 | SMALL FRAME BUSHING | $4.99 | ||
| 350182 | 122 | M10 X 48MM BOLT | $9.49 | |||
 | 384931 | 123 | SMALL ARM BEARING | $43.99 | ||
 | 224606 | 126 | M4 X 25MM SCREW | $0.99 | ||
| 397074 | 127 | DISC BRACKET | $43.99 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 X 22MM WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
 | 398534 | 132 | TABLET HOLDER | $107.49 | ||
 | 184369 | 133 | M4 X 16MM MACHINE SCREW | $0.99 | ||
 | 340140 | 135 | M6 X 26MM WASHER | $1.49 | ||
| 130286 | 136 | M8 FLAT WASHER | $11.49 | |||
| 270274 | TS4 | 18″ WHITE WIRE | $5.99 | |||
| 203981 | TS5 | 018″ BLUE WIRE | $40.49 | |||
| 320978 | TS6 | 018″ GREEN WIRE | $5.49 | |||
| 324737 | TS8 | 20″ WIRE HRNS, RESIST MTR | $30.49 |
